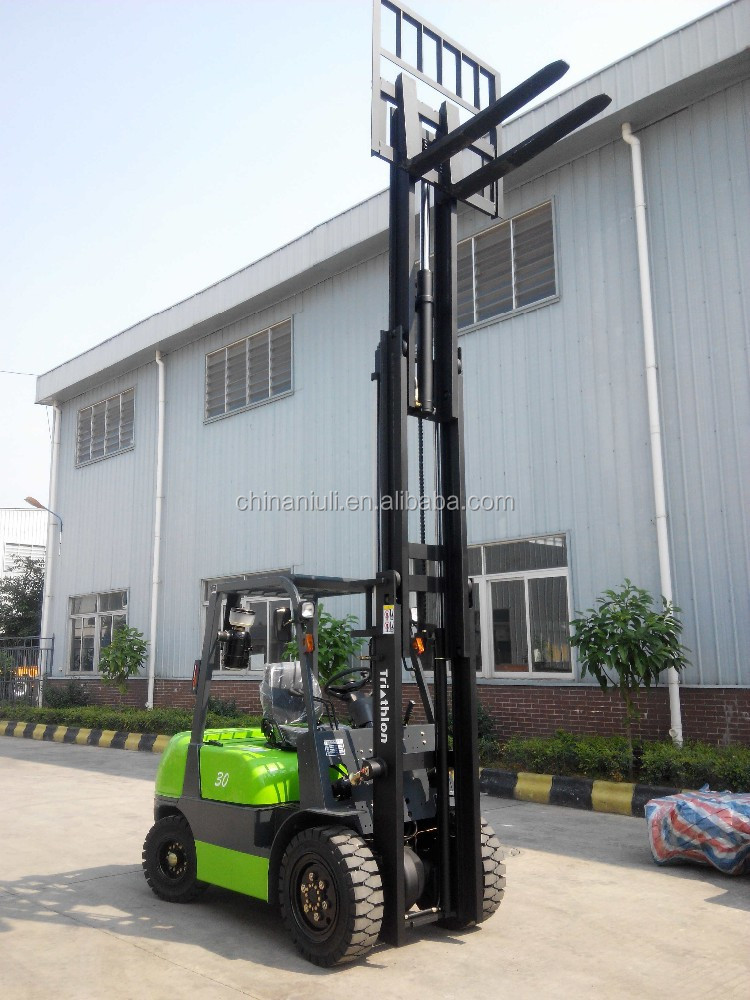

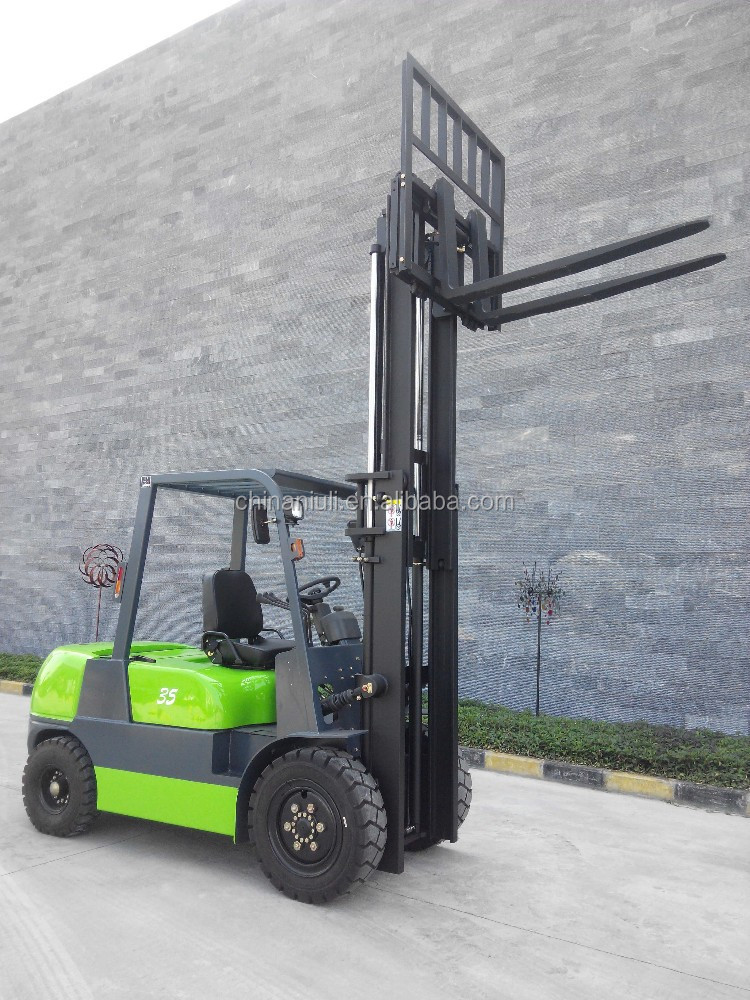

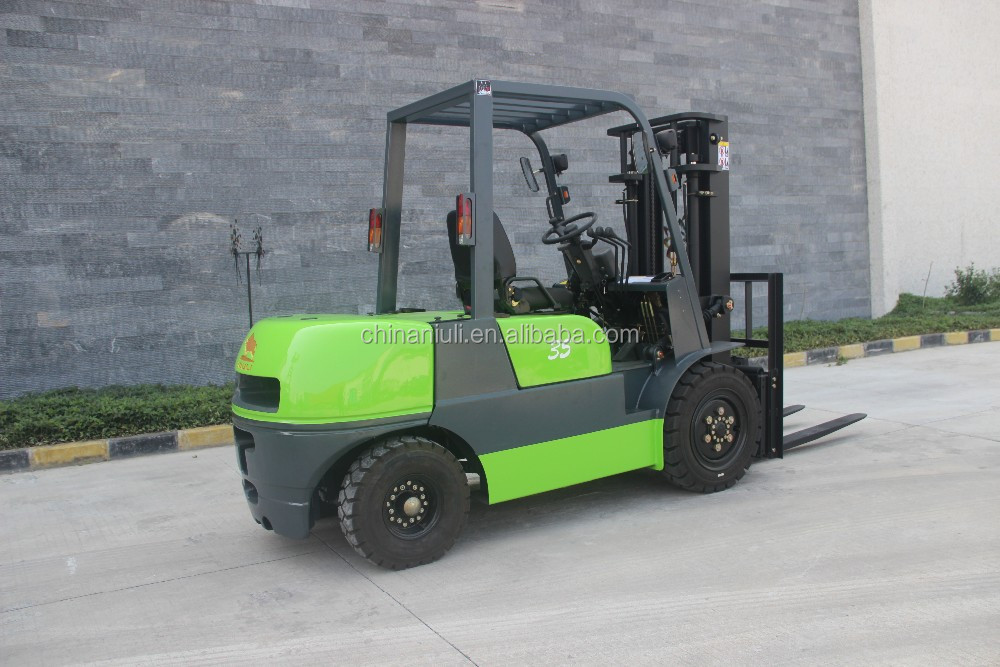

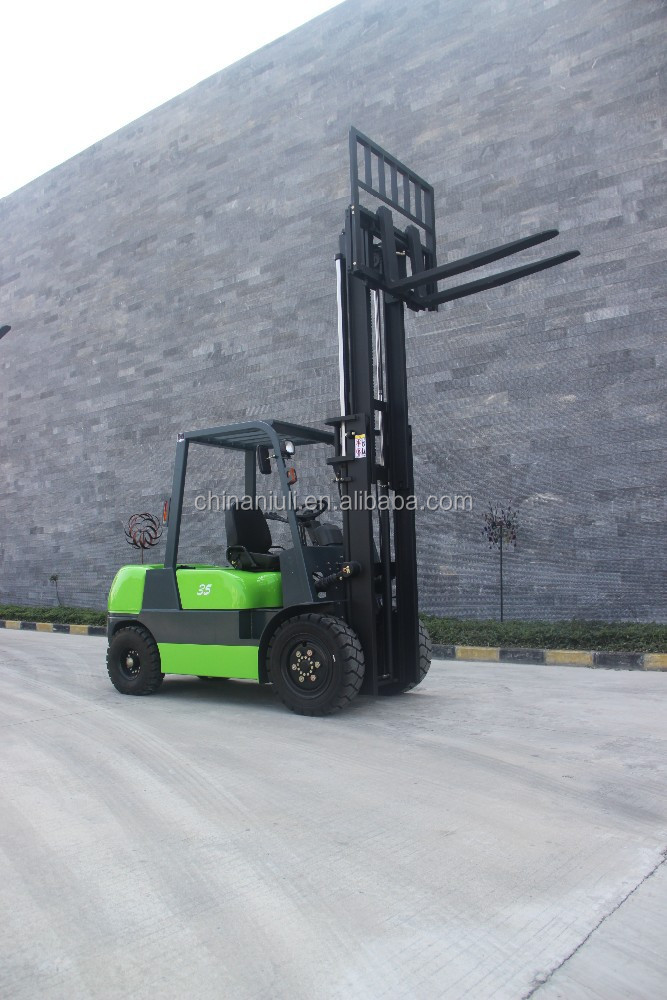

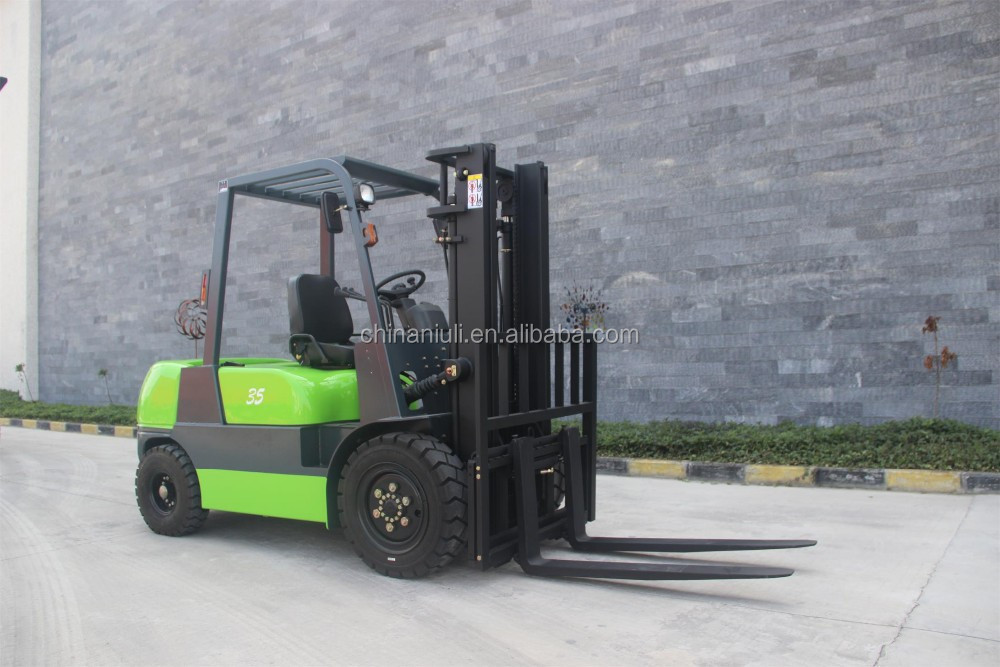

Diesel forklift
Forklift is a transportation vehicle,used for loading and unloading,short distance transport,heavy lifting,is called industrial vehicle by The international organization for Standardization ISO/TC110,used as transport machine, Widely used in national economic departments , for example: the railway station, port, airport,factory, warehouse, etc, is efficient equipment mechanical for loading and unloading, stacking and short distance transport.
Features:
1.Power transmission system, overhead guard and truck frame all use dual suspension structure, which can weaken the vibration transferred from power system wheel,control lever and seat ,thus making the operator feel more comfortable during operation. 2.This forklift truck is designed with high definition liquid crystal display device which not only provides convenience for operator to understand the working condition of truck,but also broadens the visual field of operator. 3.This diesel forklift truck can be designed with two stage free lifting mast or three stage mast,luxurious and closed driving room,solid tire, side shifter, roll clamps, clamp holder, and nonstandard forks etc,to meet your different needs.
2.5~3.0 ton diesel forklift
1) Engine optional: China Xinchai Quanchai 490/ 498, optional Euro 3 standard; Japan Isuzu C240/4JG2, Mitsubishi S4S, etc.;
2) Mast optional: 3/4/4.5/5m duplex mast, 4.5/5/5.5/6m triplex mast, 3/3.3/3.5/4m duplex full free mast.
3) Transmission: Automatic/manual;
4) Tire: pneumatic/Solid/non-mark solid;
5) Forks: 1070/1220/1370/1520/1670/1820mm;
6) Attachments: Side shifter, fork positoner, fork sleeve, paper roller clamp, bale clamp, drum clamp, load extender, rotator, fork clamps, push/pull, etc.
We can provide you diesel forklift with different capacity.
| General | 1 | Model | CPC30/CPCD30 | ||||||
| 2 | Power Type | Diesel/GAS | |||||||
| 3 | Rated capacity | Kg | 3000 | ||||||
| 4 | Load center | mm | 500 | ||||||
| Charactertic&Dimension | 5 | Lifting height | H1 | mm | 3000 | ||||
| 6 | Fork size | a×b×c | mm | 1070*122*40 | |||||
| 7 | Mast Tilt Angle | F/R | Deg | 6°/12° | |||||
| 8 | Front Overhang(Wheel center to fork face) | mm | 500 | ||||||
| 9 | Ground Clearance(Bottom Of Mast) | m1 | mm | 126 | |||||
| 10 | Overall Dimension | Overall length(with/without fork) | L1/L2 | mm | 3790/2700 | ||||
| 11 | Overall width | B | mm | 1230 | |||||
| 12 | Mast lowered height | H3 | mm | 2105 | |||||
| 13 | MastExtended height(with backrest) | H2 | mm | 4110 | |||||
| 14 | Overhead guard height | H4 | mm | 2140 | |||||
| 15 | Turning Radius(outside) | Wa | mm | 2415 | |||||
| 16 | Min. intersecting aisle | Ra | mm | 2500 | |||||
| Performance | 17 | Speed | Travel(Full/Empty load) | km/h | 18/19 | ||||
| 18 | Lifting(Full/Empty load) | mm/s | 460/540 | ||||||
| 19 | Max.Gradeability | % | 20 | ||||||
| Chassis | 20 | Tire | Front | 28x9-15-12PR | |||||
| 21 | Rear | 6.50-10-10PR | |||||||
| 22 | Wheelbase | L4 | mm | 1650 | |||||
| 23 | Self Weight | kg | 4280 | ||||||
| Power&Transmission | 24 | Battery | Voltage/Capacity | V/Ah | 12/120 | ||||
| 25 | Engine | Model | C240 | C490BPG | |||||
| 26 | Manufacturer | ISUZU | XinChang | ||||||
| 27 | Rated output/r.p.m | kW/rpm | 34.3/2500 | 34.3/2500 | |||||
| 28 | Rated torque/r.p.m | Nm/rpm | 137.7/1800 | 160/1800-2000 | |||||
| 29 | No. of cylinder | 4 | 4 | ||||||
| 30 | Bore x Stroke | mm | 86x102 | 90x105 | |||||
| 31 | Displacement | cc | 2369 | 2670 | |||||
| 32 | Fuel Tank capacity | L | 60 | 60 | |||||
| 33 | Transmission | Type | Machanical/Hydraulic | ||||||
| 34 | Operation Pressure for Attachment | Mpa | 17.5 | ||||||
