Self-propelled Platform

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

wheelchair elevator lift

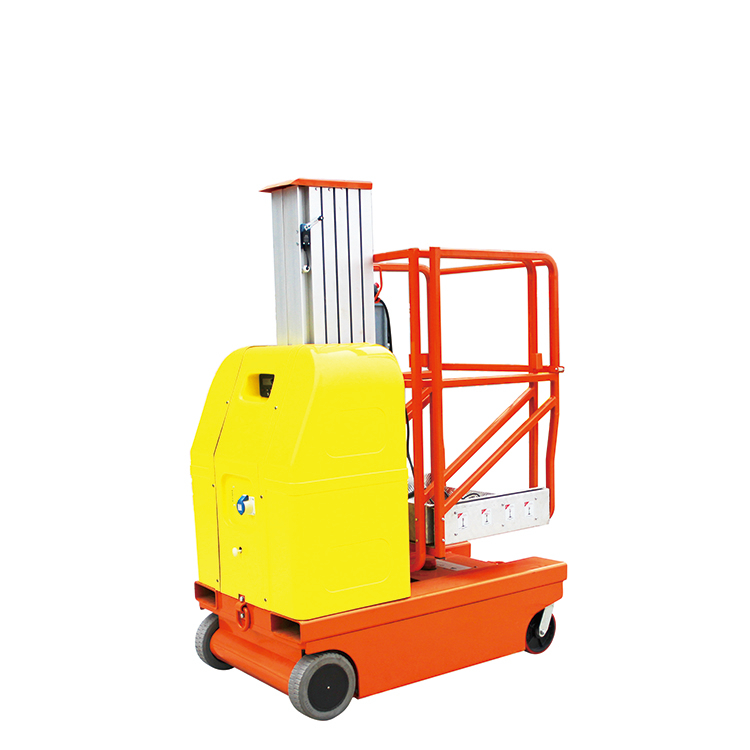

 Self-propelled Aluminium Alloy Aerial Lift Platform


commercial outdoor wheelchair lift disabled lift


Machine specifications






SPECIFICATION GTWZ7.501 GTWZ601
Weight 880KG 850KG
Overall height 2.00m 1.92m
Overall width 0.8m
Overall height 1.36m
Maximum slope 1.5-3
Gradeability 30%
Maximum Drive Speeds-Stowed 4Km/h
Maximum Drive Speeds-Raised 1.1Km/h
Ground clearance 0.02m
Wheelbase 1.17m
Front wheels 8in
Drive wheel 250*80






Electrical specifications






SPECIFICATION GTWZ7.501 GTWZ601
Batteries 2-12V/120Ah
Integrated charger 24V/15A
Drive motors 2-24V/0.5KW
Lifting motor /
Lifting motor 24VDC/1.5KW






Platform Data






SPECIFICATION GTWZ7.501 GTWZ601
S.W.L 125KG 150KG
S.W.L on extension 90KG
Platform size 0.78*0.70m
Platform extension size 0.56m
Working height 9.5m 8m
Plaform floor height 7.5m 6m
Up/Down speed 48/40sec 43/35sec
