FDN
NIULI
| Quantity: | |
|---|---|
FDN16 | FDN20 | |||
Overview | 1.1 Manufacturer | NIULI | NIULI | |
1.2 Model | FDN16 | FDN20 | ||
1.3 Power Type | Electric | Electric | ||
1.4 Operation Type | Seat | Seat | ||
1.5 Rated capacity | Q kg | 1600 | 2000 | |
1.6 Load centre | c mm | 500 | 500 | |
1.7 Front overhang | x mm | 381 | 386 | |
1.8 Wheelbase | y mm | 1360 | 1360 | |
Weigh | 2.1 Self weight | kg | 2940 | 3180 |
Tire chassis | 3.1 Tire Type | Superelastic | Superelastic | |
3.2 Front | 18‑7‑8 | 18‑7‑8 | ||
3.3 Rear | 15*4 1/2‑8 | 15*4 1/2‑8 | ||
3.4 Number of tires (x = drive wheel) | 2X/2 | 2X/2 | ||
3.5 Front‑wheel tread | b3 mm | 960 | 960 | |
3.6 Rear‑wheel tread | b4 mm | 180 | 180 | |
Dimensions | 4.1 Mast Tilt Angle Front/Rear | α/β Grad | 6/10 | 6/10 |
4.2 Mast closed height | h1 mm | 1985 | 1985 | |
4.3 Free lift height | h2 mm | 130 | 130 | |
4.4 Standard lift height | h3 mm | 3000 | 3000 | |
4.5 Mast extended height (with Lifting frame) | h4 mm | 3990 | 3990 | |
4.6 Overhead Guard Height | h5 mm | 2075 | 2075 | |
4.7 Total Length With Forks | L1 mm | 3050 | 3200 | |
4.8 Total Length Without Forks | L2 mm | 2130 | 2130 | |
4.9 Total Width | b1 mm | 1150 | 1150 | |
4.11 Fork Size (L×W×T) | s×e×L mm | 920×100×35 | 1070×120×40 | |
4.12 Fork Rack Width | W mm | 1040 | 1040 | |
4.13 Fork Spacing | mm | 200/980 | 240/980 | |
4.14 Min. ground clearance Lifting frame | m1 mm | 98 | 98 | |
4.15 Min. ground clearance Truck Body | m2 mm | 100 | 100 | |
4.16 Aisle width for pallets Pallets 1000×1200, Transversal | Ast mm | 3571 | 3576 | |
4.17 Aisle width for pallets Pallets 800×1200, Longitudinal | Ast mm | 3771 | 3776 | |
4.18 Min. turning radius | Wa mm | 1990 | 1990 | |
Parameters | 5.1 Max. travel speed No load/Full load | km/h | 12/13 | 12/13 |
5.2 Max. lifting speed Full load/No load | mm/s | 270/350 | 270/350 | |
5.3 Descending speed No load/Full load | mm/s | 520/420 | 520/420 | |
5.5 Gradeability Laden/unladen | % | 12/15 | 12/15 | |
5.6 Driving brake | hydraulic type | hydraulic type | ||
5.7 Parking brake | Mechanical | Mechanical | ||
Electrical | 6.1 Traction motor power, S2 60min work system | kW | 7 | 8.6 |
6.2 Lifting motor power, S3 15% work system | kW | 7 | 8.6 | |
6.3 Specification of battery(Voltage/Capacity) | V/Ah | Acid: 48/360 480/400 48/460 | Acid: 480/400 48/460 | |
Other | 7.1 Driving control system | AC | AC | |
7.2 Oil volume for attachment | l/min | 30 | 30 | |
7.3 Operating pressure for attachment | Mpa | 14.5 | 14.5 | |
7.4 Noise | dB | 72 | 72 |
This forklift can be equipped with a triple mast, achieving a maximum lifting height of 6000mm, suitable for high-level stacking and warehouse shelf operation.
Both FDN16 and FDN20 models adopt a 48V battery system, with stable voltage output, supporting continuous long-time indoor handling work.
The FDN20 electric forklift is fitted with an 8.6kW traction motor, featuring strong power, stable driving and excellent load-carrying performance.
It adopts a dual braking system of hydraulic service brake and mechanical parking brake, with sensitive braking response, ensuring high safety for frequent warehouse operations.
The FDN20 forklift has a minimum turning radius of 3576mm, with flexible steering performance, adapting to most conventional warehouse and narrow aisle working scenarios.
The full-load traveling speed of the forklift is up to 12km/h, which balances operating safety and handling efficiency for daily warehouse logistics.
The mast forward tilt angle is 6° and the rear tilt angle is 10°. The reasonable tilt design effectively fixes goods and avoids cargo slipping during stacking and handling.

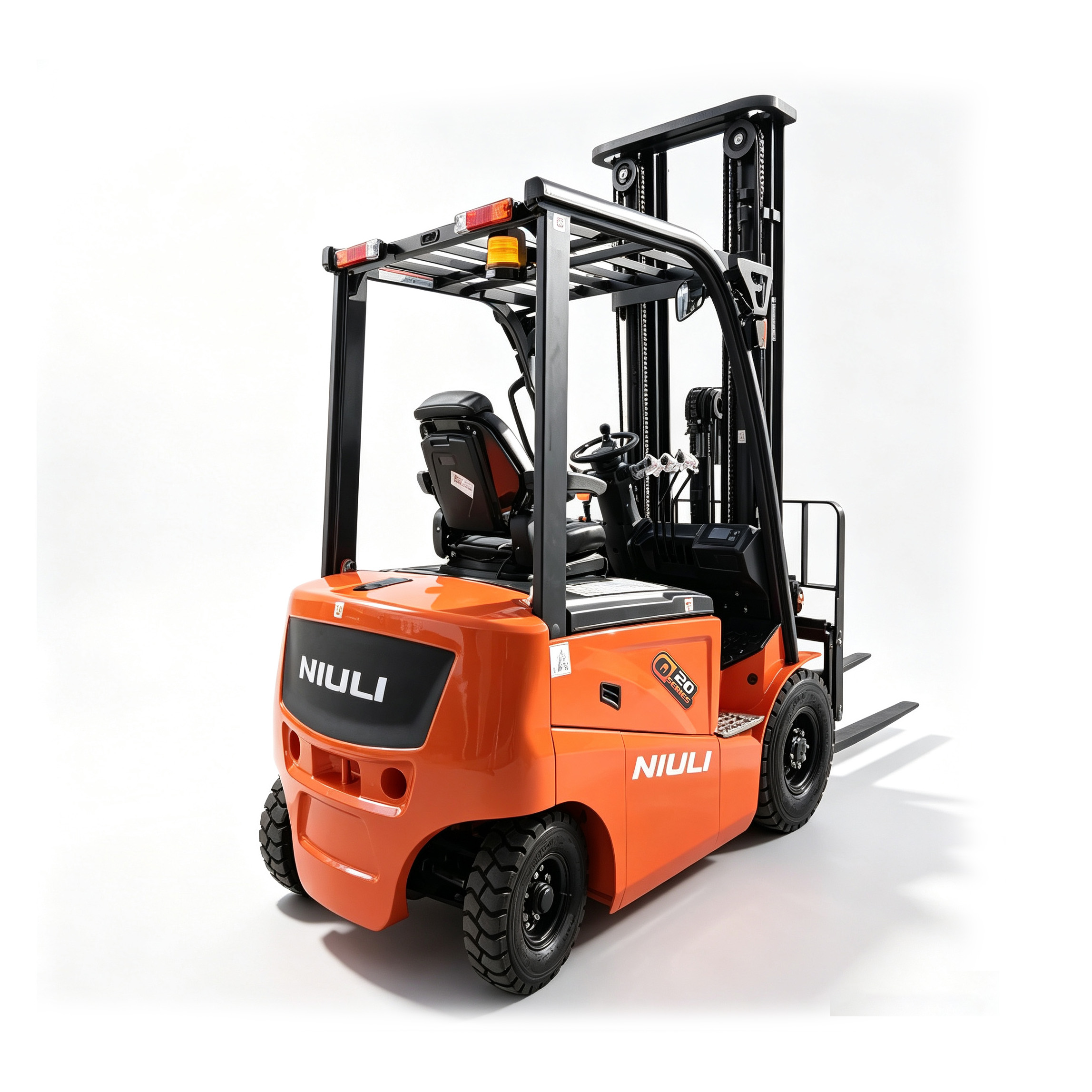

This FDN series electric forklift adopts a side extraction battery design, making battery inspection, maintenance and replacement more time-saving and labor-saving.
