Lithium Battery Forklift

  • FB20/25

  • NIULI

  • 8427900000

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

The AC motor control system is adopted to make the operator feel more comfortable. Equipped with a high-definition liquid crystal display device, the operator can easily understand the working status, expand the visual area, and make it more convenient and fast for the operator to view the instrument.


● Safe and stable, the sunken battery arrangement improves the stability of the vehicle;

● A single pedal controls forward, backward and acceleration to improve work efficiency;

● Adopt AC motor control system to reduce maintenance cost.

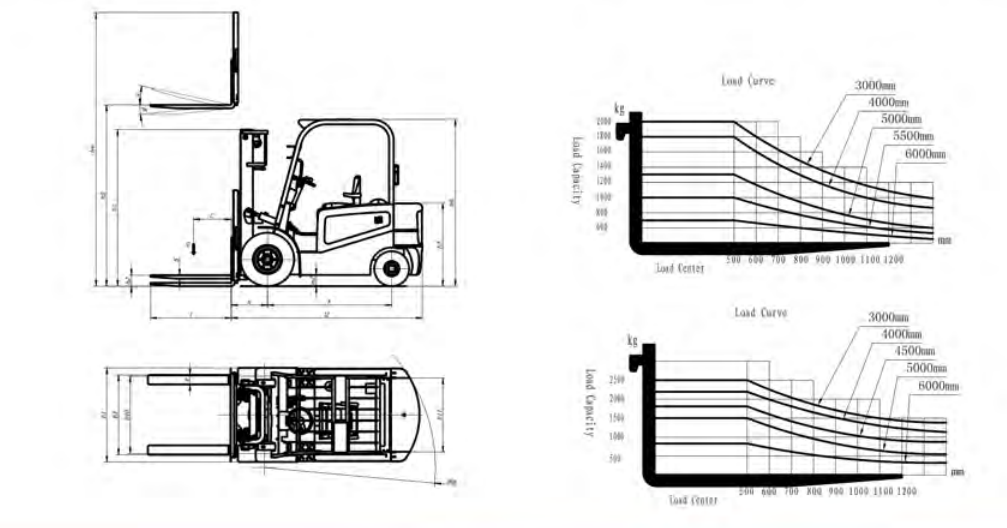

FB2025

Model CPD20 CPD25
Characteristics Power Electric Electric
Operation type seat seat
Capacity/Rated load(T) 2.0 2.5
Load centre distance(mm) 500 500
Wheel base(mm) 1500 1500
Axle loading,unladen rear(kg) 4100 4300
Tyres Tyres type P/P P/P
Tyres size(front/rear)(mm) 7.00-12-12PR/18×7-8-14PR 7.00-12-12PR/18×7-8-14PR
Tyres,number (front/rear) 2X/2 2X/2
Tread(rear/front)(mm) 960/950 960/950
Dimensions Tilt of mast(°) 6--12 6--12
Stardard Lift height(mm) 3000 3000
Free lift(mm) 135 120
Overall length(mm) 2360 2360
Overall width(mm) 1150 1150
mast lowered height(mm) 2060 2060
mast extended height(mm) 4100 4100
Height of overhead guard(mm) 2200 2200
Fork dimensions(mm) 1070×100×40 1070×100×40
Fork adjustment((mm) 200-1000 200-1000
Traction pin height(mm) 300 300
Mast Ground clearance(Laden/unladen)(mm) 135 135
Ground clearance,centre of wheelbase(laden/unladen)(mm) 125 125
Seat height(mm) 1070 1070

Turning radius(mm)

2040 2040
Internal radius(mm) 100 100
Aisel width of pallet 1000*1200 crossway(mm) 3720 3800
performance Travel speed(laden/unladen)(km/h) 13.0/15 13.0/15
Lifting speed(laden/unladen)(mm/h) 290/450 280/450
Lowering speed(laden/unladen)(mm/h) 470/440 450/430
Max gradeability(%) 13/15 13/15
Drive Travel motor XYQ-11-3EH XYQ-11-3EH
Travel motor power(kw/rpm) 11 11
Hydraulic motor XYQD-10-2CH XYQD-10-2CH
Controller UK SEVCON UK SEVCON
Truning control Hydraulic Hydraulic
Travel control MOSFET MOSFET
Lifting control MOSFET MOSFET
Oil tank(L) ≤40 ≤40
Battery Battery(V/AH) 48/500 48/600
Battery weigth 900 1030
Battery dimensions(L*W*H) 1030×500×760 1030×500×760
Others Stopping braking Manual/mechanical Manual/mechanical
Service braking Feet/Hydraulic Feet/Hydraulic
Operation pressure(kPa) 135 160
Noise Level(7.5m) 70db(A) 70db(A)
