CPD-E
NIULI
| Quantity: | |
|---|---|
Project | Parameters | Organization | CPD20 | CPD25 | CPD30 | |
Overview | Manufacturer | NIULI | - | - | - | - |
Rated capacity (Q) | kg | 2000 | 2500 | 3000 | 3500 | |
Load centre (c) | mm | 500 | 500 | 500 | 500 | |
Front overhang (x) | mm | 468 | 468 | 473 | 495 | |
Wheelbase (y) | mm | 1495 | 1495 | 1495 | 1500 | |
Weight | Self weight | kg | 3820 | 4020 | 4520 | 5150 |
Axle load (Full load) Front/Rear | kg | 5200/620 | 5920/700 | 6846/794 | - | |
Axle load (Empty load) Front/Rear | kg | 1680/2140 | 1760/2360 | 1940/2700 | - | |
Tire chassis | Tire Type | Pneumatic/Solid | - | Solid | Solid | Solid |
Front-wheel tread (b3) | mm | 1035 | 1035 | 1035 | 1035 | |
Rear-wheel tread (b4) | mm | 984 | 984 | 984 | 984 | |
Dimensions | Mast Tilt Angle (Front/Rear) (α/β) | Grad | 5/10 | 5/10 | 5/10 | 5/10 |
Mast closed height (h1) | mm | 2055 | 2055 | 2055 | 2055 | |
Free lift height (h2) | mm | 140 | 140 | 145 | 145 | |
Standard lift height (h3) | mm | 3000 | 3000 | 3000 | 3000 | |
Mast extended height (with Lifting frame) (h4) | mm | 3985 | 3985 | 4075 | 4075 | |
Overhead Guard Height (h5) | mm | 2140 | 2140 | 2140 | 2140 | |
Total Length (With Forks) (L1) | mm | 3407 | 3407 | 3410 | 3410 | |
Total Length (Without Forks) (L2) | mm | 2337 | 2337 | 2342 | 2342 | |
Total Width (b1) | mm | 1265 | 1265 | 1265 | 1285 | |
Fork Size (L×W×T) (s×e×L) | mm | 1070×125×40 | 1070×125×40 | 1070×125×45 | 1070×125×50 | |
Fork Rack Standard | ISO2A/ISO3A | - | ISO2A | ISO2A | ISO3A | |
Fork Rack Width (W) | mm | 1100 | 1100 | 1100 | 1100 | |
Fork Spacing | mm | 250/1040 | 250/1040 | 250/1100 | 250/1100 | |
Min. ground clearance (Lifting frame) (m1) | mm | 120 | 120 | 120 | 120 | |
Min. ground clearance (Truck Body) (m2) | mm | 125 | 125 | 125 | 125 | |
Aisle width for pallets 1000×1200, Transversal (Ast) | mm | 4288 | 4288 | 4295 | 4295 | |
Aisle width for pallets 800×1200, Longitudinal (Ast) | mm | 4320 | 4320 | 4325 | 4325 | |
Min. turning radius (Wa) | mm | 2100 | 2100 | 2100 | 2100 | |
Parameters | Max. travel speed (No load/Full load) | km/h | 18/15 | 18/15 | 18/15 | 18/15 |
Max. lifting speed (Full load/No load) | mm/s | 280/390 | 280/390 | 280/390 | 280/395 | |
Descending speed (No load/Full load) | mm/s | ≤600 | ≤600 | ≤600 | ≤600 | |
Electrical | Traction motor power, S2 60min work system | kW | 13 | 13 | 17 | 17 |
Lifting motor power, S3 15% work system | kW | 17 | 17 | 17 | 17 | |
Specification of battery (Voltage/Capacity) | V/Ah | 80V/230AH | 80V/280AH | 80V/410AH | 80V/410AH | |
Other | Noise | dB | 74 | 74 | 74 | 74 |
Traction pin diameter | mm | φ25 | φ25 | φ25 | φ25 | |
Hydraulic oil tank capacity | liter | 50 | 50 | 50 | 50 |

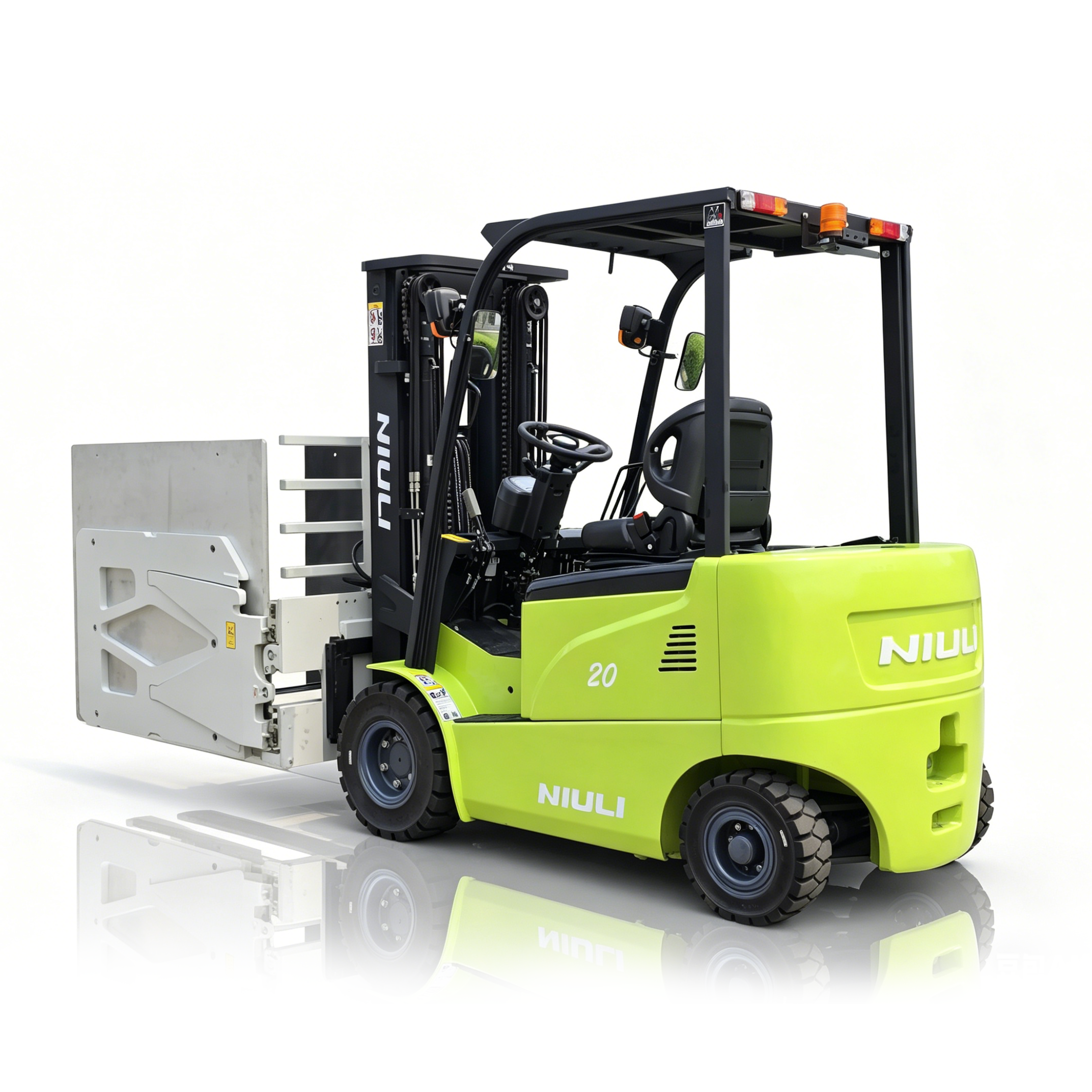

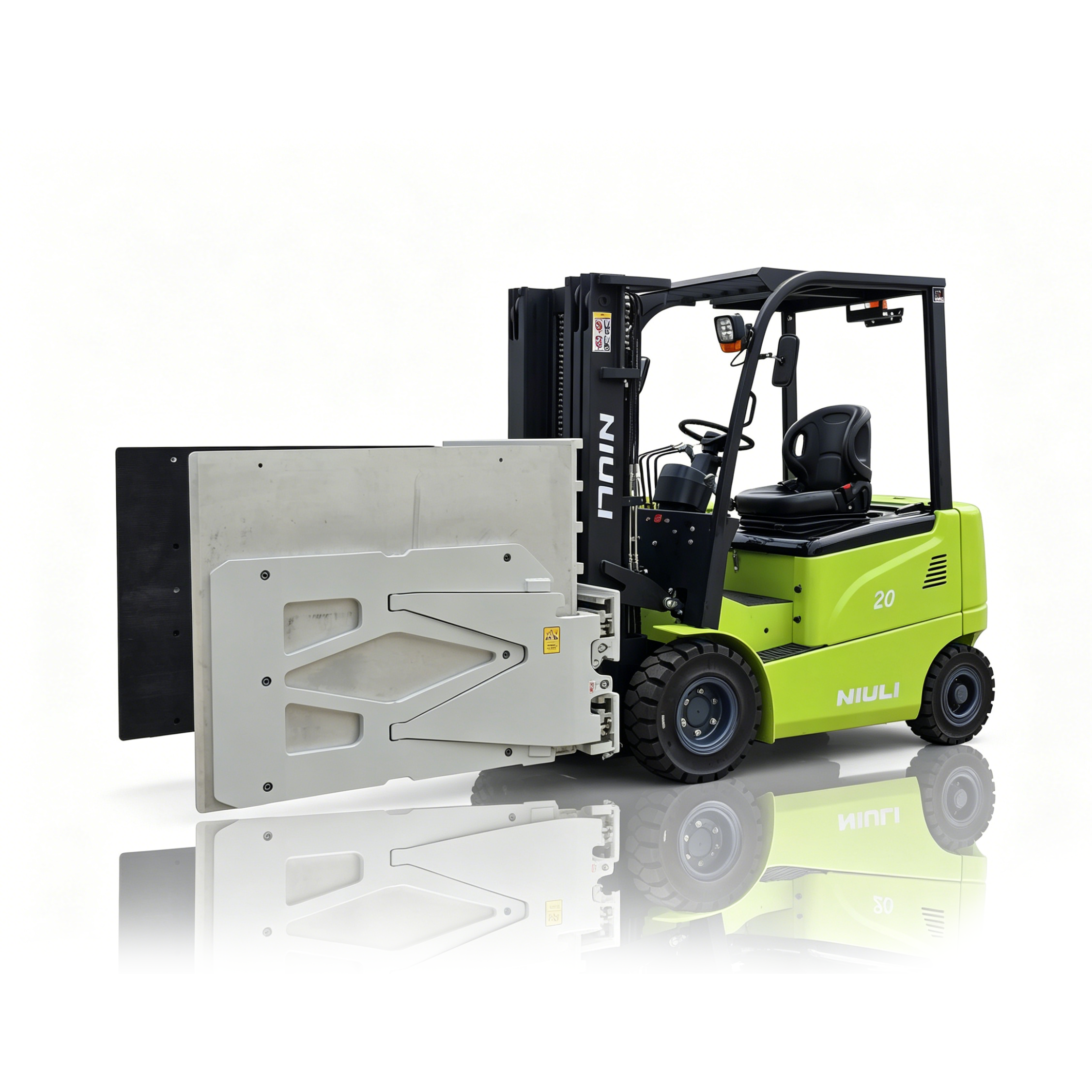

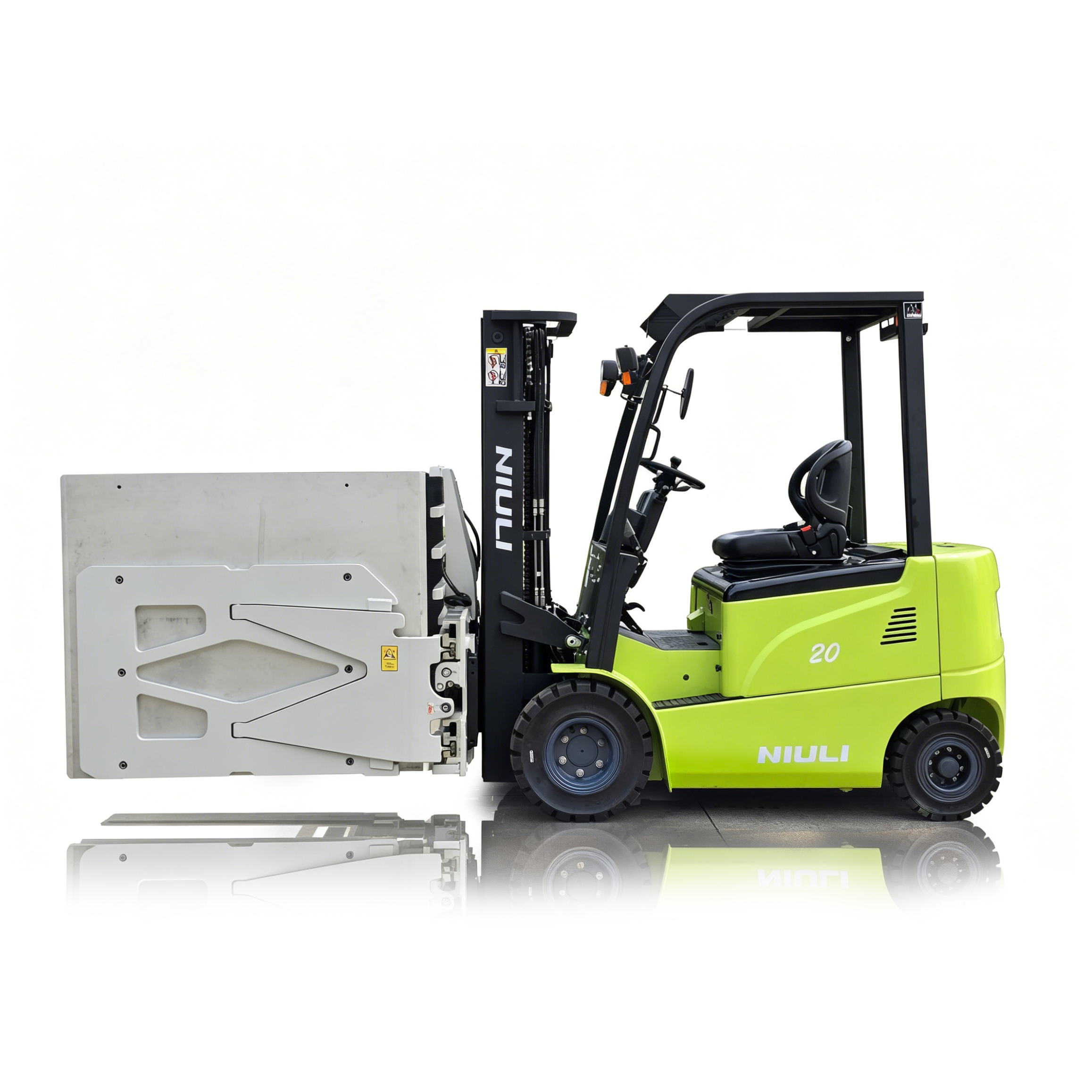

What scenarios is this NIULI 2-ton lithium forklift with refrigerator clamp attachment mainly used for?
This combination is specially designed for the production, warehousing and transportation of white goods such as refrigerators, freezers and washing machines. It is especially suitable for home appliance factories, e-commerce warehouses and cold chain logistics centers, enabling efficient handling, loading/unloading and stacking without pallets, which greatly improves operational efficiency.

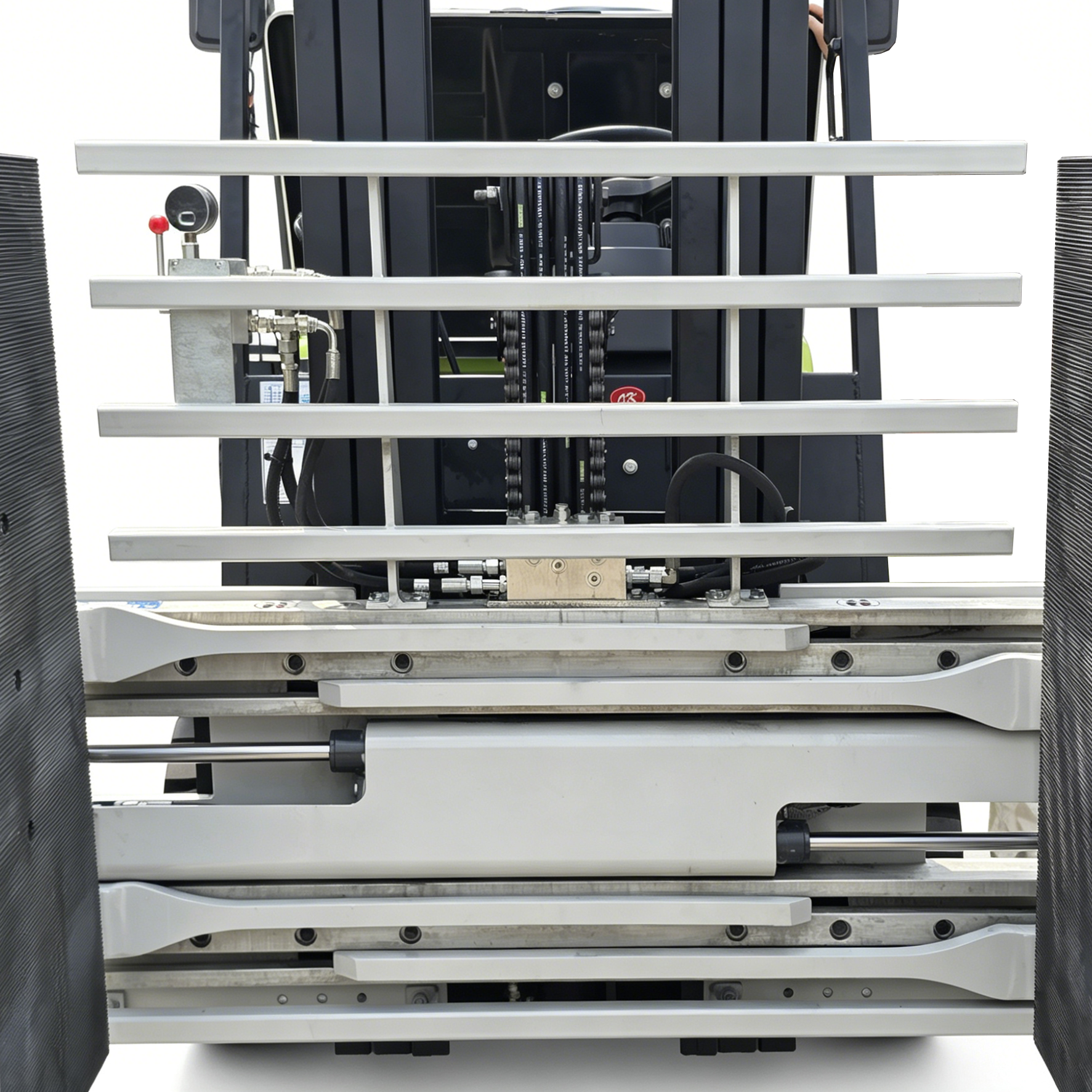

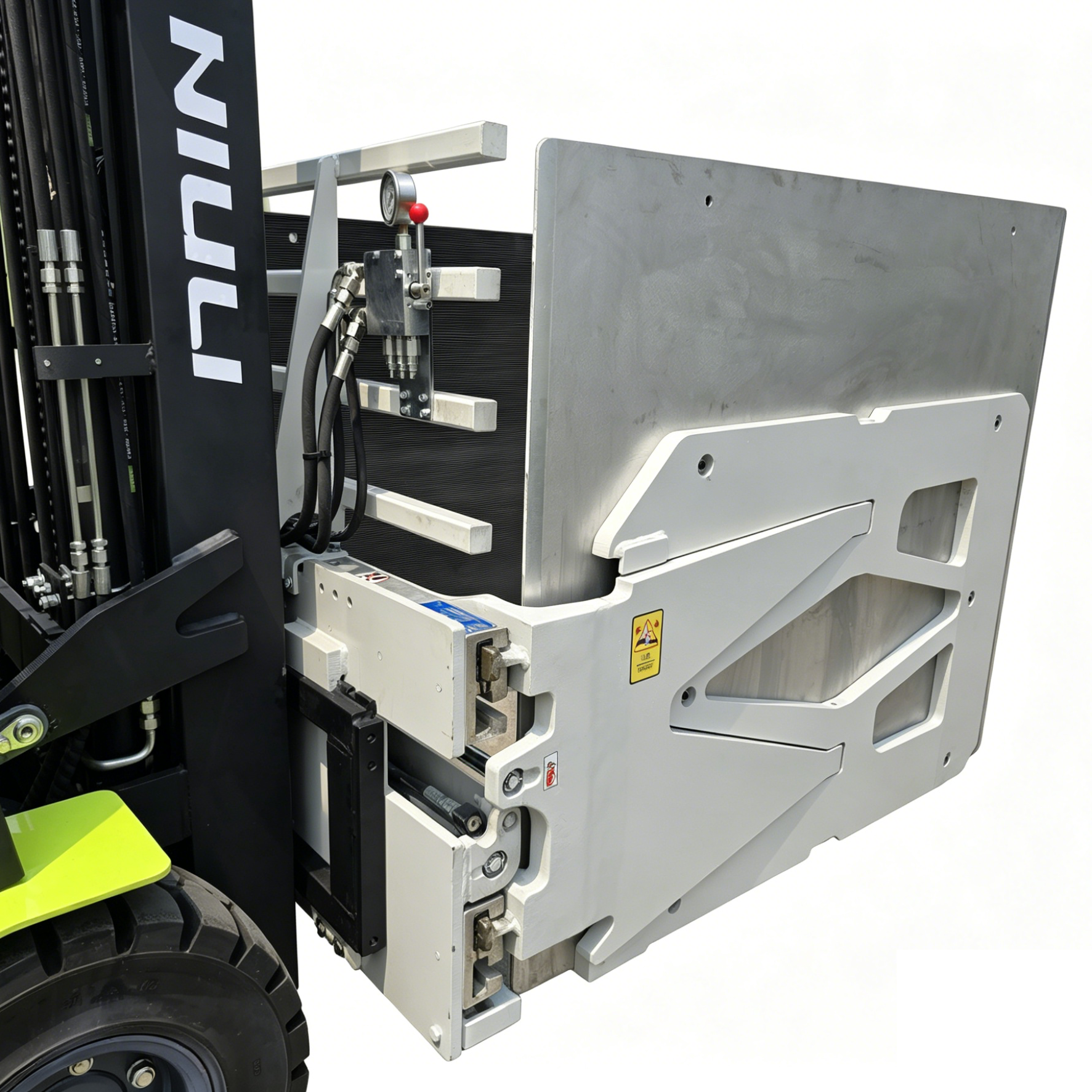

How is the clamping force and stability of the refrigerator clamp attachment? Will it damage the appliances?
The attachment is equipped with anti-slip rubber pads and a precise hydraulic control system. The clamping force can be infinitely adjusted according to the type of goods. It can firmly hold the refrigerator cabinet without causing deformation or surface damage due to excessive pressure, ensuring safety and reliability.
What is the battery life of this 2-ton lithium forklift? How long can it run on a full charge?
Powered by a high-performance lithium battery, it can last 8-10 hours on a full charge (depending on working conditions). It also supports fast charging, reaching 80% capacity in just 2 hours, fully meeting the needs of high-intensity operations throughout the day.
Compared with diesel forklifts, what are the advantages of this lithium forklift in terms of operating costs?
Lithium forklifts have no engine or transmission vulnerable parts. Daily maintenance only requires checking the battery and tires, reducing maintenance costs by over 70% compared to diesel models. At the same time, electricity costs are much lower than fuel costs, leading to significantly reduced long-term energy consumption.
How long is the service life of the forklift's battery? What is the warranty coverage?
The lithium battery has a cycle life of over 2000 times, which translates to more than 5 years of service with one charge/discharge cycle per day. The battery is covered by a 3-year warranty, and the forklift itself has a 1-year full warranty for worry-free after-sales service.
How stable is the hydraulic system of the forklift and attachment? Will there be oil leaks or unstable clamping force?
It uses imported seals and well-known brand hydraulic components, which have undergone strict factory testing. The hydraulic system is stable and reliable with no risk of leakage during long-term use. It is also equipped with pressure compensation valves to ensure stable clamping force, which will not fluctuate with changes in load weight.
What special operations can this forklift perform with the refrigerator clamp?
In addition to conventional lifting and handling, it can also perform 360° rotation, side shifting and tilting, making it easy to adjust the cargo angle in narrow spaces for precise alignment during loading and unloading, greatly improving operational flexibility.
