CPDA
NIULI
| Quantity: | |
|---|---|
Basic Features | 1.1 | Model | - | CPDA10-30 | CPDA15-30 |
1.2 | Power Type | - | Electric | Electric | |
1.3 | Operation Type | - | Seated Type | Seated Type | |
1.4 | Rated Load | Kg | 1000 | 1500 | |
1.5 | Load Center Distance | mm | 500 | 500 | |
1.6 | Front Overhang | mm | 196 | 196 | |
1.7 | Wheelbase | mm | 1130 | 1130 | |
Weight | 2.1 | Self-weight (including battery) | kg | 2120 | 2150 |
Wheels/Chassis | 3.1 | Wheel Type | - | Front Wheels: Rubber / Rear Wheels: Polyurethane | |
3.2 | Front Wheelbase | mm | 752 | 752 | |
Dimensions | 4.1 | Mast Tilt Angle (Forward/Backward) | ° | 2/4 | 2/4 |
4.2 | Minimum Mast Height | mm | 2035 | 2035 | |
4.3 | Free Lift Height | mm | 0 | 0 | |
4.4 | Lift Height | mm | 3000 | 3000 | |
4.5 | Full Extension Height of Mast | mm | 3918 | 3918 | |
4.6 | Roof Guard Height | mm | 1930 | 1930 | |
4.7 | Fork Ground Clearance at Minimum Mast Height | mm | 35 | 35 | |
4.8 | Total Length (including forks) | mm | 2680 | 2680 | |
4.9 | Length to Fork Face (excluding forks) | mm | 1610 | 1610 | |
4.10 | Total Width | mm | 880 | 880 | |
4.11 | Fork Size | s/e/l(mm) | 35/100/1070 | 35/100/1070 | |
4.12 | Fork Spacing | mm | 210-580 | 210-580 | |
4.13 | Minimum Ground Clearance | mm | 60 | 60 | |
4.14 | Working Aisle Width for 1000*1200 Pallet | mm | - | - | |
4.15 | Lateral Aisle (1200 Pallet Cross Fork Placement) | mm | 2931 | 2931 | |
4.2 | Minimum Turning Radius | mm | 1425 | 1425 | |
Performance | 5.1 | Maximum Travel Speed (No Load/Full Load) | km/h | 5.2/5 | 5.2/5 |
5.2 | Lifting Speed (No Load/Full Load) | m/s | 0.135/0.095 | 0.135/0.090 | |
5.3 | Lowering Speed (No Load/Full Load) | m/s | 0.085/0.120 | 0.085/0.120 | |
5.4 | Maximum Climbing Capacity | % | 6/4 | 6/4 | |
5.5 | Service Brake | - | Hydraulic+Electromagnetic | Hydraulic+Electromagnetic | |
Motor/Charging | 6.1 | Travel Motor | kw | 1.5 | 2.5 |
6.2 | Lifting Motor | kw | 3.0 | 3.0 | |
6.3 | Battery Voltage/Rated Capacity | V/Ah | 24V/270Ah | 24V/300Ah | |
6.4 | Charger Specification | V/A | 24V/40A | 24V/40A | |
Others | 7.1 | Drive Control Type | - | AC | AC |
7.2 | Noise | dB(A) | 75 | 75 | |

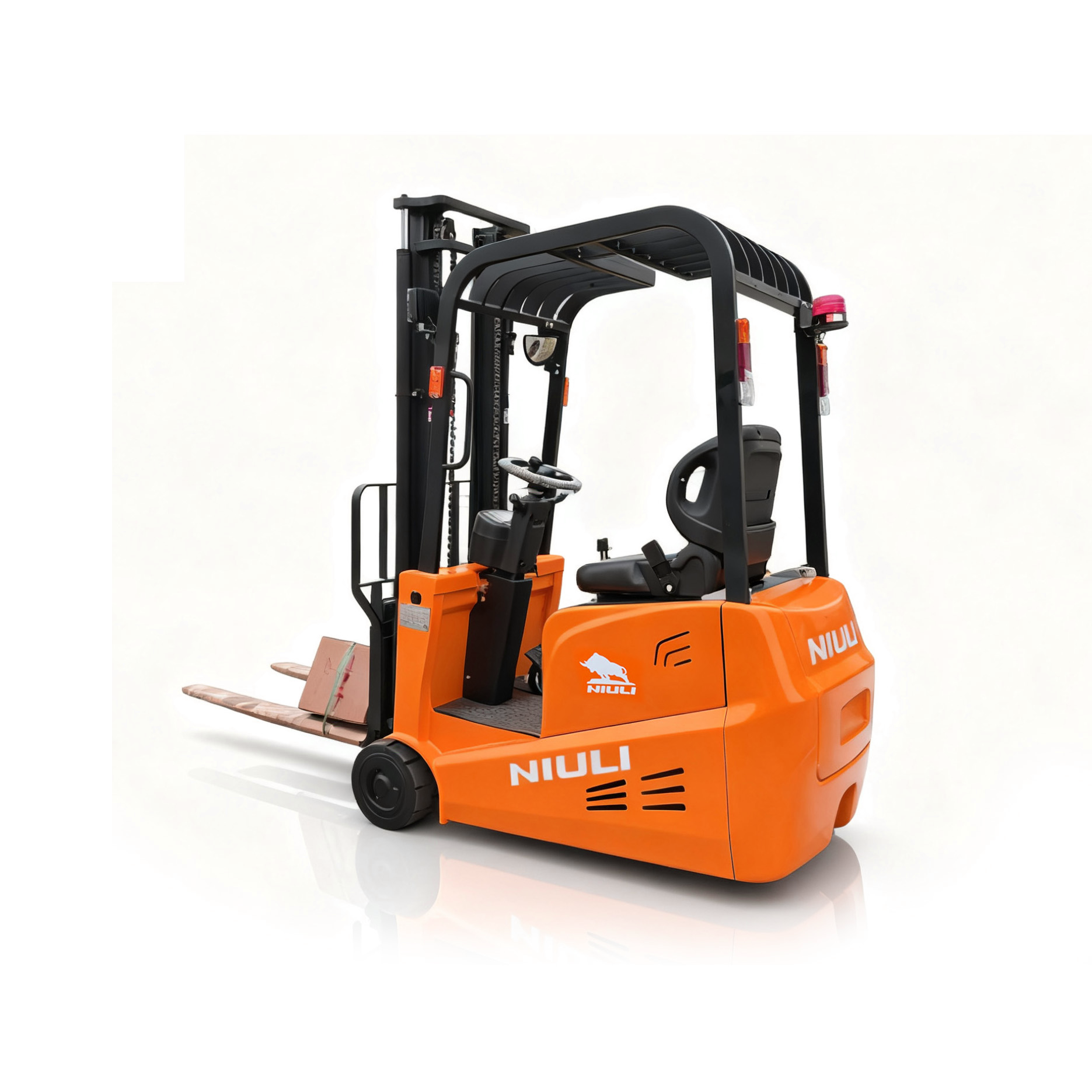

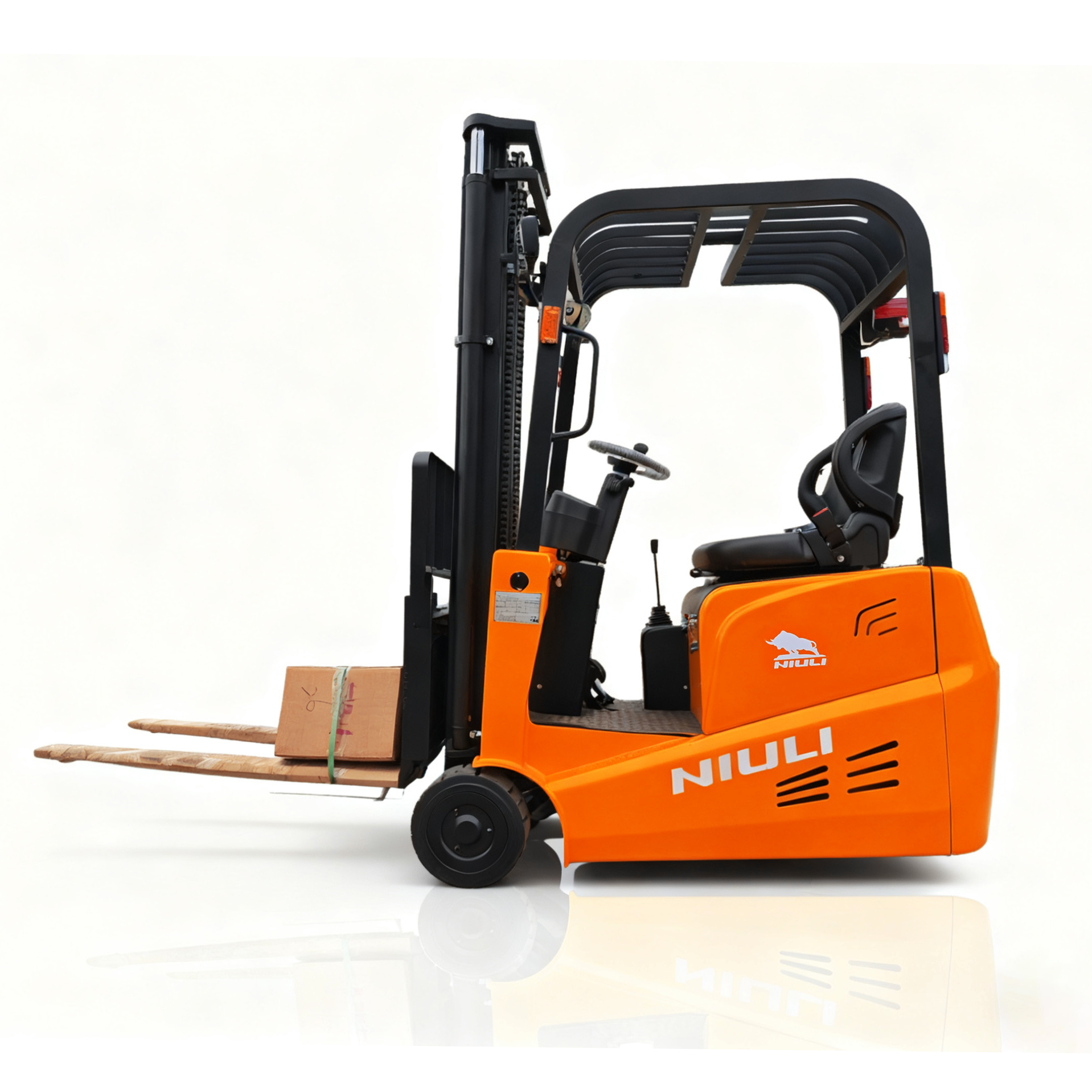

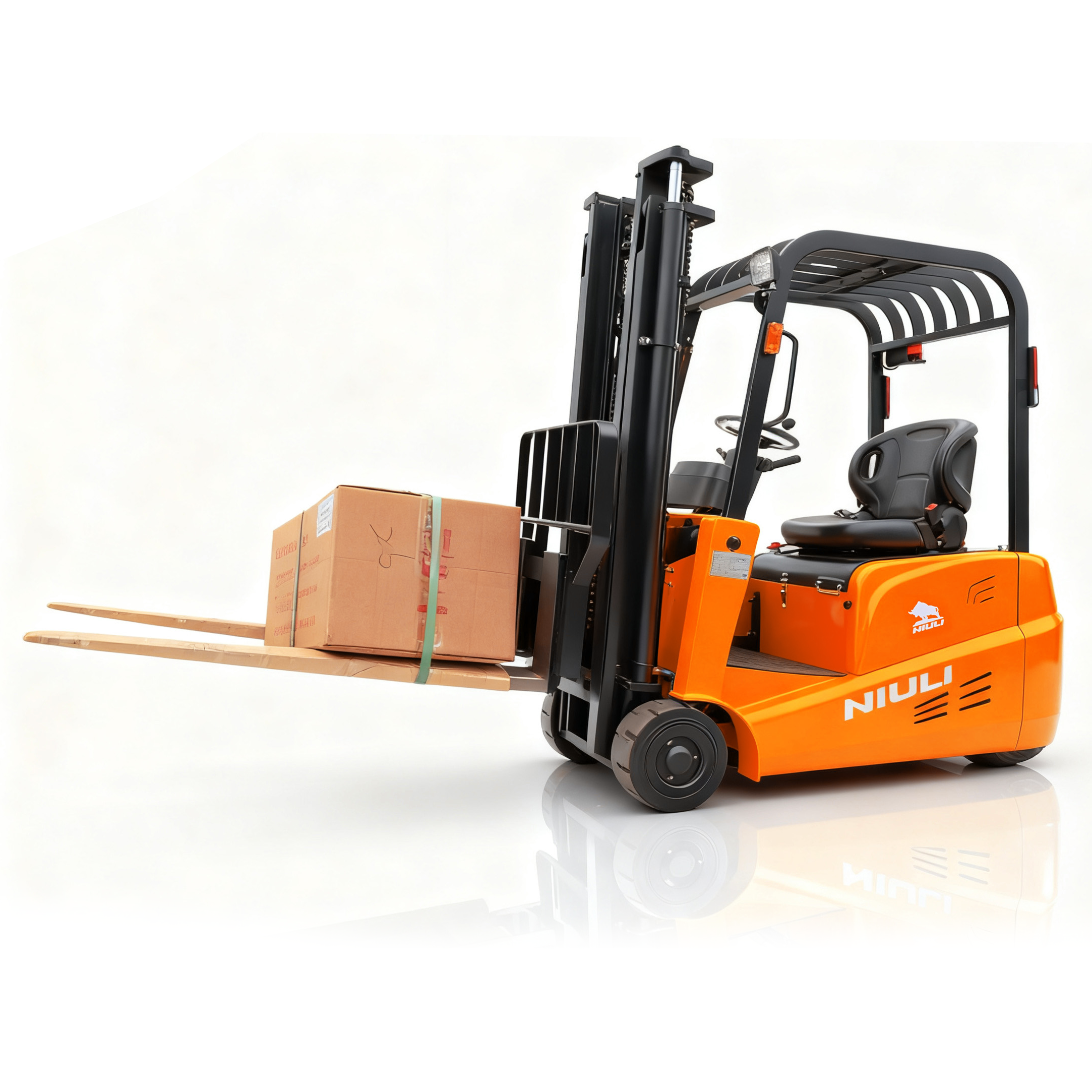

The NIULI CPDA three-wheel electric forklift series mainly includes two models: CPDA10-30 and CPDA15-30. The core difference between the two lies in the rated load capacity: the rated load of CPDA10-30 is 1000Kg, while that of CPDA15-30 is 1500Kg. In addition, the travel motor power of the two models is different (1.5kw for CPDA10-30 and 2.5kw for CPDA15-30), and the battery rated capacity is slightly different (270Ah for CPDA10-30 and 300Ah for CPDA15-30). Most other parameters such as lifting height, wheel size and overall dimensions are consistent.

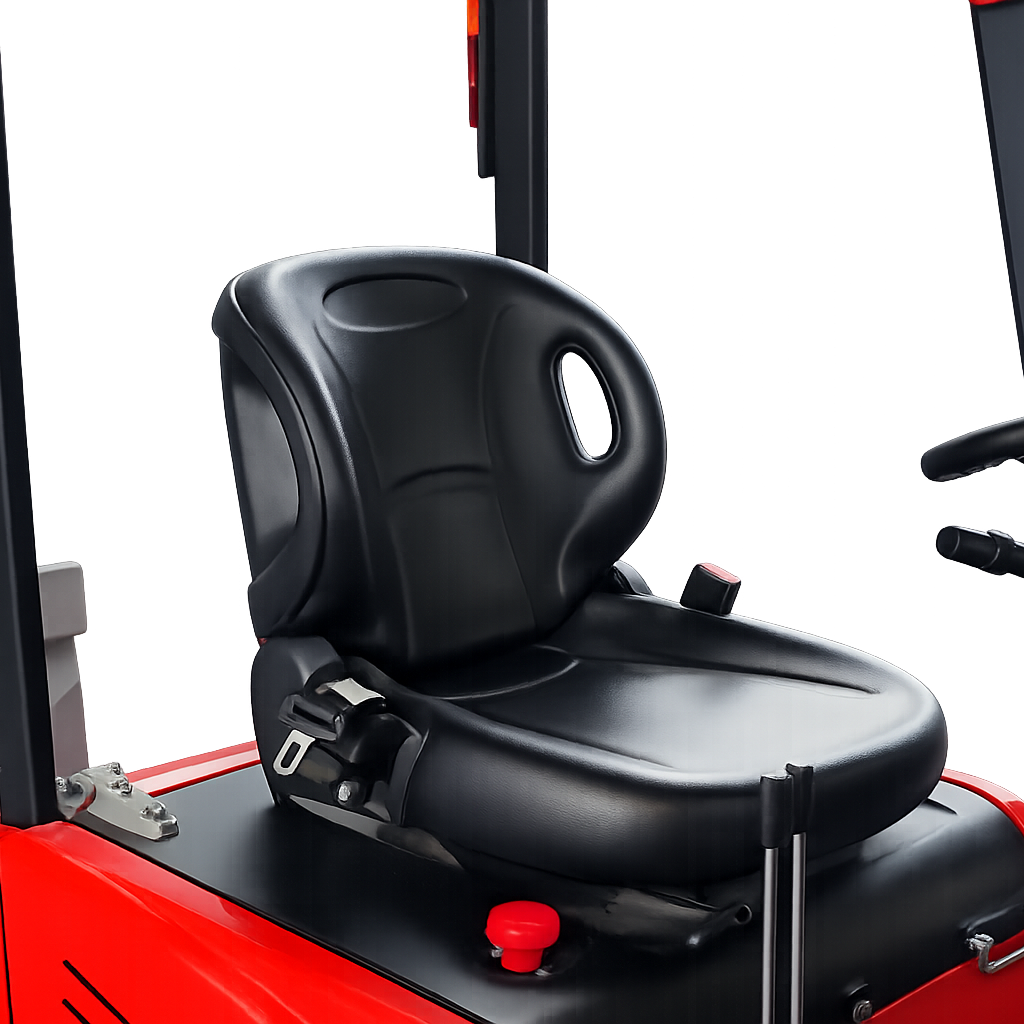

The NIULI CPDA three-wheel electric forklift adopts a seated operation type, which is more comfortable for long-time operation and improves work efficiency. The maximum lifting height of both models is 3000mm, and the full extension height of the mast is 3918mm, which can meet the daily stacking needs of general warehouses and workshops.
Both models are equipped with AC drive control type, which has stable performance and low failure rate. The lifting motor power of both models is 3.0kw; the travel motor power is 1.5kw (CPDA10-30) and 2.5kw (CPDA15-30). The battery voltage of both models is 24V, the rated capacity is 270Ah (CPDA10-30) and 300Ah (CPDA15-30), and the matching charger specification is 24V/40A, which is convenient for daily charging and maintenance.
The key performance indicators of the NIULI CPDA three-wheel electric forklift are excellent: the maximum travel speed is 5.2km/h when no load and 5.0km/h when fully loaded; the lifting speed is 0.135m/s when no load and 0.095m/s (CPDA10-30) / 0.090m/s (CPDA15-30) when fully loaded; the maximum climbing capacity is 6% when no load and 4% when fully loaded, which can adapt to slight slope working conditions in workshops and warehouses.
The wheel configuration of the NIULI CPDA three-wheel electric forklift is front rubber wheels and rear polyurethane wheels, which have good wear resistance and stability. The drive wheel size is ø230×110mm, and the front wheel size is ø305×127mm. The minimum turning radius of both models is 1425mm, and the total width is only 880mm, which is small in size and flexible in operation, very suitable for working in narrow spaces such as small warehouses and workshops with limited passage.
