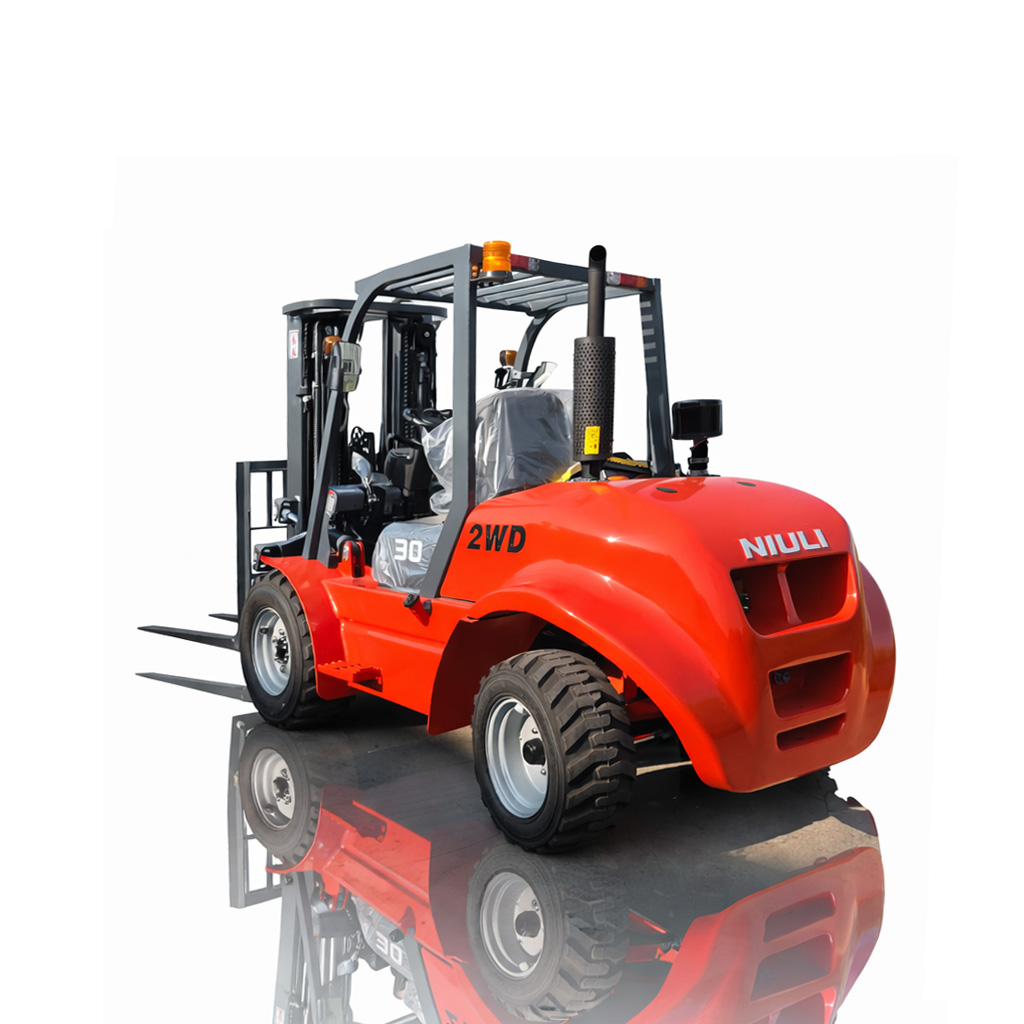

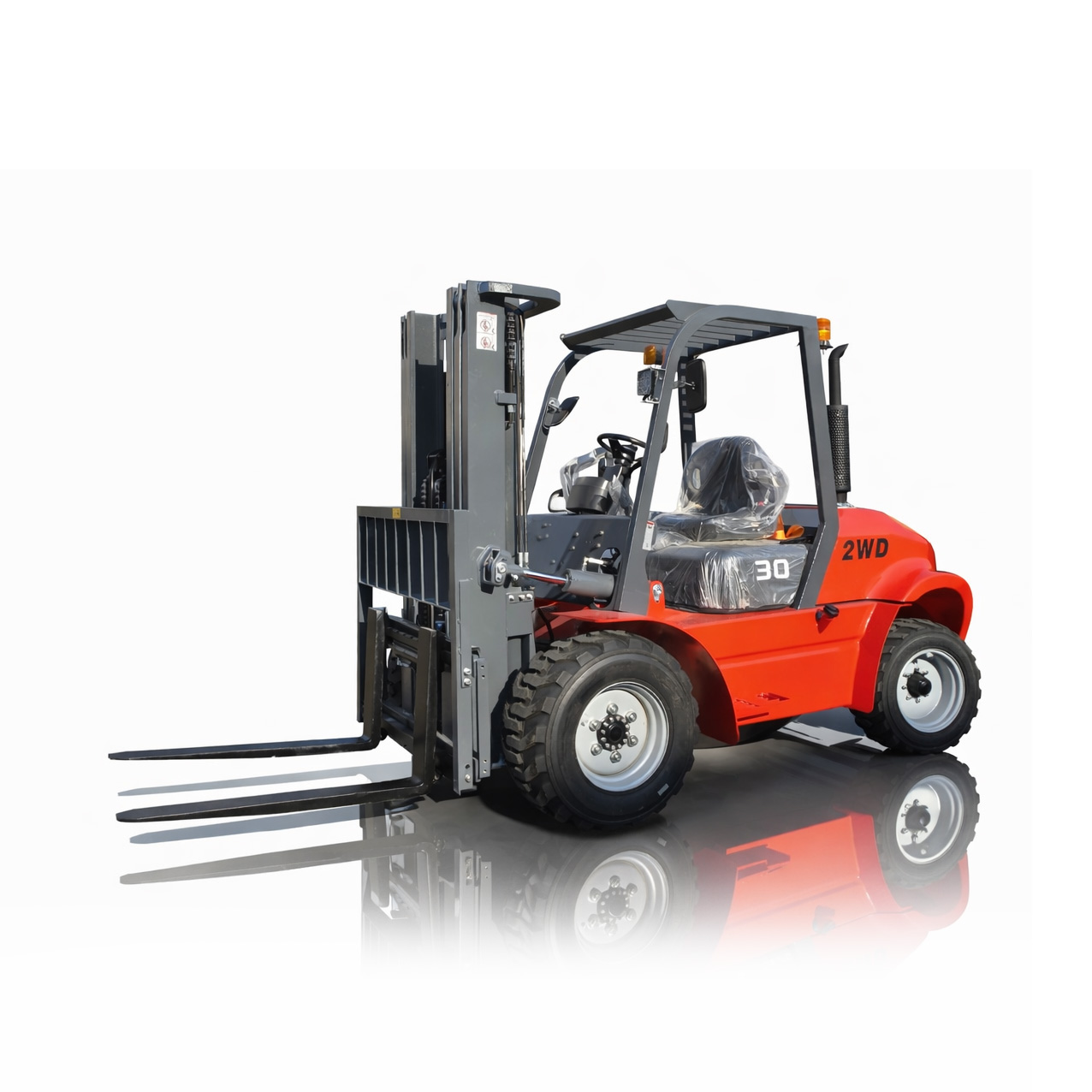

The CPD30 3-ton fuel-powered off-road forklift is a heavy-duty material handling equipment specially designed for complex outdoor terrains. Driven by diesel power, it has a rated lifting capacity of 3000kg, featuring strong off-road passability, stable lifting performance and flexible operation experience. This product is widely applicable to unpaved road scenarios such as construction sites, mining areas, agricultural and forestry pastures, and outdoor logistics warehouses. It can efficiently complete cargo loading and unloading, stacking, short-distance transportation and other operations, fully meeting the usage requirements of harsh outdoor working conditions. It complies with current industry standards such as GB/T 35205.1-2025 "Off-Road Forklifts - Safety Requirements and Verification - Part 1: Telescopic Boom Forklifts".
Parameter Name | Specification Value | Remarks |
Rated Lifting Capacity | 3000kg | Load Center Distance 500mm |
Power Type | Diesel | Optional Gasoline/LPG Dual-Fuel System |
Operation Mode | Ride-On | Single-Seat with Safety Protection Top Frame |
Total Machine Weight | 4320kg | Including Standard Configuration and Fuel |
Load Center Distance | 500mm | Compliant with General Industrial Vehicle Standards |
Parameter Name | Specification Value |
Total Machine Length (with Forks) | 3630mm |
Total Machine Length (without Forks) | 2570mm |
Total Machine Width | 1270mm |
Top Frame Height (Mast Lowered) | 2110mm |
Maximum Lifting Height | 3000mm (Optional 3-6m Multi-Stage Mast) |
Free Lifting Height | 160mm |
Minimum Ground Clearance | 135mm |
Wheelbase | 1700mm |
Minimum Turning Radius (Outer) | 2400mm |
Fork Dimensions (Length×Width×Thickness) | 1220×122×45mm |
Fork Adjustment Range (Min-Max) | 250-1090mm |
Parameter Name | Specification Value |
Travel Speed (Loaded/Unloaded) | 12.5km/h / 14km/h |
Lifting Speed (Loaded/Unloaded) | 280mm/s / 450mm/s |
Lowering Speed (Loaded/Unloaded) | 450mm/s / 500mm/s |
Maximum Climbing Capacity (Loaded/Unloaded) | 15% / 20% |
Mast Tilt Angle (Forward/Backward) | 6° / 12° |
Maximum Traction Force (Loaded) | 1780kg |
Parameter Name | Specification Value |
Engine Model | Xinchang 490BPG (Optional Quanchai QC490G/Isuzu C240PKJ) |
Engine Type | Four-Cylinder Four-Stroke Diesel Engine |
Rated Power/Rotational Speed | 36.8kw / 2650rpm |
Maximum Torque/Rotational Speed | 148Nm / 1900rpm |
Displacement | 2.54L |
Emission Standard | China Stage Ⅱ (Optional Euro Ⅲ Standard) |
Fuel Tank Capacity | 60L |
Transmission Type | 2 Forward & 2 Reverse Manual Shift (Optional Power Shift) |
Parameter Name | Specification Value |
Tire Type | Off-Road Pneumatic Tires (Reinforced Front Tires) |
Front Tire Specification | 28×9-15-12PR |
Rear Tire Specification | 6.50-10-10PR |
Front Track Width | 1000mm |
Rear Track Width | 980mm |
Service Brake System | Hydraulic Pedal Brake |
Parking Brake System | Mechanical Manual Brake |
Steering System | Hydraulic Power Steering for Easy Operation |
Equipped with a well-known brand diesel engine, featuring strong power, sufficient torque, suitable for continuous outdoor heavy-load operations, with low failure rate, easy maintenance, and support for long-term high-load operation.
Adopting reinforced transmission and drive axle, it has high transmission efficiency and strong impact resistance. The gear ratio is optimized for off-road working conditions to ensure stable power transmission in complex terrains.

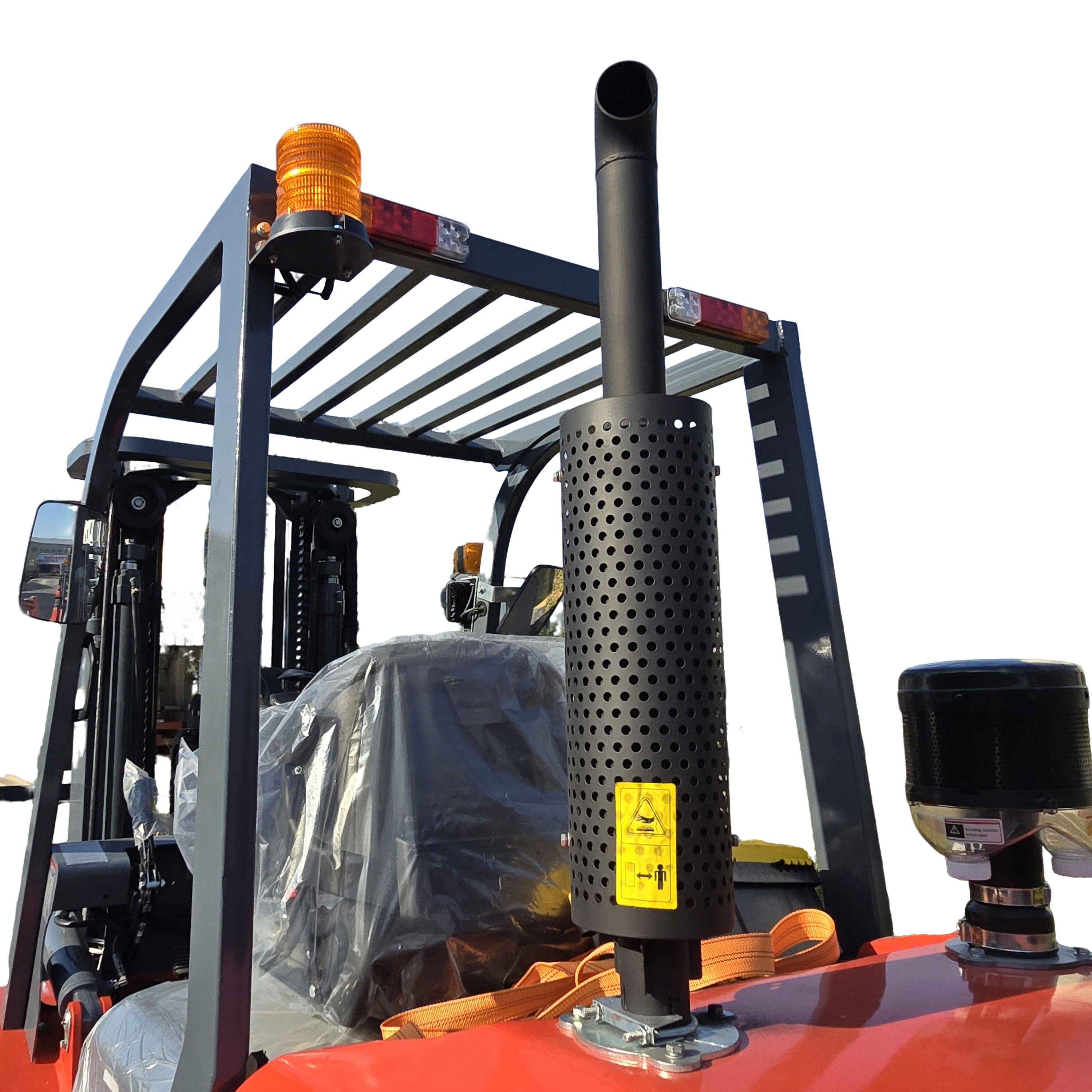

Equipped with dual air filters, which can effectively block dust and impurities, protect the engine air intake system, extend service life, and adapt to dusty outdoor environments.
Adopting a wide-view mast design, optimizing the opening size of the fork carrier, expanding the operator's field of vision, reducing operational blind spots, and improving operational safety.
The mast is welded with high-strength section steel and reinforced by heat treatment, with strong load-bearing capacity. It is equipped with high-quality lifting cylinders for stable lifting and precise positioning.
Optional side shifter to realize left and right fine adjustment of forks, facilitating precise alignment for loading and unloading, and improving work efficiency; supporting customization of multi-stage masts to meet different lifting height requirements.
Equipped with a large-size LED display instrument, which displays data clearly and intuitively, with multiple monitoring functions such as speed, temperature, and power. It has friendly human-computer interaction, allowing operators to grasp the equipment status in real time.
Adopting an ergonomic seat with adjustable backrest angle and excellent shock absorption effect, reducing fatigue during long-term operation; the operation handle layout is reasonable, with sensitive response and easy operation.
Equipped with a sturdy top frame and safety belt, complying with GB/T 35205.1-2025 safety standards, effectively protecting the operator's safety; equipped with emergency power-off switch and overload protection device, providing multiple safety guarantees.
The whole machine has a low center of gravity, combined with widened track width and off-road tires, with excellent stability, which can work safely on sloping and bumpy roads, effectively preventing rollover.

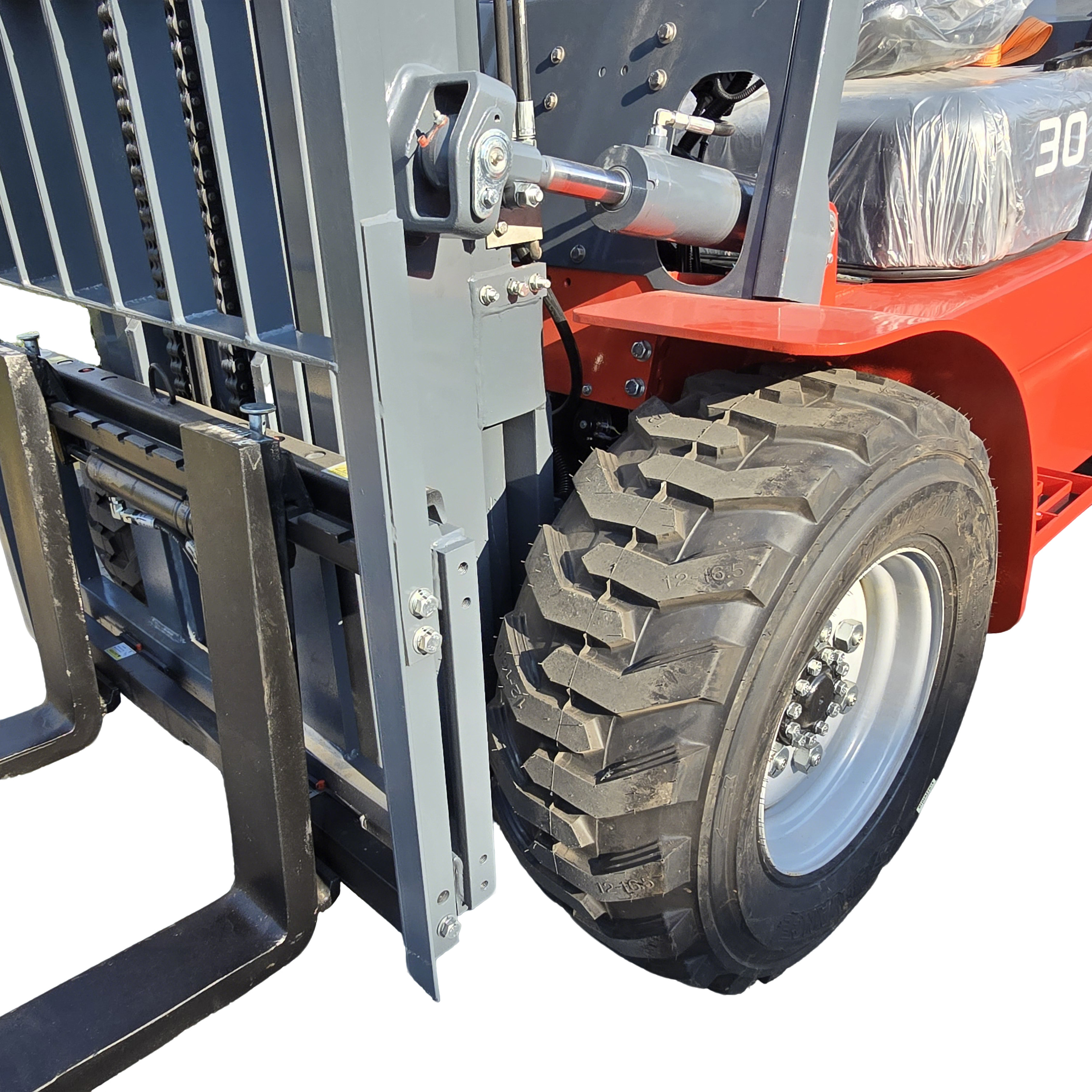

Adopting special off-road pneumatic tires with deep tread patterns and strong grip, suitable for complex terrains such as mud, gravel, and grassland, with good anti-skid and anti-puncture performance.
Optimized chassis structure to increase minimum ground clearance, which can easily cross road obstacles, avoid chassis collision damage, and enhance outdoor passability.
The brake system is strengthened for off-road working conditions, with short braking distance and good stability, ensuring reliable braking even on wet and sloping roads.
This product is suitable for various complex outdoor working conditions, including but not limited to: material transportation at construction sites, cargo loading and unloading in mining areas, straw/feed handling in agricultural and forestry pastures, cargo stacking in outdoor logistics parks, short-distance transportation at ports and terminals, material scheduling at infrastructure construction sites, etc. It can effectively replace traditional indoor forklifts and solve the problem of material handling on outdoor unpaved roads.
·
1. The parameters listed in this document are for standard configuration. The actual product parameters may vary slightly due to configuration upgrades and customized requirements. Please refer to the supply contract and product certificate for details.
2. The product appearance and color can be customized according to customer needs. Optional configurations include enclosed cab, air conditioning, warning lights, reversing image, etc.
3. It is recommended to perform regular maintenance in accordance with the product manual to ensure stable equipment performance and service life.
