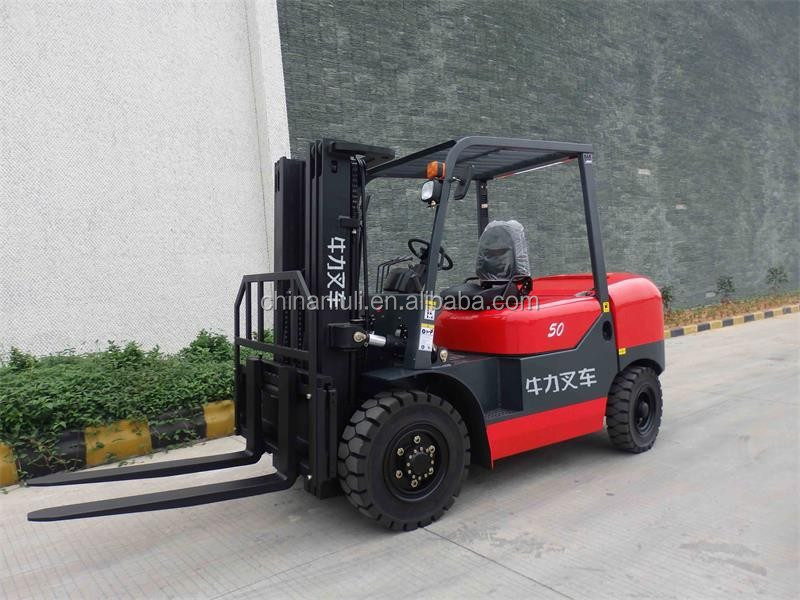

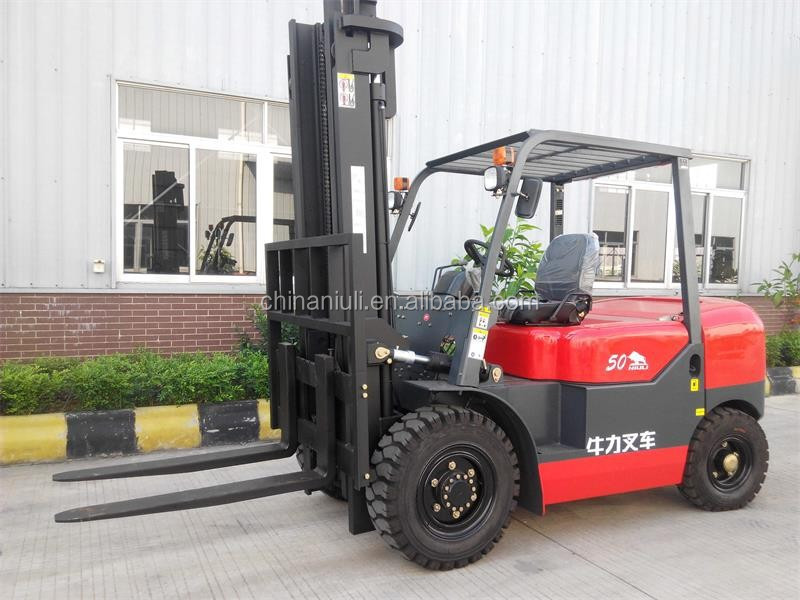

5.0 Ton Diesel Forklift Truck with CE
Product Characteristics
l Strong power: Use high-power engine to provide sufficient energy
l Smooth drive system: Easy operation, reliable gearbox, manual or electronic shift available
l Wide-view design: Special wide-view mast design improves the productivity and safety
l Double air filter: Unique double air intake system ensures lower noise and longer service life
l Safety guarantee: Use electromagnetic main switch ensures the safety of electrical system
l Clean appearance: 3D surface modeling makes it clean and beautiful
Specifications:
| General | 1 | Model | CPC40/CPCD40 | CPCD50 | ||||||
| 2 | Power Type | Diesel | Diesel | |||||||
| 3 | Rated capacity | Kg | 4000 | 5000 | ||||||
| 4 | Load center | mm | 500 | 500 | ||||||
| Charactertic | 5 | Lifting height | mm | 3000 | 3000 | |||||
| 6 | Fork size | mm | 1070*150*50 | 1070*150*50 | ||||||
| 7 | Mast Tilt Angle | Deg | 6°/12° | 6°/12° | ||||||
| 8 | Front Overhang(Wheel center to fork face) | mm | 548 | 560 | ||||||
| 9 | Ground Clearance(Bottom Of Mast) | mm | 160 | 160 | ||||||
| 10 | Overall Dimension | Overall length(with/without fork) | mm | 4064/2963 | 4320/3218 | |||||
| 11 | Overall width | mm | 1400 | 1490 | ||||||
| 12 | Mast lowered height | mm | 2180 | 2245 | ||||||
| 13 | MastExtended height(with backrest) | mm | 4260 | 4260 | ||||||
| 14 | Overhead guard height | mm | 2185 | 2290 | ||||||
| 15 | Turning Radius(outside) | mm | 2739 | 2974 | ||||||
| 16 | Min. intersecting aisle | mm | 2800 | 3100 | ||||||
| Performance | 17 | Speed | Travel(Full/Empty load) | km/h | 17/18 | 18/19 | ||||
| 18 | Lifting(Full/Empty load) | mm/s | 300/400 | 380/410 | ||||||
| 19 | Max.Gradeability | % | 20 | 20 | ||||||
| Chassis | 20 | Tire | Front | 250-15-18PR | 250-15-18PR | |||||
| 21 | Rear | 7.00-12-12PR | 7.00-12-12PR | |||||||
| 22 | Wheelbase | mm | 1850 | 2100 | ||||||
| 23 | Self Weight | kg | 5800 | 6600 | ||||||
| Transmission | 24 | Battery | Voltage/Capacity | V/Ah | 12/120 | (12/80)x2 | ||||
| 25 | Engine | Model | CA498 | 4JG2 | CY6102BG | S6S | ||||
| 26 | Manufacturer | DaChai | ISUZU | ChaoChai | Mitsubishi | |||||
| 27 | Rated output/r.p.m | kW/rpm | 45/2450 | 44/2500 | 81/2500 | 52/2300 | ||||
| 28 | Rated torque/r.p.m | Nm/rpm | 190/1700-1900 | 186/1600-1800 | 353/1650 | 137.7/1800 | ||||
| 29 | No. of cylinder | 4 | 4 | 6 | 6 | |||||
| 30 | Bore x Stroke | mm | 98x105 | 95.4X107 | 102x118 | 94X102 | ||||
| 31 | Displacement | cc | 3168 | 3059 | 5795 | 4997 | ||||
| 32 | Fuel Tank capacity | L | 90 | 90 | 110 | 110 | ||||
| 33 | Transmission | Type | Machanical/Hydraulic | Hydraulic | ||||||
| 34 | Operation Pressure for Attachment | Mpa | 17.5 | 518 | ||||||
