EAC
NIULI
| Quantity: | |
|---|---|
Parameters | Symbol | EAC15 | EAC 20 |
Rated capacity | Kg | 1500 | 2000 |
Self-weight(with battery) | kg | 115 | 130 |
Axle loading, laden driving/load | kg | 483/1132 | 492/1638 |
Axle loading, unladen driving/load | kg | 93/22 | 100/30 |
Wheel type | Polyurethane(PU) | ||
Driving wheel | x w (mm) | Φ220*70 | |
Load wheel | x w (mm) | Φ80*70 | Φ80*30 |
Driving wheel wheelbase | b10(mm) | - | 430 |
Load wheel wheelbase | b11(mm) | 380 | |
Lift height | h3(mm) | 115 | |
Min. height | h13(mm) | 80 | |
Total width | b1 (mm) | 540 | |
Handle height during operation, Max./Min. | h14(mm) | 745/1160 | |
Total body length | l2(mm) | 393 | |
Ground clearance | m2(mm) | 30 | |
Total length | l1(mm) | 1543 | |
Fork dimensions | s/e/l(mm) | 60/160/1150 | |
Fork width | b5(mm) | 540 | 540 |
Turning radius | Wa(mm) | 1340 | |
Aisle width for 800*1200mm lengthways(200mm safe distance) | Ast(mm) | 2013 | |
Traction speed(load/unload) | km/h | 4.3/4.9 | 4.9/4.9 |
Lifting speed(load/unload) | mm/s | 15/22 | 16/19 |
Lowering speed(load/unload) | mm/s | 50/26 | 52/20 |
Max. grade ability(load/unload) | % | 6/16 | 7/16 |
Brake type | Electromagnetic | ||
Drive control mode | DC speed control | ||
Traction motor | kw | 0.75 | 1.0 |
Lift motor | kw | 0.50 | 0.8 |
Battery volts/ampere | V/Ah | 24/20 | 48/20 |
Battery weight | kg | 6.3 | 8.1 |
Energy consumption acc. to VDI cycle | kWh/h | 0.25 | 0.17 |
Noise | Db | 70 | |

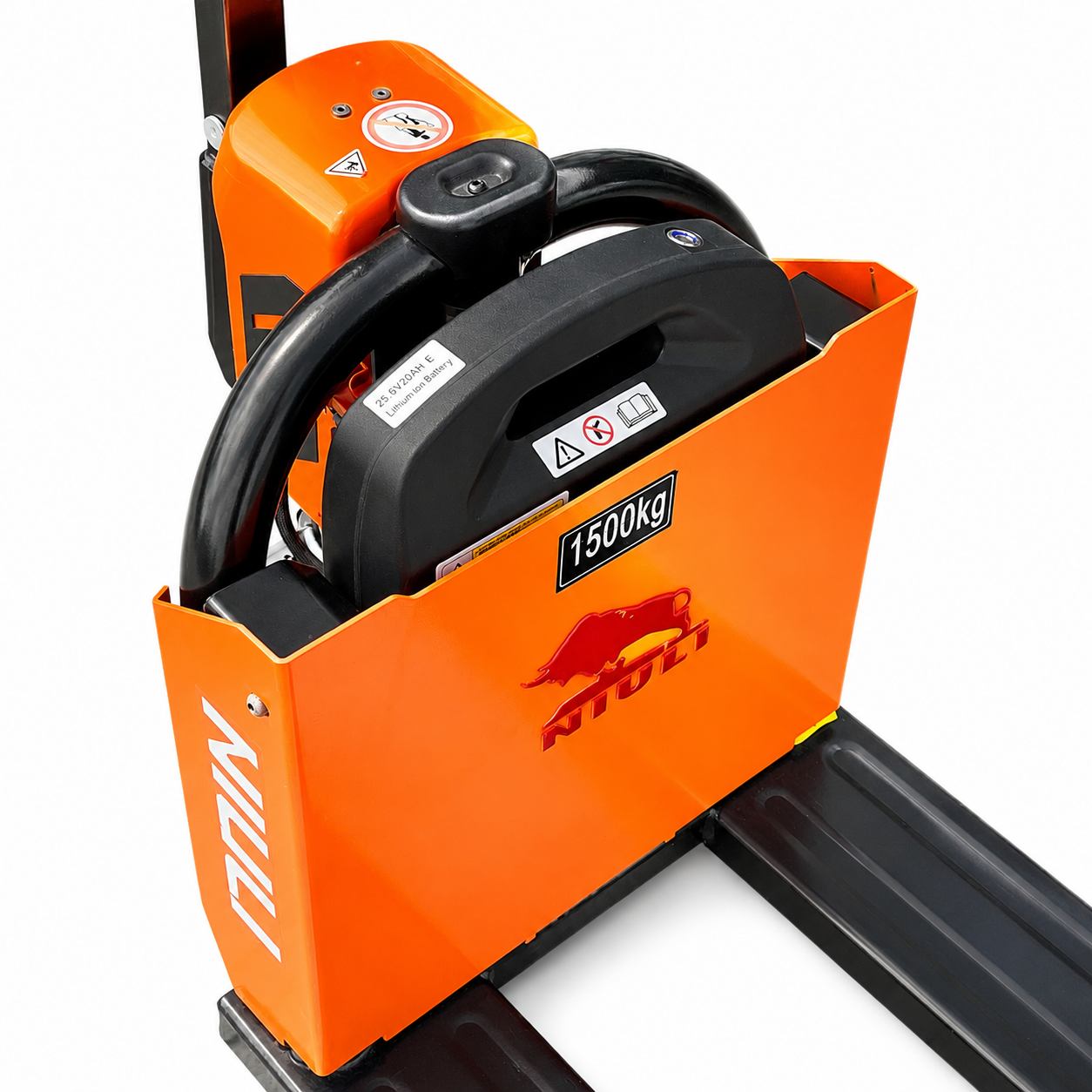

What is the lithium battery pack specification of EAC15 power system, and what multi-level protection strategies does BMS have?
Standard 48V/20Ah LFP lithium battery module with intelligent BMS, equipped with six protections including overcharge, overdischarge, overcurrent, overtemperature, short circuit and balanced charge-discharge, with low voltage sleep protection.
What motor type, controller brand and control logic are adopted for the driving unit?
Equipped with 1.2kW AC asynchronous traction motor and imported CURTIS integrated AC controller, stepless variable speed regulation with soft start & slow stop to eliminate load impact.
What are the gradeability and travel speed under loaded/unloaded status, does it have anti-rollback for ramp operation?
Max gradeability 8% unloaded, 5% full load; travel speed 4.2km/h empty, 3.6km/h loaded. Built-in electric ramp parking brake locks automatically on slopes to prevent sliding.
Standard charging time, fast charging compatibility and optional swappable battery version?
3 hours full charge with standard charger, random partial charging without capacity loss. Optional fast charger completes charging within 2h, quick-detachable swappable battery module available.
