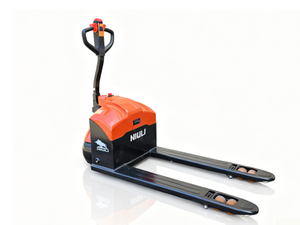

Model | EBY30 | |
Rated capacity | Kg | 3000 |
Power | Electric | |
Operation type | Pedestrain | |
Load center | mm | 600 |
Min. load height | mm | 75 |
Max. load height | mm | 185 |
Fork dimension | mm | 50/160/1150 |
Width of forks | mm | 550/680 |
Ground Clearance | mm | 25 |
Front wheel(PU) Single wheel | mm | Ø74*70 |
Steering Wheel | mm | Ø160*54 |
Turning radius | mm | 1430 |
Overall length | mm | 1670 |
Overall height | mm | 1220 |
Battery capacity | V/Ah | 48V/27AH |
Charger | V/A | 48V/3A 48V/5A |
Overall weight | Kg | 155 |
Brake | Electromagnetic braking | |
Drive speed( load/unload) | Km/h | 4/4.2 |
Gradeability( load/unload) | % | 8/16 |
Power of drive motor | kw/v | 1.2/48 |
Power of lift motor | kw/v | 0.85/48 |
Noise(EN12053 standard) | db(A) | ＜70 |
