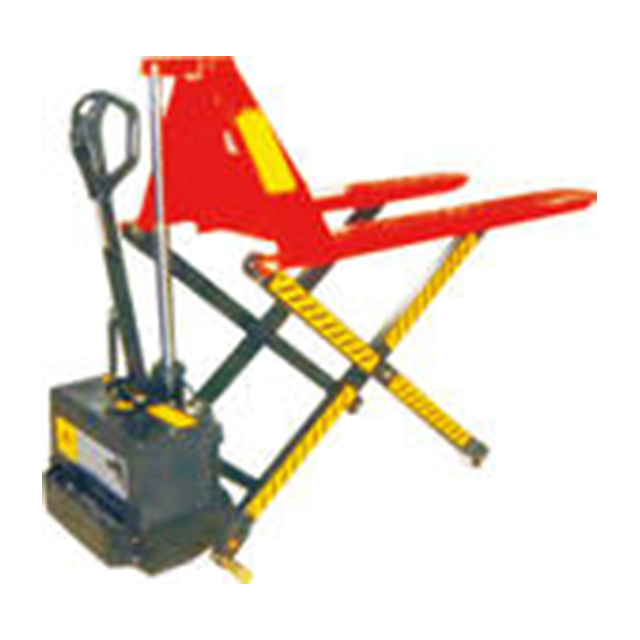

The scissor-type high-lift truck can be used for handling or working platform. Its body design is compact and the oil pump can lift quickly, which can save lifting time and improve labor efficiency; it is widely used in factories, workshops, warehouses, supermarkets, etc. The lifting range can be adapted to different handling heights, reducing the trouble of bending over to carry goods.
| Model | CBY-EHL-1 | CBY-EHL-2 |
| Rated lifting capacity(k) | 1000 | 1000 |
| Min./Max.fork height(mm) | 85/800 | 85/800 |
| fork width b(mm) | 520 | 680 |
| Fork length(mm) | 1140/1500 | 1140/1500 |
| Battery voltage(v)Electricity volume(A/h) | 12/63 | 12/63 |
| Input/output voltage of charger(V) | 220-240/12 | 220-240/12 |
| N.M.(kg) | 140/165 | 146/171 |
| Packing size 2pcs(cm) | 218x58x71 | 218x74x71 |
| Q`ty/20` | 60/30 | 42/21 |
