CBD20
NIULI
| Quantity: | |
|---|---|
| Project | Parameters | Organization |
|---|---|---|
| Model | CBD20 | - |
| Operating type | Walkie | - |
| Load capacity | 2000 | Kg |
| Load center | 600 | mm |
| Wheelbase | 1288 | mm |
| Wheel type | PU | - |
| Wheel quantity (driving/balance/bearing) | 1/2/4 | - |
| Driving wheel size | 210×70 | mm |
| Bearing wheel size | 84×70 | mm |
| Balance wheel size | 70×30(Optional) | mm |
| Min fork lowered height | 85±3 | mm |
| Max fork lifting height | 205 | mm |
| Max lifting height | 120 | mm |
| Outside width between forks | 560/685 | mm |
| Inside width between forks | 250/375 | mm |
| Fork length | 1150/1200 | mm |
| Fork width | 155 | mm |
| Fork thickness | 75 | mm |
| Overall length | 1700/1750 | mm |
| Overall width | 677 | mm |
| Overall height(with handle) | 1245 | mm |
| Overall height(without handle) | 615 | mm |
| Min turning radius | 1441/1491 | mm |
| Min aisle width for pallets 800×1200 | 1794/1841 | mm |
| Min aisle width for pallets 1000×1200 | 1828/1878 | mm |
| Travel speed(laden/unladen) | 4/4.5 | km/h |
| Lift speed(laden/unladen) | 35/40 | mm/s |
| Lowering speed(laden/unladen) | 65/60 | mm/s |
| Gradeability(laden/unladen) | 6/16 | % |
| Service brake type | Electric | - |
| Traction motor rating at S2 60 min | 0.63 | kw |
| Lift motor rating at S315% | 0.8 | kw |
| Battery voltage/capacity | 2×12/85(VRLA) / 24/25(LFP) / 24/30(LFP) | V/Ah |
| Charger specification | 24/10 | V/Ah |
| Battery weight(±5%) | 2×24 / 7.5 / 10 | kg |
| Service weight with battery | 203 / 163 / 166 | kg |
| Sound level | ≤75 | dB(A) |
| Steering type | Mechanical | - |
| Drive control type | DC | - |

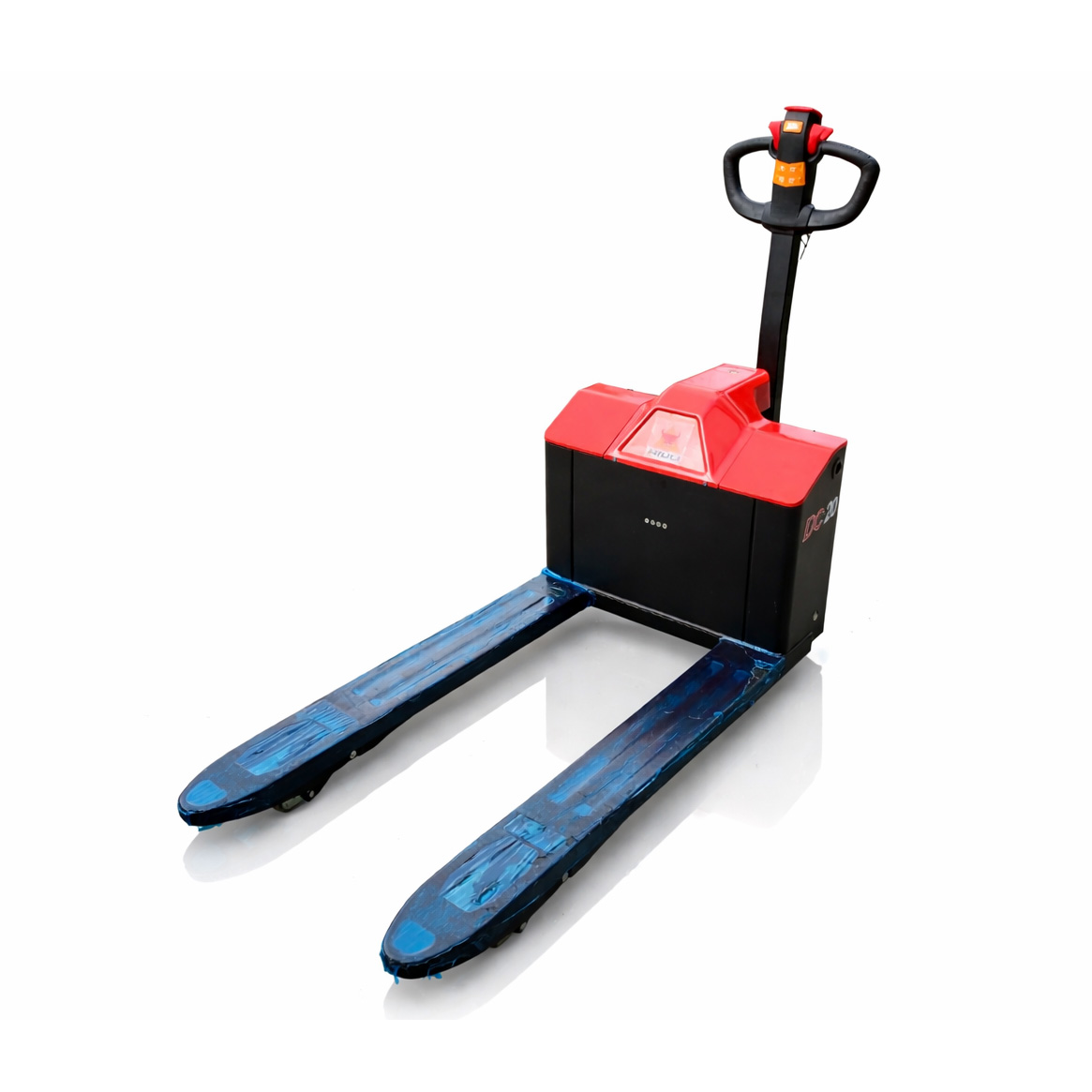

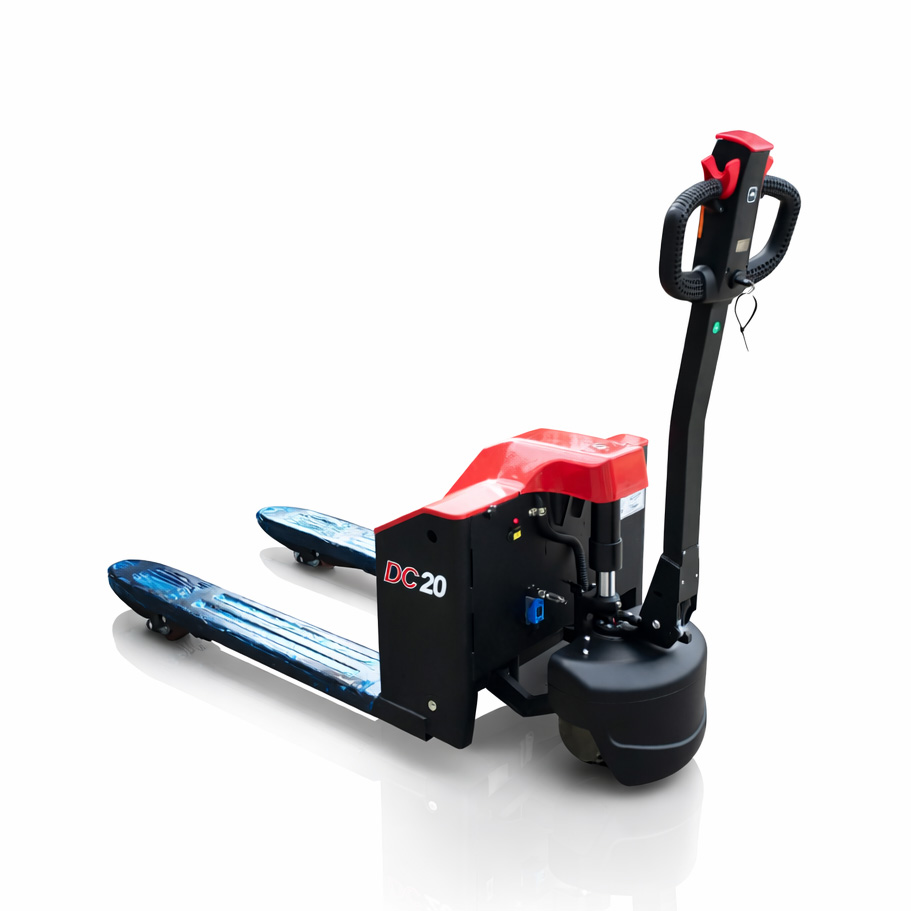

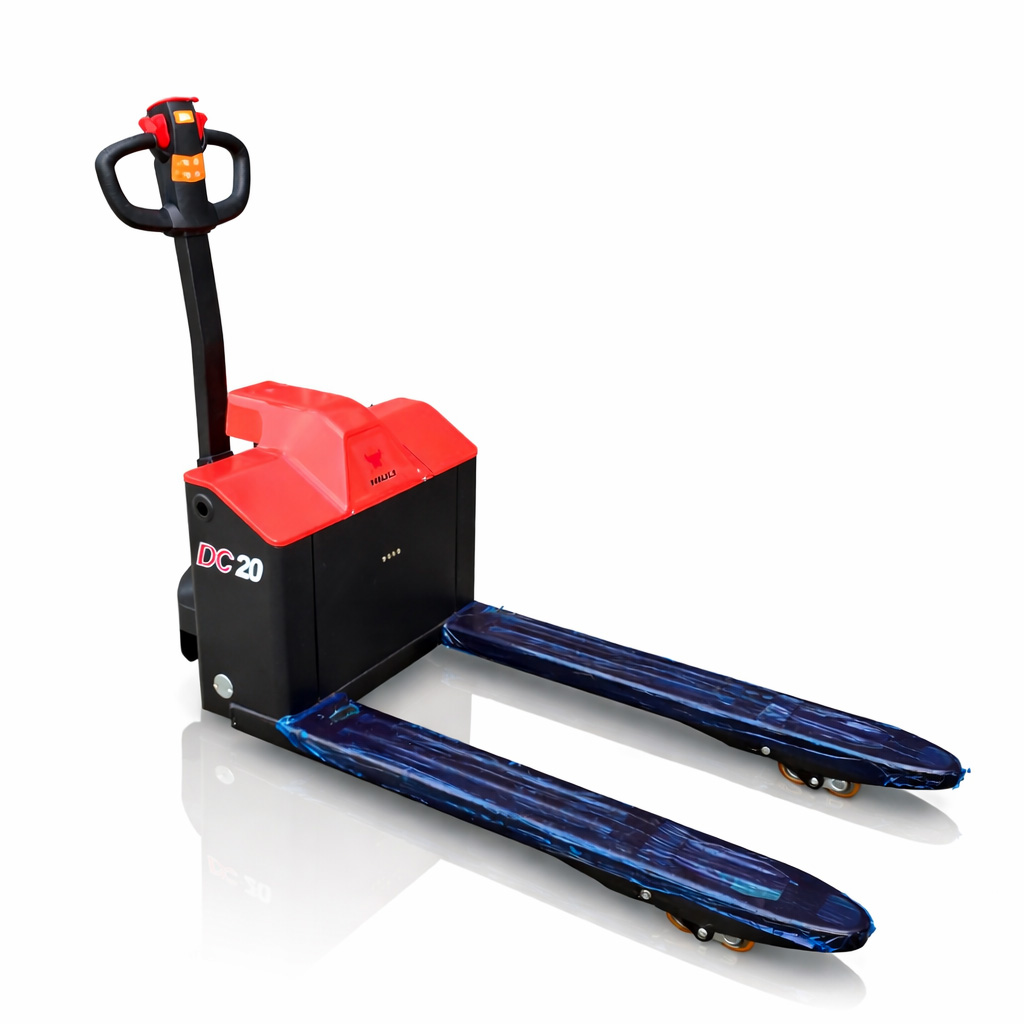

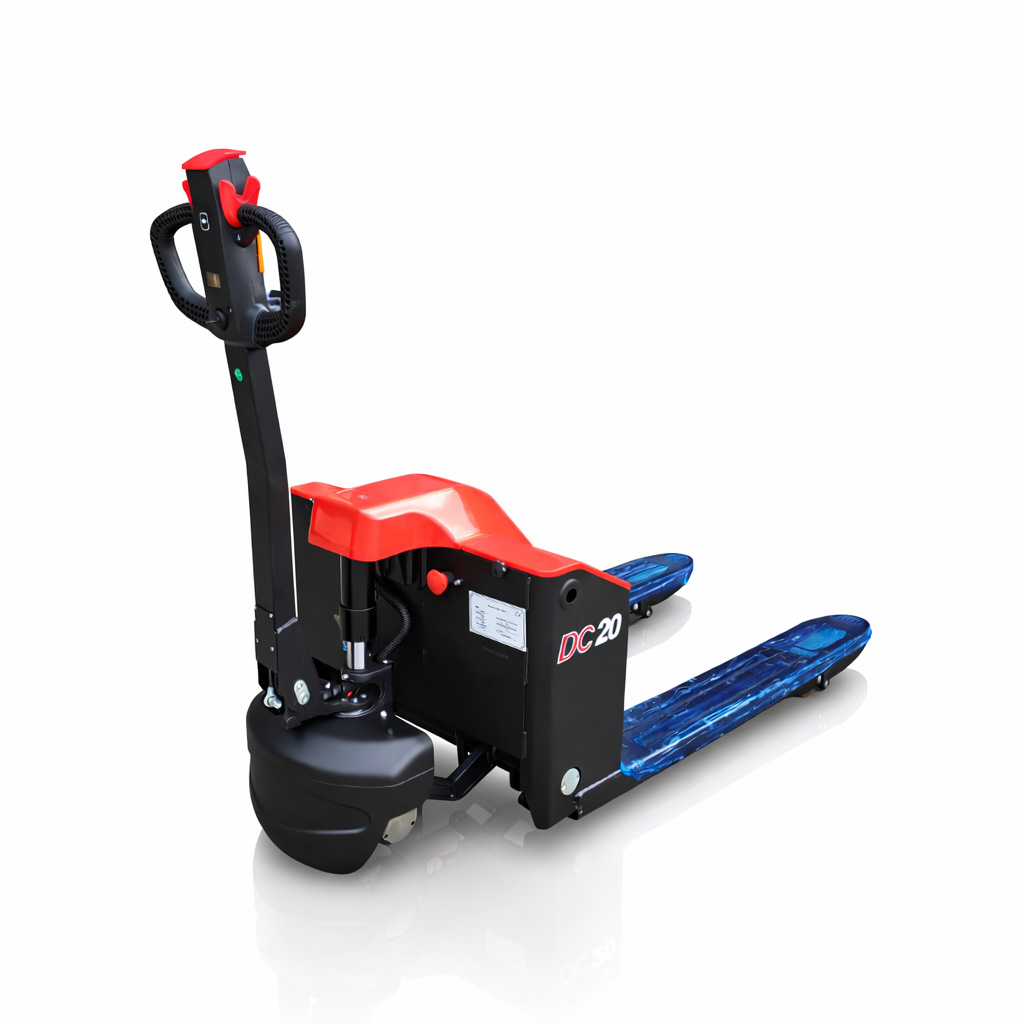

NIULI CBD20 is a 2-ton walkie electric pallet truck designed for efficient short-distance indoor material handling in warehouses, workshops, supermarkets, and other industrial scenarios. It offers superior load capacity compared to smaller-tonnage models.
• Load capacity: Rated load of 2000kg with a load center distance of 600mm, suitable for standard pallets and heavy cargo handling.
• Dimensions & maneuverability:
￮ Forks: Outside width 560/685mm, inside width 250/375mm, length 1150/1200mm, thickness 75mm, compatible with various pallet specifications.
￮ Minimum lowered height 85±3mm, maximum fork lifting height 205mm, allowing easy access to pallets and low-level racking.
￮ Minimum turning radius 1441/1491mm, compact body for smooth operation in narrow aisles and elevators.
• Power & speed:
￮ Reinforced drive motor (0.63kW, S2 60min) and lift motor (0.8kW, S3 15%) ensure stable power output under 2-ton load, with DC control for smooth response.
￮ Travel speed: Optimized for both laden/unladen conditions to balance efficiency and safety; lift/lowering speeds are tailored for heavy loads to avoid cargo impact.
￮ Gradeability: Graded for laden/unladen scenarios, meeting the通行 needs of warehouse ramps and loading docks.
• Body & weight: Overall width 677mm, service weight with battery varies slightly by battery type, remaining lightweight and maneuverable for single-person operation.
CBD20 replaces manual labor with full electrification, leading in efficiency, safety, and durability especially in heavy-load scenarios:
1. Double efficiency in heavy-load handling: Fully electric travel, lifting, and lowering eliminate manual pushing/pulling of heavy cargo. Handling efficiency increases by over 80% under 2-ton load, ideal for long-distance and high-frequency heavy cargo transport.
2 Effortless operation: Multi-function integrated handle enables one-click control of forward/backward, lift/lower, paired with a turtle speed mode for precise and safe positioning (e.g., pallet alignment, elevator entry), significantly reducing operator fatigue.
3. Sturdy and durable structure:
￮ Thickened steel forks with automated welding resist deformation under 2-ton load and offer strong impact resistance.
￮ Metal casing and machine-grade limit switches adapt to complex industrial environments, with a far lower failure rate than manual hydraulic structures.
4. Comprehensive safety configuration:
￮ Electromagnetic brake: Activates instantly when the handle is released, prevent the slope from sliding and ensure rapid emergency braking to avoid the risk of heavy loads sliding down.
￮ Emergency reverse button, low battery alert, and waterproof battery design enable safe operation even in rainy or humid conditions.
5. Lower long-term costs: The electric system is easy to maintain, with quick replacement of wearing parts (e.g., PU wheels). Compared to frequent hydraulic failures and component wear of manual pallet trucks, the total cost of ownership is more favorable over long-term use.
With its 2-ton load capacity, compact flexibility, low noise, and zero emissions, CBD20 is widely applied in scenarios requiring higher load-bearing capacity:
• Warehousing & logistics: Pallet transfer and heavy cargo loading/unloading in warehouses, especially in narrow aisles, multi-level racking, and frequent elevator use scenarios where single-pallet cargo is heavy, replacing smaller-tonnage models for heavy-load handling.
• Manufacturing: Line-side transport of raw materials, heavy semi-finished products, and finished goods (e.g., hardware, building materials, mechanical parts), reducing safety hazards and efficiency losses from manual handling.
• Supermarkets & retail: Bulk cargo transfer between backrooms and sales floors, with low noise (≤75dB(A)) that does not disrupt business operations, while meeting the handling needs of heavy cartons.
• Building materials/hardware industry: Short-distance transport of heavy goods like tiles, pipes, and hardware tools; the 2-ton load capacity allows one-time handling of multiple items, improving operational efficiency.
• Other scenarios: Printing plants, farms, cold storage warehouses, and other places requiring short-distance, high-frequency heavy pallet handling.
CBD20 offers multiple battery options to balance endurance, cost, and convenience, adapting to different operational hour requirements:
1. Battery types & specifications:
￮ Lead-acid battery (VRLA): Cost-effective and durable, ideal for regular working conditions to meet basic daily operational needs.
￮ Lithium iron phosphate battery (LFP): Lightweight design (only 7.5–10kg), easy for single-person replacement, supports on-demand charging, and has a cycle life several times that of lead-acid batteries.
2. Endurance & charging:
￮ Under standard working conditions, a single charge supports 4–6 hours of continuous operation, covering most enterprises’ daily working hours; endurance may fluctuate under heavy-load and high-frequency operations, so a backup battery is recommended.
￮ LFP batteries support fast charging, fully charging in only 3–3.5 hours, enabling quick top-ups during lunch breaks or shift changes.
￮ Supports dual-battery rotation: Equipped with two batteries per truck, allowing instant battery swaps to achieve 24-hour uninterrupted operation, suitable for peak periods like e-commerce promotions and production seasons.
3. Design highlights: The battery compartment is waterproof and dustproof for safe use in outdoor or humid warehouses; standardized battery interfaces enable tool-free, simple replacement.
Tailored for 2-ton heavy-load scenarios, CBD20 is deeply optimized in operational safety, ergonomics, and durability:
1. Multi-layer safety protection:
￮ Electromagnetic + power-off brake: Activates instantly when released, preventing sliding on ramps and ensuring rapid emergency braking to avoid safety accidents caused by heavy-load cargo sliding.
￮ Emergency reverse button: Triggers automatic reverse when obstacles are detected behind the handle, preventing operator crushing injuries, especially in narrow aisles.
￮ Overcurrent protection, limit switches, and low battery alerts avoid misoperation-induced equipment damage and extend the service life of the whole machine.
2. Ergonomic operation:

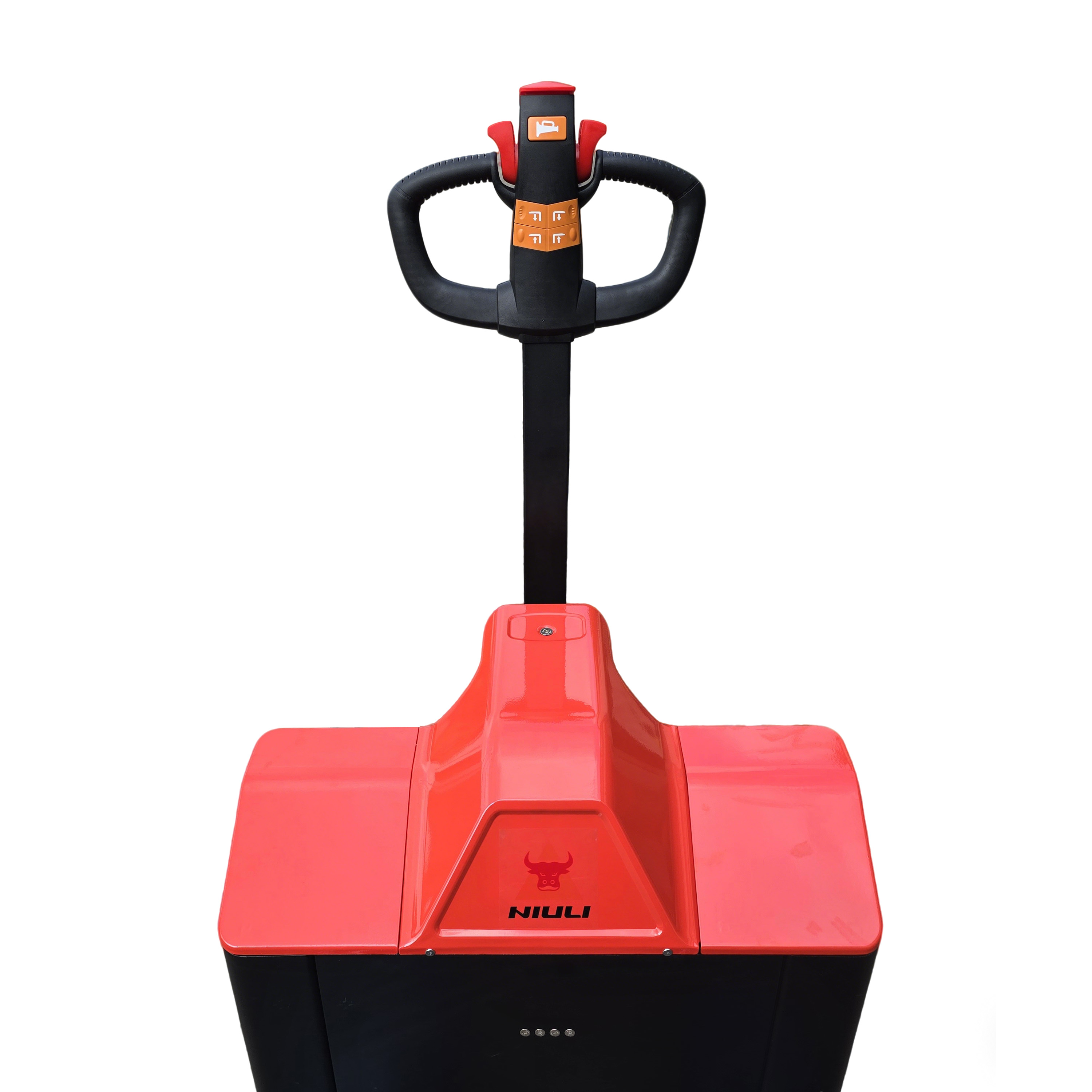

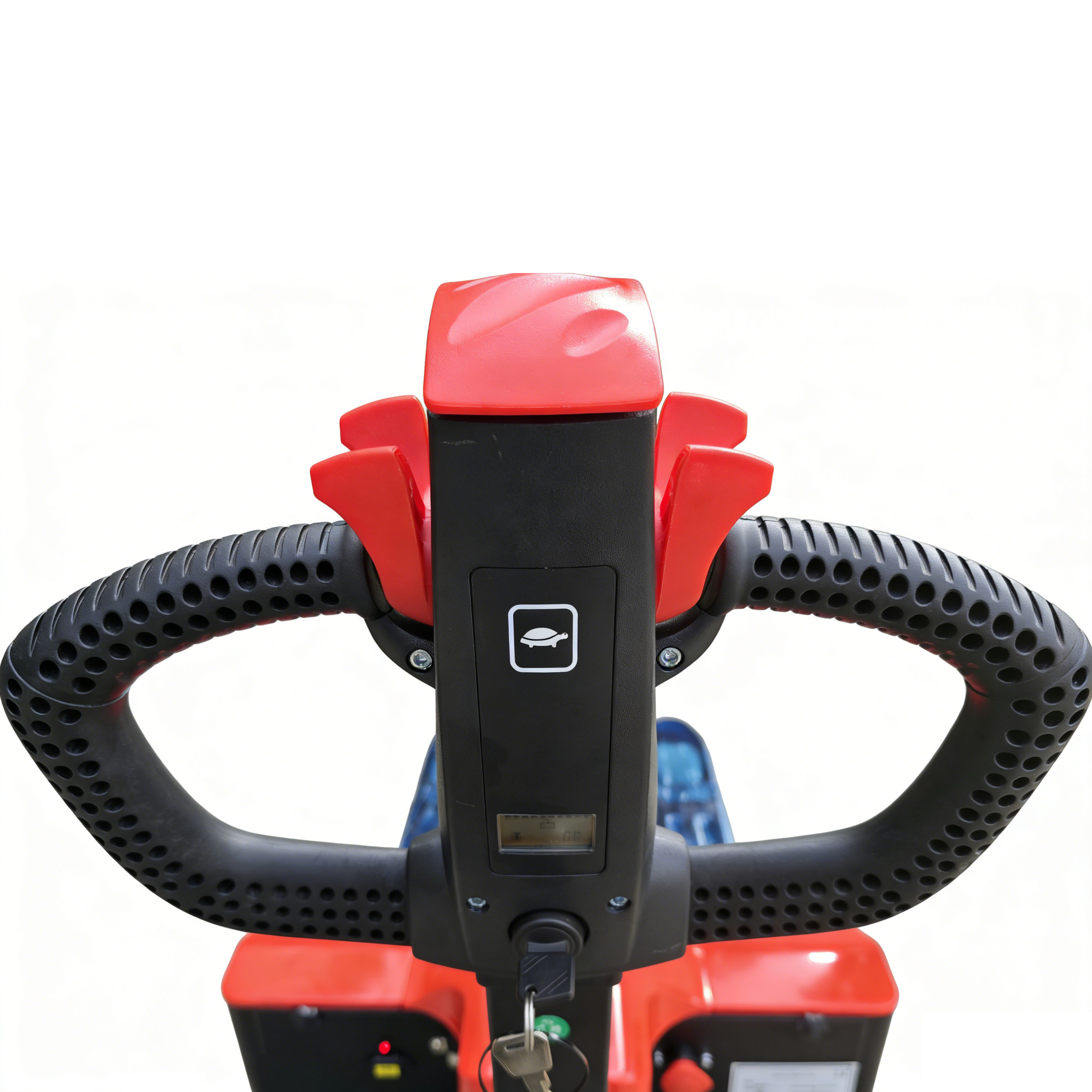

￮ Multi-function integrated handle: Concentrates all control buttons in one place, enabling one-handed operation of forward/backward, lift/lower, and turtle speed mode, reducing fatigue during long-term operation.
￮ Turtle speed mode: Long-press to enter low-speed mode, ensuring safer precise positioning (pallet alignment, elevator entry, narrow space access) and avoiding collisions with cargo or equipment.
￮ Upright walking mode: Shortens the body length when the handle is upright, adapting to ultra-narrow spaces and improving scenario adaptability.
3. Durability & maintenance:
￮ High-quality PU wheels are wear-resistant, silent, and floor-friendly, with a long service life to reduce replacement frequency.
￮ One-piece stamped forks and automated welding ensure high structural strength, resisting deformation and cracking under long-term 2-ton load.
￮ The whole machine comes with a 1-year warranty, supported by NIULI’s global service network for fast after-sales response and sufficient spare parts supply, guaranteeing long-term stable operation.
