CPCD
NIULI
| Quantity: | |
|---|---|
General | 1 | Model | CPC50 | CPCD50 | ||||
2 | Power Type | Diesel | Diesel | |||||
3 | Rated Capacity | kg | 5000 | 5000 | ||||
4 | Load center | mm | 500 | 500 | ||||
Characteristic*Dimension | 5 | Lift Height | mm | 3000 | 3000 | |||
6 | Fork Size | L*W*T | mm | 1070*150*50 | 1070*150*50 | |||
7 | Mast Tilt Angle | F/R | Deng | 6°/12° | 6°/12° | |||
8 | Front Overhang(wheel center to fork face) | mm | 560 | 560 | ||||
9 | Ground Clearance(Bottom of mast) | mm | 160 | 160 | ||||
10 | Overall Dimension | Length of fork | mm | 4320/3218 | 4320/3218 | |||
11 | Overall width | mm | 1490 | 1490 | ||||
12 | Mast lowered height | mm | 2245 | 2245 | ||||
13 | Mast extended height | mm | 4260 | 4260 | ||||
14 | Overhead guard height | mm | 2290 | 2290 | ||||
15 | Truning radius(outside) | mm | 2974 | 2974 | ||||
16 | Min.intersecting aisle | mm | 3100 | 3100 | ||||
Perform | 17 | speed | Travel(full/empty load) | km/h | 18/19 | 18/19 | ||
18 | Lifting(full/empty load) | mm/s | 380/410 | 380/410 | ||||
19 | Max. gradeability | % | 20 | 20 | ||||
Front | 250-15-18PR | 250-15-18PR | ||||||
21 | Rear | 7.00-12-12PR | 7.00-12-12PR | |||||
22 | Wheelbase | mm | 2100 | 2100 | ||||
23 | Self weight | kg | 7000 | 7000 | ||||
Power&Transmission | 24 | Battery | Voltage/Capacity | V/Ah | (12/80)*2 | (12/80)*2 | ||

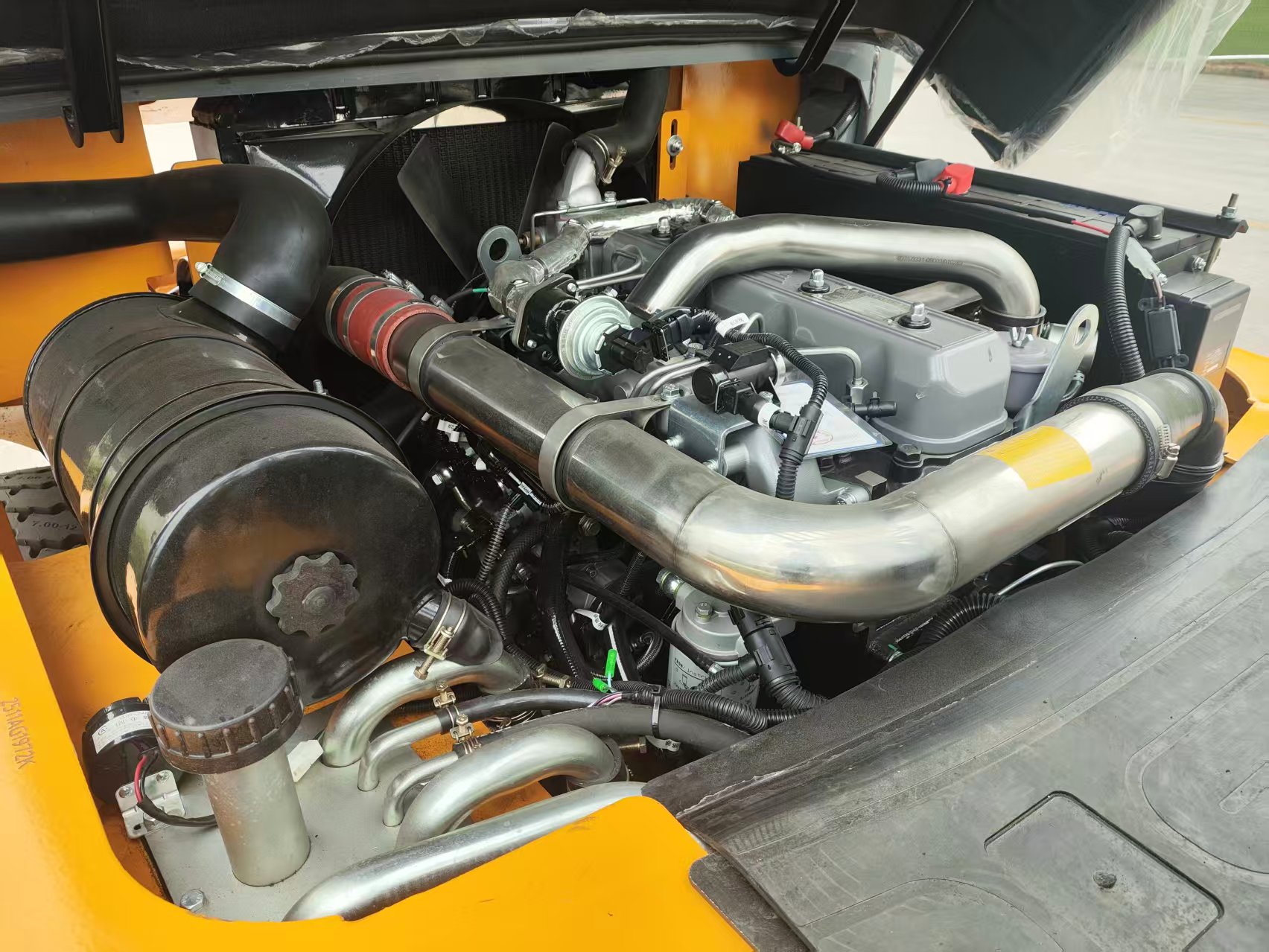

25 | Engine | Model | 4108 | S6S | CY6102BG | S6S | ||
26 | Manufacturer | Dongfanghong | Mitsubishi | ChaoChai | Mitsubishi | |||
27 | Rated output/r.p.m. | Kw/r.p.m | 81/2500 | 52/2300 | 81/2500 | 52/2300 | ||
28 | Rated torque/r.p.m | Nm/r.p.m | 353/1650 | 137.7/1800 | 353/1650 | 137.7/1800 | ||
29 | No. of cylinder | 6 | 6 | 6 | 6 | |||
30 | Bore*stroke | mm | 102*118 | 94*102 | 102*118 | 94*102 | ||
31 | Displacement | cc | 5795 | 4997 | 5795 | 4997 | ||
32 | Fuel tank capacity | L | 110 | 110 | ||||
33 | Type | Machanical | Hydrauic | |||||
34 | Stage | 2\2 | 2\2 | |||||
35 | Operating pressure for attachment | Mpa | 18.5 | 18.5 | ||||
What is the rated load and load center distance of NIULI 5 ton diesel forklift?
Standard rated load is 5000kg with standard 500mm load center distance. Effective lifting capacity reduces if load gravity moves outward. Extended forks are optional for extra-long cargo.
What’s standard lifting height, can we customize taller or triple-stage mast?
Standard 2-stage 3000mm wide-view mast. Custom 2–3 stage full-free mast from 3m to 6m for high rack stacking.
What is hourly fuel consumption and gradeability?
4–6L/h under normal working condition. Max gradeability 20° under full load, stable for construction yards and sloped factories.
What advantages does its hydraulic system have, is lifting fast?
Integrated high-pressure low-noise hydraulic system with smooth lifting/tilting without jitter. Reinforced leak-proof pipelines, low failure rate, premium lifting speed under full load.
What tire size comes standard, are solid tires optional?
Standard pneumatic industrial tires. Heavy-duty solid rubber tires for rocky/sharp cargo yards to avoid punctures.
What’s warranty period, are spare parts available overseas?
12 months or 1000 working hours warranty (whichever comes first). Global spare parts warehouse network ensures fast delivery of engine, hydraulic and wear parts.
What’s turning radius, can it work in narrow aisle warehouses?
Min turning radius approx 2850mm, fits standard outdoor yards and wide warehouses. Reach lithium forklift recommended for ultra-narrow aisles.
