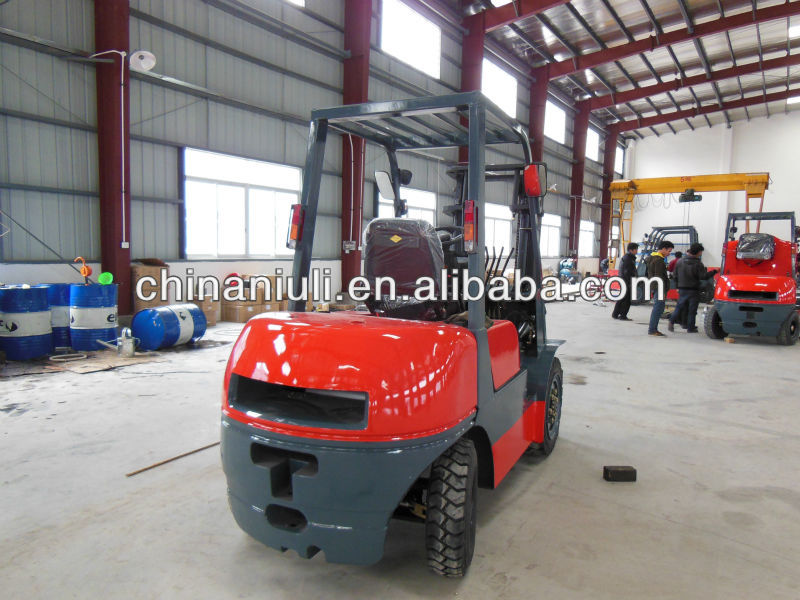

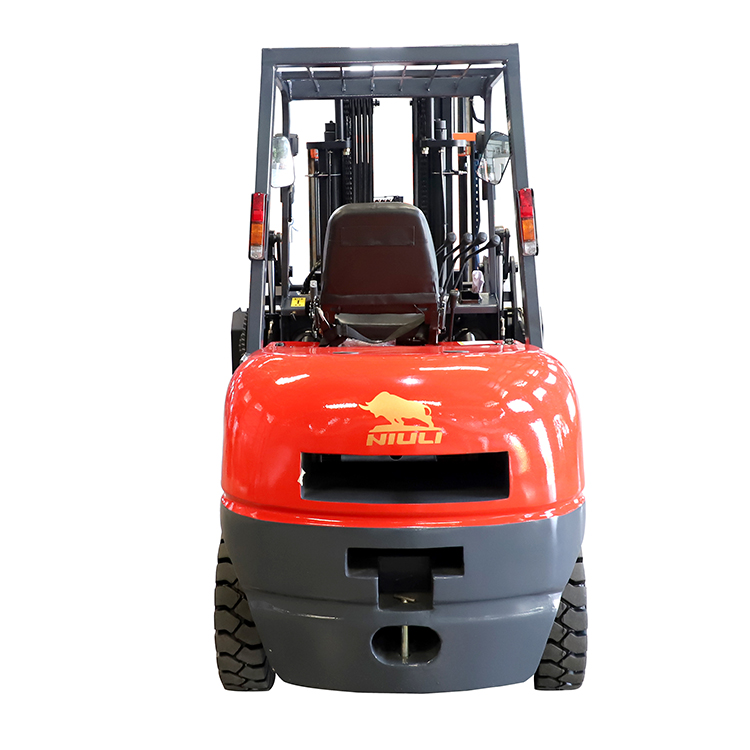

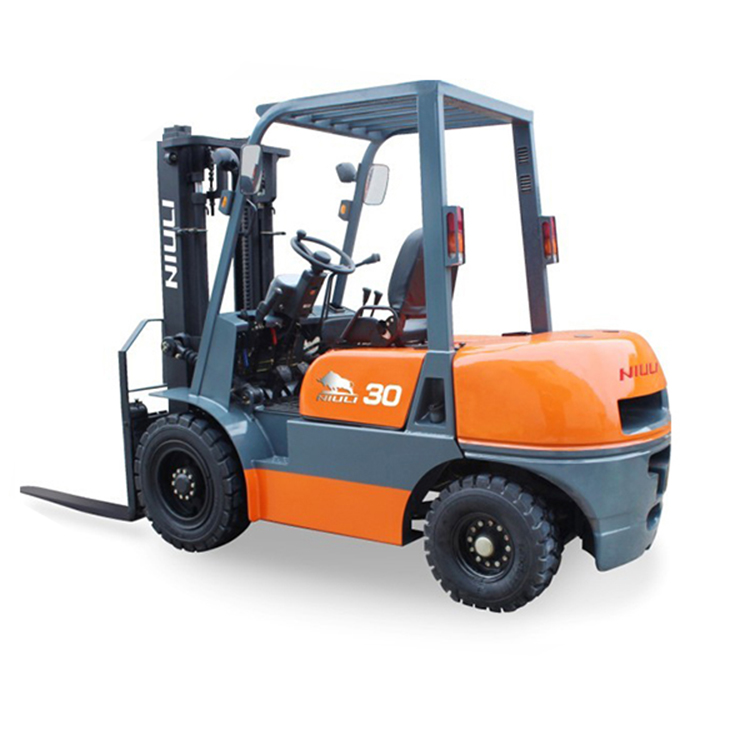

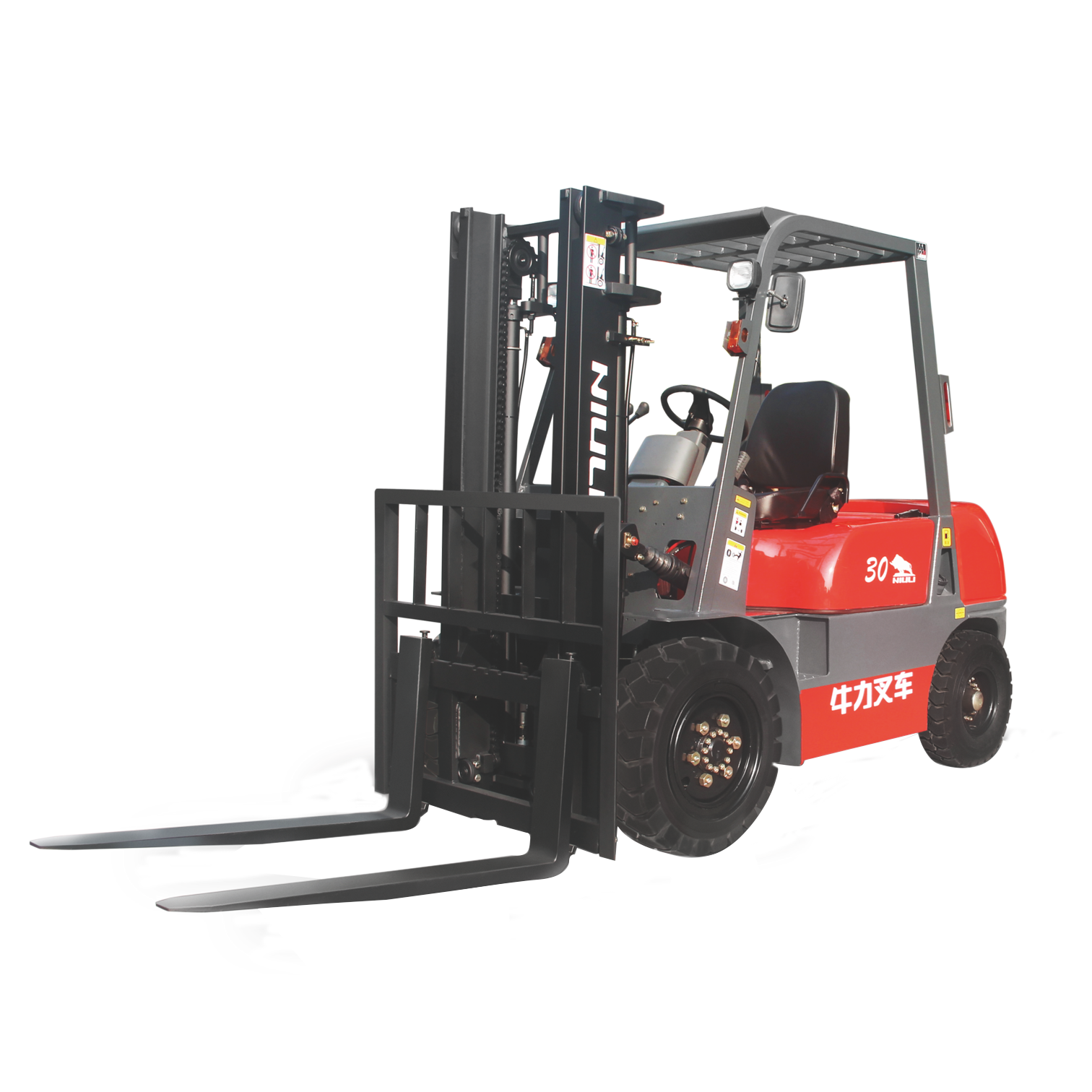

Diesel Forklift truck:
Forklift is a transportation vehicle,used for loading and unloading,short distance transport,heavy lifting,is called industrial vehicle by The international organization for Standardization ISO/TC110,used as transport machine, Widely used in national economic departments , for example: the railway station, port, airport,factory, warehouse, etc, is efficient equipment mechanical for loading and unloading, stacking and short distance transport.
Specification of diesel forklift:
1.Power transmission system, overhead guard and truck frame all use dual suspension structure,Which can weaken the vibration transferred from power system wheel, control lever and seat , thus making the operator feel more confortable during operation .
2.This forklift truck is designed with high definintion liquid crystal display device which not only provides convenience for operator to undersand the working condition of truck , but also broadens the visual field of operator .

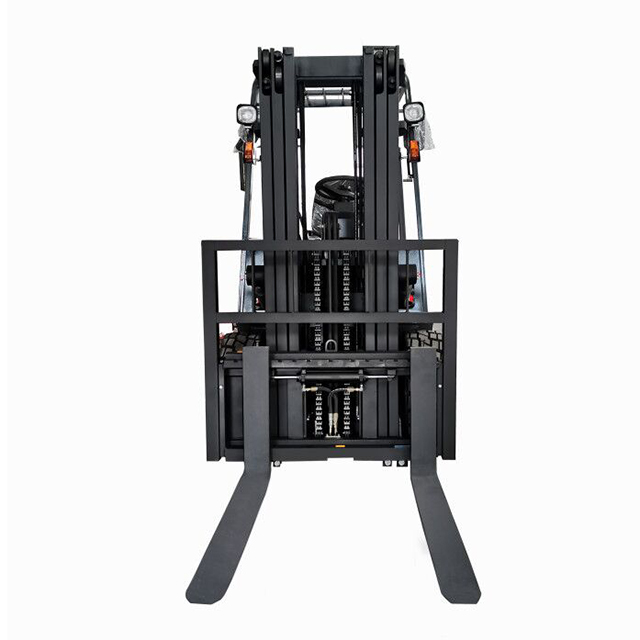

3.This diesel forklift truck can be designed with two stage free lifting mast or three stage mast ,luxurious and closed driving room , solid tire , sideshifter , roll clamps , clamp holder , and nonstandard forks ect , to meet your different needs .
| Model | CPC30/CPCD30 | CPC35/CPCD35 | CPC35X1/CPCD35X1 |
| Power type | Diesel | Diesel | Diesel |
| Rated Capacity(kg) | 3000 | 3500 | 3500 |
| Load eenter(mm) | 500 | 500 | 500 |
| Max.lifting height(mm) | 3000 | 3000 | 3000 |
| Fork Size(LxWxT mm) | 1070x125x45 | 1070x125x50 | 1070x125x50 |
| Mast Tile Angle F/R(Deg) | 6°/12° | 6°/12° | 6°/12° |
| Front Overhang(mm) | 475 | 490 | 490 |
| Ground Clearance(mm) | 120 | 120 | 120 |
| Overall Length (without fork)mm | 2670 | 2700 | 2700 |
| Overall width(mm) | 1225 | 1225 | 1225 |
| Mast lowered height(mm) | 2065 | 2125 | 2125 |
| Mast extended height(with backrest)mm | 4150 | 4150 | 4150 |
| Overhead guard height(mm) | 2090 | 2090 | 2090 |
| Truning radius(outside)(mm) | 2400 | 2445 | 2445 |
| Min.intersecting aisle(mm) | 2110 | 2235 | 2235 |
| Travel(full load)km/h | 19 | 19 | 19 |
| Lifting speed(full load)mm/s | 440 | 410 | 410 |
| Max.Gradeability(%) | 20 | 20 | 20 |
| Front Tire | 28X9-15-12PR | 28X9-15-12PR | 28X9-15-12PR |
| Rear Tire | 6.50-10-10PR | 6.50-10-10PR | 6.50-10-10PR |
| Wheelbase(mm) | 1700 | 1700 | 1700 |
| Self Weight(kgs) | 4220 | 4675 | 4850 |
| Battery volts/capacity(V/Ah) | 12/90 | 12/90 | 12/90 |
| Engine model | C490 BPG | 490BPG | 495BPG |
| Manufacturer | Xincha | Xincha | Xincha |
| Rated output Kw/r.p.m | 40/2650 | 37/2650 | 42/2650 |
| Rated torque Nm/r.p.m | 148/1800-1900 | 148/1800-1900 | 174/1800-2000 |
| No.of Cylinder | 4 | 4 | 4 |
| Bore x Stroke(mm) | 90x100 | 90x100 | 95x105 |
| Displacement(cc) | 2540 | 2540 | 2980 |
| Fuel Tank Capacity(L) | 70 | 70 | 70 |
| Transmission Type | hydraulic/machanical | hydraulic/machanical | hydraulic/machanical |
| Stage FWD/RVS | 1/1(2/2) | 1/1(2/2) | 1/1(2/2) |
| Operating Pressure for Attachment(Mpa) | 17.5 | 17.5 | 17.5 |
