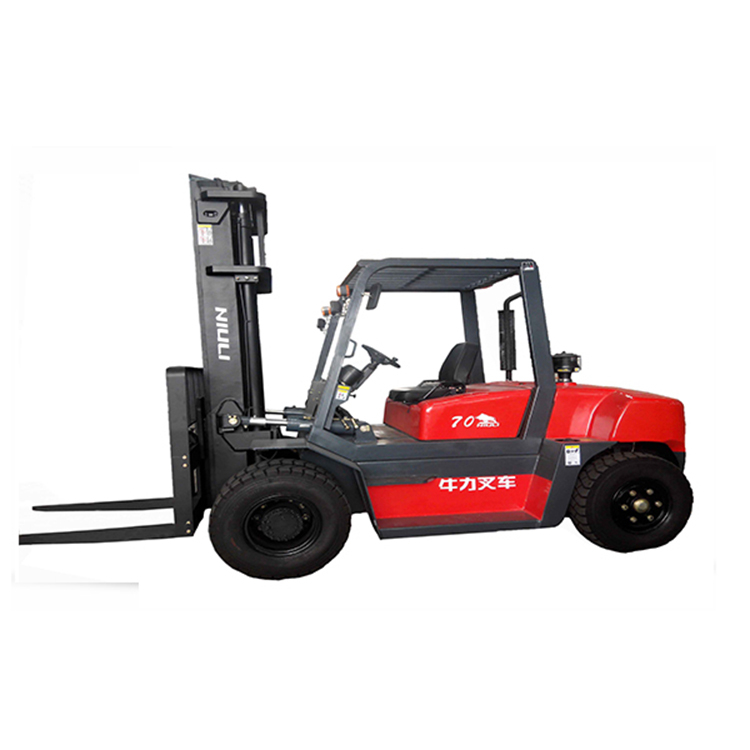

Product Characteristics
l Strong power: Use high-power engine to provide sufficient energy
l Smooth drive system: Easy operation, reliable gearbox, manual or electronic shift available
l Wide-view design: Special wide-view mast design improves the productivity and safety
l Double air filter: Unique double air intake system ensures lower noise and longer service life
l Safety guarantee: Use electromagnetic main switch ensures the safety of electrical system
l Clean appearance: 3D surface modeling makes it clean and beautiful

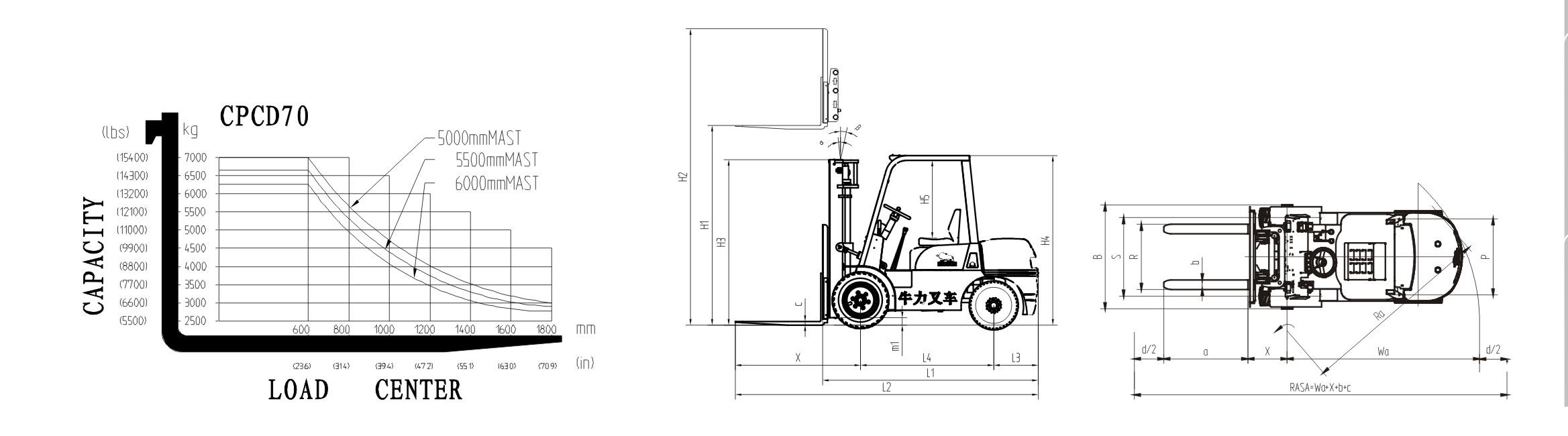

Specifications:
| General | 1 | Model | CPCD70 | ||||||
| 2 | Power Type | Diesel | |||||||
| 3 | Rated capacity | Kg | 7000 | ||||||
| 4 | Load center | mm | 600 | ||||||
| Charactertic | 5 | Lifting height | mm | 3000 | |||||
| 6 | Fork size | mm | 1220*150*50 | ||||||
| 7 | Mast Tilt Angle | Deg | 6°/12° | ||||||
| 8 | Front Overhang(Wheel center to fork face) | mm | 595 | ||||||
| 9 | Ground Clearance(Bottom Of Mast) | mm | 200 | ||||||
| 10 | Overall Dimension | Overall length(without fork) | mm | 3560 | |||||
| 11 | Overall width | mm | 2010 | ||||||
| 12 | Mast lowered height | mm | 2500 | ||||||
| 13 | MastExtended height(with backrest) | mm | 4380 | ||||||
| 14 | Overhead guard height | mm | 2470 | ||||||
| 15 | Turning Radius(outside) | mm | 3350 | ||||||
| 16 | Min. intersecting aisle | mm | 3040 | ||||||
| Performance | 17 | Speed | Travel(Full load) | km/h | 26 | ||||
| 18 | Lifting(Full load) | mm/s | 460 | ||||||
| 19 | Max.Gradeability | % | 20 | ||||||
| Chassis | 20 | Tire | Front | 8.25-15-14PR | |||||
| 21 | Rear | 8.25-15-14PR | |||||||
| 22 | Wheelbase | mm | 2250 | ||||||
| 23 | Self Weight | kg | 9750 | ||||||
| Transmission | 24 | Battery | Voltage/Capacity | V/Ah | (12/80)x2 | ||||
| 25 | Engine | Model | CY6102BG | ||||||
| 26 | Manufacturer | ChaoChai | |||||||
| 27 | Rated output/r.p.m | kW/rpm | 80.9/2500 | ||||||
| 28 | Rated torque/r.p.m | Nm/rpm | 353/1650 | ||||||
| 29 | No. of cylinder | 6 | |||||||
| 30 | Bore x Stroke | mm | 102x118 | ||||||
| 31 | Displacement | cc | 5785 | ||||||
| 32 | Fuel Tank capacity | L | 140 | ||||||
| 33 | Transmission | Type | Hydraulic | ||||||
| 34 | Operation Pressure for Attachment | Mpa | 19 | ||||||
