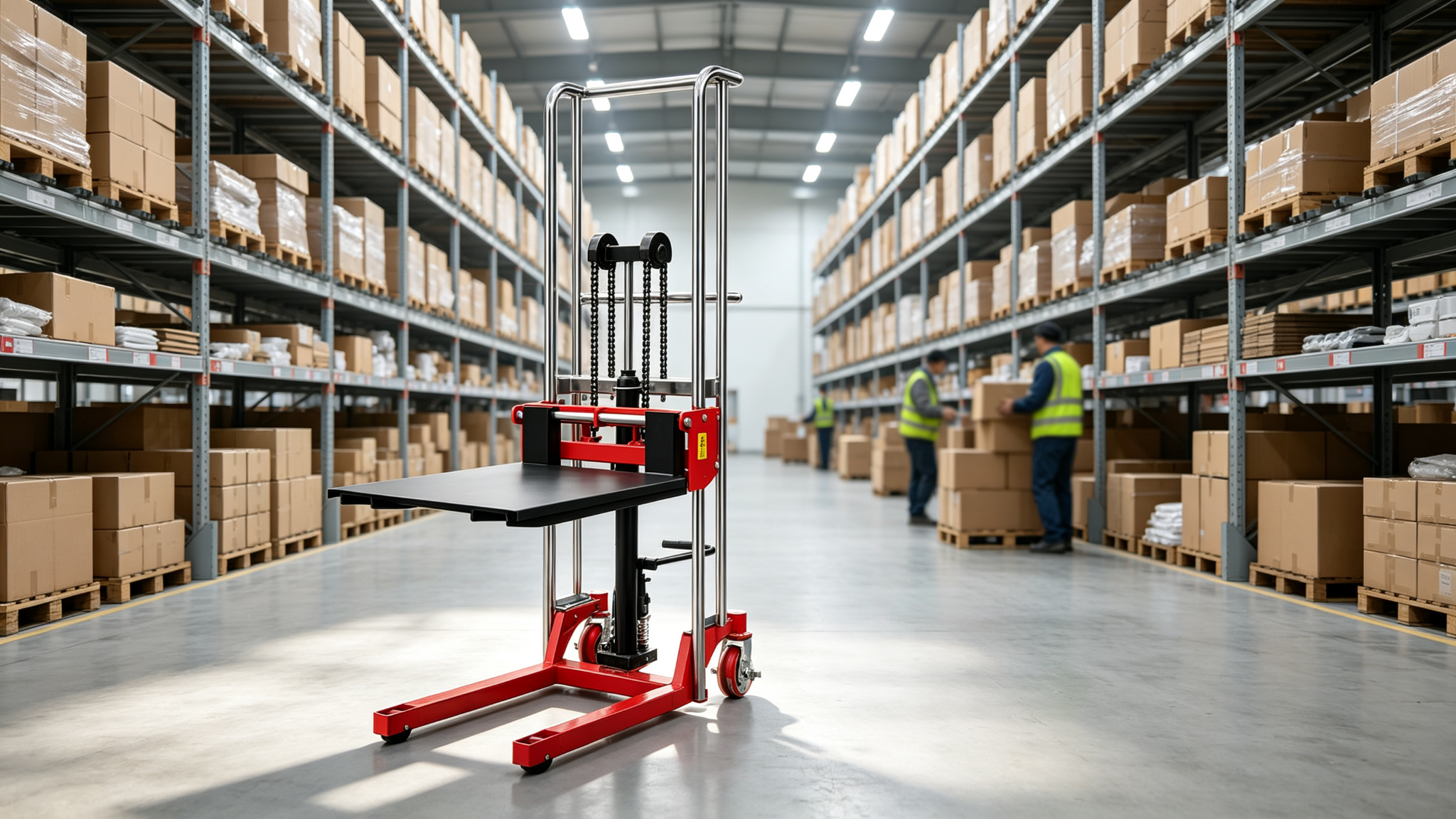

The SDDJ portable stacker is a manual hydraulic lift truck designed for light-duty cargo stacking and height adjustment in warehouses and workshops. Built with a sturdy stainless steel mast and a reliable hydraulic lifting system, this manual portable stacker is lightweight, flexible, and fitted with universal casters for easy movement. Its compact structure fits narrow spaces and it operates entirely without a power supply.
Model: SDDJ
Brand: NIULI
The SDDJ portable stacker is a hand hydraulic lift truck used for stacking, lifting, and adjusting the height of light loads in warehouses, workshops, and workspaces with limited room. Because it runs on a manual hydraulic foot pump, it requires no electricity, no charging, and no complex maintenance, making it ideal for small-scale material handling.
Stainless steel mast: The vertical mast uses thick stainless steel pipe that is anti-rust, high in hardness, and built for a long service life.
Manual hydraulic operation: Lift the load by stepping on the hydraulic foot pump, and lower it slowly using the manual release handle for safe, controlled cargo handling.
Compact, maneuverable design: A U-shaped base frame paired with small swivel casters allows flexible turning through narrow warehouse aisles and passages.
PU silent casters with brake lock: Wear-resistant polyurethane casters are anti-slip and load-bearing, with a fixed positioning function to keep the stacker stable during loading.
Customizable load platform: The flat load platform is detachable, and its length and width can be customized to match your goods.
No power supply required: Lower cost, zero maintenance cost, no charging trouble, and a small footprint that is easy to store when not in use.
The SDDJ portable stacker is available in five mast-height models, all sharing a 400 kg working platform and identical fork dimensions. The number in each model name indicates the maximum lift height in millimeters.
Model | SDDJ850 | SDDJ1100 | SDDJ1300 | SDDJ1500 | SDDJ1700 |
|---|---|---|---|---|---|
Load capacity (kg) | 400 | 400 | 400 | 400 | 400 |
Lowest height (mm) | 90 | 90 | 90 | 90 | 90 |
Max. height (mm) | 850 | 1100 | 1300 | 1500 | 1700 |
Fork length (mm) | 610 | 610 | 610 | 610 | 610 |
Fork width (mm) | 550 | 550 | 550 | 550 | 550 |
Table dimensions (mm) | 610x580 | 610x580 | 610x580 | 610x580 | 610x580 |
Handle length (mm) | 1150 | 1150 | 1150 | 1150 | 1150 |
Overall length (mm) | 1365 | 1365 | 1565 | 1765 | 1965 |
Net weight (kg) | 80 | 85 | 88 | 91 | 98 |
The SDDJ hand hydraulic lift truck lifts loads when you step on the hydraulic foot pump, and lowers them slowly through a manual release handle. This gives operators safe, controlled movement without needing electricity or batteries.
Yes. The SDDJ portable stacker combines a compact U-shaped base frame with small swivel casters, allowing flexible turning in narrow passages and tight warehouse layouts. This makes it well suited for small warehouses, workshops, and stockrooms where larger equipment cannot maneuver.
What material is the mast of this portable stacker made of?
Its vertical mast adopts thick stainless steel pipe, which is anti-rust, high in hardness, and offers a long service life.
What is the maximum loading capacity of the SDDJ portable stacker?
Standard load capacity ranges across the SDDJ850 to SDDJ1700 models, with customized load options available on request.
Is the loading platform replaceable? Can we customize its size?
Yes. The flat load platform is detachable, and its length and width can be customized according to your goods.
Can the casters bear heavy loads and prevent skidding?
The stacker uses wear-resistant PU silent casters with a brake lock, providing anti-slip performance, load-bearing capacity, and fixed positioning.
What's the advantage of this stacker compared with full electric stackers?
The SDDJ manual stacker offers lower cost, zero maintenance cost, no charging trouble, and a small volume that is easy to store when not in use. Full electric stackers are better suited to heavier, high-frequency lifting, while the SDDJ manual portable stacker works best for light-duty, occasional handling in compact spaces.
Does the SDDJ portable stacker need electricity or batteries?
No. The SDDJ is a fully manual hand hydraulic lift truck operated by a foot pump, so it needs no power supply, charging, or batteries. This makes it ideal for locations without convenient access to power.
Who should choose a manual portable stacker over an electric model?
A manual portable stacker like the SDDJ is best for businesses with light-duty, low-frequency lifting needs, tight budgets, or limited storage space. Operations with heavy or continuous lifting demands are generally better served by a semi-electric or full electric stacker.
How much maintenance does the SDDJ hand stacker require?
The SDDJ requires minimal upkeep. With no motor or battery to service and no charging routine, maintenance cost is effectively zero compared with powered stackers.
