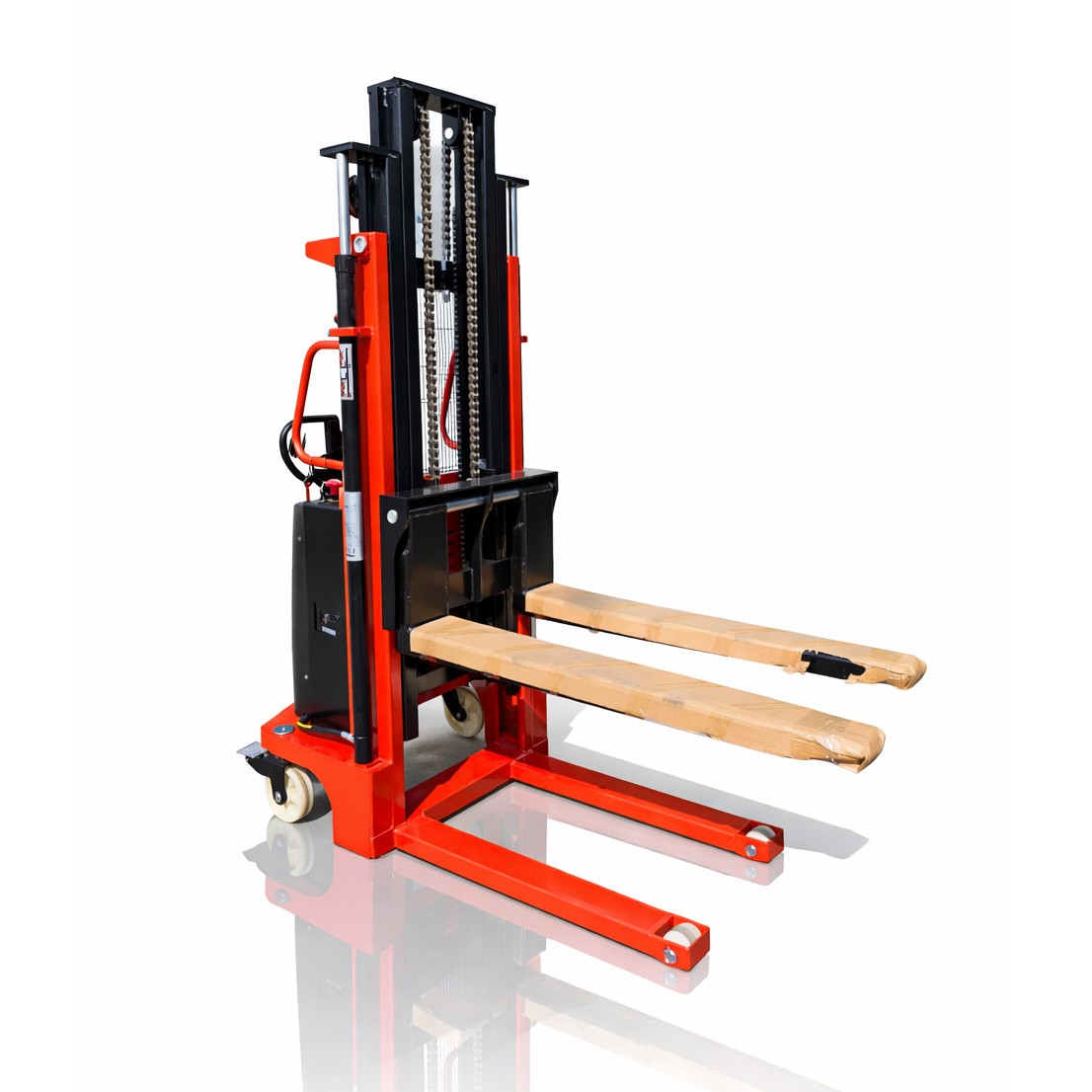

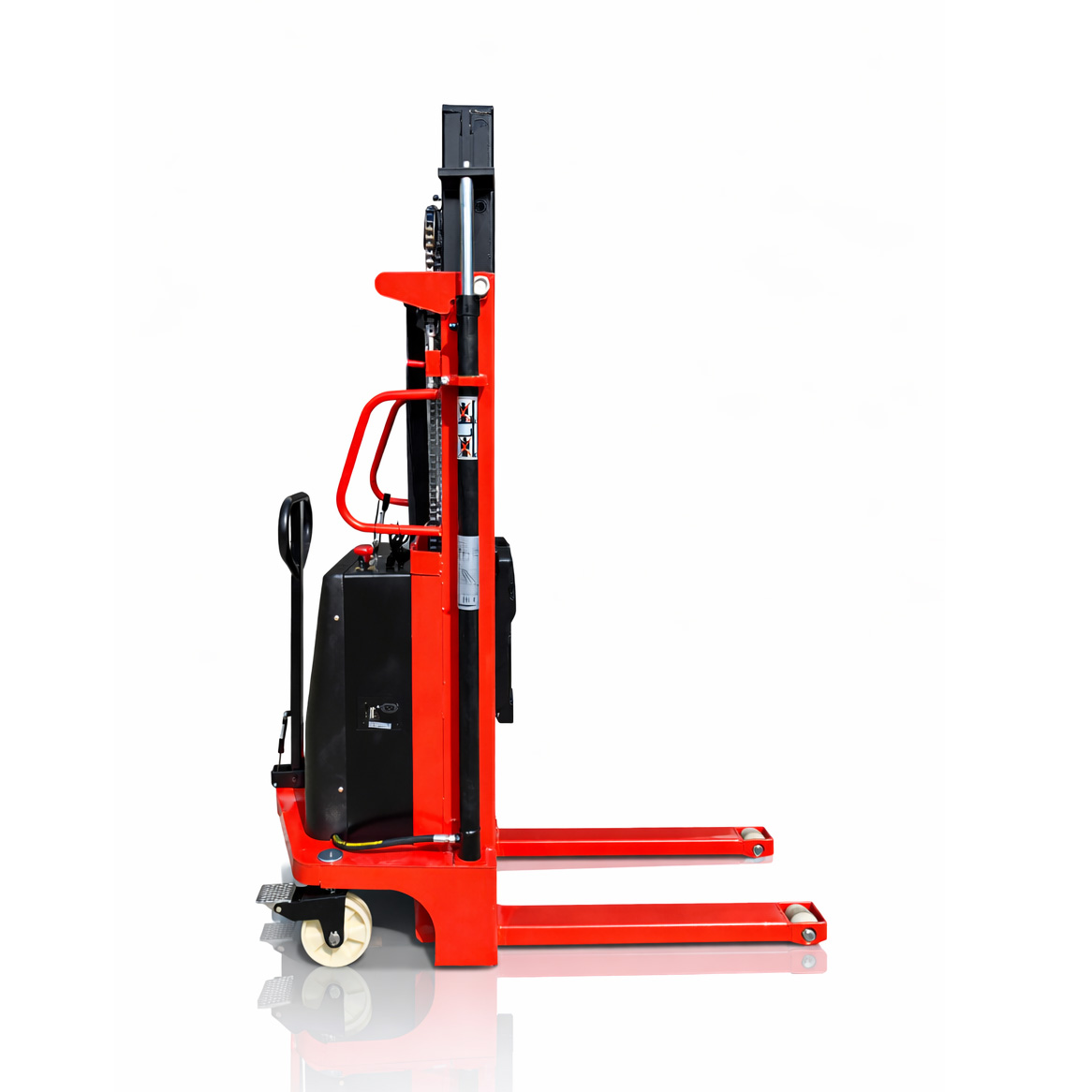

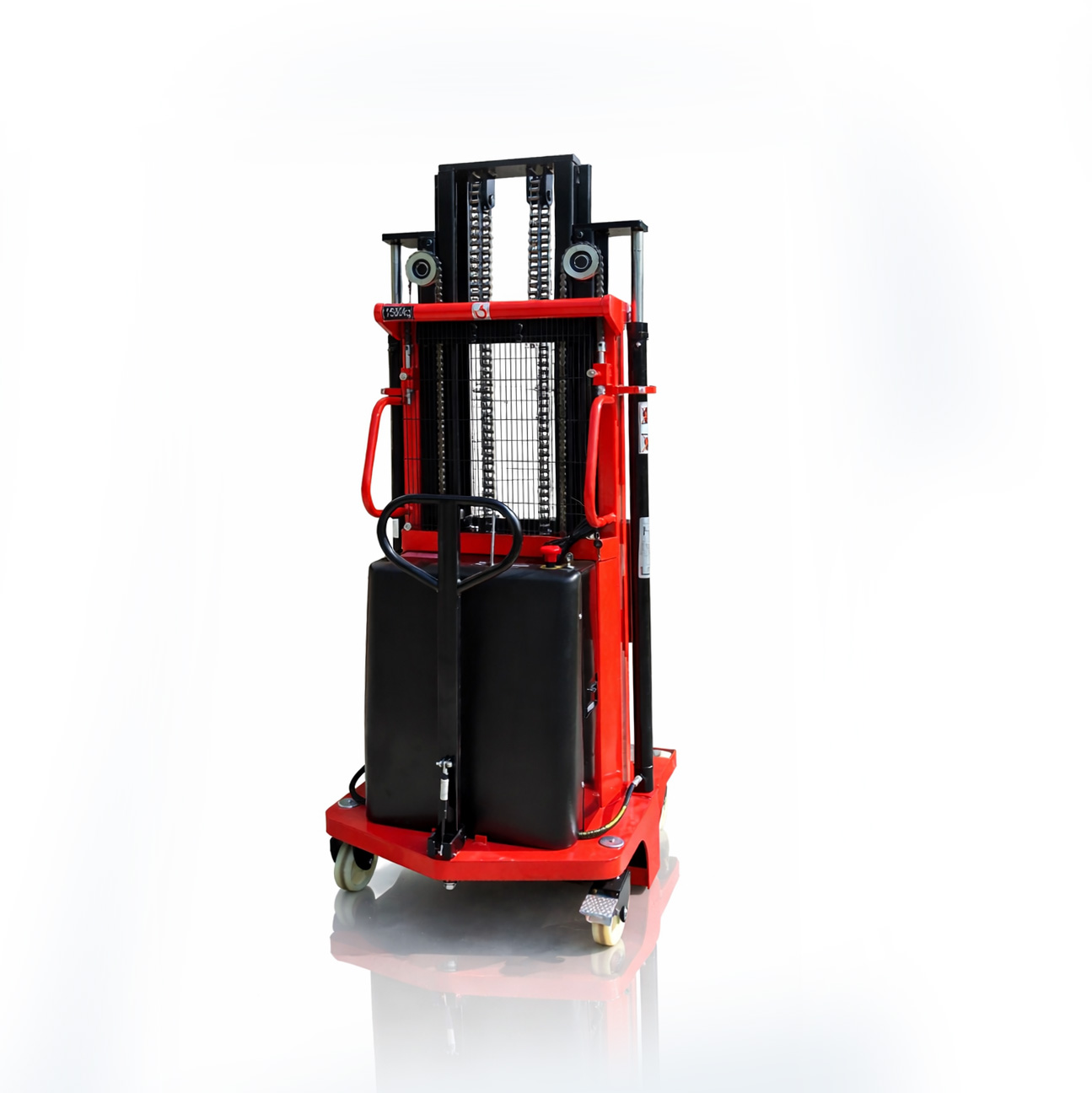

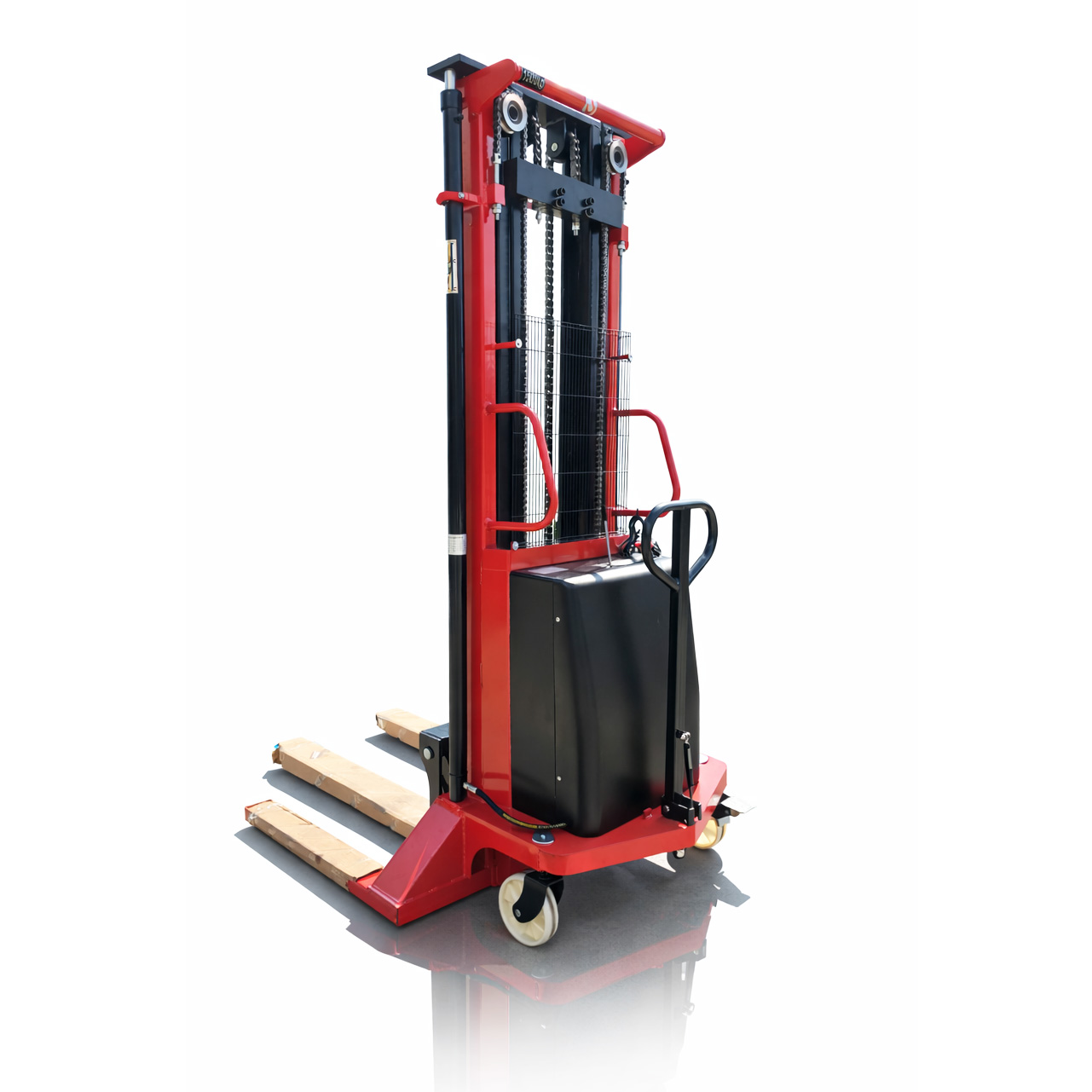

CTD Semi-Electric Stacker

Name: CTD Semi-Electric Stacker
Brand: NIULI
Rating: 5.0 (11 reviews)

The maximum height increase can reach 3500mm, providing an economical option compared to vehicles equipped with a drive motor. Provided a systematic gantry (1600, 2500, 3000, 3500) and a powerful 1.6kW lifting motor, making it demonstrate superior performance in short distance transportation.

Model:
CTD
Brand:
NIULI

Quantity:
Availability:





Inquire Add to Basket

What is NIULI CTD Semi-electric Stacker? What are its main advantages?

The CTD is an economical stacking equipment with manual propulsion and electric lifting. Key advantages: labor-saving, efficient, stable structure, easy maintenance, perfectly balancing cost and performance to greatly improve warehouse handling efficiency.

What are the load capacity and lifting range of the CTD Semi-electric Stacker?

Available in 1,000kg, 1,500kg, 2,000kg load capacities; standard lifting heights range from 1.6m to 3.3m, meeting most warehouse shelving and loading/unloading needs.

Where is the CTD Semi-electric Stacker suitable for use?

Widely used in factories, warehouses, distribution centers, ports, railway stations, etc. Ideal for narrow aisles and light palletized cargo stacking, handling and loading/unloading.

What safety features does the CTD have?

Equipped with anti-fall explosion-proof valve, battery over-discharge protection, high-quality sealed cylinder (leak-proof), and emergency stop button, ensuring all-round operational safety.

Is the CTD complicated to operate? How to maintain it daily?

Extremely easy to operate: One-button electric lift, easy manual pushing. Daily maintenance: charge timely, monitor battery level, check hydraulic oil regularly, clean wheels, tighten screws, durable and reliable.

Semi-electric Stacker

hydraulic manual forklift

hand lifting machine

PARAMETER TABLE

Parameter	Unit	CTD10/16	CTD10/20	CTD10/25	CTD10/30	CTD10/35	CTD15/16	CTD15/20	CTD15/25	CTD15/30	CTD15/35	CTD20/16	CTD20/20	CTD20/25	CTD20/30
Model	–	CTD10/16	CTD10/20	CTD10/25	CTD10/30	CTD10/35	CTD15/16	CTD15/20	CTD15/25	CTD15/30	CTD15/35	CTD20/16	CTD20/20	CTD20/25	CTD20/30
Capacity Q	Kg	1000	1000	1000	1000	1000	1500	1500	1500	1500	1500	2000	2000	2000	2000
Max. height (H)	mm	1600	2000	2500	3000	3500	1600	2000	2500	3000	3500	1600	2000	2500	3000
Load center (C)	mm	500	500	500	500	500	500	500	500	500	500	500	500	500	500
Min. height (h)	mm	85	85	85	85	85	85	85	85	85	85	85	85	85	85
Length of fork (L)	mm	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
Width of fork (W3)	mm	680	680	680	680	680	680	680	680	680	680	680	680	680	680
Ground clearance (X)	mm	25	25	25	25	25	25	25	25	25	25	25	25	25	25
Max. lift speed (unload)	mm/s	90±10%	90±10%	90±10%	90±10%	90±10%	90±10%	90±10%	90±10%	90±10%	90±10%	90±10%	90±10%	90±10%	90±10%
Max. lifting speed (load)	mm/s	60	60	60	60	60	60	60	60	60	60	60	60	60	60
Max. lowering speed (load)	mm/s	≤280	≤280	≤280	≤280	≤280	≤280	≤280	≤280	≤280	≤280	≤280	≤280	≤280	≤280
Min. turning radius (R)	mm	1500	1500	1500	1500	1500	1500	1500	1500	1500	1500	1500	1500	1500	1500
Rear wheel size (d1)	mm	φ80x70	φ80x70	φ80x70	φ80x70	φ80x70	φ80x93	φ80x93	φ80x93	φ80x93	φ80x93	φ80x93	φ80x93	φ80x93	φ80x93
Front wheel size (d2)	mm	φ180x150	φ180x150	φ180x150	φ180x150	φ180x150	φ180x150	φ180x150	φ180x150	φ180x150	φ180x150	φ180x150	φ180x150	φ180x150	φ180x150
Overall length (L1)	mm	170	170	170	170	170	170	170	170	170	170	170	170	170	170
Overall width (W)	mm	800	800	800	800	800	800	800	800	800	800	800	800	800	800
Overall height (H1)	mm	2080	1650	1900	2150	2300	2080	1650	1900	2150	2300	2080	1650	1900	2150
Battery capacity	–	12V-100Ah	12V-120Ah	12V-120Ah	12V-120Ah	12V-120Ah	12V-100Ah	12V-120Ah	12V-120Ah	12V-120Ah	12V-120Ah	12V-100Ah	12V-120Ah	12V-120Ah	12V-120Ah
Charger	–	AC220V/50Hz, DC12V/20A	AC220V/50Hz, DC12V/20A	AC220V/50Hz, DC12V/20A	AC220V/50Hz, DC12V/20A	AC220V/50Hz, DC12V/20A	AC220V/50Hz, DC12V/20A	AC220V/50Hz, DC12V/20A	AC220V/50Hz, DC12V/20A	AC220V/50Hz, DC12V/20A	AC220V/50Hz, DC12V/20A	AC220V/50Hz, DC12V/20A	AC220V/50Hz, DC12V/20A	AC220V/50Hz, DC12V/20A	AC220V/50Hz, DC12V/20A
Lifting motor	Kw	DC24V-1.6Kw	DC24V-1.6Kw	DC24V-1.6Kw	DC24V-1.6Kw	DC24V-1.6Kw	DC24V-1.6Kw	DC24V-1.6Kw	DC24V-1.6Kw	DC24V-1.6Kw	DC24V-1.6Kw	DC24V-1.6Kw	DC24V-1.6Kw	DC24V-1.6Kw	DC24V-1.6Kw
Gear pump	ml/r	CBWn-F2.0	CBWn-F2.0	CBWn-F2.0	CBWn-F2.0	CBWn-F2.0	CBWn-F2.0	CBWn-F2.0	CBWn-F2.0	CBWn-F2.0	CBWn-F2.0	CBWn-F2.0	CBWn-F2.0	CBWn-F2.0	CBWn-F2.0
Self weight of battery	Kg	28	35	35	35	35	28	35	35	35	35	28	35	35	35
Self weight (without battery)	Kg	312	325	340	355	370	387	405	425	445	465	397	415	435	475
