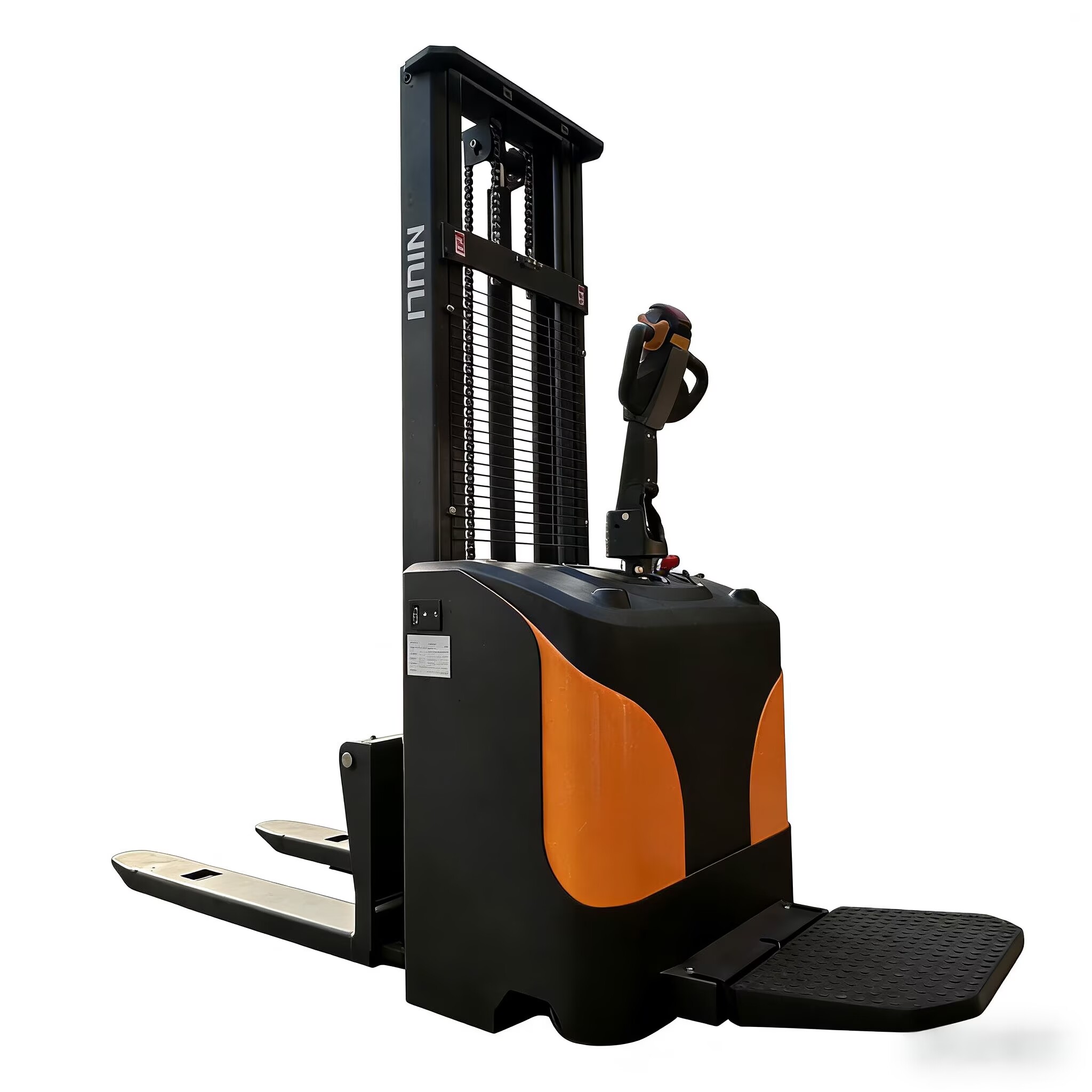

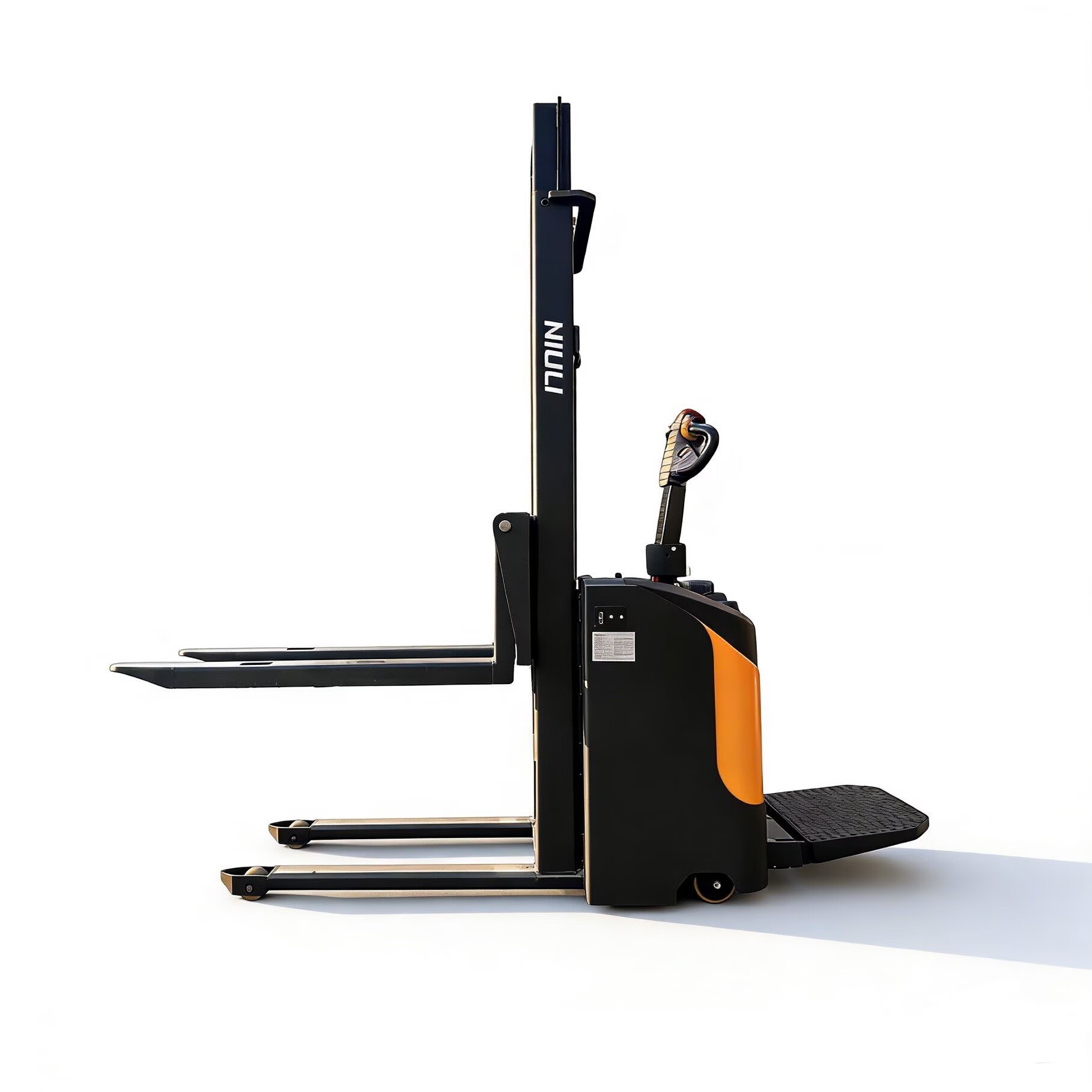

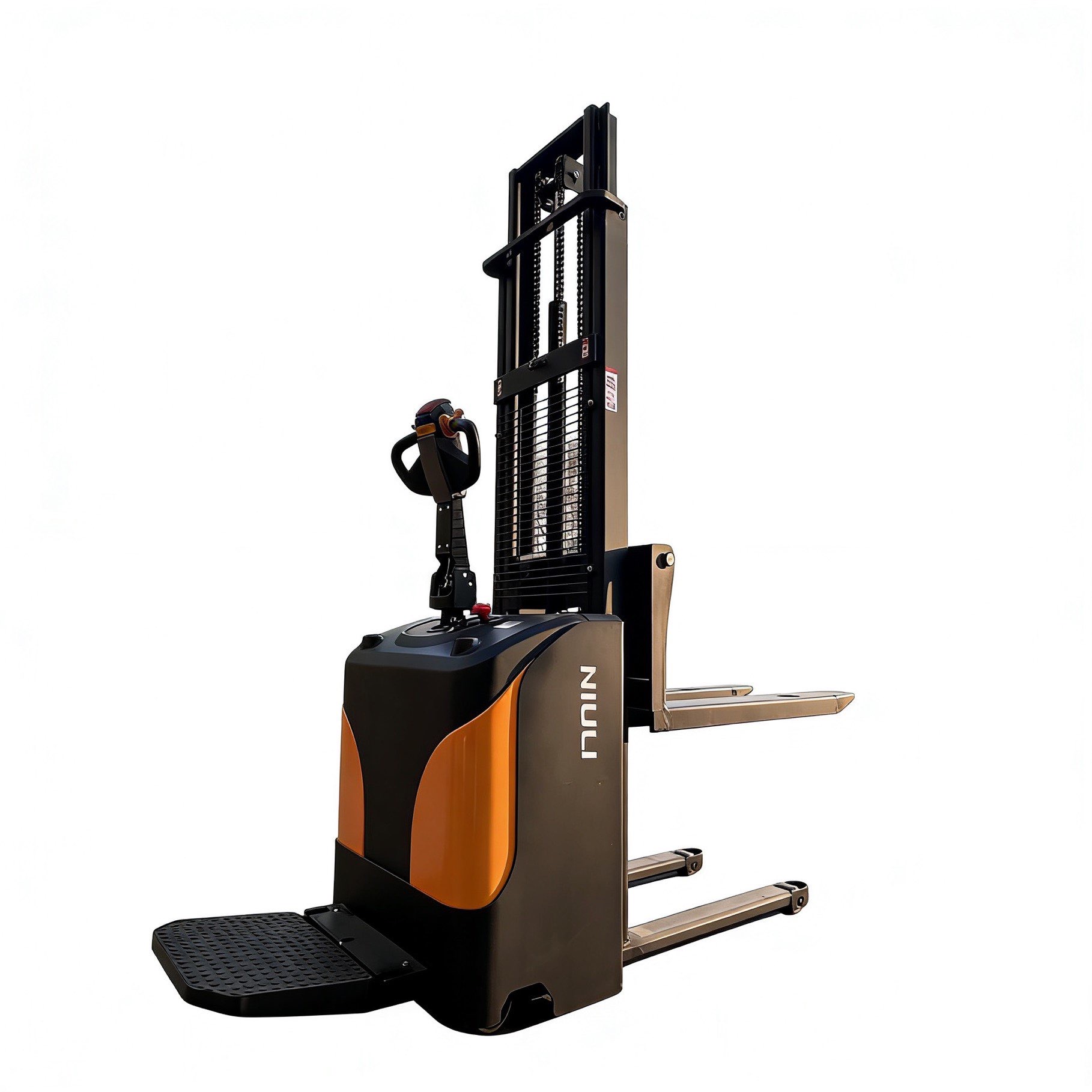

CTQD Electric Stacker

CTQD

Electric Stacker

Capacity: 1000kg/1500kg Lifting height: 1600mm-4000mm
Compact and convenient design, easy to operate, small workspace, maintenance free battery, ergonomic handle, with multifunctional control
  • ◆ The shock absorber spring can adjust the vertical transmission unit according to the road conditions
  • ◆ High quality buffer hydraulic system lifting and lowering
  • ◆ Vertical drive system
  • ◆ Emergency power disconnect switch.
  • ◆ Ergonomic multifunctional handle
  • ◆ Wide mast design provides better visibility

  • CTQD

  • NIULI

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
Item Unit CTQD15/30 CTQD20/30
Model
CTQD15/30 CTQD20/30
Power type
Electric Electric
Operation type
Rider type Rider type
Load capacity Q(kg) 1500 2000
Load center C(mm) 500 500
Load distance, load center X(mm) 728 813
Wheelbase Y(mm) 1302 1338
Self-weight(with battery) kg 860 870
Wheel type
PU PU
Front wheel Ø*w(mm) 80*70 80*70
Rearing wheel Ø*w(mm) 210*75 250*80
Balance wheel Ø*w(mm) 125*50 125*50
Front wheel base b2(mm) 515 490
Rearing wheel base b3(mm) 624 624
Mast lowered height h1(mm) 2066 2066
Lift height h3(mm) 3000 3000
Max. lifting height h4(mm) 3540 3540
Handle height h5(mm) 1474 1474
Fork clearance when mast lowered h13(mm) 86 86
Overall length(Platform folded/unfolded) l2(mm) 2041/2456 2000/2411
Overall width b1(mm) 850 850
Fork size s/el(mm) 65/165/1150 65/190/1150
Forks outer width b5(mm) 680 680
Min. ground clearance m2(mm) 30 30
Aisle width for Pallet 1000*1200 crossaway(platform folded) Ast(mm) 2505 2505
Aisle width for Pallet 1000*1200 crossaway(platform) Ast(mm) 2910 2910
Min. turning radius(platform folded/unfolded) Wa(mm) 1641/2052 1678/2080
Travel speed(unload/load) km/h 4/3.5 5.5/5.1
Lifting speed(unload/load) m/s 0.101/0.095 0.101/0.095
Decnet speed(unload/load) m/s 0.096/0.115 0.096/0.115
Max. gradeability(unload/load) % 5/3 6/4
Service brake
Electromagnetic Electromagnetic
Drive motor kw 0.75 1.5
Lift motor kw 2.2 2.2
Battery type
Lead Acid Lead Acid
Battery voltage/nominal capacity V/Ah 24/100 24/160(200)
Charger V/A 24/10 24/20
Type of drive control
DC AC
Sound level at driver's ear acc. to EN12053 dB(A) 75 75
