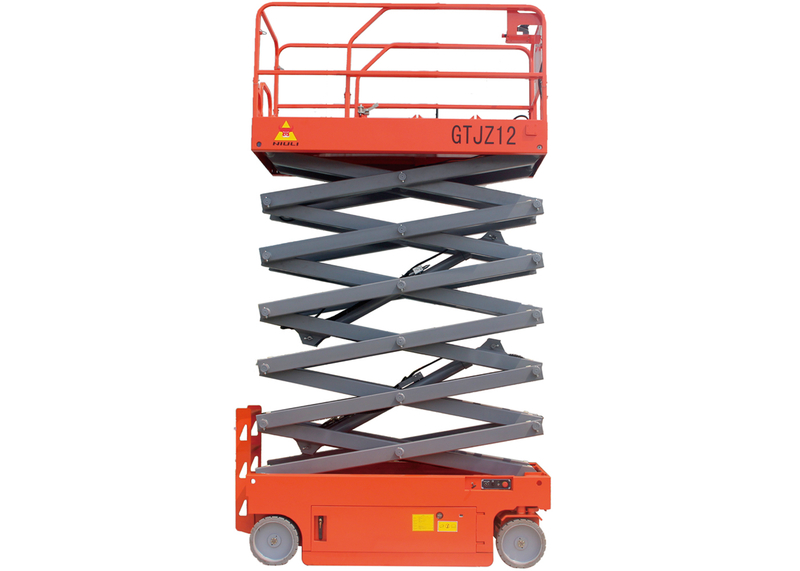

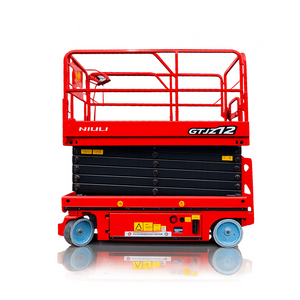

The self-propelled scissor aerial work platform adopts the vertical lifting mode of the scissor structure. The working height of the product ranges from 6 meters to 14 meters. The electric scissors have low noise, no air pollution, anti-skid, and not easy to scratch the ground.
● Using original imported key hydraulic components, high reliability and long service life;
● You can walk or drive at low speed for high-altitude work;
● The large-angle steering system provides excellent maneuverability.
| Model | GTJZ06 | GTJZ08 | GTJZ10 | GTJZ12 | GTJZ14 |
| Platform height(m) | 5.8 | 8.1 | 10.2 | 11.95 | 13.75 |
| Working height(m) | 7.8 | 10.1 | 12.2 | 13.95 | 14.75 |
| Platform extension size(m) | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
| Load capacity/extension capacity(kg) | 230/110 | 230/110 | 320/110 | 320/110 | 230/110 |
Gradeability | 25% | 25% | 25% | 25% | 25% |
| Max allowable working angle(°) | 2/3 | 2/3 | 2/3 | 2/3 | 2/3 |
| Min turn radius(m) | 2.1 | 2.2 | 2.2 | 2.2 | 2.6 |
| Travel speed(stowed)(km/h) | 3.5 | 3.5 | 3.6 | 3.6 | 3.6 |
| Up/Down speed(m/s) | 0.18-0.25 | 0.18-0.25 | 0.18-0.25 | 0.18-0.25 | 0.18-0.25 |
| Overall size(L*W)(m)D/F | 1.82×0.76 | 2.48×1.15 | 2.48×1.15 | 2.48×1.15 | 2.83×1.25 |
| Overall height/side rail(m)C/E | 2.2/1084 | 2.32/1.82 | 2.45/1.95 | 2.57/2.07 | 2.6/2.1 |
| Platform size(L*W)(m) A×B | 1.65×0.75 | 2.32×1.13 | 2.32×1.13 | 2.32×1.13 | 2.68×1.13 |
| Ground clearance(stowed/raised)(m) | 0.1×0.02 | 0.1×0.02 | 0.1×0.02 | 0.1×0.02 | 0.1×0.02 |
| Driving wheel size(m) | 0.305×0.118 | 0.381×0.127 | 0.381×0.127 | 0.381×0.127 | 0.381×0.127 |
| Weight(kg) | 1500 | 2450 | 2710 | 2880 | 3150 |
| Lifting motor(V/kw) | 24/3.0 | 24/4.5 | 24/4.5 | 24/4.5 | 24/4.5 |
| Maintenance free battery(V/ah) | 4×6/225 | 4×6/225 | 4×6/240 | 4×12/300 | 4×6/300 |
| Battery charger(V/ah) | 24/30 | 24/30 | 24/30 | 24/30 | 24/30 |
