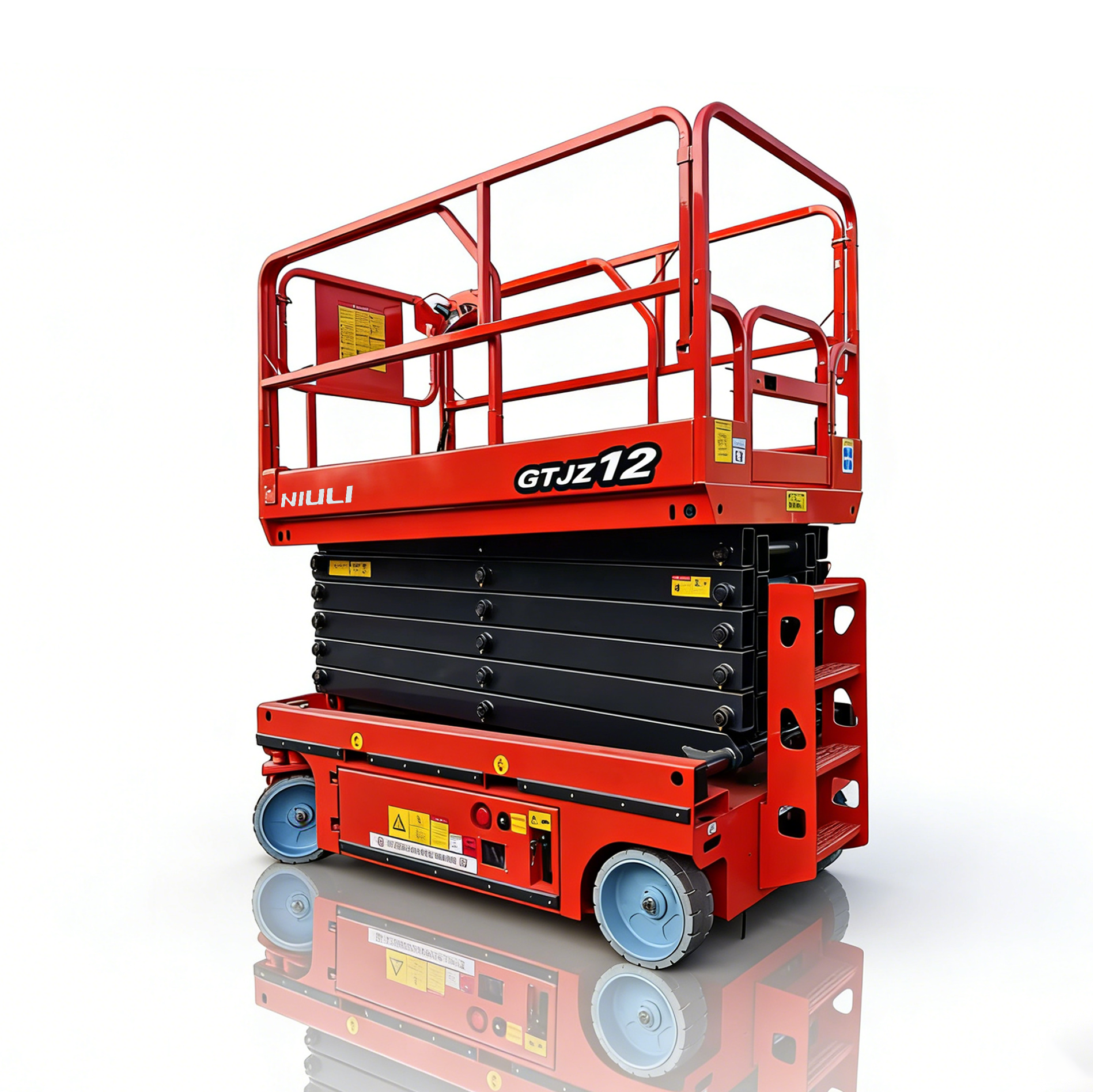

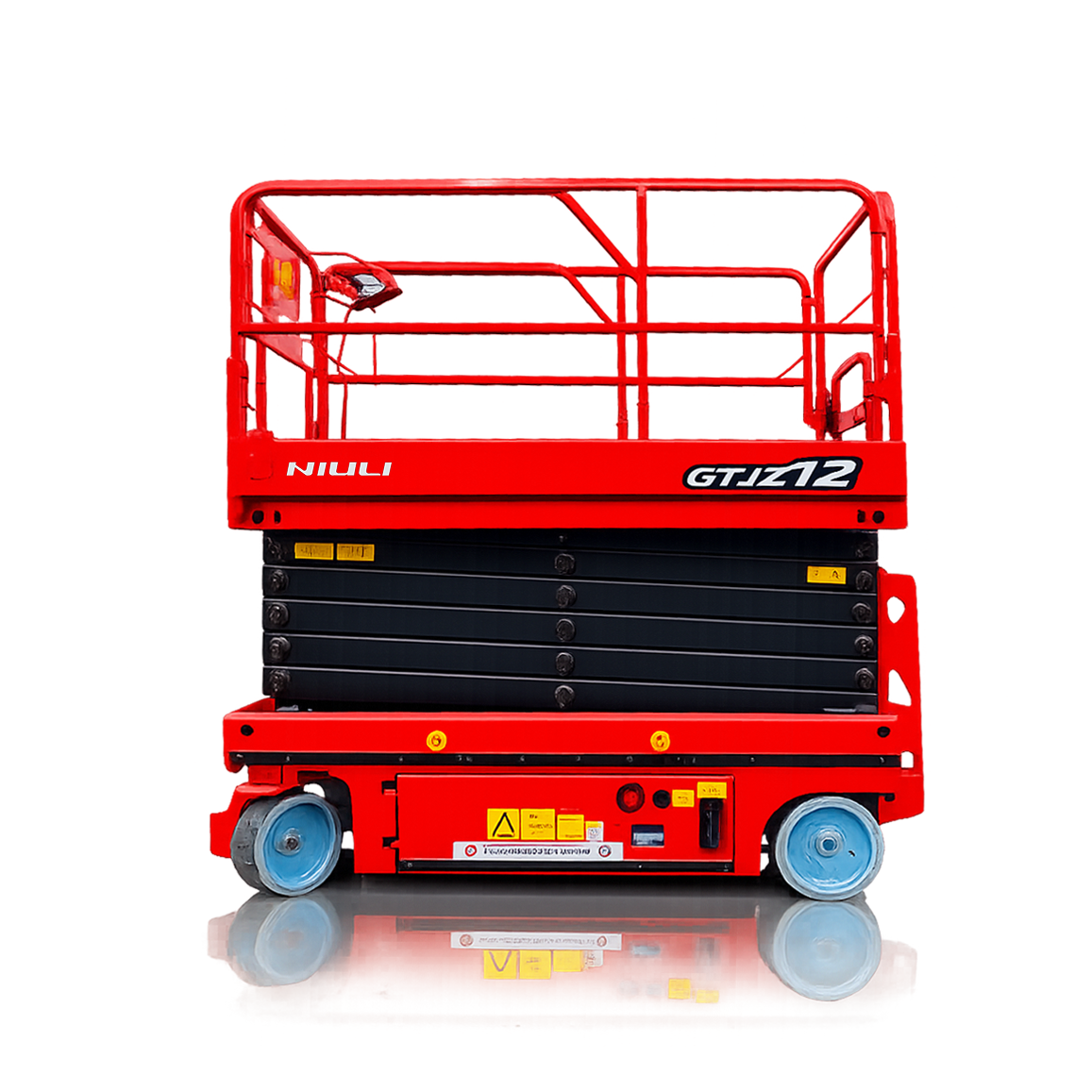

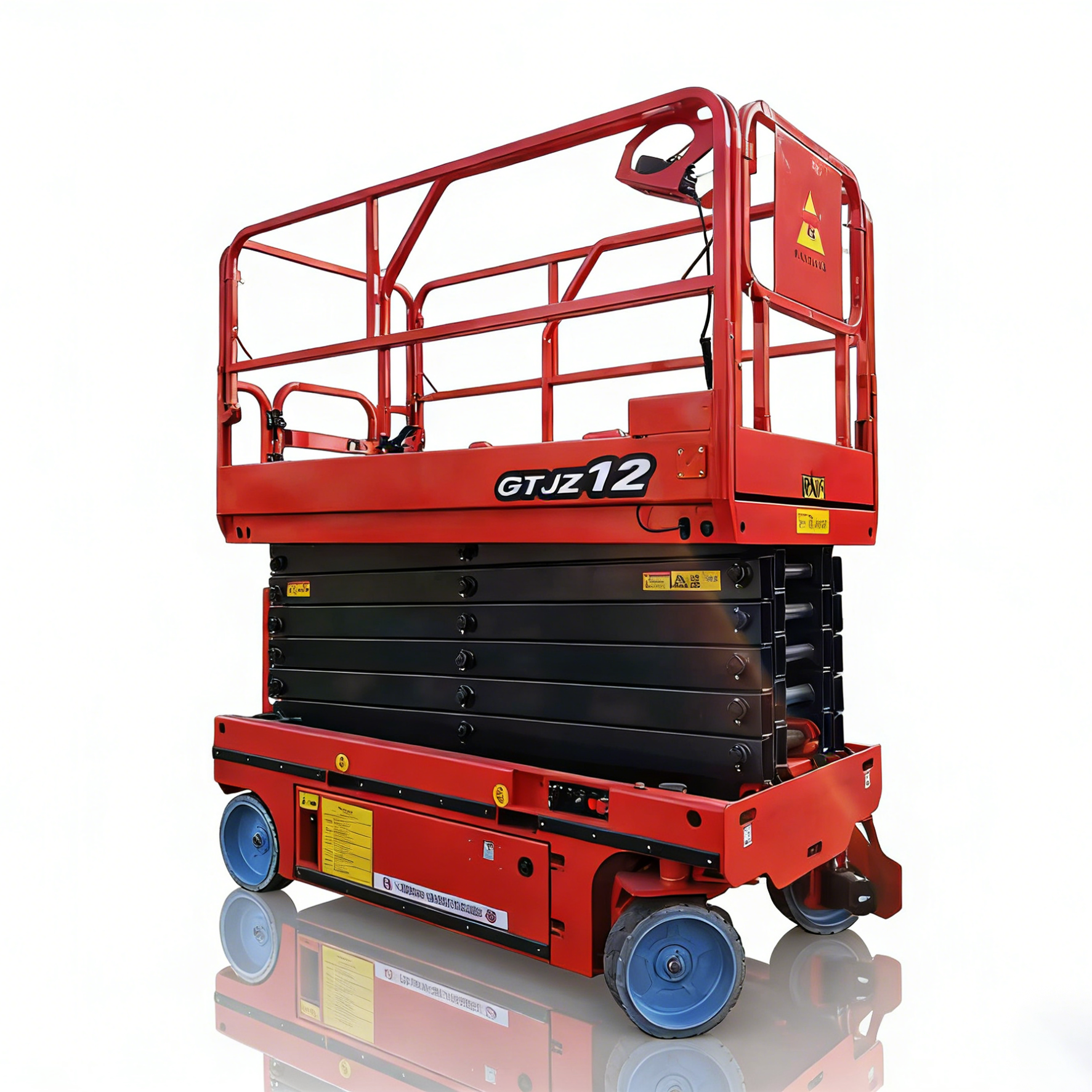

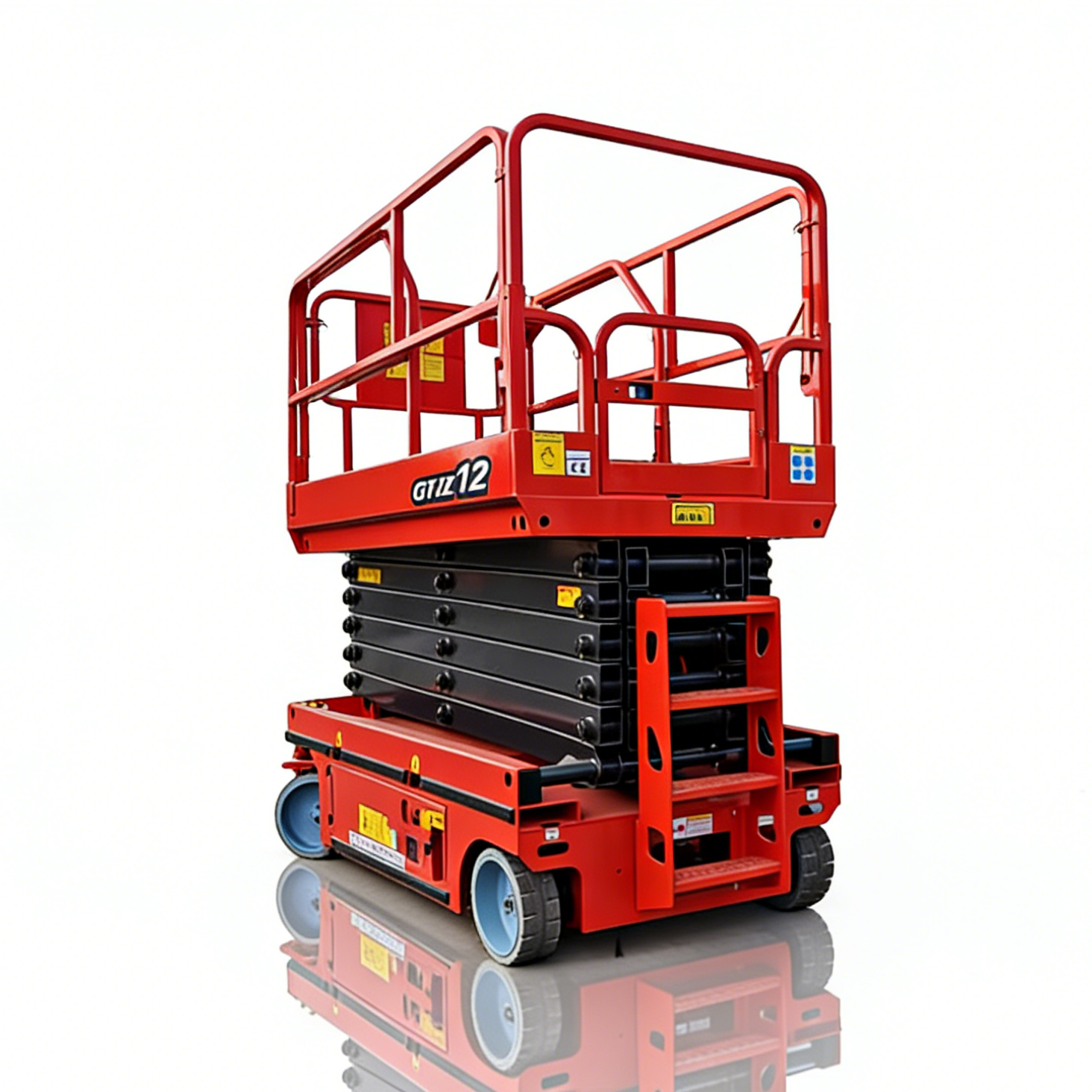

GTJZ12 Self-Propelled Scissor Lift Platform

Name: GTJZ12 Self-Propelled Scissor Lift Platform
Brand: NIULI
Rating: 5.0 (56 reviews)

NIULI self-propelled scissor lift platform is designed for efficient, flexible aerial work across diverse job sites. It features a quick-deploy foot extension platform for fast on-site setup, paired with a foldable fence that reduces the machine's overall volume, making it ideal for operation in narrow spaces. With a 25% climbing ability, it can smoothly traverse slopes, expanding its usability to uneven work environments. Additionally, the rotating chassis simplifies routine maintenance, while the automatic fault code display system further streamlines troubleshooting and upkeep, ensuring reliable, low-hassle performance for all your aerial work needs.

Model:
GTJZ
Brand:
NIULI

Quantity:
Availability:





Inquire Add to Basket

Product Description

Parameter Item	GTJY0845	GTJY1045	GTJY1232
Capacity(kg)	450	450	320
Max. Platform Height H3(m)	8	10	12
Max. Working Height H4(m)	10	12	14
Platform size L2×W2(m)	2.2×1	2.2×1	2.55×1
Platform extension size L3(m)	-	9	-
Overall Length L1(m)	2.26	2.26	2.61
Overall Width W1(m)	-	1.12	-
Overall Height H2(m)	1.67	1.78	1.91
Overall Height H1(m)	2.53	2.65	2.77
Overall Height (with extension platform)(m)	2.08	2.20	2.32
Supporting leg open	2.7×2.6	2.7×2.6	3×2.9
Ground clearance D(m)	-	0.1	-
Wheelbase S(m)	1.64	1.64	1.99
Wheel-base T(m)	-	0.94	-
Front wheels size	-	448×122	-
Rear wheel	-	448×122	-
Battery	-	2-12V/120Ah	-
Integrated charger	-	24V/15A	-
Lifting motor (AC)	-	220V/3KW	-
Lifting motor (DC)	-	24V/3KW	-
Lifting/lowering time (S)	50/45	60/55	72/67
Self weight (kg)	1700	1850	2150

What makes the NIULI self-propelled scissor lift suitable for narrow job sites?

It adopts a foldable fence design that significantly reduces the overall machine volume, and is equipped with a convenient foot extension platform. These features make it highly flexible and perfectly adapted to working in narrow spaces, ensuring smooth operation even in limited-area sites.

Can this scissor lift handle sloped terrains?

Yes, it has an impressive 25% climbing ability, enabling it to smoothly climb and traverse various slopes. This expands its application range, making it suitable for uneven work environments such as inclined grounds or site with height differences.

How about the maintenance convenience of the equipment?

The maintenance is very user-friendly. It is designed with a rotating chassis, which simplifies daily maintenance and part replacement. Meanwhile, the automatic fault code display function is available, which can quickly locate faults and greatly facilitate troubleshooting and maintenance work.

What is the advantage of the foot extension platform?

The foot extension platform can be quickly deployed to the work site. This design improves the efficiency of on-site preparation, shortens the working setup time, and ensures that the equipment can quickly put into use after arriving at the site.

How does the foldable fence benefit the equipment's transportation and storage?

The foldable fence effectively reduces the overall volume of the machine. When folded, the equipment takes up less space, which not only lowers the cost of transportation and logistics, but also saves storage space in the warehouse, improving the overall usability and cost-effectiveness.
