SDDJ
NIULI
| Quantity: | |
|---|---|
Model |
SDDJ850 |
SDDJ1100 |
SDDJ1300 |
SDDJ1500 |
SDDJ1700 |
Load capacity(kg) |
400 |
400 |
400 |
400 |
400 |
Lowest height(mm) |
90 |
90 |
90 |
90 |
90 |
Max. height(mm) |
850 |
1100 |
1300 |
1500 |
1700 |
Fork length(mm) |
610 |
610 |
610 |
610 |
610 |
Fork width(mm) |
550 |
550 |
550 |
550 |
550 |
Table dimensions(mm) |
610x580 |
610x580 |
610x580 |
610x580 |
610x580 |
Handle length(mm) |
1150 |
1150 |
1150 |
1150 |
1150 |
Overall length(mm) |
1365 |
1365 |
1565 |
1765 |
1965 |
Net weight(kg) |
80 |
85 |
88 |
91 |
98 |

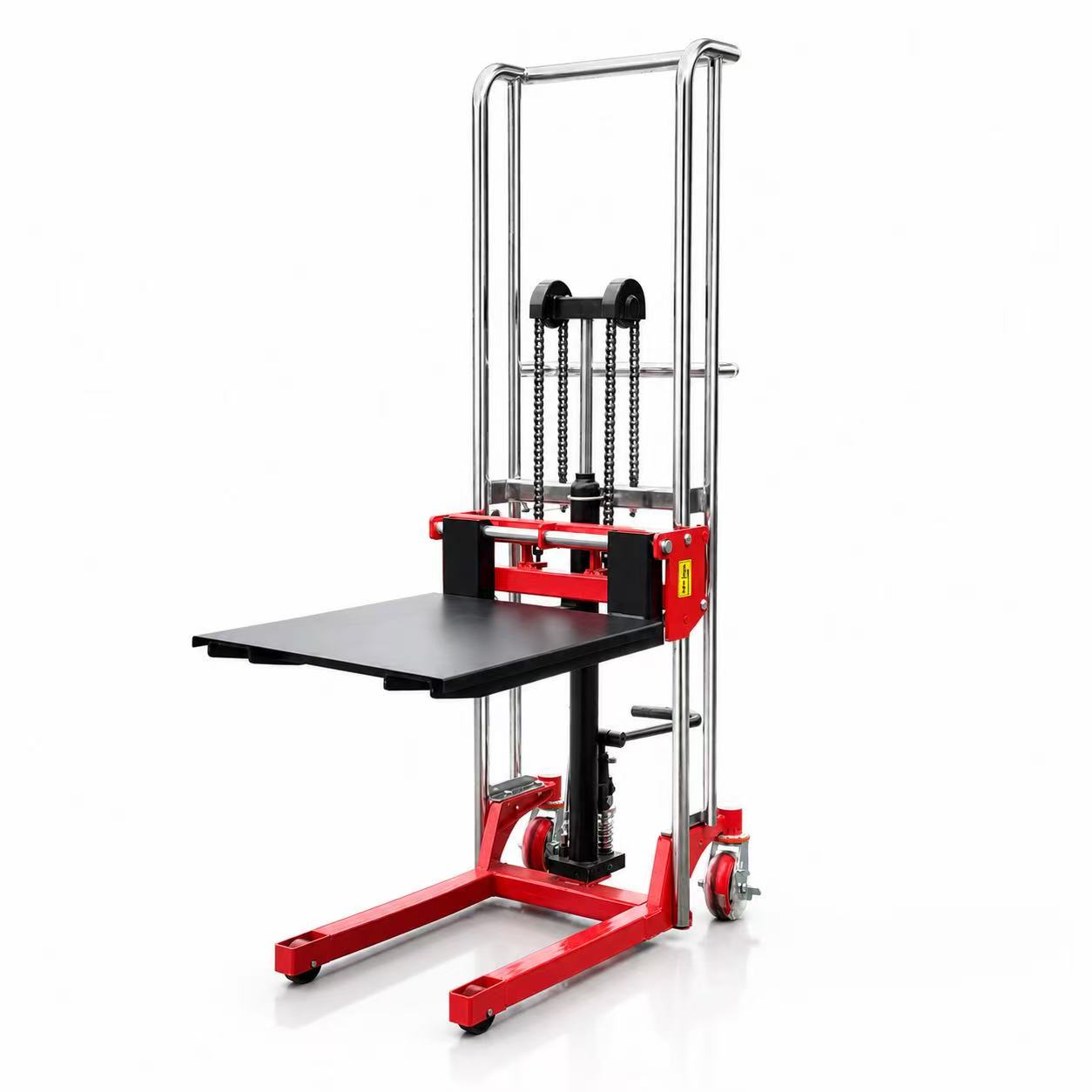

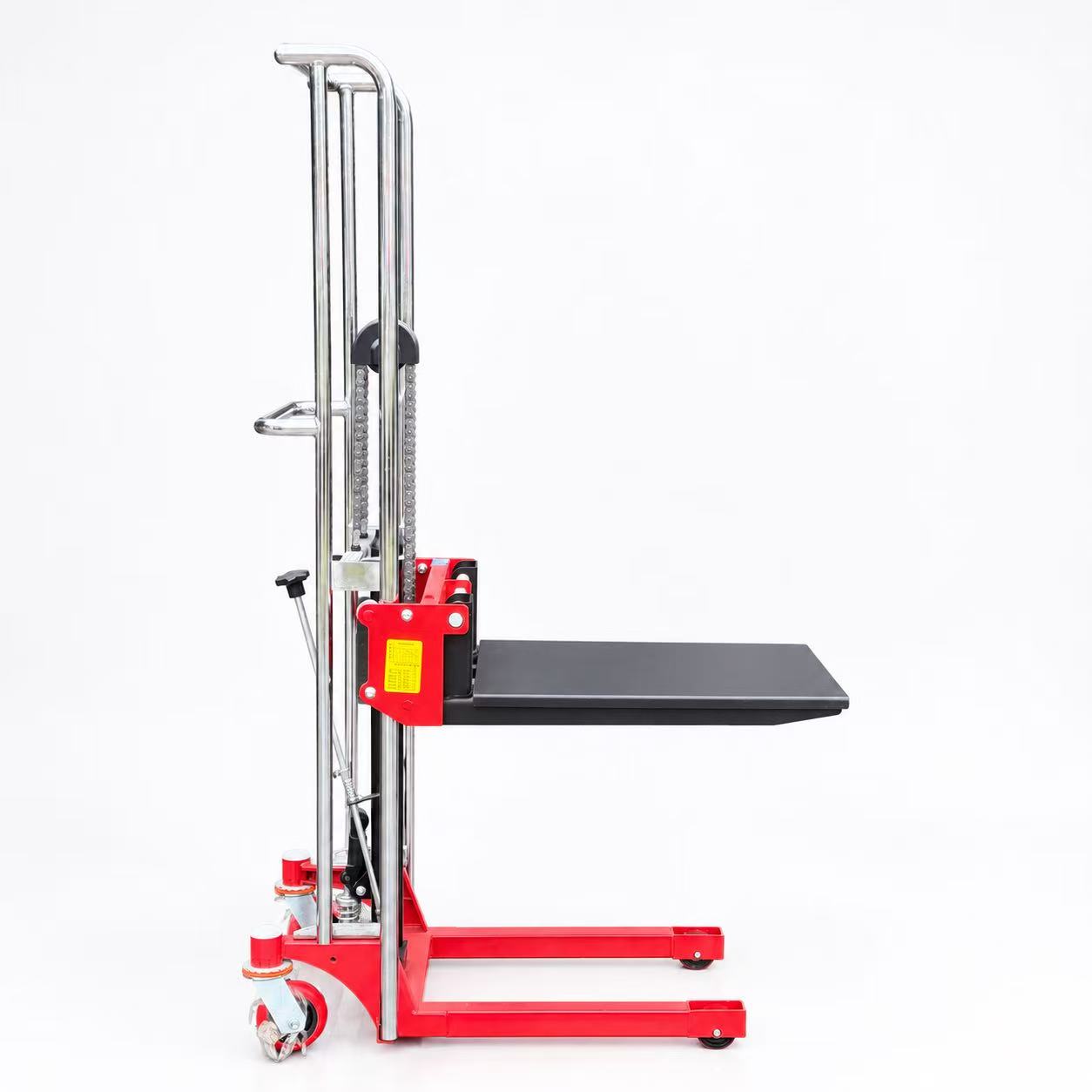

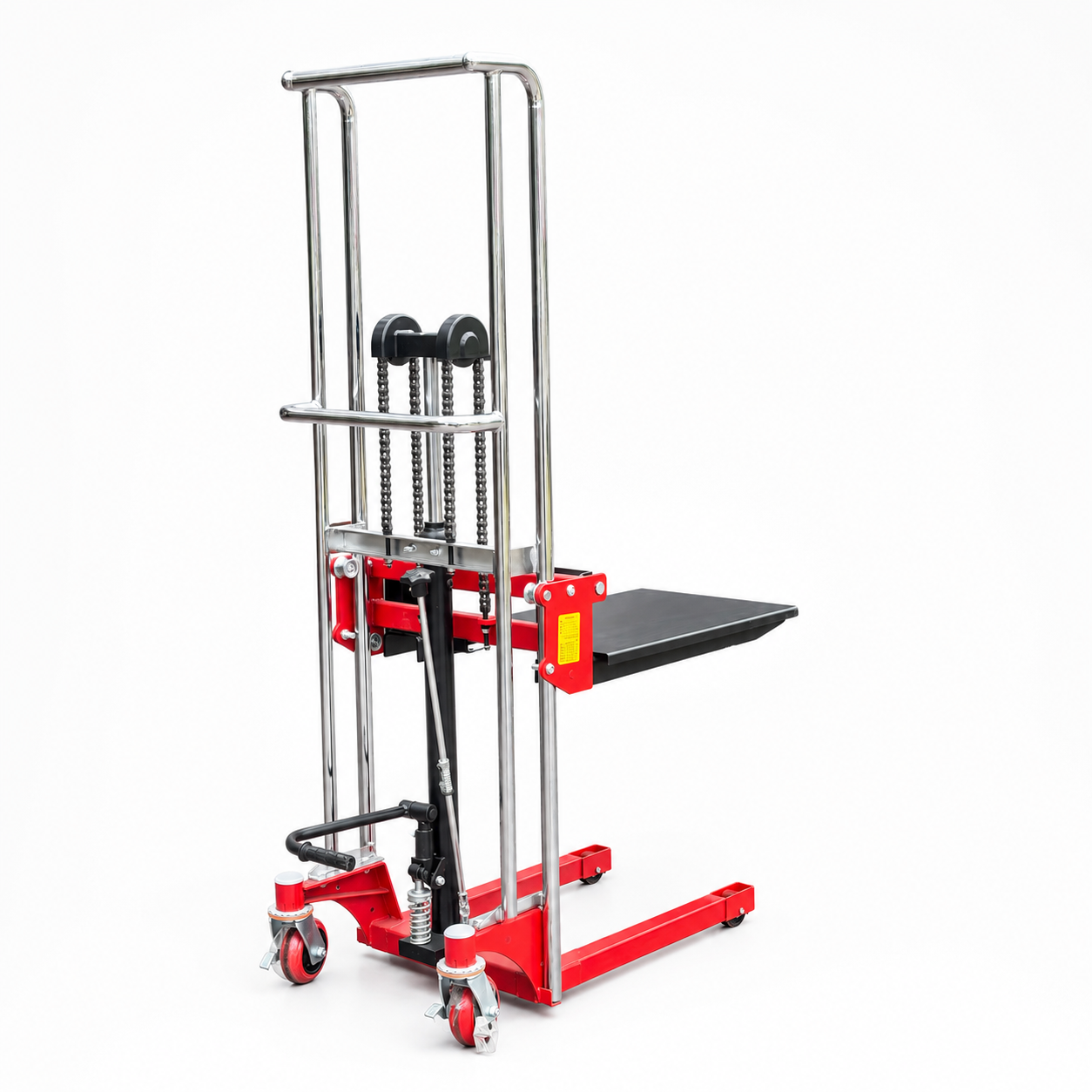

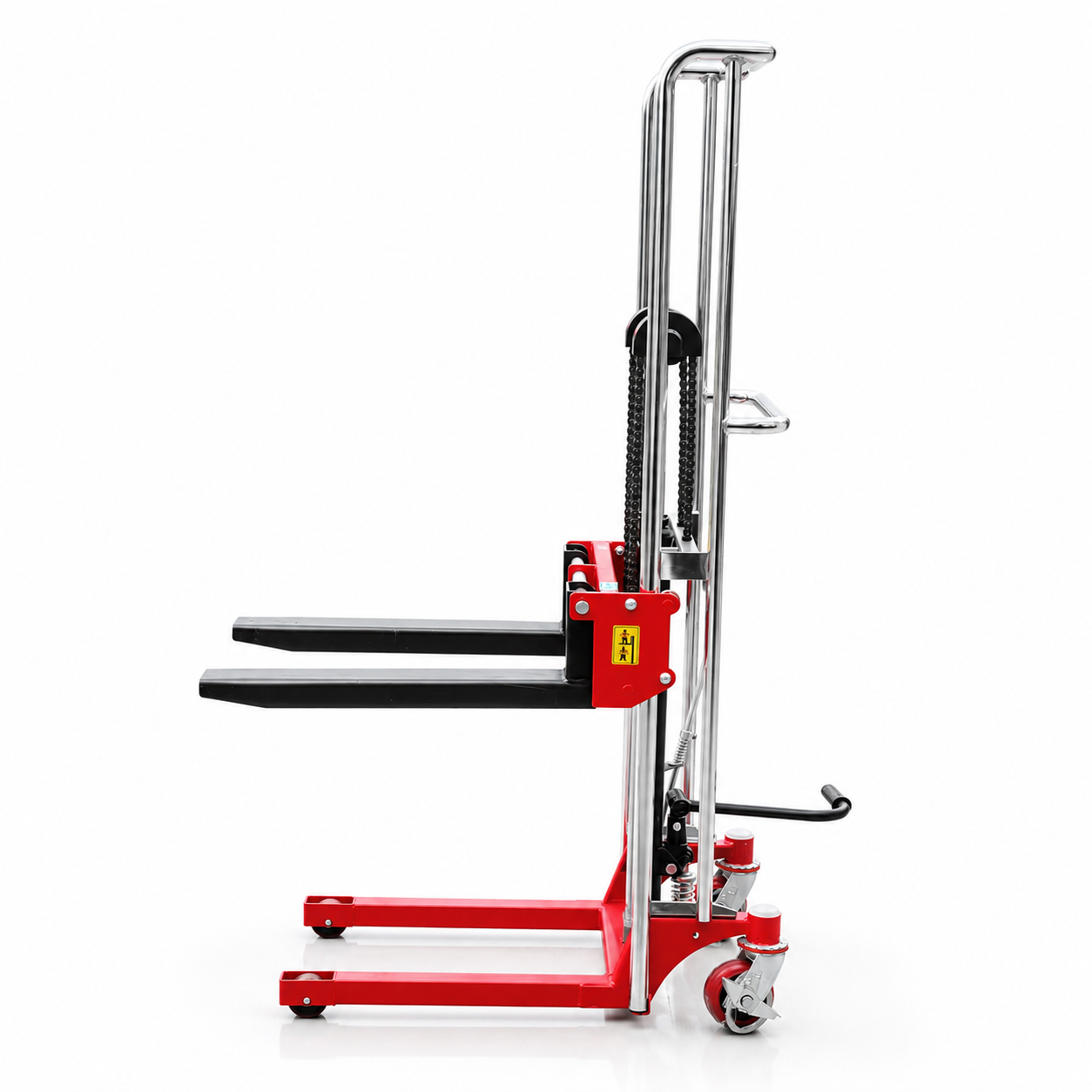

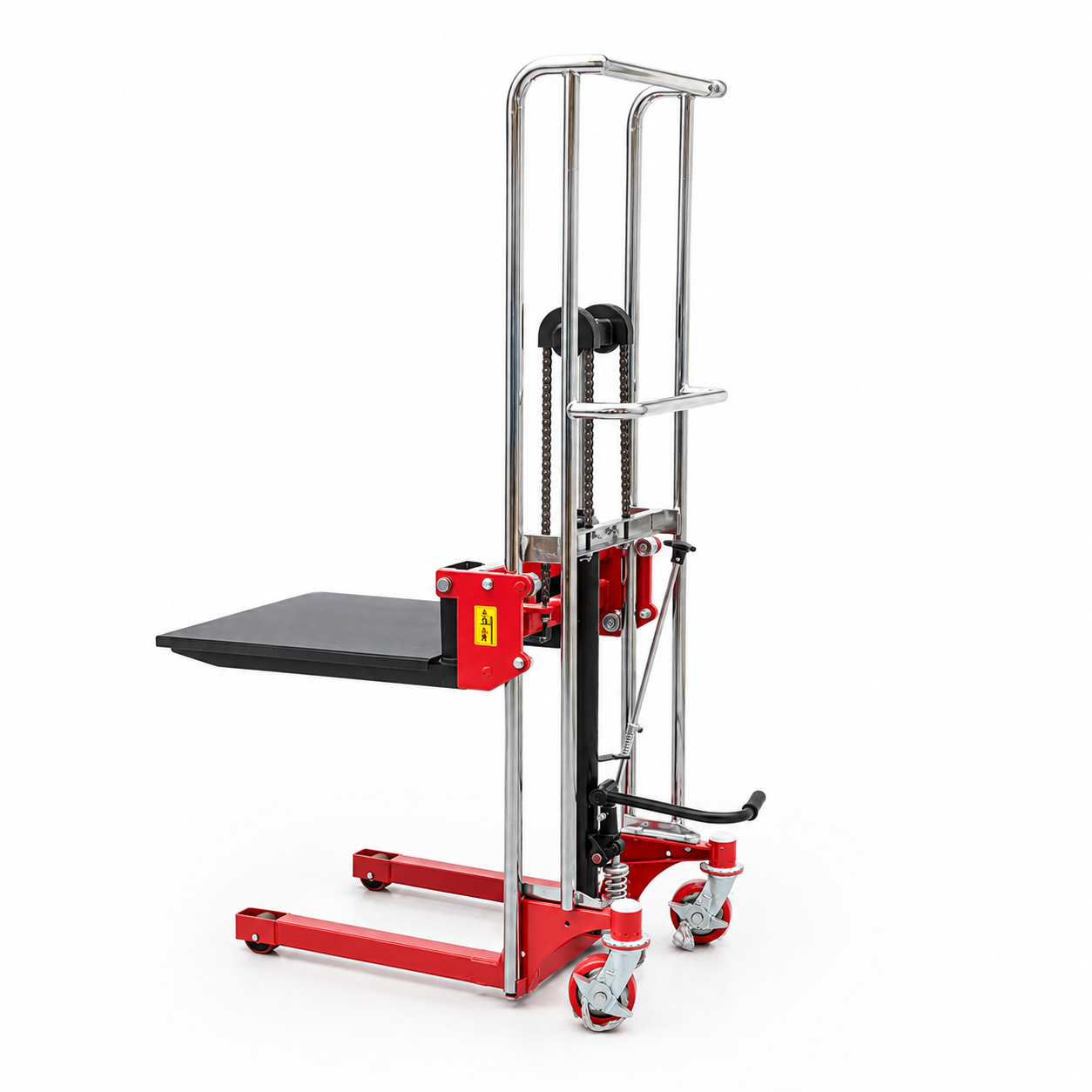

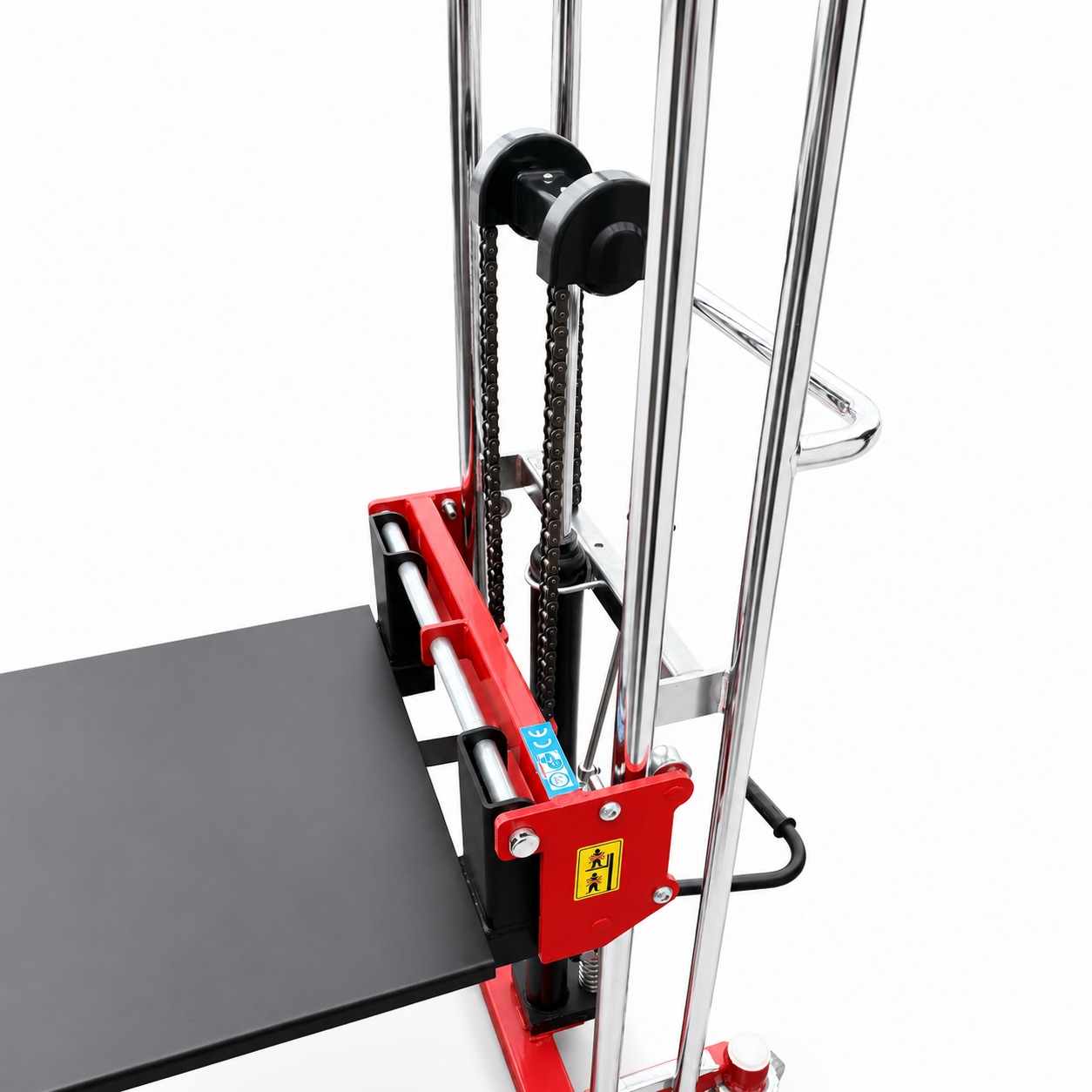

What material is the mast of this portable stacker made of?
Its vertical mast adopts thick stainless steel pipe, anti-rust, high hardness and long service life.
What is the maximum loading capacity of the SDDJ portable stacker?
Standard load capacity ranges from 850kg to 1700kg, customized load is available on request.
Can this stacker move freely in narrow warehouse aisles?
Yes, compact U-shaped base frame + small swivel casters, flexible turning for narrow passages.
How to lift and lower the load of this hand stacker?
Lift by stepping the hydraulic foot pump; lower slowly via manual release handle for safe cargo control.
Is the loading platform replaceable? Can we customize its size?
The flat load platform is detachable, platform length & width can be customized according to your goods.
Can the casters bear heavy loads and prevent skidding?
Wear-resistant PU silent casters with brake lock; anti-slip, load-bearing and fixed positioning function.
What’s the advantage of this stacker compared with full electric stackers?
Lower cost, zero maintenance cost, no charging trouble, small volume and easy storage when not in use.
