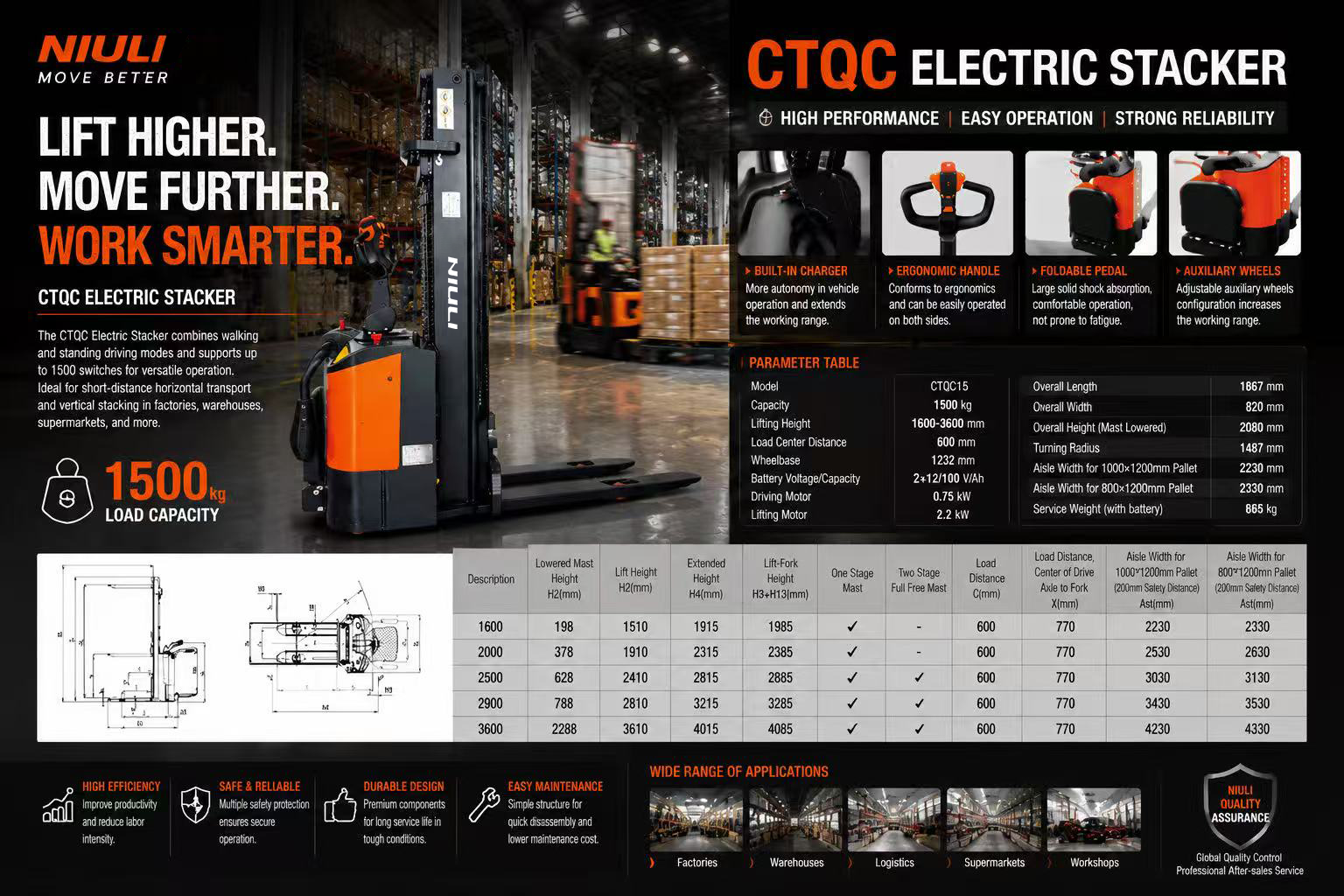

CTQC
NIULI
| Quantity: | |
|---|---|
Parameter Item | Parameter Value | |
Model | - | CTQC15 |
Brand | - | NIULI |
Power type | - | Battery |
Operate type | - | Stand up |
Rated capacity | Kg | 1500 |
Load center distance | c(mm) | 600 |
Load distance, center of drive axle to fork | x(mm) | 770 |
Wheelbase | y(mm) | 1232 |
Self-weight(with battery) | kg | 865 |
Axle loading, laden driving/load | kg | 830/1535 |
Axle loading, unladen driving/load | kg | 663/202 |
Wheel type | - | Polyurethane(PU) |
Driving wheel | x w (mm) | 230*100 |
Load wheel | x w (mm) | 95*83 |
Additional wheels(dimensions) | x w (mm) | 230*100 |
Driving wheel wheelbase | b10(mm) | 557 |
Load wheel wheelbase | b11(mm) | 410/525 |
Lift height | h3(mm) | 3515 |
Min. height | h13(mm) | 85 |
Total width | b1 (mm) | 820 |
Handle height during operation, Max./Min. | h14(mm) | 1100/1360 |
Total body length | l2(mm) | 717 |
Ground clearance | m2(mm) | 25 |
Total length | l1(mm) | 1867 |
Fork dimensions | s/e/l(mm) | 60/180/1150 |
Fork width | b5(mm) | 570/685 |
Turning radius | Wa(mm) | 1487 |
Aisle width for 1000*1200mm lengthways (200mm safe distance) | Ast(mm) | 2330 |
Aisle width for 800*1200mm lengthways (200mm safe distance) | Ast(mm) | 2275 |
Traction speed(load/unload) | km/h | 4.0/4.2 |
Lifting speed(load/unload) | mm/s | 68/162 |
Lowering speed(load/unload) | mm/s | 142/136 |
Max. grade ability(load/unload) | % | 5/10 |
Brake type | - | Electromagnetic |
Drive control mode | - | DC Speed control |
Traction motor | kw | 0.75 |
Lift motor | kw | 2.2 |
Battery volts/ampere | V/Ah | 2*12/106 |
Battery weight | kg | 2*34 |
Energy consumption acc. to VDI cycle | kWh/h | 0.7 |
Noise | Db | 70 |
It adopts DC speed regulation drive configuration and electromagnetic braking system, providing stepless speed adjustment, stable start-stop performance and reliable braking for continuous industrial operation.
The required working aisle width is 2275mm for 800*1200mm pallets and 2330mm for 1000*1200mm pallets (with 200mm safety margin), optimized for narrow aisle warehouse layout.
The traveling speed is 4.0km/h (laden) and 4.2km/h (unladen); the lifting speed is 68mm/s (laden) and 162mm/s (unladen), with efficient and consistent hydraulic lifting performance.
Equipped with a 0.75kW traction motor and a 2.2kW lifting motor, matching industrial-grade power output to support high-frequency cyclic handling operations.
The stacker is equipped with 2*12V 106Ah battery packs, with a VDI cycle energy consumption of 0.7kWh/h, delivering low energy loss and long-duration working performance.
The maximum gradeability reaches 10% in unladen status and 5% in full-load status, ensuring stable passing performance on warehouse slopes and ramps.

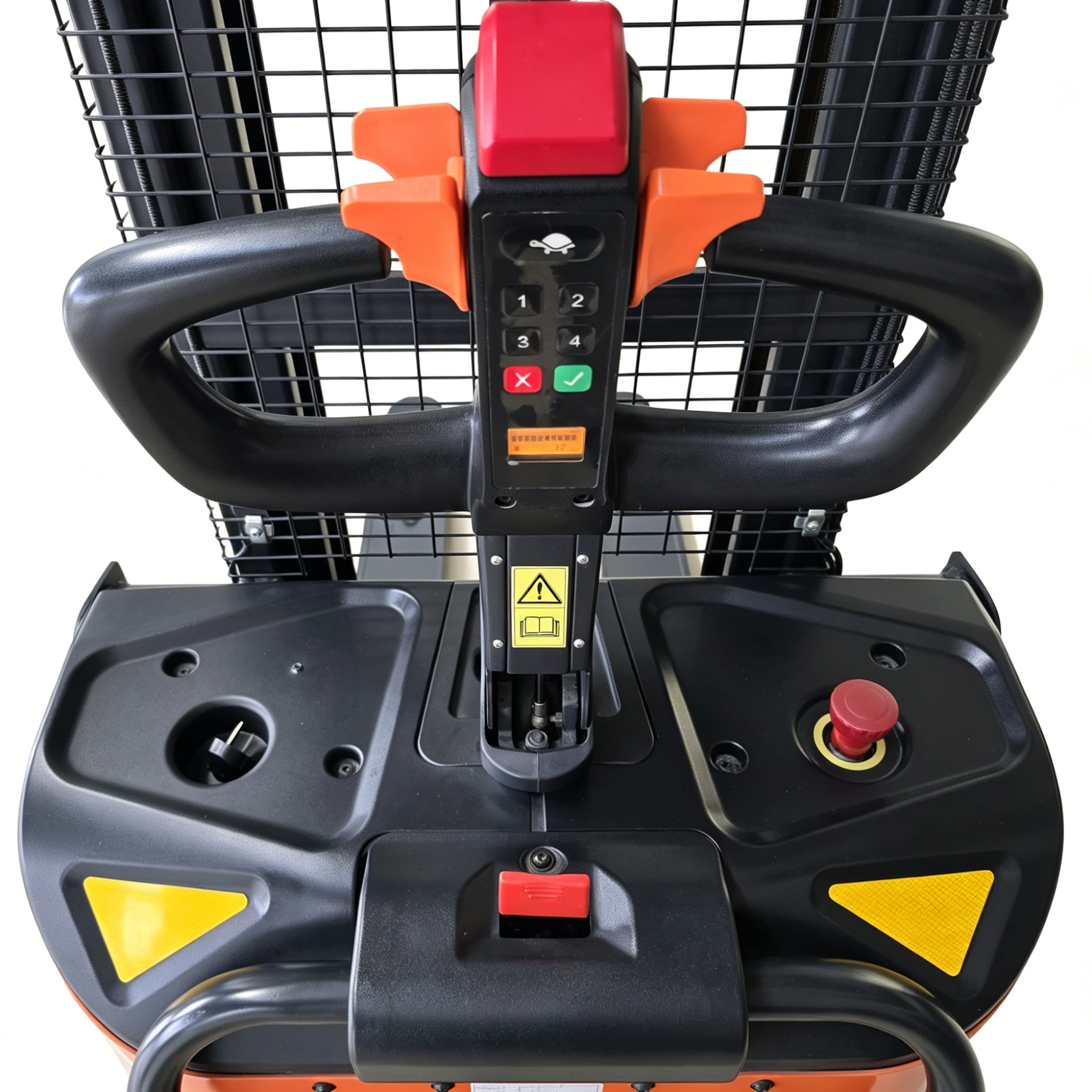

Designed with stand-on operation structure for flexible and precise handling; the overall working noise is controlled at 70Db, complying with industrial low-noise environmental protection standards.
