Quick answer:

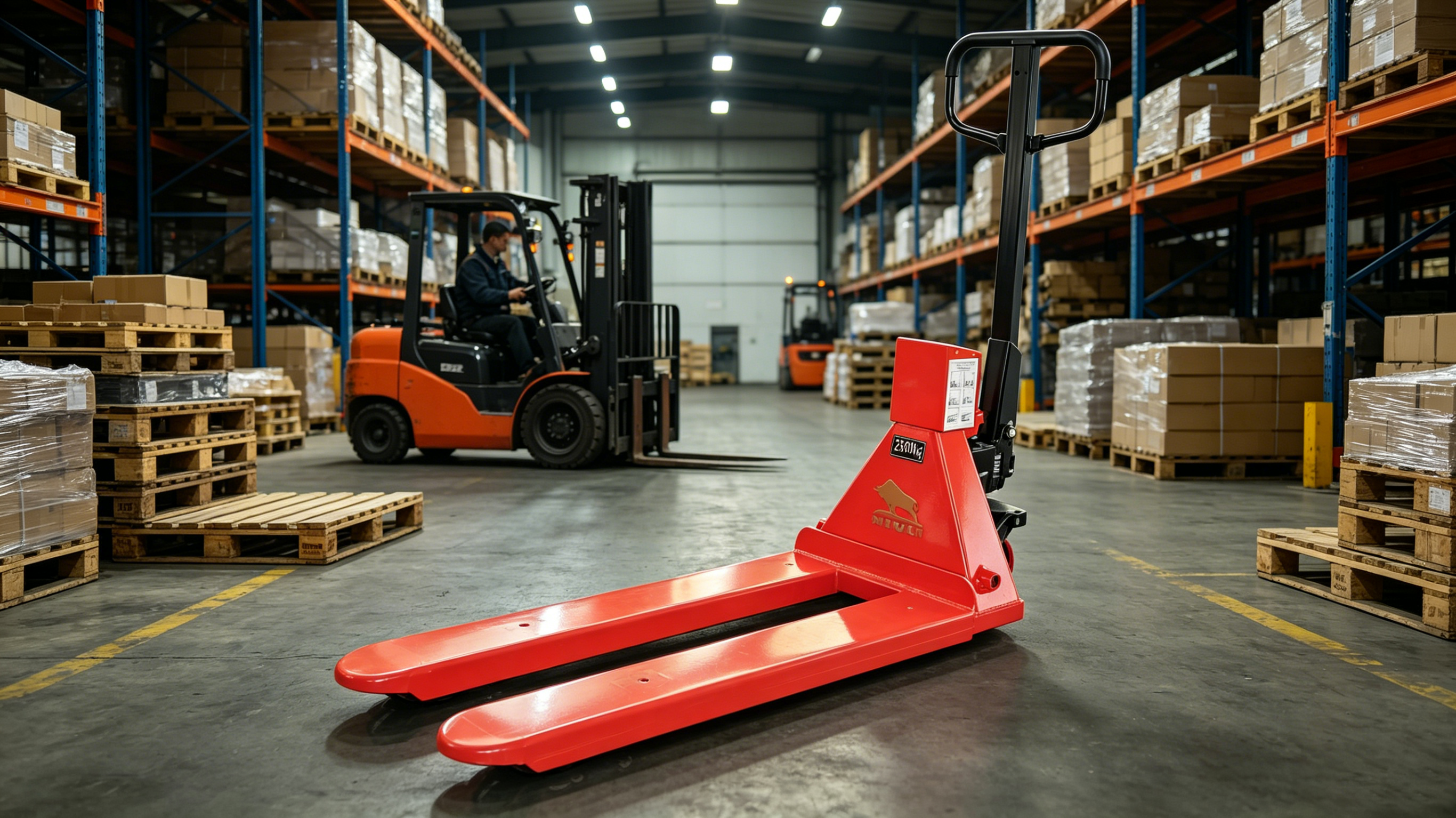

The NIULI CBY-CW-I Hand Pallet Truck With Scale is a manual pallet jack with a built-in weighing system. It lifts and moves loads up to 2500kg while weighing them in real time, with ±0.1% accuracy. This Weighing Pallet Truck removes the need for a separate scale, saving time in warehouse and logistics operations.
Weighing a pallet usually means two jobs: move the load, then haul it to a floor scale. That second step wastes time, blocks aisles, and adds room for error. The NIULI CBY-CW-I solves the problem by building the scale right into the truck. You weigh as you lift—no detour, no double handling.
This guide breaks down what a Hand Pallet Truck With Scale does, what makes the NIULI CBY-CW-I stand out, and how it fits into real warehouse work. You'll find full technical specifications, key features, common applications, and answers to the questions buyers ask most. By the end, you'll know whether this Weighing Pallet Truck is the right fit for your operation.
A Hand Pallet Truck is a manual tool used to lift and move palletized goods across short distances. You pump the handle to raise the forks, then push or pull the load to its destination. It's one of the most common pieces of equipment in any warehouse, dock, or factory.
A Hand Pallet Truck With Scale adds one important upgrade: an integrated weighing system. High-precision sensors sit inside the truck and measure the load the moment you lift it. The weight shows up on a digital display, so there's no need to move the pallet to a separate scale.
This combination matters because weighing and handling are usually two distinct tasks. Merging them into one tool cuts steps, reduces labor, and keeps goods moving. For businesses that ship by weight, check inventory, or run quality control, a Weighing Pallet Truck like the NIULI CBY-CW-I turns a routine bottleneck into a single smooth motion.
The NIULI CBY-CW-I is a Weighing Pallet Truck that combines handling and weighing in one frame. It carries a rated capacity of 2500kg and delivers real-time weight readings as you lift, so there's no second trip to a floor scale.
NIULI Machinery Manufacture Co., Ltd, founded in 1999 in Heshan City, Guangdong Province, China, builds the CBY-CW-I as part of its material handling lineup. The factory covers roughly 330,000 square meters and exports its equipment worldwide.
The CBY-CW-I keeps the handling function purely manual. You operate the hydraulic lift by hand, with no external power needed to move loads. The only powered component is the weighing system, which runs on a rechargeable lithium battery. That design keeps the truck simple, reliable, and easy to maintain—while still giving you accurate, instant weight data.
The CBY-CW-I packs several practical features into a single tool. Here's what sets this Hand Pallet Truck With Scale apart.
The CBY-CW-I uses high-precision weighing sensors to give real-time readings the moment you lift a load. The weighing error sits at just ±0.1%, which means you get a dependable figure without a secondary weighing step. For operations that bill by weight or run tight inventory checks, this level of accuracy reduces disputes and costly mistakes.
A high-definition backlit display sits at the top of the handle, easy to read in dim warehouse corners. The display supports tare (to subtract the weight of a container or pallet), zero reset, and unit switching between kilograms and pounds. These functions make the truck flexible enough for export orders, mixed inventory, and international customers who work in different units.
The CBY-CW-I offers optional data storage and printing functions. This feature is handy for logistics reconciliation—you can record weights on the spot and print a receipt for shipping, receiving, or auditing. Keeping a paper or digital trail of each weighed load helps teams match invoices to actual cargo and resolve discrepancies fast.
The handling side of the truck relies on a one-piece cast hydraulic pump. NIULI fits it with oil-resistant and wear-resistant seals, which extends the service life to roughly 3 to 5 years under normal use. A robust pump means fewer leaks, fewer repairs, and steady lifting performance over the long haul.
Built for daily handling, the CBY-CW-I uses thickened forks and hard-wearing wheels to support its 2500kg rated capacity. The sturdy build helps the truck cope with heavy, repeated use across concrete floors, loading docks, and storage aisles.
The weighing system runs on a rechargeable lithium battery. A single full charge powers the scale for about 3 to 6 months, depending on how often you use it. Because only the scale needs power—and the lifting stays manual—you avoid the heavy charging routines and downtime tied to fully electric trucks.
Here are the core specifications for the NIULI CBY-CW-I Hand Pallet Truck With Scale:
Specification | Detail |
|---|---|
Model | CBY-CW-I |
Brand | NIULI |
Capacity (kg) | 1000 / 1500 / 2000 / 2500 |
Rated capacity | 2500kg |
Total lift height (mm) | 175 |
Lowered fork height (mm) | 65 |
Width overall forks (mm) | 550 / 685 |
Weighing error | ±0.1% |
Display | HD backlit (tare, zero reset, kg/lb switching) |
Hydraulic pump | One-piece cast, oil- and wear-resistant seals |
Hydraulic service life | 3–5 years |
Power source (scale) | Rechargeable lithium battery |
Battery life | 3–6 months per full charge |
Handling function | Purely manual (no external power) |
Certification | CE certified |
The fork width options (550mm or 685mm) let you match the truck to standard pallet sizes, while the multiple capacity ratings mean you can choose the version that fits your typical load.
Choosing the CBY-CW-I comes down to one question: does weighing slow you down? If your team currently moves pallets to a separate floor scale, the answer is almost always yes.
A Weighing Pallet Truck removes that extra trip. You weigh during normal handling, which saves labor hours and frees up floor space that a fixed scale would otherwise occupy. Over a busy shift, those saved minutes add up fast.
Choose the NIULI CBY-CW-I if accuracy and speed both matter to your operation. The ±0.1% weighing error means you can trust the numbers for billing and inventory, while the manual hydraulic system keeps running costs low. Compared with a fully electric weighing truck, the CBY-CW-I needs no charging for the lift function and far less maintenance—a strong fit for businesses that want reliable weighing without the price and upkeep of a powered fleet.
If you weigh hundreds of pallets a day and need automated movement, a powered model may serve you better. But for the vast majority of warehouses, docks, and workshops, a manual Hand Pallet Truck With Scale delivers the best balance of cost, accuracy, and simplicity.
The CBY-CW-I fits a wide range of settings where moving and weighing happen together:
Warehousing and distribution – Weigh incoming and outgoing pallets without leaving the aisle.
Logistics and freight – Confirm shipment weights on the spot, then print records for reconciliation.
Manufacturing – Check raw material and finished goods weights during production handling.
Retail and wholesale – Verify bulk orders quickly at receiving docks.
Cold storage and food handling – Move and weigh perishable pallets in one motion to keep goods moving.
Because the truck exports worldwide and supports both kilograms and pounds, it suits operations in nearly any market.
The NIULI CBY-CW-I is CE certified, meaning it meets the European Union's safety, health, and environmental standards. For buyers inside and outside the EU, CE marking is a clear signal that the equipment has been built and tested to recognized benchmarks.
This certification matters when you're sourcing equipment for a regulated worksite or importing across borders. It reduces compliance risk and gives you confidence that the Weighing Pallet Truck performs as specified. Combined with NIULI's worldwide export support, the CE mark makes the CBY-CW-I a practical choice for international buyers.
The NIULI CBY-CW-I has a weighing error of ±0.1%. Its high-precision sensors give real-time readings as you lift, so you don't need a second weighing step on a separate floor scale.
The CBY-CW-I has a rated capacity of 2500kg. NIULI also offers versions rated at 1000kg, 1500kg, and 2000kg, so you can match the truck to your typical load.
No. The handling function is purely manual—you operate the hydraulic lift by hand, with no external power needed. Only the weighing system uses power, drawn from a rechargeable lithium battery.
The rechargeable lithium battery that powers the weighing system lasts about 3 to 6 months on a single full charge, depending on how often you use the scale.
Yes, as an optional feature. The CBY-CW-I supports data storage and printing, which is useful for logistics reconciliation—you can record and print weights for shipping, receiving, and auditing.
Yes. The truck is CE certified, meets EU safety standards, and NIULI supports worldwide export. The display also switches between kilograms and pounds for international use.
The one-piece cast hydraulic pump uses oil-resistant and wear-resistant seals, giving it a service life of roughly 3 to 5 years under normal operating conditions.
The NIULI CBY-CW-I Hand Pallet Truck With Scale brings handling and weighing together in one durable, easy-to-use machine. With a 2500kg rated capacity, ±0.1% weighing accuracy, a long-lasting hydraulic system, and CE certification, it's built to make warehouse and logistics work faster and more reliable.
If your team is tired of double handling pallets just to get a weight, this Weighing Pallet Truck is worth a closer look. Reach out to NIULI for pricing, fork-width options, and export details—and put accurate, on-the-go weighing to work in your operation.
