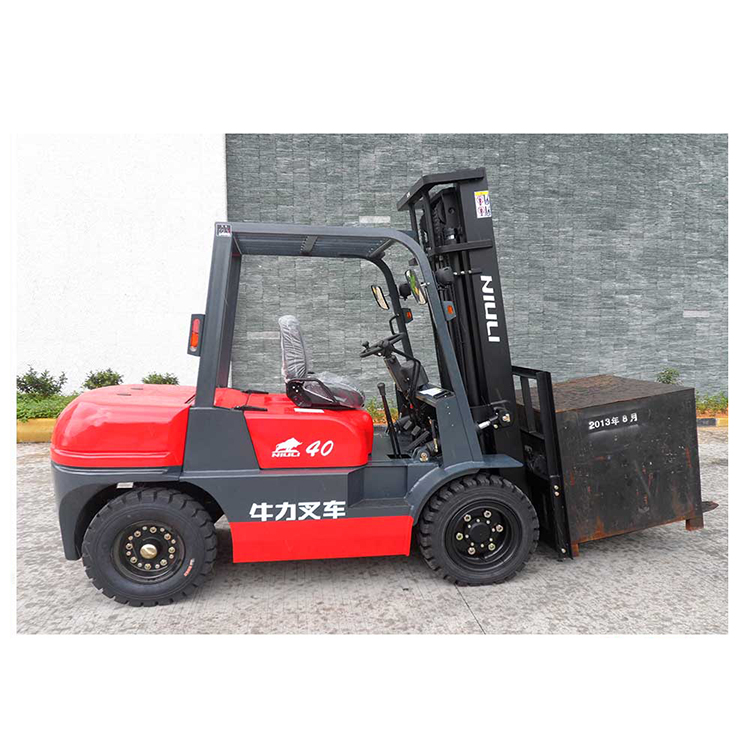

NIULI Factory Supply Diesel Forklift 4.0 Ton Hydraulic Forklift Truck with Chinese Engine
Here are the details of standard configurations:
Diesel forklift truck with 4, 000kg load capacity
Model Number: CPCD40
Equipped with Chinese engine XingchangA498BPG and Isuzu Engine, Hydraulic transmission with TCM-technology
Standard with 2-stage wide-view mast, lifting height is 3, 000mm
Pneumatic tires, 1220mm forks, Safety seat, Free tool box and spare parts and so on.
OPTION:
As a professional manufacturer of forklift, we also can offer you customized service,
The following items are optional:
Container mast, for example, 2-stage full free mast of 3meter, 3-stage full free mast of 4.5m
Side shifter, fork positioner, longer forks, fork extension
For the details of customized configurations and options, please contact with us.
NIULI professional service will be impressed on you.
OTHERS:
A: Date of delivery: 30days after received the deposit
B: Payment terms: T/T(30% deposit, balance paid before shipment). Or L/C at sight
C: Guaranty period: One year or 1200hours upon receiving goods.
| General | 1 | Model | CPC40/CPCD40 | |||||
| 2 | Power Type | Diesel | ||||||
| 3 | Rated capacity | Kg | 4000 | |||||
| 4 | Load center | mm | 500 | |||||
| Charactertic | 5 | Lifting height | mm | 3000 | ||||
| 6 | Fork size | mm | 1070*150*50 | |||||
| 7 | Mast Tilt Angle | Deg | 6°/12° | |||||
| 8 | Front Overhang(Wheel center to fork face) | mm | 548 | |||||
| 9 | Ground Clearance(Bottom Of Mast) | mm | 160 | |||||
| 10 | Overall Dimension | Overall length(with/without fork) | mm | 4064/2963 | ||||
| 11 | Overall width | mm | 1400 | |||||
| 12 | Mast lowered height | mm | 2180 | |||||
| 13 | MastExtended height(with backrest) | mm | 4260 | |||||
| 14 | Overhead guard height | mm | 2185 | |||||
| 15 | Turning Radius(outside) | mm | 2739 | |||||
| 16 | Min. intersecting aisle | mm | 2800 | |||||
| Performance | 17 | Speed | Travel(Full/Empty load) | km/h | 17/18 | |||
| 18 | Lifting(Full/Empty load) | mm/s | 300/400 | |||||
| 19 | Max.Gradeability | % | 20 | |||||
| Chassis | 20 | Tire | Front | 250-15-18PR | ||||
| 21 | Rear | 7.00-12-12PR | ||||||
| 22 | Wheelbase | mm | 1850 | |||||
| 23 | Self Weight | kg | 5800 | |||||
| Transmission | 24 | Battery | Voltage/Capacity | V/Ah | 12/120 | |||
| 25 | Engine | Model | CA498 | 4JG2 | ||||
| 26 | Manufacturer | DaChai | ISUZU | |||||
| 27 | Rated output/r.p.m | kW/rpm | 45/2450 | 44/2500 | ||||
| 28 | Rated torque/r.p.m | Nm/rpm | 190/1700-1900 | 186/1600-1800 | ||||
| 29 | No. of cylinder | 4 | 4 | |||||
| 30 | Bore x Stroke | mm | 98x105 | 95.4X107 | ||||
| 31 | Displacement | cc | 3168 | 3059 | ||||
| 32 | Fuel Tank capacity | L | 90 | 90 | ||||
| 33 | Transmission | Type | Machanical/Hydraulic | |||||
| 34 | Operation Pressure for Attachment | Mpa | 17.5 | |||||
