High-quality 6-14m Mobile Hydraulic Lift Platform for Painting

Quantity:
Availability:





Inquire Add to Basket

Product Description

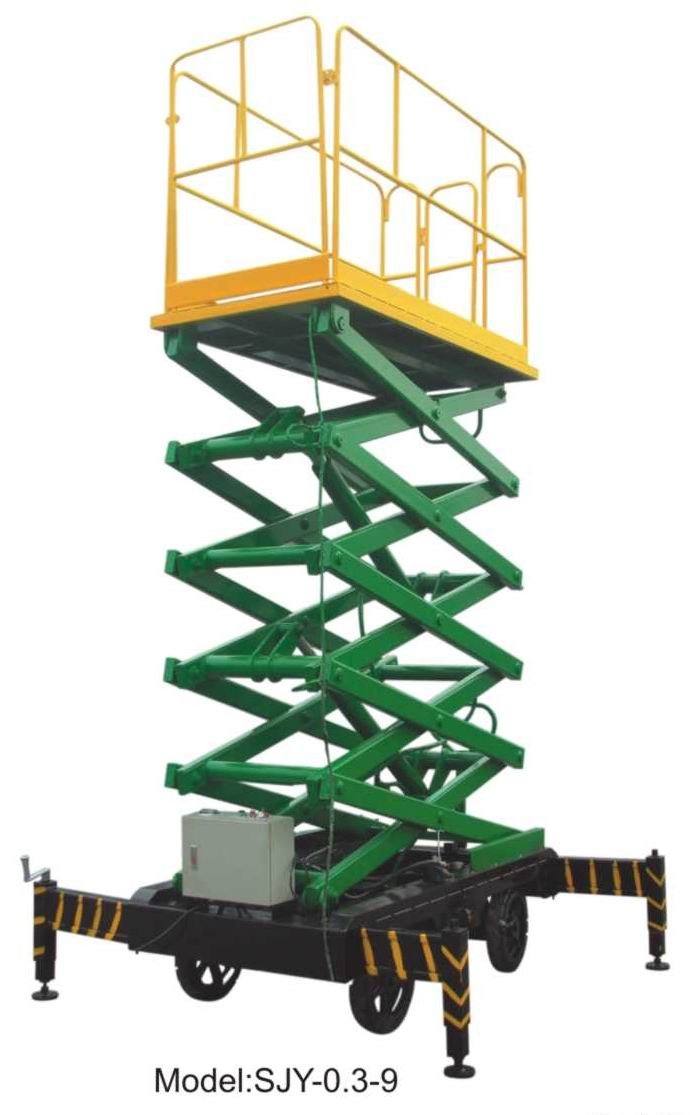

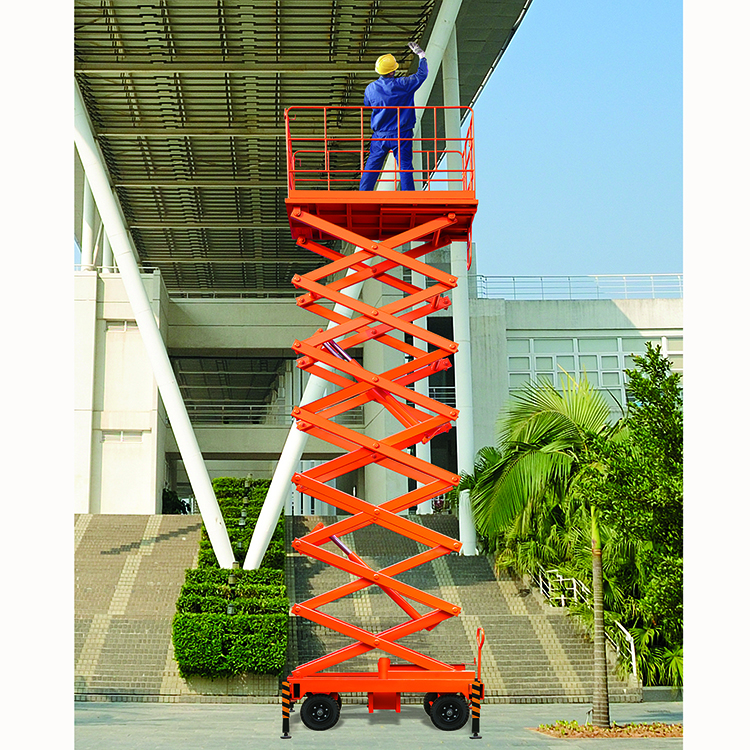

Mobile high -raised lift table

Mobile scissor lift table adopts scissor type mechanic structure to bring high stability after being elevated. The wide operation platform and high loading ability has made wider aloft work arrange and is suitable for simultaneous multi-worker operation.

High-quality 6-14m mobile hydraulic lift platform for painting

high scissor lift

Specifications:

Model	Rated capacity (kg)	Raised Height (mm)	Low height(mm)	Platform size(mm)	Elevating time(s)	Motor Power (kw)	Voltage(V)
SJY0.3-3	300	3000	770	1300×700	20	0.55	380v/50hz
SJY0.2-4	200	4000	850	1500×700	23	0.75	380v/50hz
SJY0.5-4.5	500	4500	980	1500×1000	30	0.75	380v/50hz
SJY1-4.5	1000	4500	1350	1500×1000	35	1.5	380v/50hz
SJY0.3-6	300	6000	950	1780×840	54	1.1	380v/50hz
SJY0.5-6	500	6000	950	1780×840	49	1.5	380v/50hz
SJY1-6	1000	6000	1500	1800×1000	65	2.2	380v/50hz
SJY0.3-9	300	9000	1500	2150×1000	72	1.5	380v/50hz
SJY0.5-9	500	9000	1600	2150×1000	81	2.2	380v/50hz
SJY1-9	1000	9000	1840	2000×1200	75	2.2	380v/50hz
SJY0.3-11	300	11000	1600	2150×1200	73	1.5	380v/50hz
SJY0.5-11	500	11000	1600	2150×1200	80	2.2	380v/50hz
SJY0.3-14	300	14000	1800	2600×1500	90	4	380v/50hz
SJY0.5-14	500	14000	1880	2600×1500	132	4	380v/50hz
SJY0.3-16	300	16000	1980	2600×1500	100	4	380v/50hz
