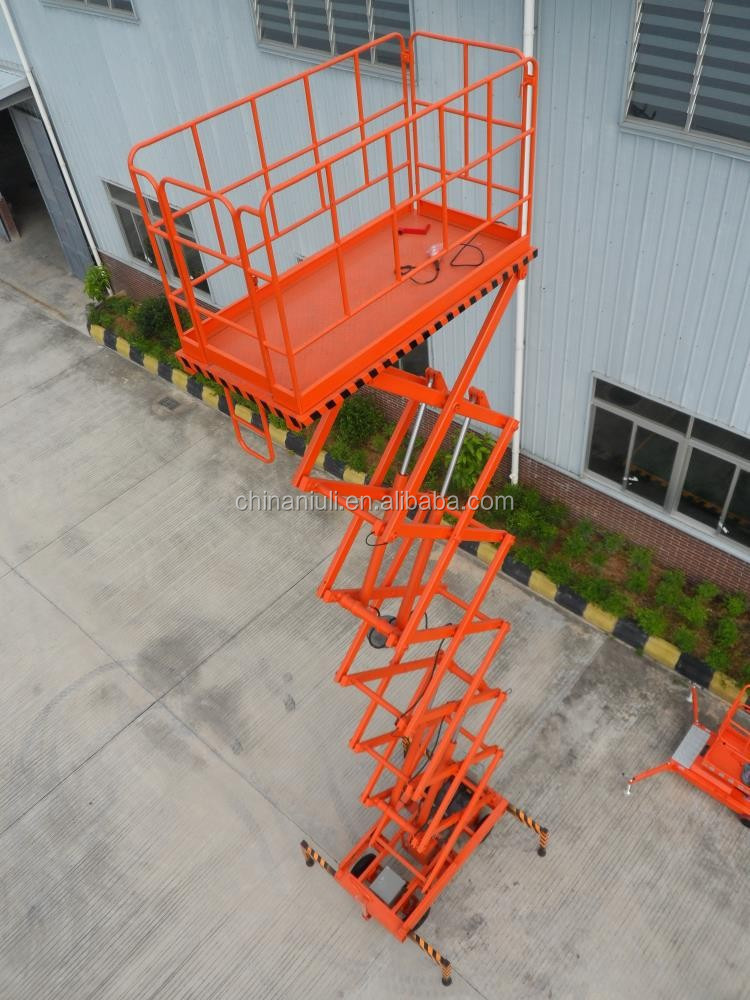

SJY Mobile High-Raise Lift Table

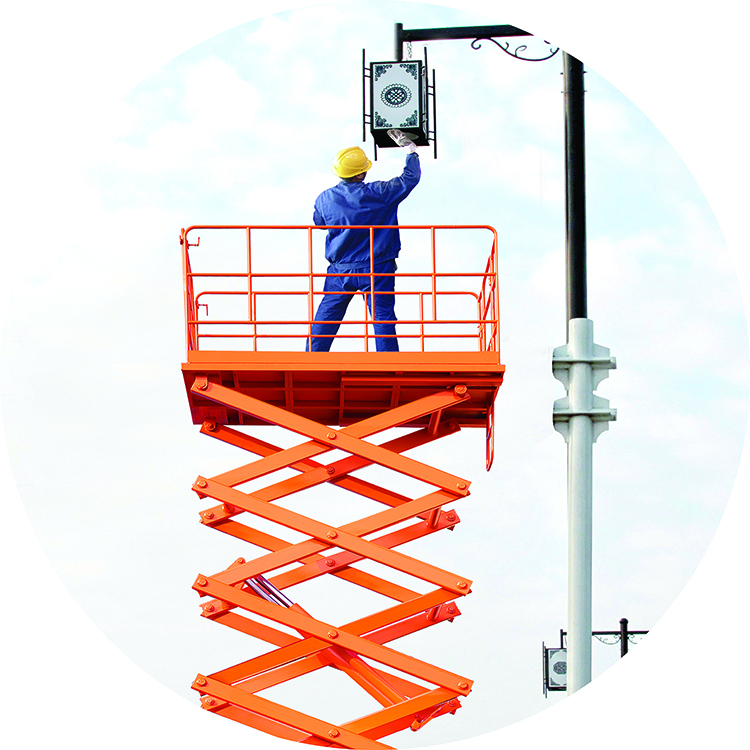

Mobile scissor lift table adopts scissor type mechanic structure to bring high stability after being elevated. The wide operation platform and high loading ability has made wider aloft work arrange and is suitable for simultaneous multi-worker operation.
Remark: Special platform size, colours and other specifications are available according to the your demands.
Model | Raised capacity(kg) | Raised height(mm) | Low height(mm) | Platform size(mm) | Elevating time(s) | Motor power(kw) | Voltage(v) | Total weight(kg) |
SJY 0.3-3 | 300 | 3000 | 770 | 1300×700 | 20 | 0.55 | 380v/50hz | 350 |
SJY 0.5-4.5 | 500 | 4500 | 980 | 1300×850 | 30 | 0.75 | 380v/50hz | 400 |
SJY 1-4.5 | 1000 | 4500 | 1350 | 1500×100 | 35 | 1.5 | 380v/50hz | 600 |
SJY 0.3-6 | 300 | 6000 | 950 | 1780×840 | 54 | 1.1 | 380v/50hz | 750 |
SJY 0.5-6 | 500 | 6000 | 950 | 1780×840 | 49 | 1.5 | 380v/50hz | 750 |
SJY 1-6 | 1000 | 6000 | 1500 | 1800×1000 | 65 | 2.2 | 380v/50hz | 1000 |
SJY 0.3-9 | 300 | 9000 | 1500 | 2100×1000 | 72 | 1.5 | 380v/50hz | 1200 |
SJY 0.5-9 | 500 | 9000 | 1600 | 2000×1000 | 81 | 2.2 | 380v/50hz | 1300 |
SJY 1-9 | 1000 | 9000 | 1840 | 2000×1200 | 75 | 2.2 | 380v/50hz | 1850 |
SJY 0.3-11 | 300 | 11000 | 1600 | 2150×1200 | 73 | 1.5 | 380v/50hz | 1380 |
SJY 0.5-11 | 500 | 11000 | 1600 | 2150×1200 | 80 | 2.2 | 380v/50hz | 1420 |
SJY 0.3-12 | 300 | 12000 | 1600 | 2350×1350 | 85 | 3.7 | 380v/50hz | 2000 |
SJY 0.5-12 | 500 | 12000 | 1600 | 2350×1350 | 90 | 3.7 | 380v/50hz | 2300 |
SJY 0.3-14 | 300 | 14000 | 1800 | 2600×1500 | 90 | 4 | 380v/50hz | 2200 |
SJY 0.5-14 | 500 | 14000 | 1800 | 2600×1500 | 132 | 4 | 380v/50hz | 2500 |
SJY 0.3-16 | 300 | 16000 | 1980 | 2600×1500 | 100 | 4 | 380v/50hz | 2600 |
Payment Terms | ||||||||
Optional parts of the lift table
AC-380V power supply(of common size)
AV-220V power supply
DC power supply
Annual hydraulic power
Manual electric power supply
