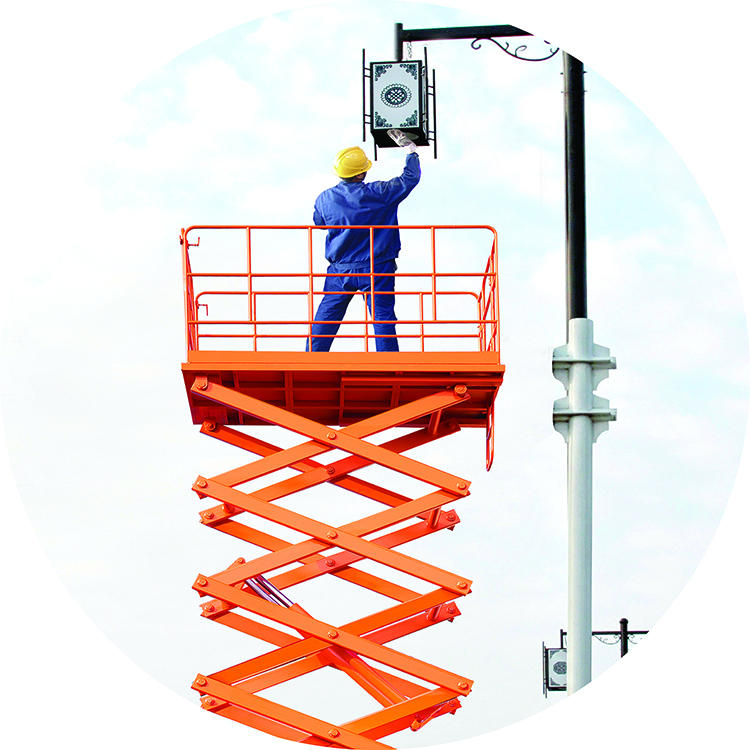

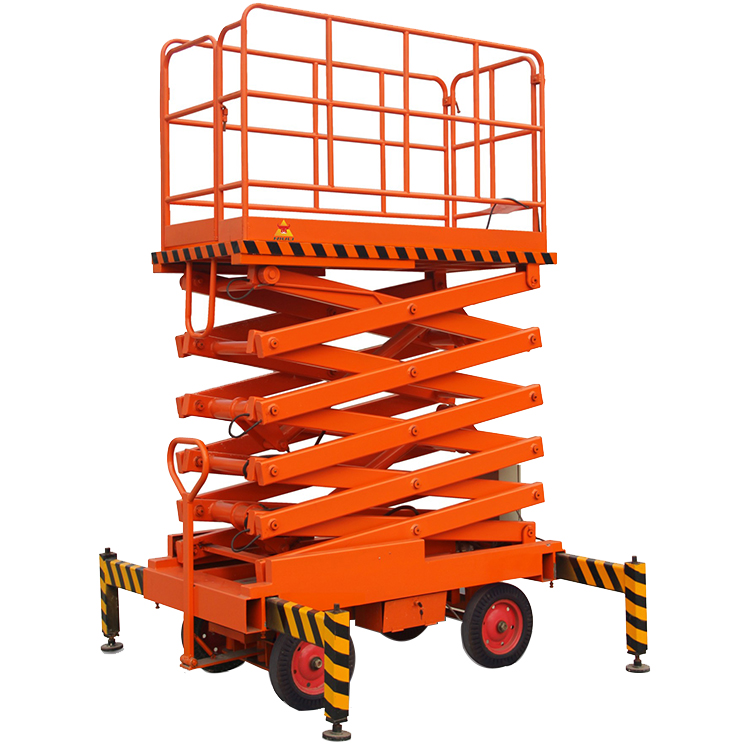

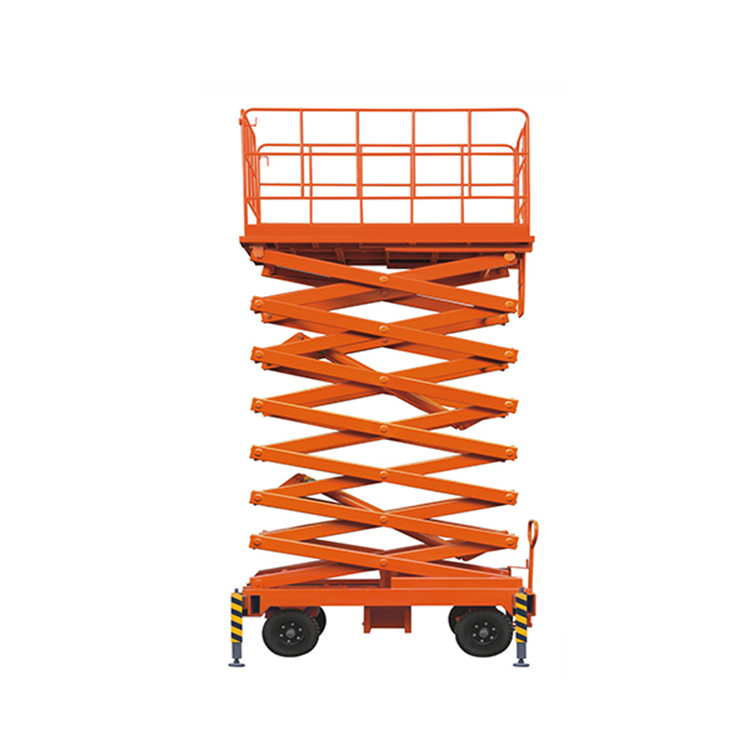

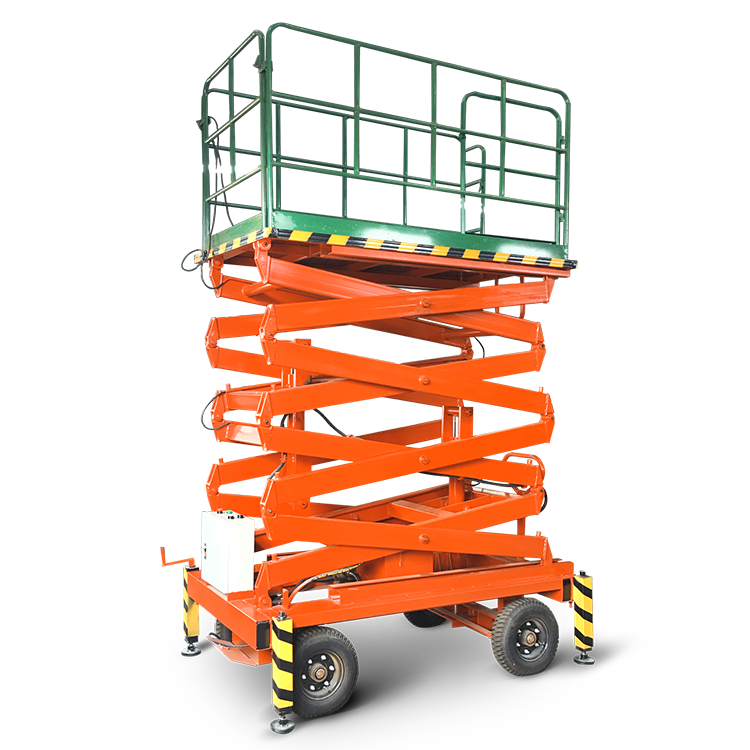

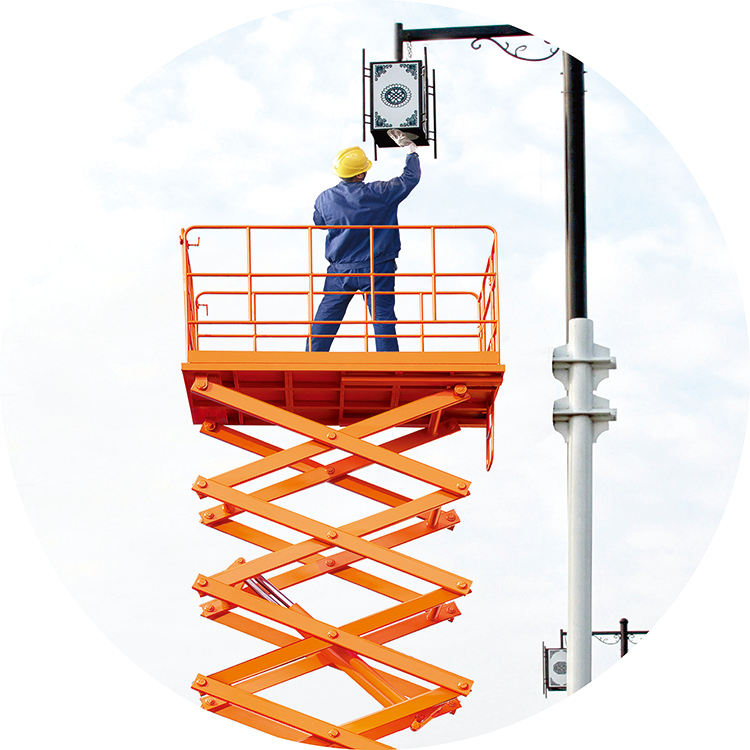

Scissor lift table
Mobile scissor lift table adopts scissor type mechanic structure to bring high stability after being elevated. The wide operation platform and high loading ability has made wider aloft work arrange and is suitable for simultaneous multi-worker operation.
We are professional manufactory specializing in scissor lift table for many years. We can provide you lift table with different capacity and different lifting height.
Specifications:
Model | Capacity(kg) | Rated height(mm) | Low height(mm) | Platform size(mm) | Elevating time(s) | Motor power(kw) | Voltage(v) | Self weight (kg) |
SJY0.3-6 | 300 | 6000 | 1200 | 1780x840 | 50 | 1.5 | 380v/50hz | 1000 |
SJY0.5-6 | 500 | 6000 | 1300 | 1780x840 | 50 | 1.5 | 380v/50hz | 1100 |
SJY1-6 | 1000 | 6000 | 1400 | 1780x1000 | 60 | 2.2 | 380v/50hz | 1400 |
SJY0.3-9 | 300 | 9000 | 1400 | 2000x1000 | 70 | 2.2 | 380v/50hz | 1400 |
SJY0.5-9 | 500 | 9000 | 1400 | 2000x1000 | 70 | 2.2 | 380v/50hz | 1500 |
SJY1-9 | 1000 | 9000 | 1500 | 2000x1200 | 75 | 3.7 | 380v/50hz | 1850 |
SJY0.3-11 | 300 | 11000 | 1600 | 2150x1200 | 70 | 2.2 | 380v/50hz | 2000 |
SJY0.5-11 | 500 | 11000 | 1600 | 2150x1200 | 80 | 2.2 | 380v/50hz | 2100 |
SJY0.3-12 | 300 | 12000 | 1600 | 2350x1350 | 85 | 3.7 | 380v/50hz | 2200 |
SJY0.5-12 | 500 | 12000 | 1600 | 2350x1350 | 90 | 3.7 | 380v/50hz | 2300 |
SJY0.3-14 | 300 | 14000 | 2000 | 2600x1500 | 120 | 3.7 | 380v/50hz | 2800 |
SJY0.5-14 | 500 | 14000 | 2000 | 2600x1500 | 130 | 3.7 | 380v/50hz | 3100 |
SJY0.3-16 | 300 | 16000 | 2100 | 2800x1500 | 180 | 3.7 | 380v/50hz | 3200 |
