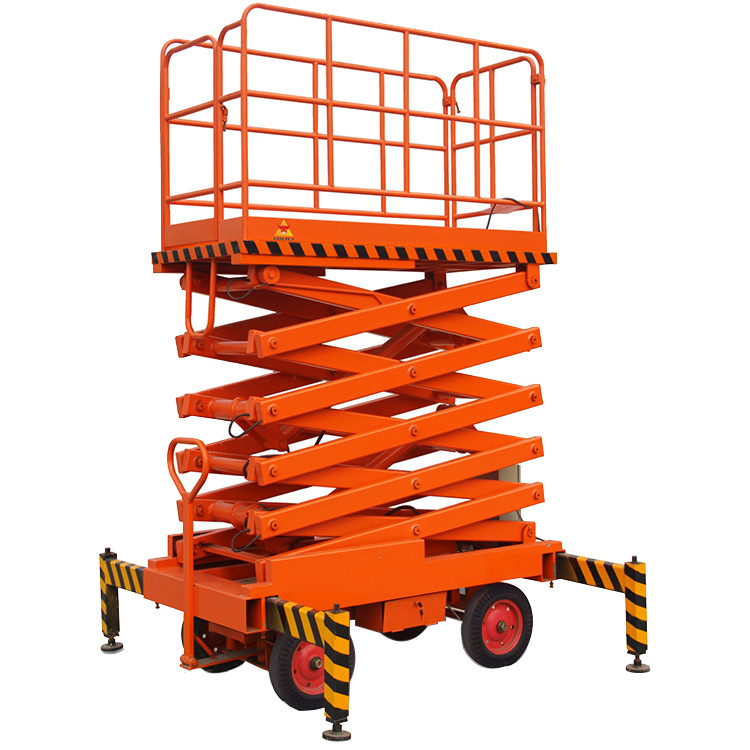

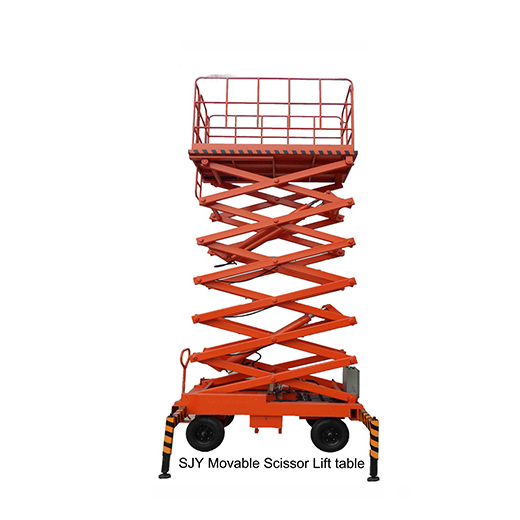

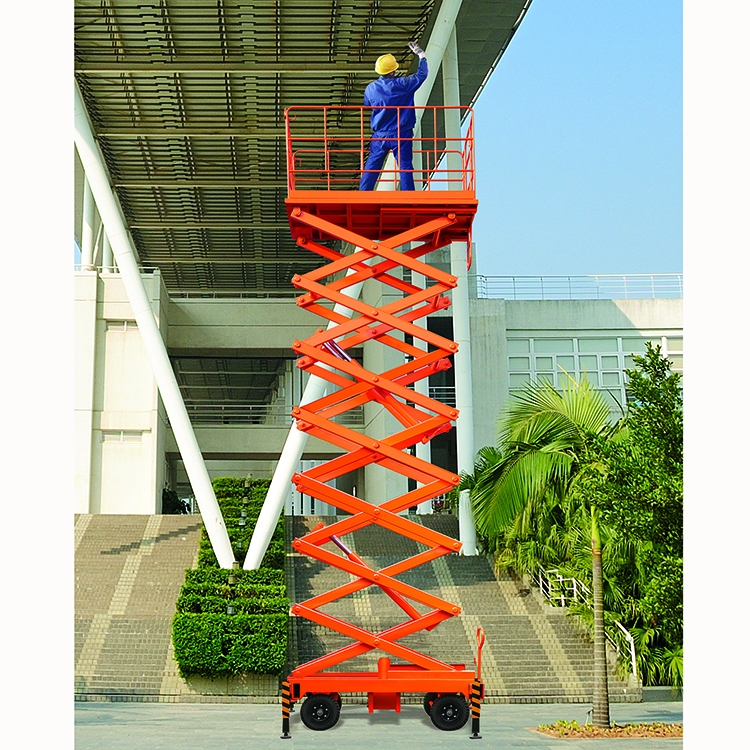

14m Aerial Man Lift Electric Hydraulic Scissor Lift
Mobile scissor lift table adopts scissor type mechanic structure to bring high stability after being elevated. The wide operation platform and high loading ability has made wider aloft work arrange and is suitable for simultaneous multi-worker operation.
| Model | Capacity(kg) | Rated height(mm) | Low height(mm) | Platform size(mm) | Elevating time(s) | Motor power(kw) | Voltage(v) | Self weight (kg) |
| SJY0.3-6 | 300 | 6000 | 1200 | 1780x840 | 50 | 1.5 | 380v/50hz | 1000 |
| SJY0.5-6 | 500 | 6000 | 1300 | 1780x840 | 50 | 1.5 | 380v/50hz | 1100 |
| SJY1-6 | 1000 | 6000 | 1400 | 1780x1000 | 60 | 2.2 | 380v/50hz | 1400 |
| SJY0.3-9 | 300 | 9000 | 1400 | 2000x1000 | 70 | 2.2 | 380v/50hz | 1400 |
| SJY0.5-9 | 500 | 9000 | 1400 | 2000x1000 | 70 | 2.2 | 380v/50hz | 1500 |
| SJY1-9 | 1000 | 9000 | 1500 | 2000x1200 | 75 | 3.7 | 380v/50hz | 1850 |
| SJY0.3-11 | 300 | 11000 | 1600 | 2150x1200 | 70 | 2.2 | 380v/50hz | 2000 |
| SJY0.5-11 | 500 | 11000 | 1600 | 2150x1200 | 80 | 2.2 | 380v/50hz | 2100 |
| SJY0.3-12 | 300 | 12000 | 1600 | 2350x1350 | 85 | 3.7 | 380v/50hz | 2200 |
| SJY0.5-12 | 500 | 12000 | 1600 | 2350x1350 | 90 | 3.7 | 380v/50hz | 2300 |
| SJY0.3-14 | 300 | 14000 | 2000 | 2600x1500 | 120 | 3.7 | 380v/50hz | 2800 |
| SJY0.5-14 | 500 | 14000 | 2000 | 2600x1500 | 130 | 3.7 | 380v/50hz | 3100 |
| SJY0.3-16 | 300 | 16000 | 2100 | 2800x1500 | 180 | 3.7 | 380v/50hz | 3200 |
