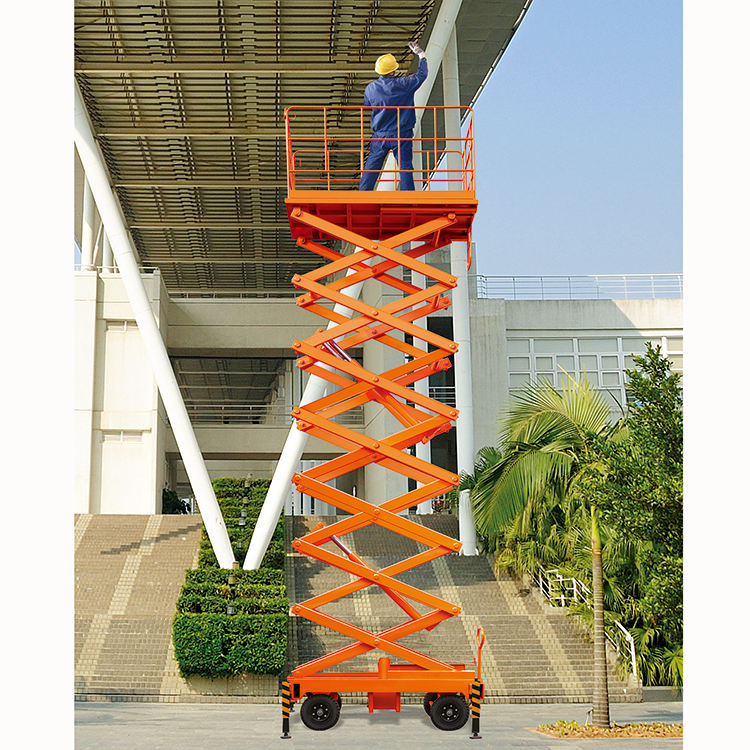

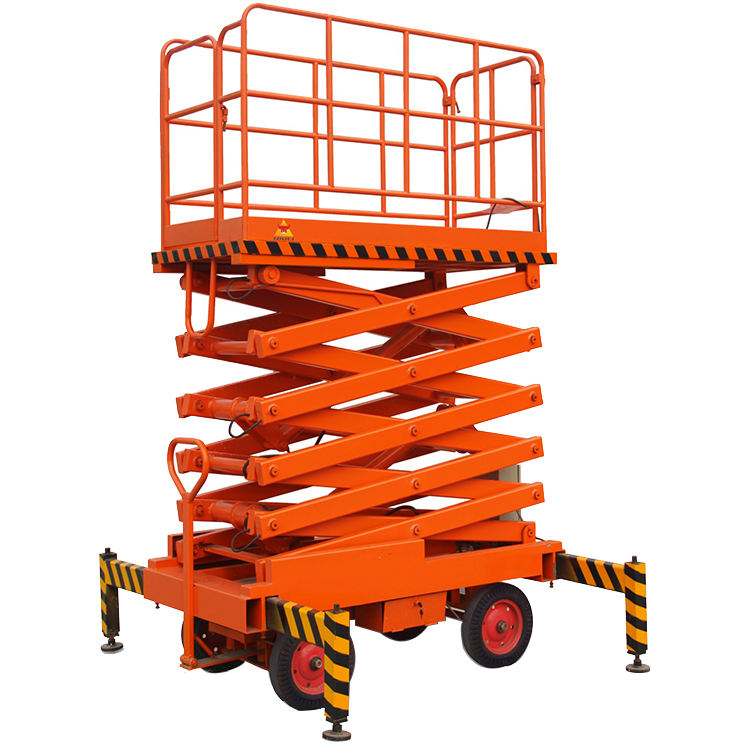

Mobile High-Raised lift table
Mobile scissor lift table adopts scissor type mechanic structure to bring high stability after being elevated. The wide operation platform and high loading ability has made wider aloft work arrange and is suitable for simultaneous multi-worker operation.
Mobile scissor lift table:
Power supply:
Model | Capacity(kg) | Rated height(mm) | Low height(mm) | Platform size(mm) | Elevating time(s) | Motor power(kw) | Voltage(v) | Self weight (kg) |
SJY0.3-6 | 300 | 6000 | 1200 | 1780x840 | 50 | 1.5 | 380v/50hz | 1000 |
SJY0.5-6 | 500 | 6000 | 1300 | 1780x840 | 50 | 1.5 | 380v/50hz | 1100 |
SJY1-6 | 1000 | 6000 | 1400 | 1780x1000 | 60 | 2.2 | 380v/50hz | 1400 |
SJY0.3-9 | 300 | 9000 | 1400 | 2000x1000 | 70 | 2.2 | 380v/50hz | 1400 |
SJY0.5-9 | 500 | 9000 | 1400 | 2000x1000 | 70 | 2.2 | 380v/50hz | 1500 |
SJY1-9 | 1000 | 9000 | 1500 | 2000x1200 | 75 | 3.7 | 380v/50hz | 1850 |
SJY0.3-11 | 300 | 11000 | 1600 | 2150x1200 | 70 | 2.2 | 380v/50hz | 2000 |
SJY0.5-11 | 500 | 11000 | 1600 | 2150x1200 | 80 | 2.2 | 380v/50hz | 2100 |
SJY0.3-12 | 300 | 12000 | 1600 | 2350x1350 | 85 | 3.7 | 380v/50hz | 2200 |
SJY0.5-12 | 500 | 12000 | 1600 | 2350x1350 | 90 | 3.7 | 380v/50hz | 2300 |
SJY0.3-14 | 300 | 14000 | 2000 | 2600x1500 | 120 | 3.7 | 380v/50hz | 2800 |
SJY0.5-14 | 500 | 14000 | 2000 | 2600x1500 | 130 | 3.7 | 380v/50hz | 3100 |
SJY0.3-16 | 300 | 16000 | 2100 | 2800x1500 | 180 | 3.7 | 380v/50hz | 3200 |
Remark:Special specification lift tables can made according to the customer's demands.
