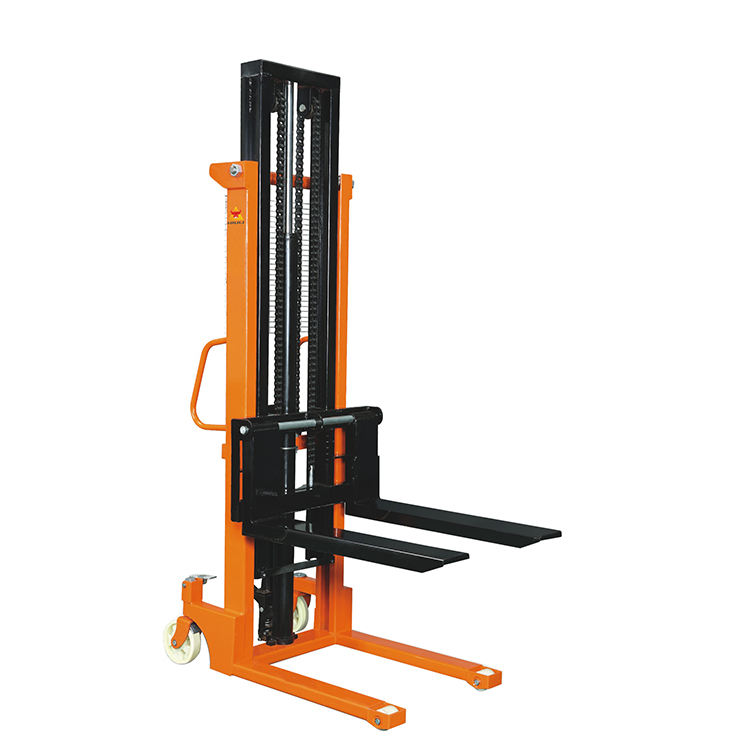

Parameters | CTY-E("C" frame) | ||
E1.0 | E2.0 | ||
Rated lifting capacity(kg) | 1000 | 2000 | |
Max lifting height | 1600 | 1600 | |
Height of forks lower(mm) | 85 | 85 | |
Fork length(mm) | 900 | 900 | |
Adjustable width of the forks(mm) | 320-740 | 320-740 | |
Lifting speed(mm/stroke) | 20 | 14 | |
Lowering speed | controllable | ||
Operations power of hand crank(kg) | 24 | 32 | |
Outer width of front leg(mm) | 690 | 690 | |
Minimum refuel volume for fuel tank(L) | 1.5 | 2.0 | |
Front wheel size(mm) | 75×52 | 75×70 | |
Rear wheel size | 180×50 | 180×50 | |
Overall size(mm) | 2030×780×1450 | 2040×780×1470 | |
Self weight(kg) | 150 | 250 | |
