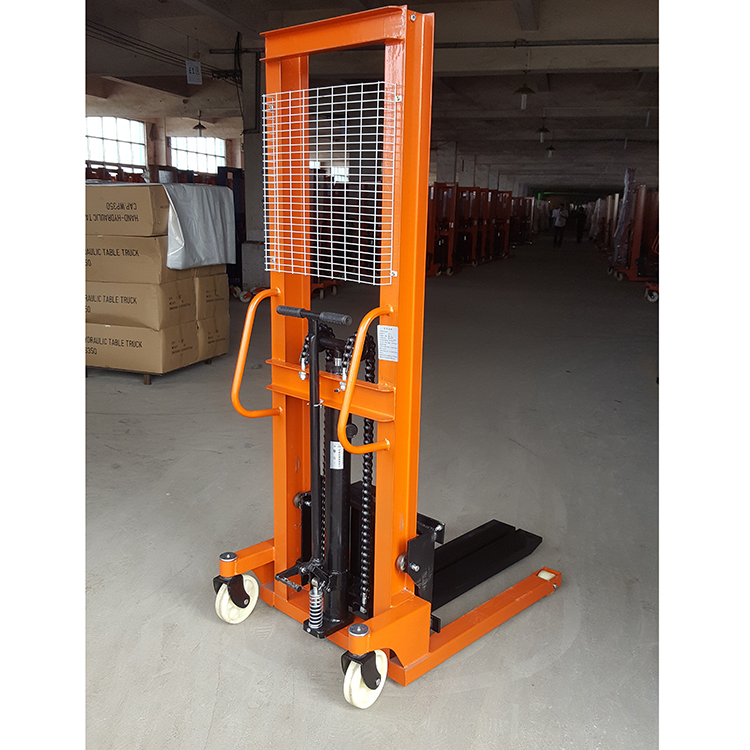

Manual Pallet Stacker 2 Ton Hydraulic Manual Hand Portable Stacker Forklift for Sale China

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Hand stacker specifications:

Model CTY-A1.0 CTY-A2.0 CTY-A3.0
Capacity(kg) 1000 2000 3000
Max.lifting height(mm) 1600 1600 1600
Lowered height of forks(mm) 85 85 100
Fork length (mm) 900 900 1000
Adjustable Width of fork(mm) 230-580 270-680 320-770
Lifting speed(mm/stroke) 20 14 10
lowering speed(mm/stroke) Controllable Controllable Controllable
Outer width of front legs (mm) 750 750 750
Operation power of crank(kg) 24 32 40
Min.refuel volume of fuel tank(L) 1.6 2.0 3.0
Front wheel size(mm) φ85x50 φ85x50 φ100x50
Rear wheel size(mm) φ180x50 φ180x50 φ180x50
Overall size(mm) 2040x750x1420 2050x750x1480 2050x800x1650
Self Weight(kg) 115 180 280

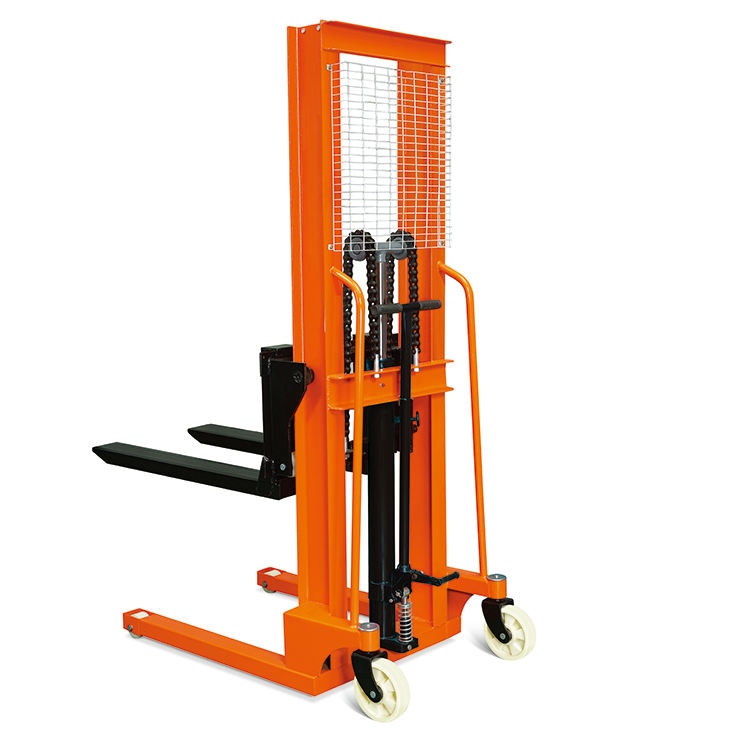

Manual pallet stacker 2 ton hydraulic manual hand portable stacker forklift for sale china

Hand Hydraulic Stacker

Portable Stacker

Hand Portable Stacker
