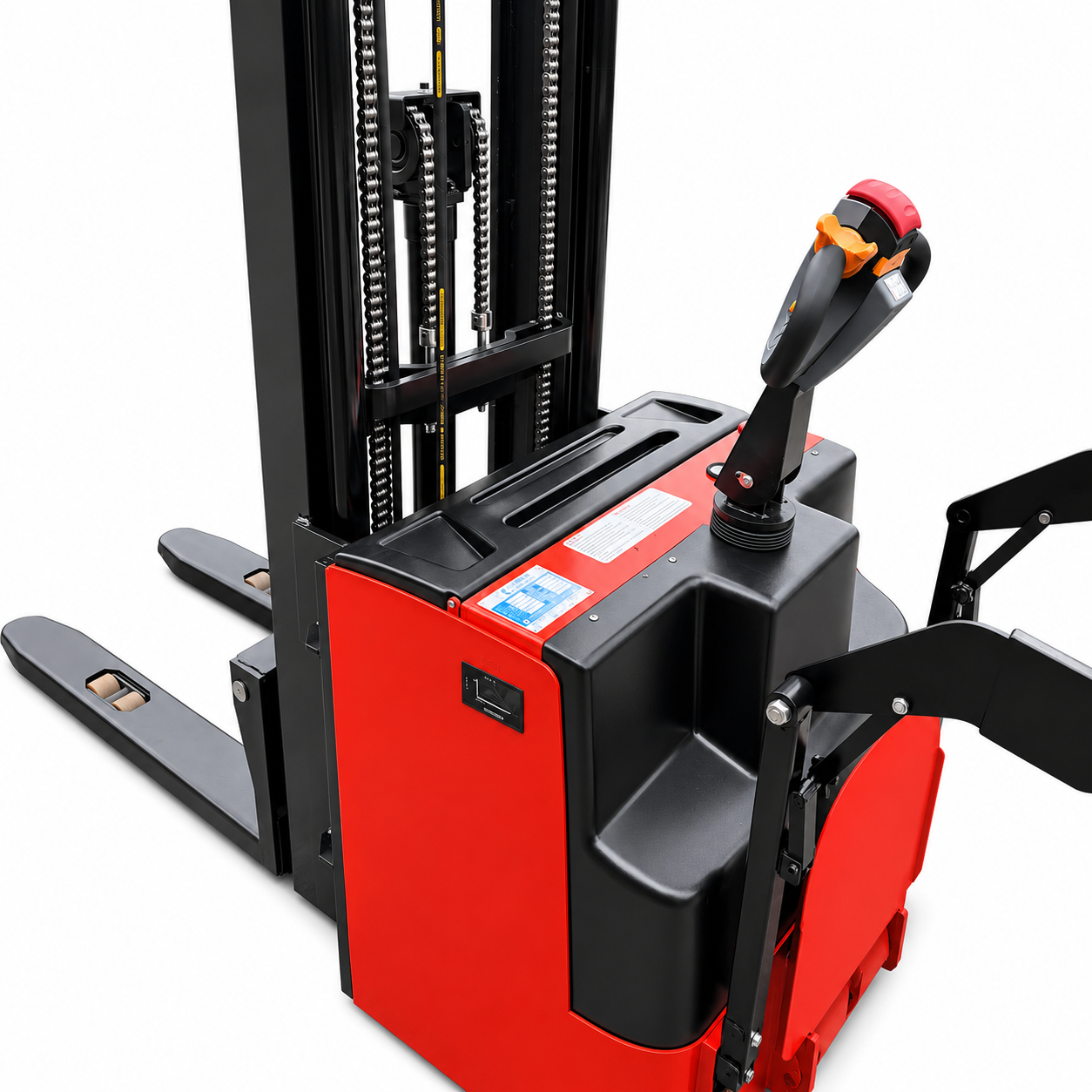

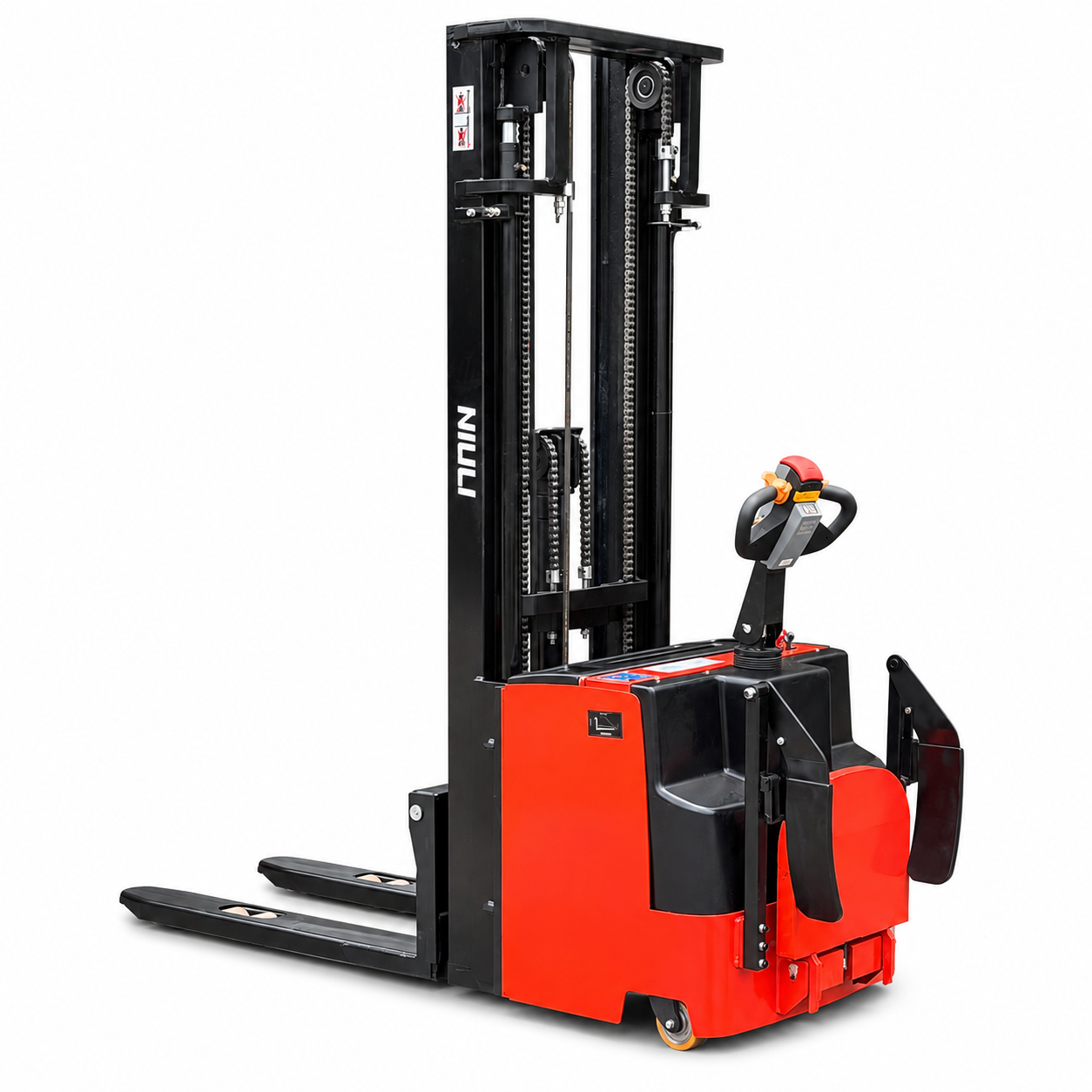

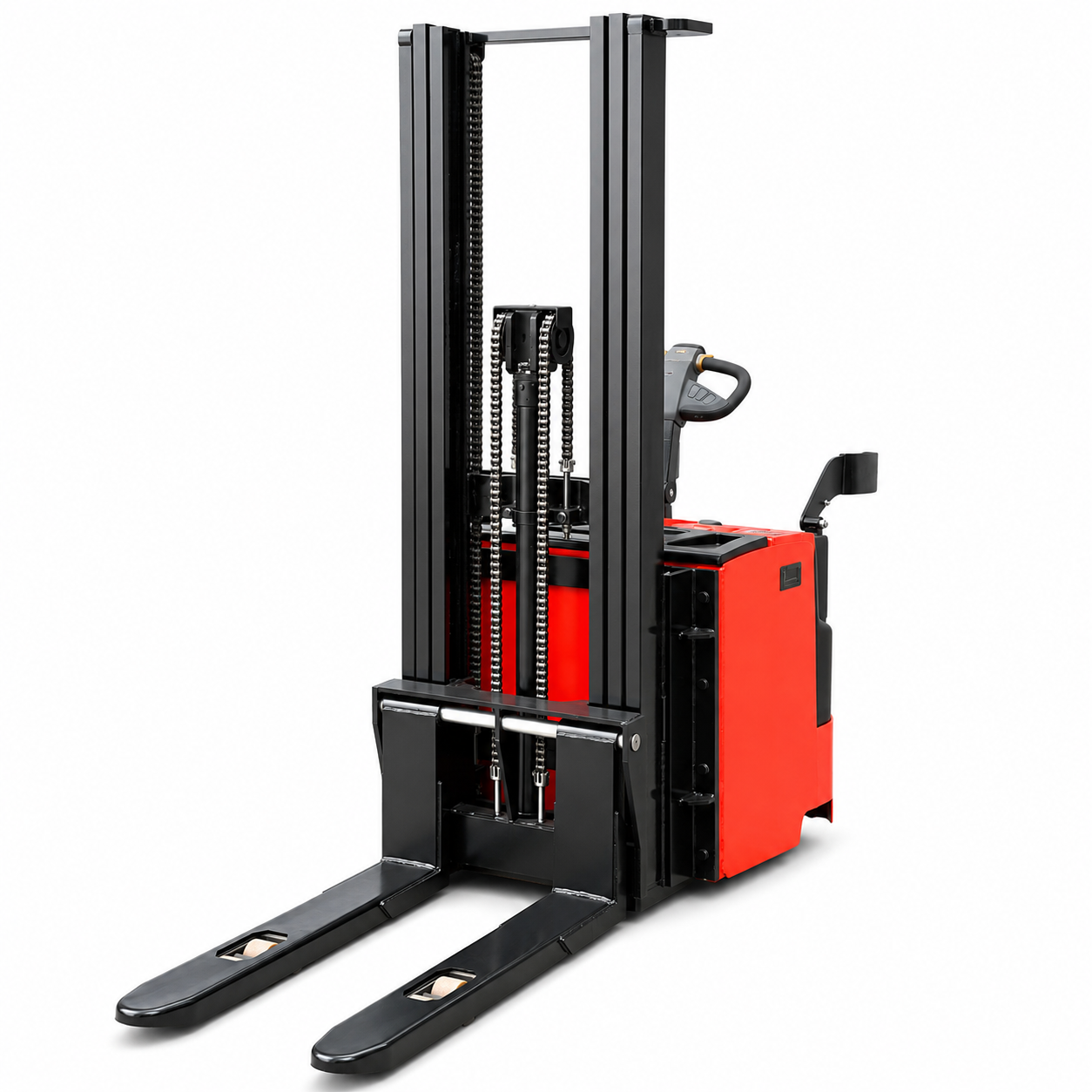

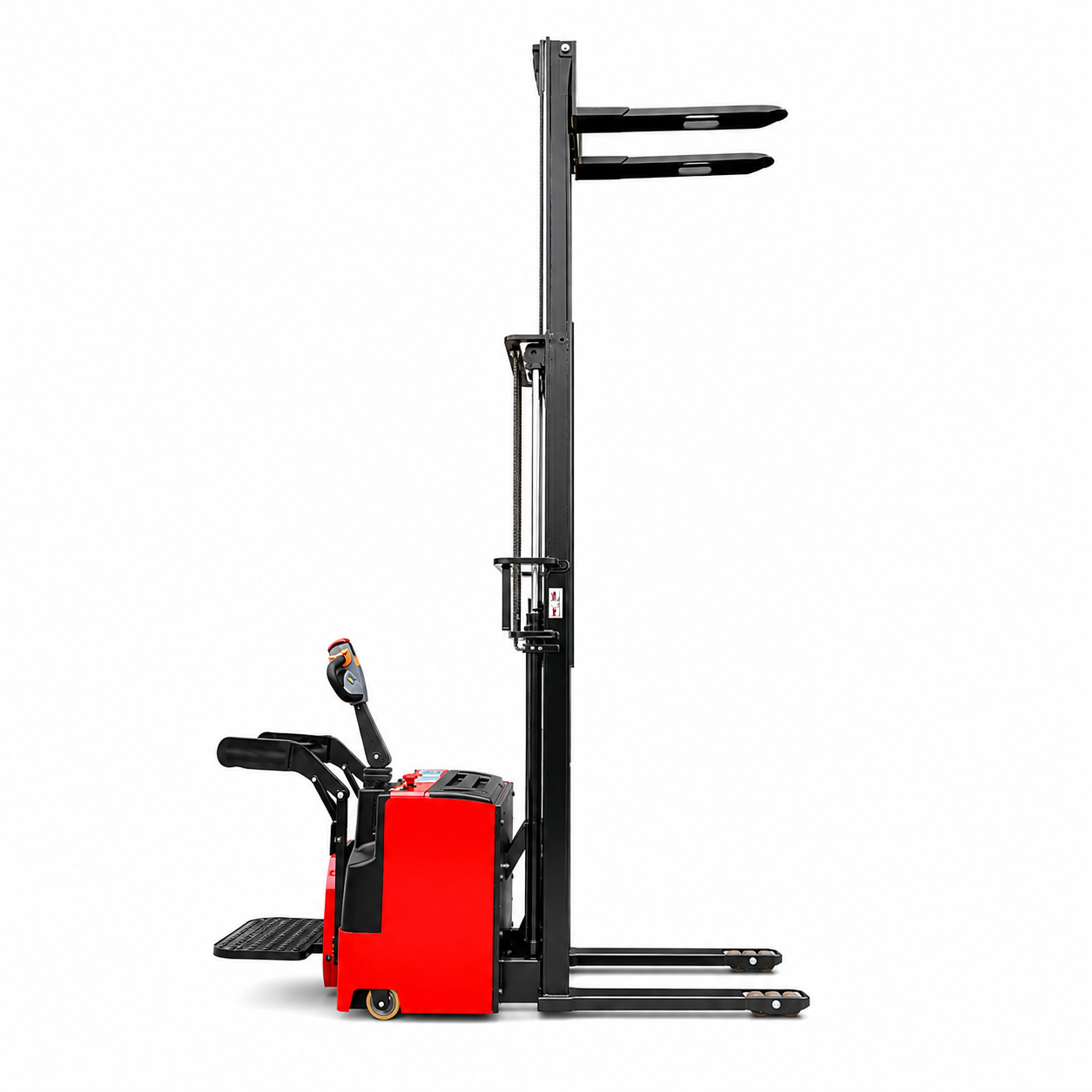

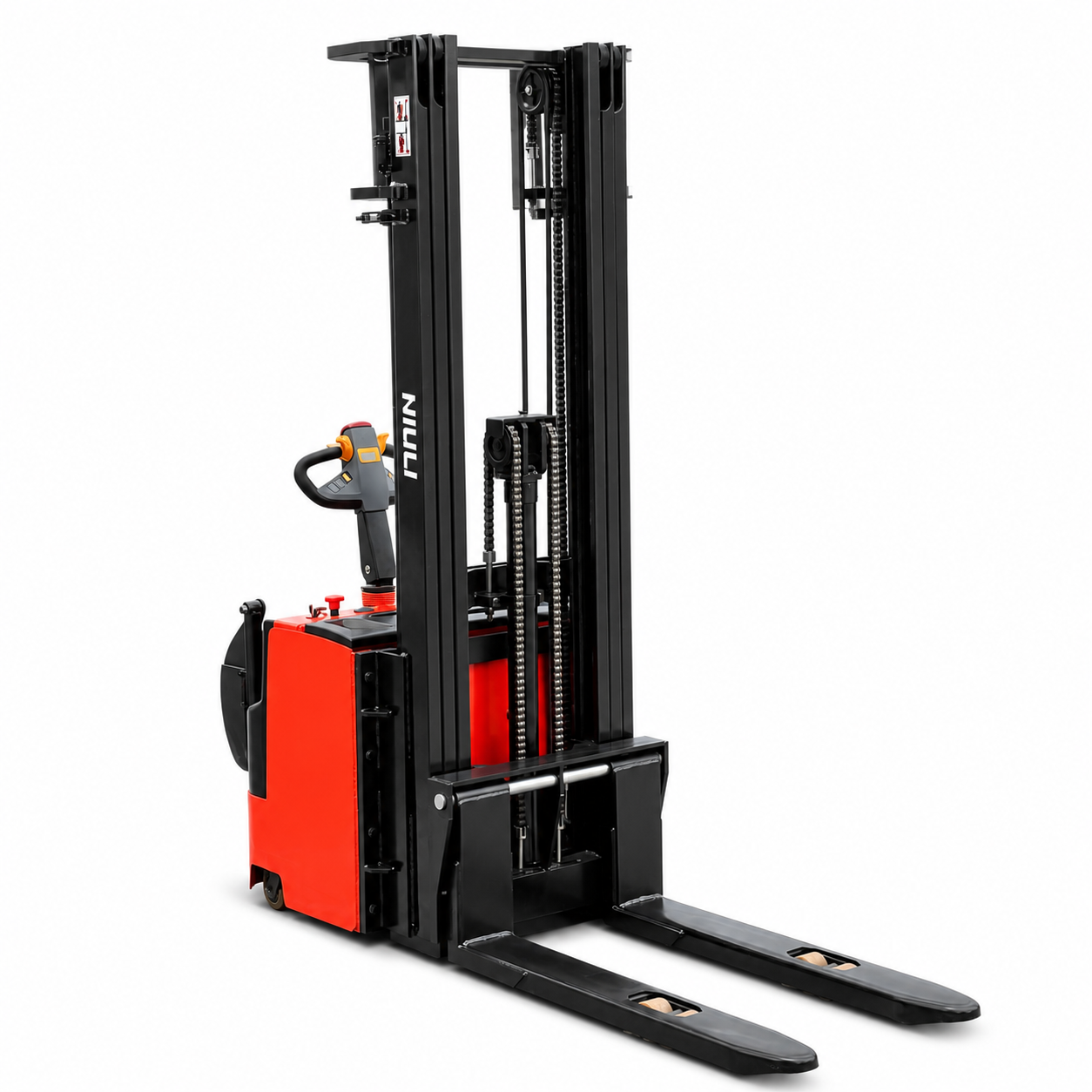

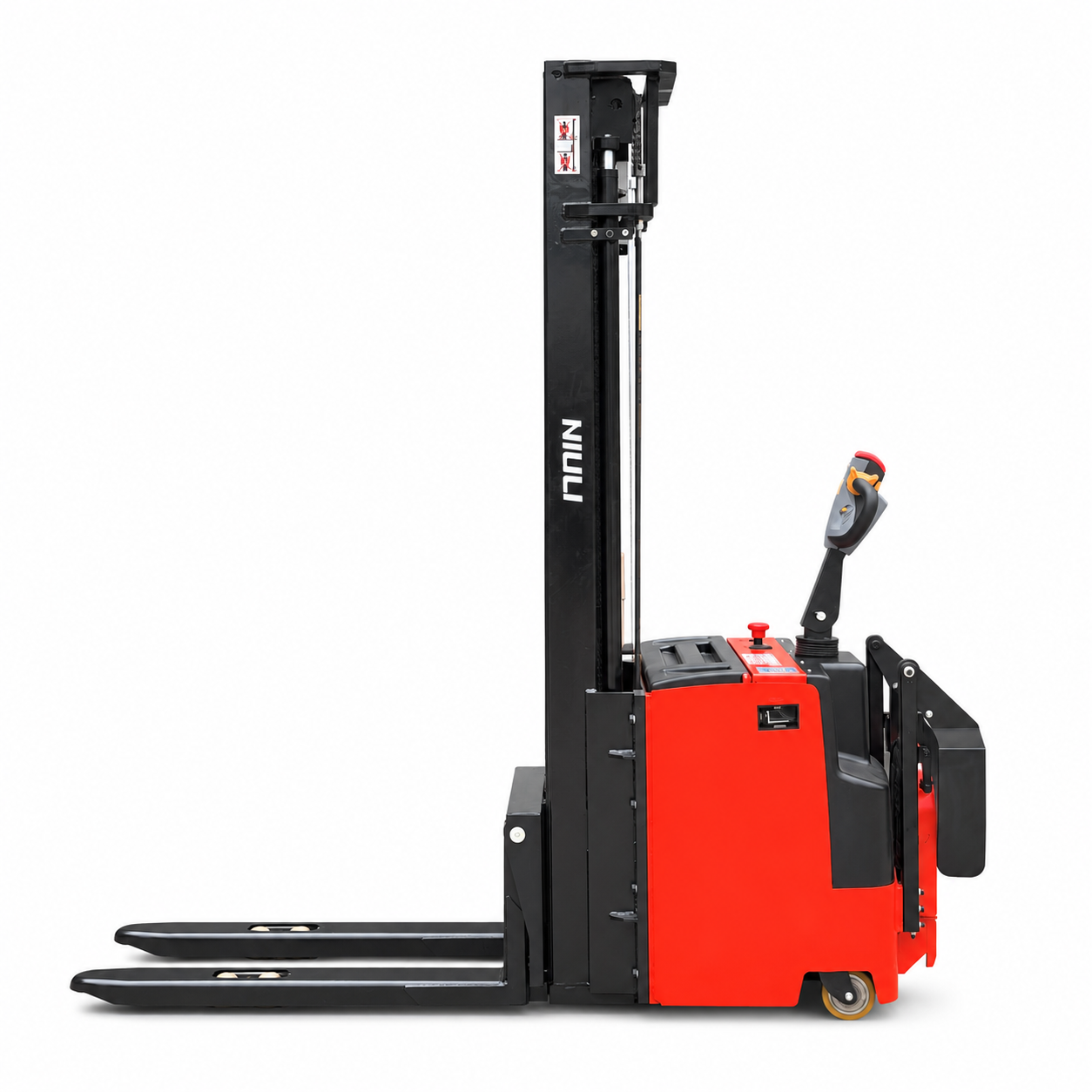

CTQN
NIULI
| Quantity: | |
|---|---|
Model | Unit | CTQ15/16-N | CTQ15/20-N | CTQ15/25-N | CTQ15/30-N | CTQ15/33-N | CTQ15/35-N | CTQ15/40-N | CTQ15/45-N | CTQ15/50-N |
Drive unit |
| Electric | ||||||||
Load capacity | Kg | 1500 | ||||||||
Load center | mm | 500 | ||||||||
Mast |
| Single mast | Double mast | Triple mast | ||||||
Brake way |
| Rebirth system moves + Electric at butterfly release | ||||||||
Tyre type |
| Polyurethane | ||||||||
Front tyre dimensions | mm | φ180x60 | ||||||||
Rear tyre dimensions | mm | φ130x55 | ||||||||
Traction wheel | mm | φ230x75 | ||||||||
Wheels quantity front/rear (x=traction) |
| 1x-4/2 | ||||||||
Travel position tiller height | mm | 1050 | ||||||||
Lift height h3 | mm | 1600 | 2000 | 2500 | 3000 | 3300 | 3500 | 4000 | 4500 | 5000 |
Closed height h1 | mm | 2080 | 1580 | 1830 | 2080 | 2230 | 2330 | 1900 | 2060 | 2230 |
Forks clearance from the ground h13 | mm | 85-90 | ||||||||
Fork dimensions | S/L1/E | 1150x160x65 | ||||||||
Total length l1 | mm | 2580 | 2600/2210 | 2620/2230 | ||||||
Total width b1 | mm | 850 | ||||||||
Max. forks width b5 | mm | 680 | ||||||||
Forks inside width | mm | 360 | ||||||||
Min. turning radius | mm | R1750 | R1760 | |||||||
Min. turning radius(Open pedal) | mm | R2150 | R2160 | |||||||
Aisle width for pallets (1000x1000mm) AST | mm | 2550/2900(open pedal) | ||||||||
Aisle width for pallets (1200x1000mm) | mm | 2680/3030(open pedal) | ||||||||
Lifting speed (lade/unlade) | mm/s | 100/70 | 130/70 | |||||||
Lowering speed(lade/unlade) | mm/s | ≤500 | ||||||||
Traction speed(lade/unlade) | Km/h | 6/5 | ||||||||
Max. grade ability (lade/unlade) | % | 15%/6% | ||||||||
Truck weight (without battery) | Kg | 660 | 725 | 750 | 780 | 805 | 820 | 850 | 870 | 890 |
Battery weight(±5%) | Kg | 220 | ||||||||
Electrical engineering control system |
| AC-Speed Control | ||||||||
Traction motor | Kw | 1.5 | ||||||||
Lift motor | Kw | 2.2 | ||||||||
Battery | V/Ah | 2Vx12/240 | ||||||||
Battery Charger (input) AC | V/Hz | 220V/50(60)HZ | ||||||||
Battery Charger (input) DC | V/A | 24V/30A | ||||||||
What drive & control system does CTQN adopt?
It is equipped with AC drive control system, 1.5 kW traction motor and 2.2 kW lifting motor. It supports stepless speed regulation and regenerative braking with electromagnetic fail‑safe brake, foldable platform for stand‑on operation。
What aisle width does CTQN require? What is its minimum turning radius?
Min turning radius approx.1750 mm (platform folded), 2150 mm (platform unfolded). Working aisle width for 1000×1000 pallet is 2550‑2900 mm, ideal for high‑density racking warehouse。
What is the standard battery specification and runtime of CTQN?
Standard 24V heavy‑duty traction battery with side‑pull design for easy service. It supports around 8‑hour continuous warehouse operation, external charger is supplied as standard.
What wheel material for CTQN? Is it suitable for indoor floor?
Fitted with non‑marking PU polyurethane wheels, drive wheel φ230×75 mm, no scratch on epoxy floor. Designed for smooth indoor floor, not for long‑term rough outdoor ground。
Can fork size of CTQN be customized?
Standard fork dimension 1150×160×65 mm with adjustable fork width. Custom fork length, thickness and special attachments are available upon request。
What safety features are equipped on CTQN?
Emergency stop button, automatic electromagnetic brake, hydraulic overload protection, mast safety guard net and key switch. Auto‑brake when releasing control handle for operator safety。
What is lead‑time and warranty policy for CTQN?
ALead‑time 25‑35 days for standard units, longer for non‑standard customization. 1‑year warranty for complete machine, wear‑and‑tear parts excluded.
What is main difference between CTQN full‑electric and semi‑electric stacker?
CTQN features full‑electric travel & lifting with stand‑on platform for higher travelling speed for frequent material handling. Semi‑electric stacker only has electric lifting while travelling by manual pushing for light‑duty tasks.
