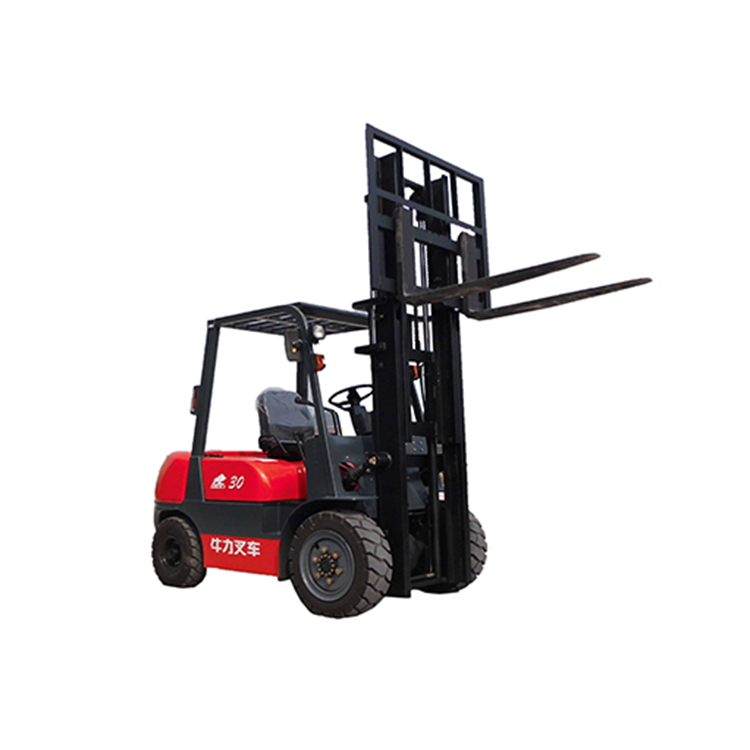

3 Ton Diesel Forklift Truck
Packaging Details: LCL: Standard export package FCL: 3 pcs/20'GP, 5 pcs/40'GP
Delivery Detail: Within 20 days, depending on production schedule
-- Great Reliability
-- Innovative Design
-- Simplified Serviceability
-- Enhanced Productivity
-- Wide-view Mast -- offer enhanced forward visibility, thus more efficiency and safty during operation
-- Solid Overhead Guard -- specially designed for additional security
-- Ergonomics Seat -- much more comfortable and fatigue- reliveable after long time operation
-- Powerful Engine -- imported brand engine ensures high performance, safty and efficiency
-- Super low & Non-slip step
Features:
1.Power transmission system, overhead guard and truck frame all use dual suspension structure, which can weaken the vibration transferred from power system wheel,control lever and seat ,thus making the operator feel more comfortable during operation.
2.This forklift truck is designed with high definition liquid crystal display device which not only provides convenience for operator to understand the working condition of truck,but also broadens the visual field of operator.
3.This diesel forklift truck can be designed with two stage free lifting mast or three stage mast,luxurious and closed driving room,solid tire, side shifter, roll clamps, clamp holder, and nonstandard forks etc,to meet your different needs.
NIULI FORKLIFT TRUCK SPECIFICATION | ||||||||||
| General | 1 | Model | CPC30/CPCD30 | CPC35/CPD35 | ||||||
| 2 | Power Type | Diesel/GAS | Diesel/GAS | |||||||
| 3 | Rated capacity | Kg | 3000 | 3500 | ||||||
| 4 | Load center | mm | 500 | 500 | ||||||
| Charactertic | 5 | Lifting height | mm | 3000 | 3000 | |||||
| 6 | Fork size | mm | 1070*122*40 | 1070*122*40 | ||||||
| 7 | Mast Tilt Angle | Deg | 6°/12° | 6°/12° | ||||||
| 8 | Front Overhang(Wheel center to fork face) | mm | 500 | 500 | ||||||
| 9 | Ground Clearance(Bottom Of Mast) | mm | 126 | 126 | ||||||
| 10 | Overall Dimension | Overall length(with/without fork) | mm | 3790/2700 | 3790/2700 | |||||
| 11 | Overall width | mm | 1230 | 1230 | ||||||
| 12 | Mast lowered height | mm | 2105 | 2105 | ||||||
| 13 | MastExtended height(with backrest) | mm | 4110 | 4110 | ||||||
| 14 | Overhead guard height | mm | 2140 | 2140 | ||||||
| 15 | Turning Radius(outside) | mm | 2415 | 2415 | ||||||
| 16 | Min. intersecting aisle | mm | 2500 | 2500 | ||||||
| Performance | 17 | Speed | Travel(Full/Empty load) | km/h | 18/19 | 18/19 | ||||
| 18 | Lifting(Full/Empty load) | mm/s | 460/540 | 530/540 | ||||||
| 19 | Max.Gradeability | % | 20 | 20 | ||||||
| Chassis | 20 | Tire | Front | 28x9-15-12PR | 28x9-15-12PR | |||||
| 21 | Rear | 6.50-10-10PR | 6.50-10-10PR | |||||||
| 22 | Wheelbase | mm | 1650 | 1650 | ||||||
| 23 | Self Weight | kg | 4280 | 4500 | ||||||
| Transmission | 24 | Battery | Voltage/Capacity | V/Ah | 12/120 | 12/120 | ||||
| 25 | Engine | Model | C240 | C490BPG | QC495G | |||||
| 26 | Manufacturer | ISUZU | XinChang | Quanchai | ||||||
| 27 | Rated output/r.p.m | kW/rpm | 34.3/2500 | 34.3/2500 | 42/2650 | |||||
| 28 | Rated torque/r.p.m | Nm/rpm | 137.7/1800 | 160/1800-2000 | 174/1980 | |||||
| 29 | No. of cylinder | 4 | 4 | 4 | ||||||
| 30 | Bore x Stroke | mm | 86x102 | 90x105 | 95x105 | |||||
| 31 | Displacement | cc | 2369 | 2670 | 2980 | |||||
| 32 | Fuel Tank capacity | L | 60 | 60 | 60 | |||||
| 33 | Transmission | Machanical/Hydraulic | Machanical/Hydraulic | |||||||
| 34 | Operation Pressure for Attachment | Mpa | 17.5 | 17.5 | ||||||
