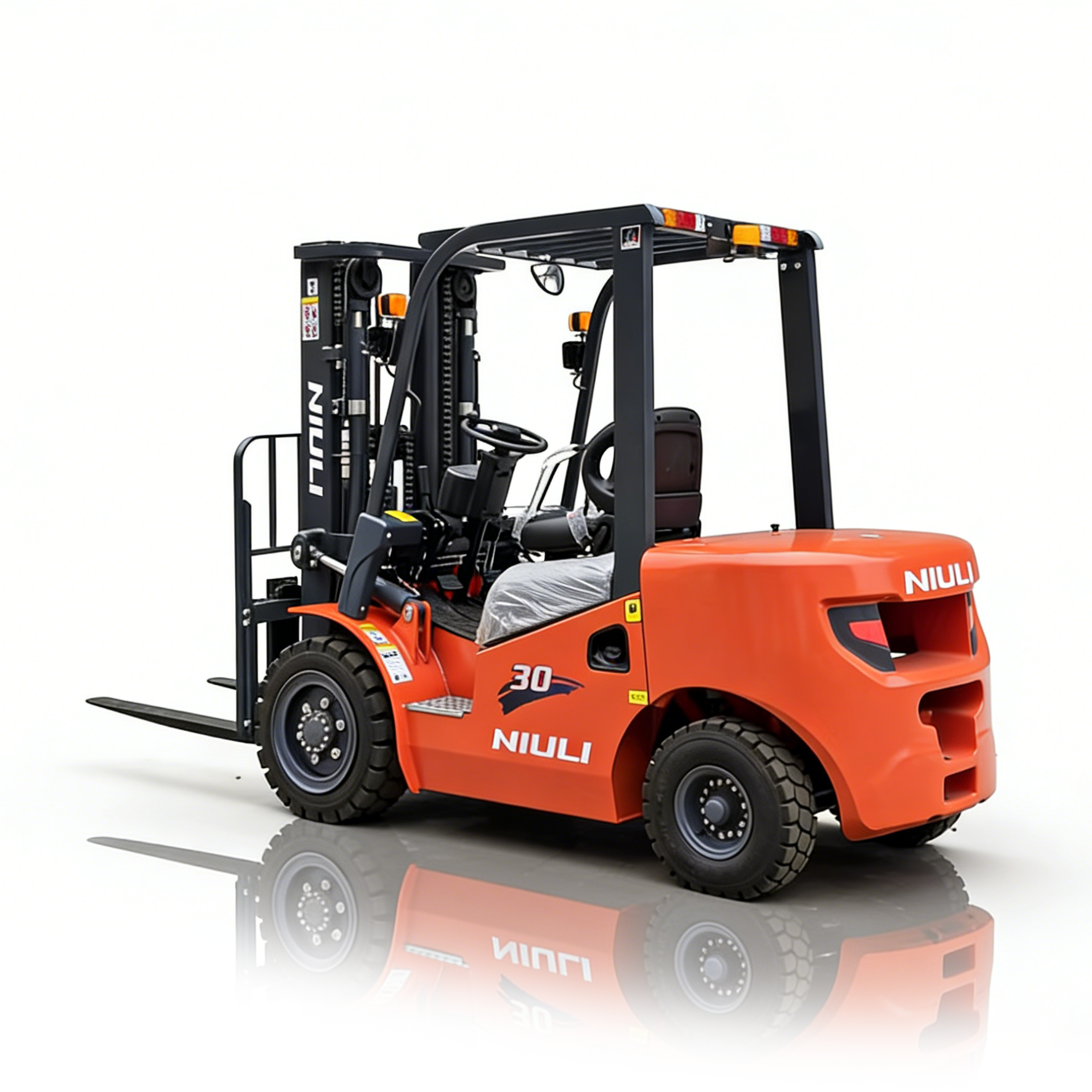

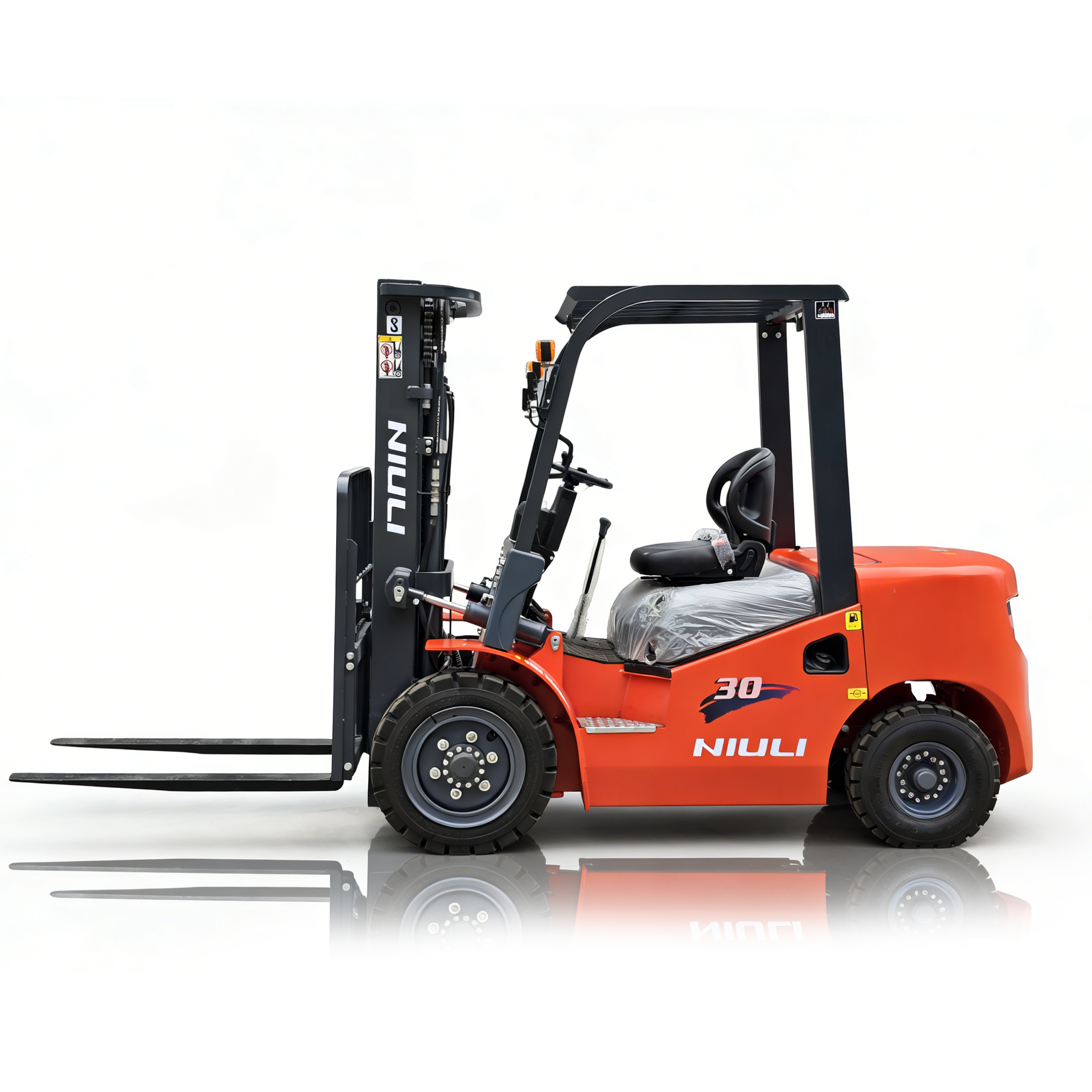

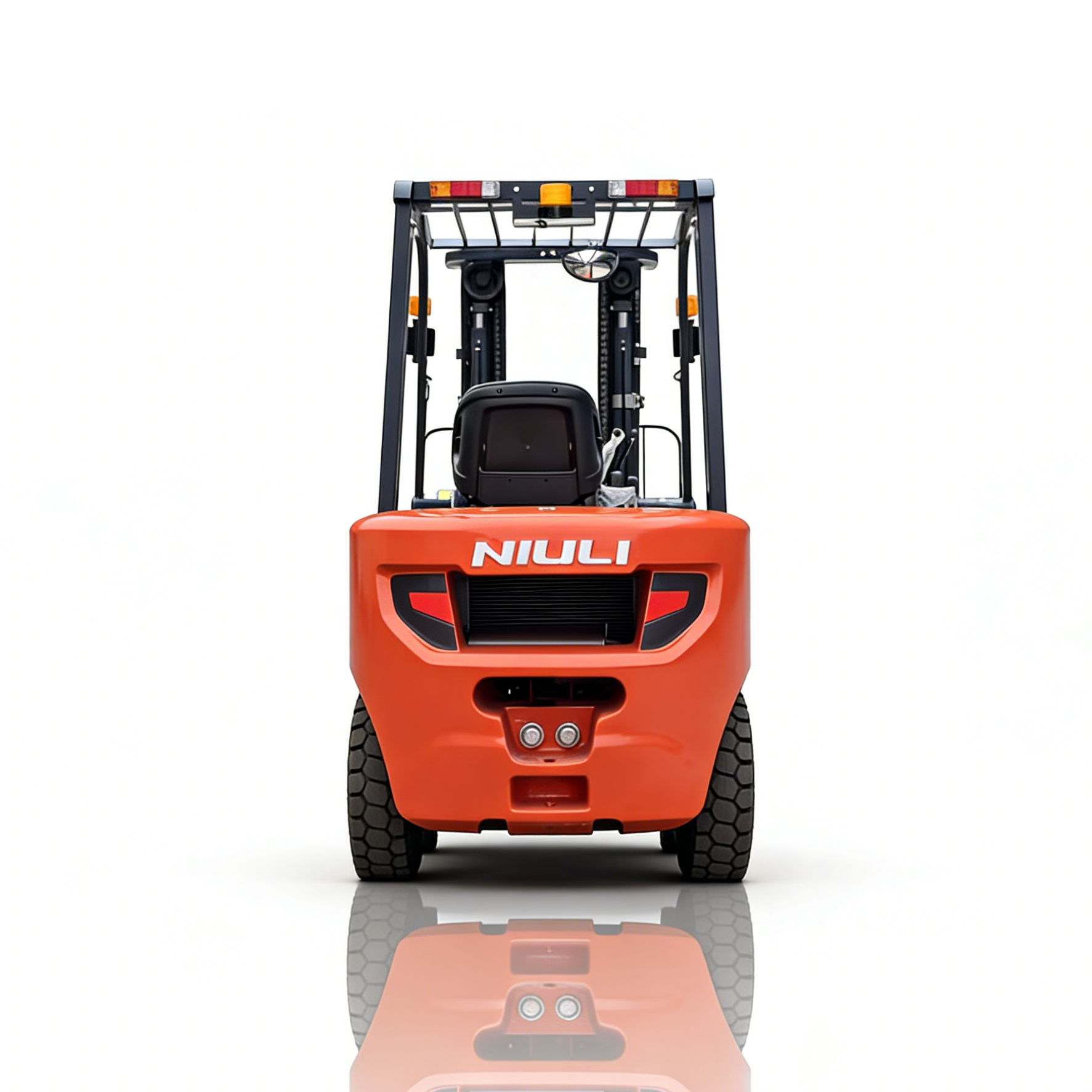

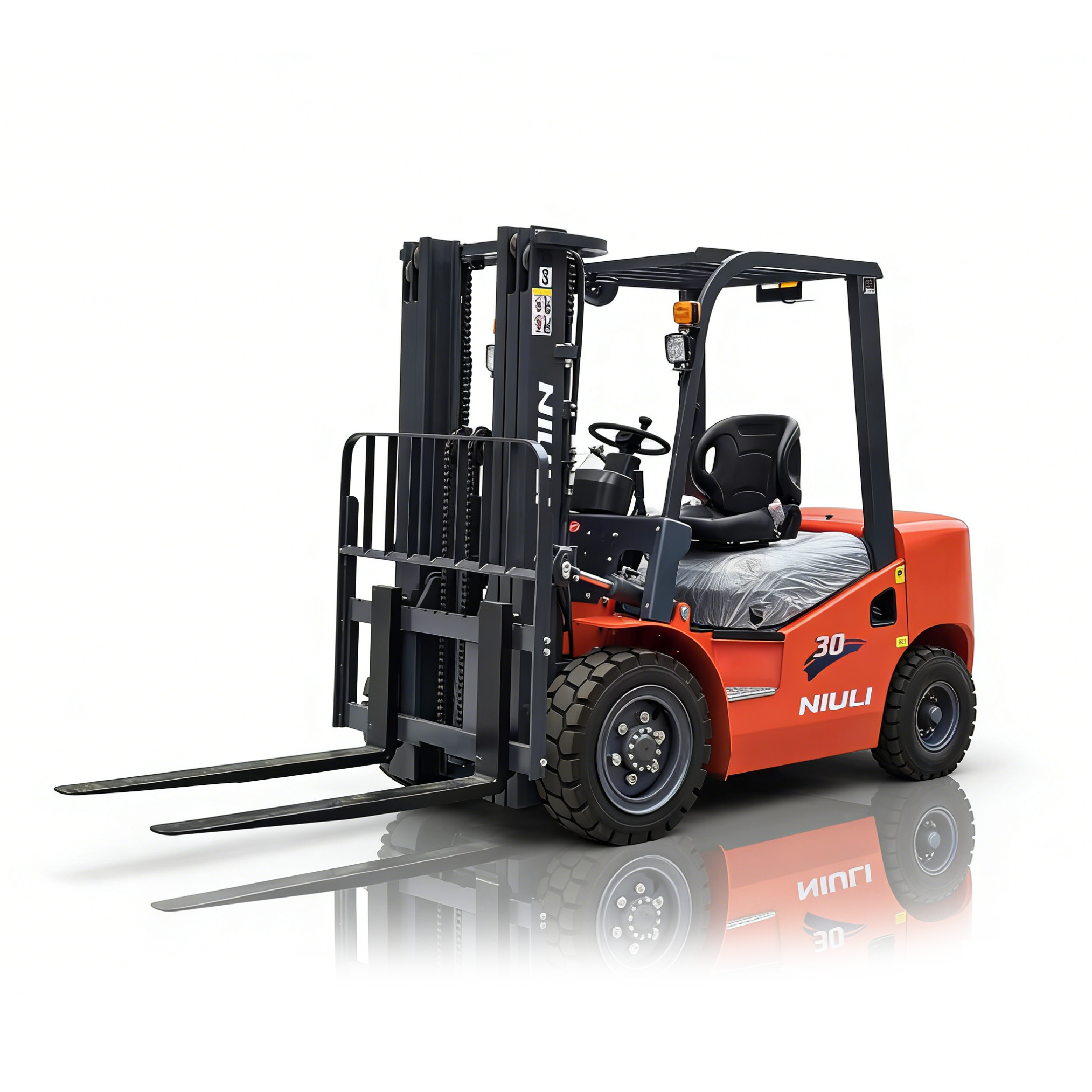

CPD K2 Series Diesel Forklift

Name: CPD K2 Series Diesel Forklift
Brand: NIULI
Rating: 5.0 (88 reviews)

The K2 diesel forklift is based on the K-type forklift and has been redesigned with a counterweight and cabin, providing better driving comfort and flexibility. Can load 3000kg to 3500kg, can be equipped with door frames ranging from 3000m to 6000mm, and can be optionally equipped with a gasoline engine. It is the best choice for logistics operations such as warehouses and factories

Model:
CPD
Brand:
NIULI

Quantity:
Availability:





Inquire Add to Basket

Product Description

Category	Item	Sub-item	Unit	CPC/CPCD30 (Diesel)	CPC/CPCD35 (Diesel/Gas)
Characteristic	Power type	-	-	Diesel	Diesel/Gas
	Load capacity	-	kg	3000	3500
	Load center	-	mm	500	500
	Lifting height	-	mm	3000	3500
	Free height	-	mm	145	145
	Fork size	L×W×H	mm	1070×125×45	1070×125×50
	Mast angle	Front/Rear	°	6/12	6/12
	Min. turning radius	-	mm	2470	2400
	Min. right angle stacking channel width	-	mm	4280	4335
	Min. right angle channel width	-	mm	2120	2235
	Ground clearance	-	mm	120	120
	Overhead guard height	-	mm	2120	2120
	Front overhang	-	mm	498	498
Performance	Max. driving speed	Full Load	km/h	19	19
	Max. lifting speed	Full Load	mm/s	460	460
	Max. traction	Full load	kW	20	20
	Max. climb capacity	Full load	%	20	20
Dimensions	Overall length	With fork	mm	3825	2660
	Overall length	Without fork	mm	2735	1265
	Overall width	-	mm	1230	1265
	Max. lifting height of fork (with shelving)	-	mm	4265	4230
	Mast landing height	-	mm	2040	2040

What are the rated load capacity and standard lifting height of the NIULI CPD K2 fuel forklift?

The CPD K2 is a 3-ton class fuel forklift with a rated load capacity of 3000kg and a load center distance of 500mm; the standard mast has a maximum lifting height of 3000mm, and 2-section/3-section masts can be customized (maximum 6000mm).

What engine does this forklift adopt? How about its power and fuel consumption performance?

It is equipped with a standard Isuzu/Xinchai National III/National IV diesel engine, featuring strong power and high torque at low speeds; the optimized fuel injection and intake system ensurescomprehensive fuel consumption 10%~15% lower than similar products, complying with Euro III/EPA emissions, and the noise is ≤78dB.

What are the design highlights of the CPD K2 in terms of safety and handling?

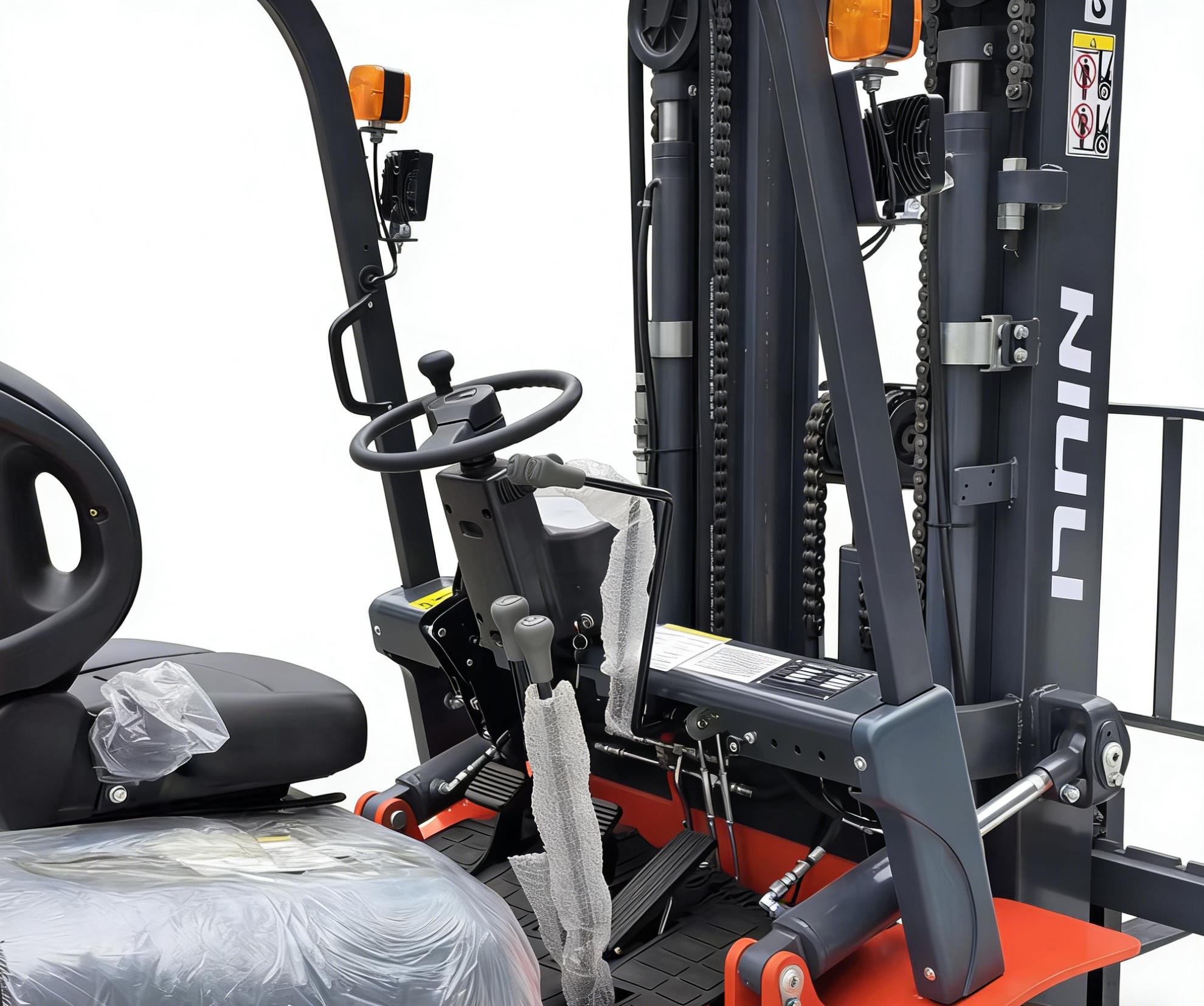

• Wide-view mast: Reduces blind spots and improves operational safety

• Integral overhead guard: High-strength steel plate for protection against falling objects/rollover

• Electromagnetic main switch: Powers off when turned off, preventing electric leakage and mis-start

• Hydraulic double suspension: Good shock absorption, stable operation and low failure rate

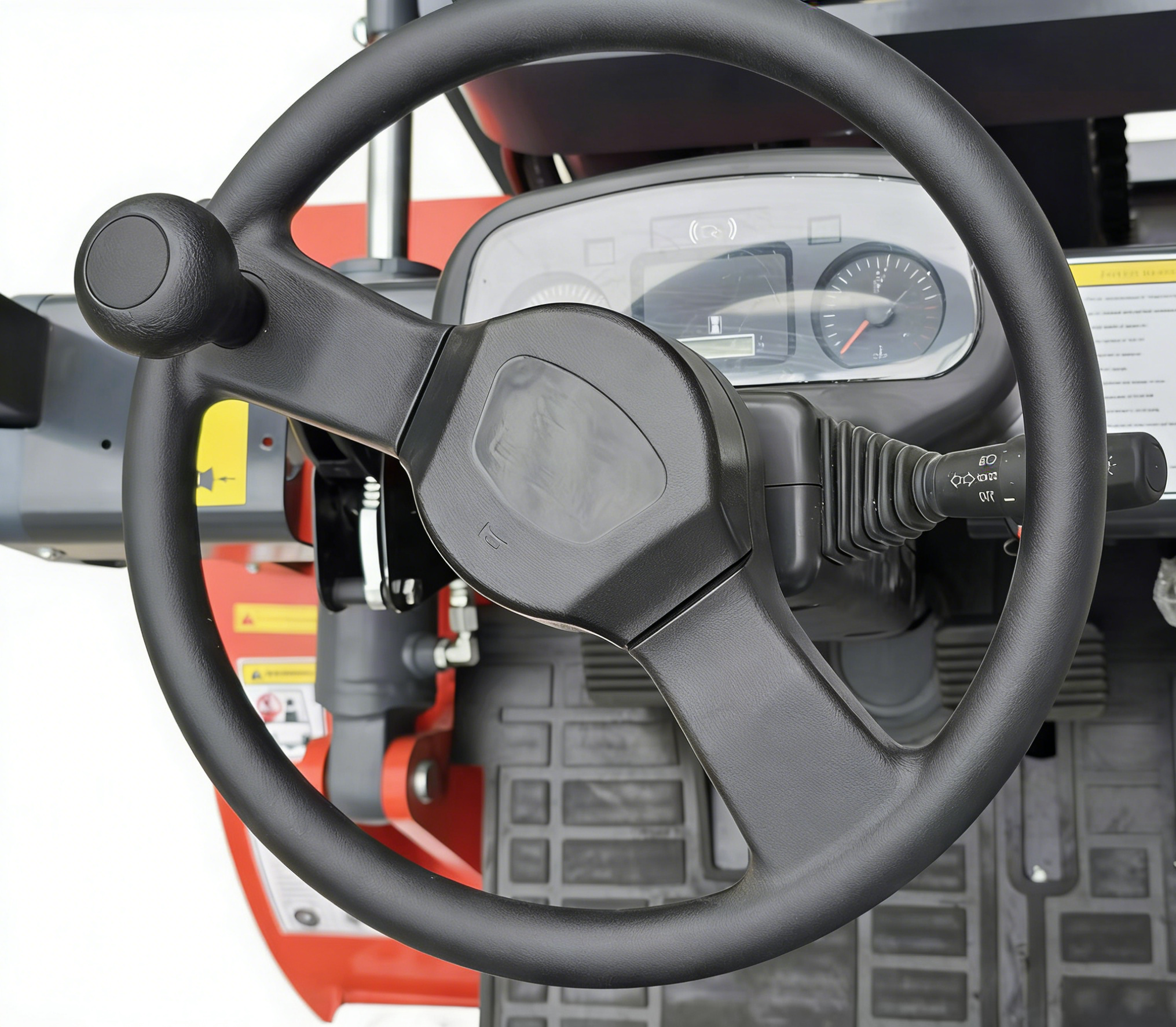

• Ergonomic seat + anti-slip pedal: Not easy to fatigue during long-term operation

What are its applicable scenarios and core advantages?

It is suitable for indoor and outdoor heavy-load scenarios such as factories, warehouses, docks and logistics parks.

Core advantages: Strong power, durability and low maintenance cost; the hydraulic system is equipped with Japanese Shimadzu valves/NOK seals, featuring low oil leakage rate and long service life.

What is the warranty and after-sales policy of the NIULI CPD K2?

12-month whole machine warranty (excluding wearing parts). Core components (engine, gearbox, hydraulic pump) enjoy 18-month priority warranty; national joint warranty is available, on-site service within 48 hours, and lifelong technical support and spare parts supply are provided.
