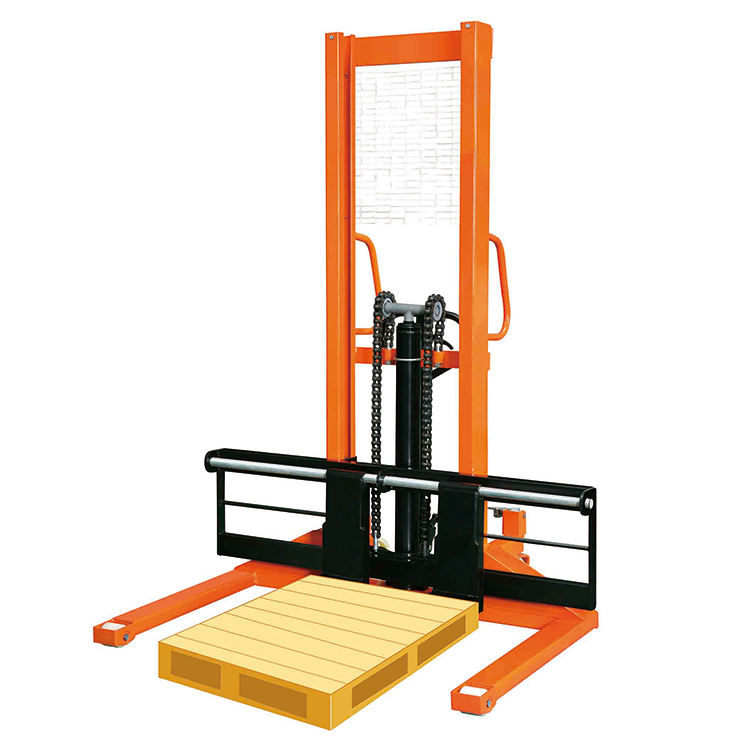

Straddle Leg Hand Stacker
Specially designed straddle legs and counter weight base allow the stacker to be used to enter special size cargos where base legs could interfere,and at the same time improve the stability .
| Model | CTY-EW(1400) |
| Capacity(kg) | 1000 |
| Max.lifting height(mm) | 1600 |
| Lowered height of forks(mm) | 90 |
| Fork length (mm) | 900 |
| Adjustable Width of fork(mm) | 300-120 |
| Lifting speed(mm/stroke) | 20 |
| lowering speed(mm/stroke) | Controllable |
| Operation power of crank(kg) | 24 |
| Outer width of front legs (mm) | 1400 |
| Front wheel size(mm) | φ75x70 |
| Rear wheel size(mm) | φ180x50 |
| Overall size(mm) | 2080x1400x1470 |
| Self Weight(kg) | 210 |
Straddle Leg Hand Stacker
Specially designed straddle legs and counter weight base allow the stacker to be used to enter special size cargos where base legs could interfere,and at the same time improve the stability .
| Model | CTY-EW(1400) |
| Capacity(kg) | 1000 |
| Max.lifting height(mm) | 1600 |
| Lowered height of forks(mm) | 90 |
| Fork length (mm) | 900 |
| Adjustable Width of fork(mm) | 300-120 |
| Lifting speed(mm/stroke) | 20 |
| lowering speed(mm/stroke) | Controllable |
| Operation power of crank(kg) | 24 |
| Outer width of front legs (mm) | 1400 |
| Front wheel size(mm) | φ75x70 |
| Rear wheel size(mm) | φ180x50 |
| Overall size(mm) | 2080x1400x1470 |
| Self Weight(kg) | 210 |
