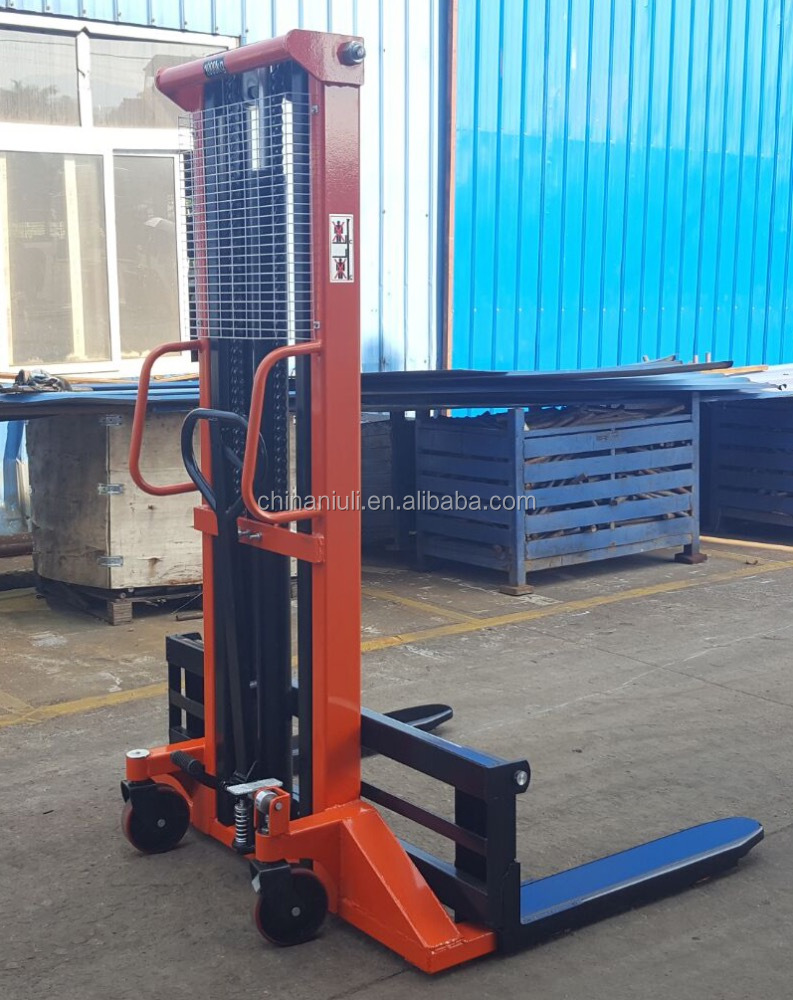

The Hand Stacker will be mobile, with easy push or pull by hand. All wheels will be provided with double ball bearings with dust covers.
The hydraulic unit is with special wear resistant seals, which ensures 100% Leak Proof system. Lifting is done by up Down of handle as well as by a foot operated lever which is a unique feature of the stackers.
This Hand Stacker lifts loads with manual hydraulic jack. The hydraulic unit is equipped with foot pedal to control fork lowering rate and ensure the hydraulic action accurate and reliable.
The Lifting Forks are very easily adjustable to decrease or increase the width as required for pallets available with user.
The Castors are equipped with brakes. The front and rear wheels are provided with double ball bearings for easy movement. The wheels are provided with double ball bearings for easy movement. The wheels are made of PU that is wearable, endurable and unharmful to working surface.

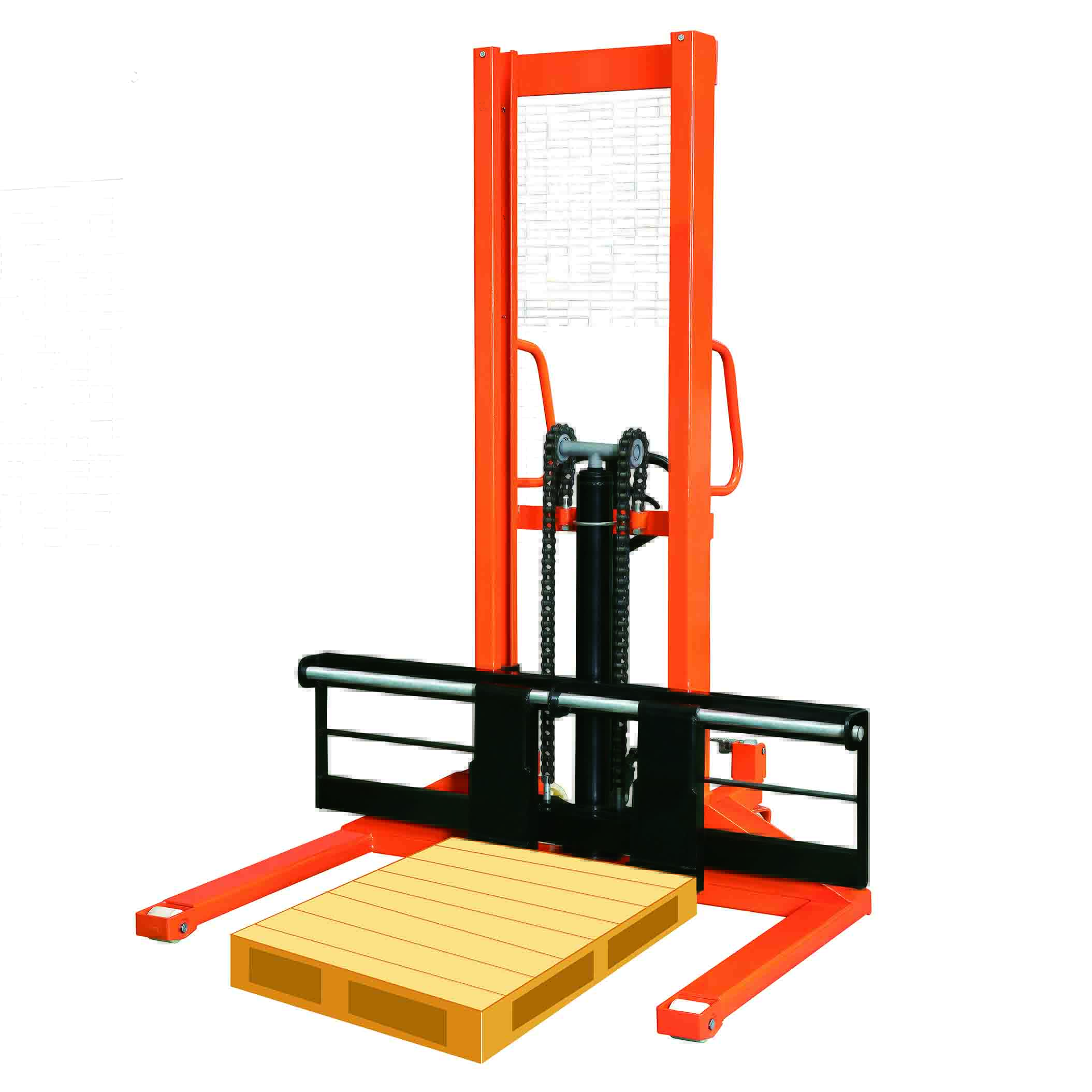

The Wide leg hand stacker is used in loading &unloading double-face & sigle face pallets.The double one is not suitable for normally stakcer.
| Modell | CTY.EW1.0T/1.6M | CTY.EW1.5T/1.6M | CTY.EW1.5T/2.5M | CTY.EW2.0T/1.6M |
| Load CAP | 1000kg | 1500kg | 1500kg | 2000kg |
| Max. Lifting Height | 1600mm | 1600mm | 2500mm | 1600 |
| Lowered Height of forks | 90mm | 90mm | 90mm | 90mm |
| Outer Width of leg | 1400mm | 1400mm | 1400mm | 1400mm |
| Fork Length | 900mm | 900mm | 900mm | 900mm |
| Adjustable width of forks(mm) | 320-1400 | 320-1400 | 320-1400 | 320-1400 |
| Lifting Speed | 20mm/stroke | 20mm/stroke | 20mm/stroke | 20mm/stroke |
| Operation power | 24kg | 24kg | 24kg | 24kg |
| Overall size(mm) | 1470*1400*2080 | 1470*1400*2080 | 1470*1400*2080 | 1470*1400*2080 |
| Self weight(Kg) | 210 | 255 | 320 | 280 |
Warranty: 1 Year.
Niuli Machinery is the leading brand in MHE in China!
We specializing on manufacturing material handling equipments,such as pallet truck,manual stacker,tail lift,forklift and electric pallet truck,,The sales and post sales network cover the whole China market.
"Nili" brand enjoys high reputation in the internal and overseas market.Our company has been passed ISO9001:2000 Certification of Quality Management System and the main products have been passed the CE/GS certification by TUV in Germany.
Our company aims at meeting the customers' needs,together with all our staff,contributes our all to improving logistics industry efficient with the responsibility of creating your benefits by using products.
