GTWY
NIULI
| Quantity: | |
|---|---|
Model | GTWY802 | GTWY1002 | GTWY1202 |
Capacity (kg) | 300 | 250 | 200 |
Max Platform height H1(m) | 8 | 10 | 12 |
Max working height H2 (m) | 10 | 12 | 14 |
Platform size (m) | 1.28×0.66 | 1.54×0.66 | 1.54×0.66 |
Overall length A (m) | 1.53 | 1.79 | 1.79 |
Overall width B (m) | 0.82 | 0.82 | 0.87 |
Overall height H3(m) | 1.81 | 1.86 | 2.03 |
Outrigger Footprint(L/W) | 1.65×1.66 | 2.13×1.89 | 2.13×1.94 |
Ground clearance (m) | 0.08 | 0.08 | 0.08 |
Wheelbase | 1.18 | 1.44 | 1.44 |
Front wheels size (inch) | 8 | 8 | 8 |
Real wheel (inch) | 8 | 8 | 8 |
Battery | 2-12V/65Ah | 2-12V/65Ah | 2-12V/65Ah |
Integrated charger | 12V/15A | 12V/15A | 12V/15A |
Lifting motor (AC) | 110-230V/1.5KW | 110-230V/1.5KW | 110-230V/1.5KW |
Lifting motor (DC) | 12V/1.5KW | 12V/1.5KW | 12V/1.5KW |
Lifting time (S) | 62 | 70 | 75 |
Lowering time (S) | 43 | 46 | 54 |
Self weight (kg) | 630(AC) | 730(AC) | 825(AC) |
What material is the lifting platform mast made of?
It adopts high-strength aluminium alloy material, equipped with synchronous dual-mast lifting structure.
Why does the platform run steadily during lifting?

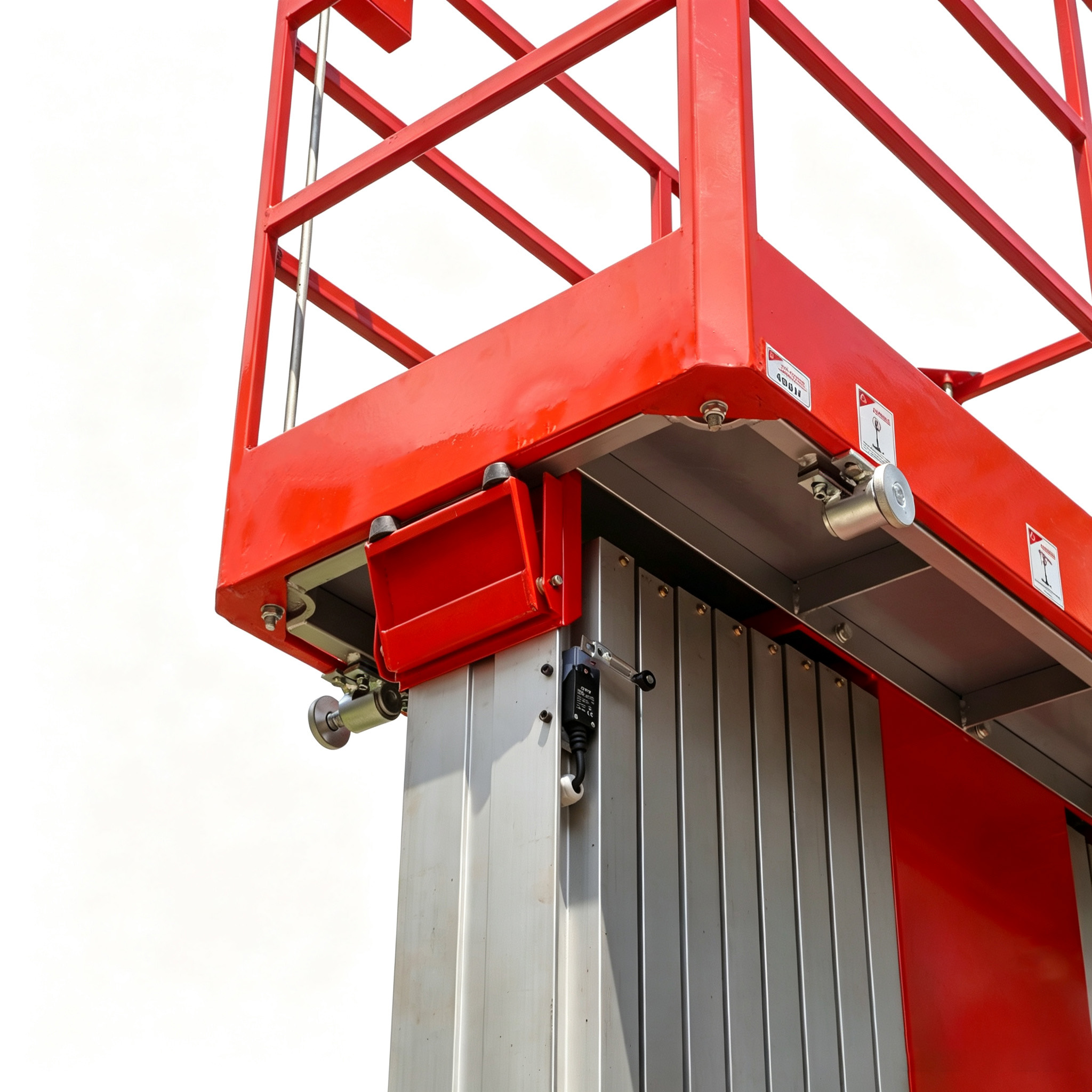

It is fitted with guide sliders, which effectively reduce shaking and guarantee stable lifting operation.
What lifting height options are available for this model?
We provide multiple specifications: 6m, 8m, 10m, 12m, 14m, 16m and 18m.
What is the maximum load capacity of the GTWY series lift platform?
The maximum load reaches 300kg, which supports two workers to operate with tools.
How to ensure stability when working on uneven ground?

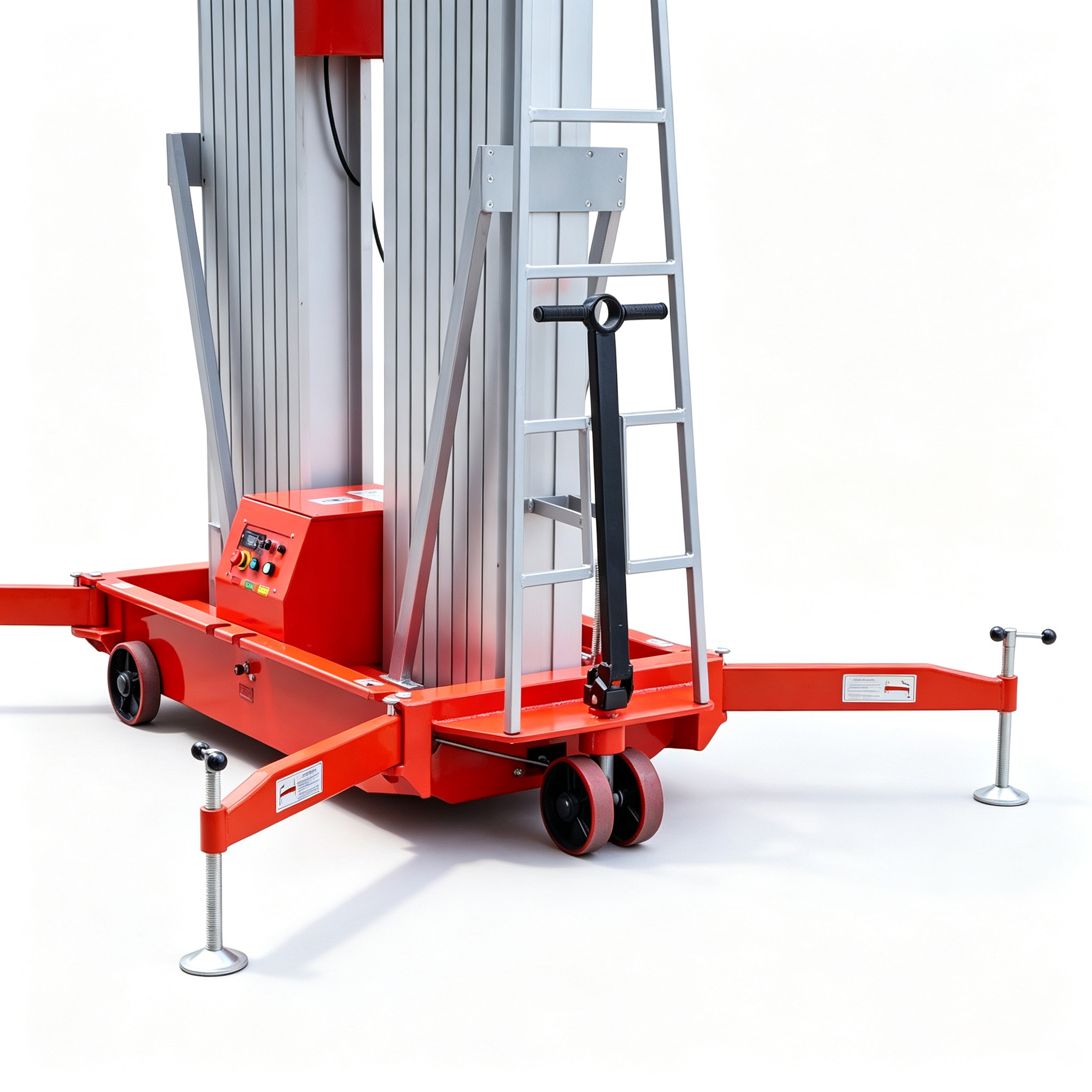

It comes with telescopic outriggers, which can be unfolded to adjust the level and stabilize the whole machine.
What safety protection devices are equipped on the machine?
Standard configurations include emergency stop button, overload protection device and emergency lowering valve.
What application scenarios are suitable for this aluminium lifting platform?
It is widely used for indoor maintenance, equipment installation, cleaning work and exhibition setup.
What are the advantages of this platform in daily use?
The equipment features low failure rate and simple structure, bringing easy daily maintenance.
