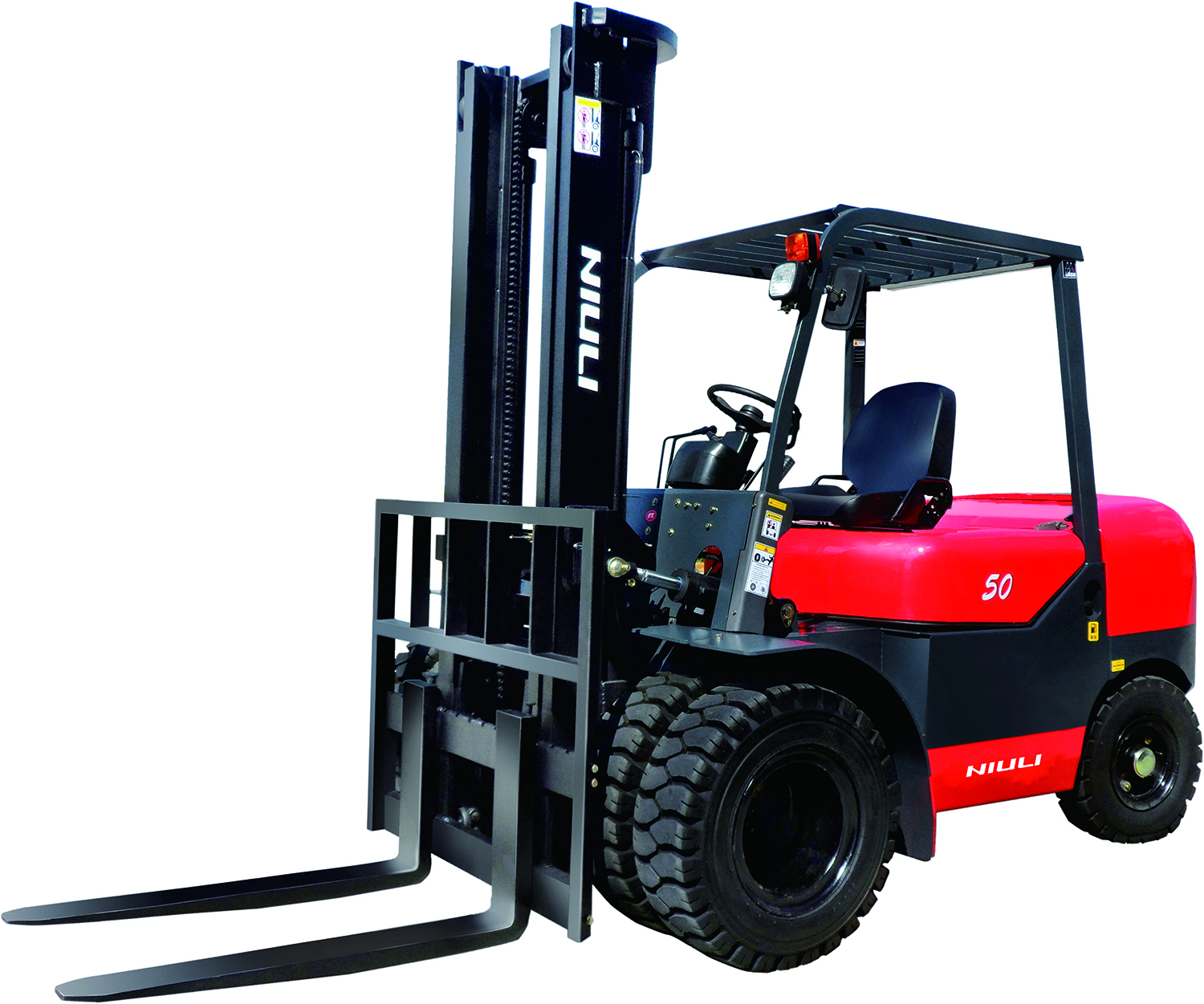

The motor power system and power transmission system adopt domestic advanced shock absorption technology to reduce the vibration from the power system and make the operator feel more comfortable. Equipped with a high-definition liquid crystal display device, the operator can easily understand the working status, expand the visual area, and make it more convenient and fast for the operator to view the instrument.
● Specially designed overhead guard provides better protection for operators;
● Strong engine power, high reliability, compact structure, stable power transmission;
● The specially designed solid-state digital liquid crystal display instrument has rich and clear visual content, super stable and reliable performance, making the work safer and more secure.
| Model | CPCD45 | CPCD50 | |
Characteristics | Power Type | Diesel | Diesel |
Operation type | seat | seat | |
| Rated capacity(kg) | 4500 | 5000 | |
| Load centre(mm) | 500 | 500 | |
| Lift height(mm) | 3000 | 3000 | |
| Mast Tilt Angle(Deg) | 6°/12° | 6°/12° | |
Dimensions | Forksize(L*W*T)(mm) | 1070x150x50 | 1070x150x50 |
| Length of fork(with/without fork)（mm） | 4320/3218 | 4320/3218 | |
| Overall width（mm） | 1490 | 1490 | |
| Mast Extended Height(with backrest)（mm） | 4260 | 4260 | |
| Mast Lowered Height（mm） | 2245 | 2245 | |
| Mast Lowered Height（mm） | 2290 | 2290 | |
| seat height（mm） | 960 | 960 | |
| fork adjustment(max/min)（mm） | 1390/300 | 1390/300 | |
| Turning Radius(outside)(mm) | 2974 | 2974 | |
| Min.tinersecting aisle(mm) | 3100 | 3100 | |
| min.ground clearance(mm) | 160 | 160 | |
| front overhang(mm) | 560 | 560 | |
| rear overhang(mm) | 590 | 590 | |
| Wheel base（mm） | 2100 | 2100 | |
| tread（front/rear)(mm) | 1180/1190 | 1180/1190 | |
Performance | Travel speed（Full/Empty load）（km/h） | 18/19 | 18/19 |
| Lifting speed（Full/Empty load）(mm/s) | 380/410 | 380/410 | |
| Lowering speed（Full/Empty load）(mm/s) | 380/340 | 380/340 | |
| Maximum traction（Full/Empty load）（KN） | 22/18 | 22/18 | |
| Max.Gradeability（Full load）（%） | 20 | 20 | |
| Truck weight(unload)（kg） | 6500 | 6600 | |
Others | Tyres,number (front/rear) | 2X/2 | 2X/2 |
Tyre type | Polyurethane | Polyurethane | |
Tyre dimensions | 300-15-18PR | 300-15-18PR | |
Service braking | Feet/Hydraulic | Feet/Hydraulic | |
Feet/Hydraulic | Manual/mechanical | Manual/mechanical | |
