DCQH Hydraulic Mobile Dock Ramp（Export Version）

Name: DCQH Hydraulic Mobile Dock Ramp（Export Version）
Brand: NIULI
Rating: 5.0 (45 reviews)

NIULI DCQH movable hydraulic dock ramp features stable structure and easy operation, suitable for container loading and unloading. 5 units can be loaded into one 40HQ container, with high space utilization and lower bulk transportation cost, widely used in logistics parks, ports and warehouses.

Model:
DCQH
Brand:
NIULI

Quantity:
Availability:





Inquire Add to Basket

Product Description

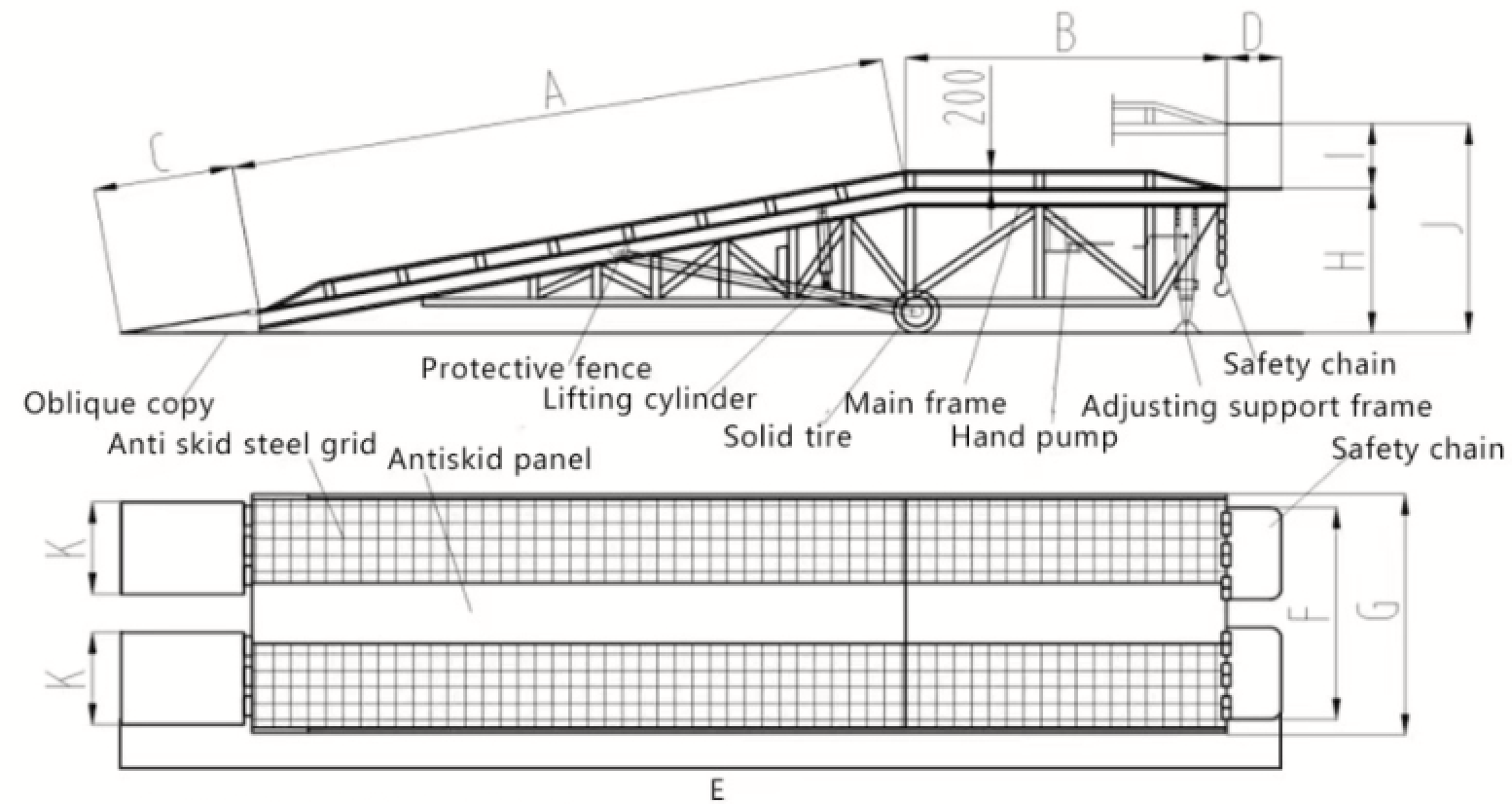

PARAMETER TABLE (for Mobile Loading Ramp)

Model	Capacity (kg)	A	B	C	D	E	F	G	H	J	I
DCQH8T	8000	7000	3000	1000	300	10000	1800	2100	1100	1600	500
DCQH10T	10000	8000	3000	1000	300	11000	1800	2100	1100	1600	500
DCQH12T	12000	9000	3000	1000	300	11000	1800	2100	1100	1600	500

How many DCQH dock ramps fit in a 40HQ container?

5 units can be loaded into one 40HQ container, compact packing with low shipping cost.

What’s its main application?
For fast loading & unloading between trucks and warehouses, suitable for containers and lorries.

How does it lift?
Manual hydraulic lifting, no external power needed, usable indoors and outdoors.

Is the platform anti‑slip?
High‑strength anti‑slip grating platform, safe for forklift driving.

Does it have safety protection?
With safety outriggers and anti‑slip side plates, stable and anti‑tipping.
Where can it be used?
Logistics parks, ports, factories, freight stations, supermarkets and warehouses.
