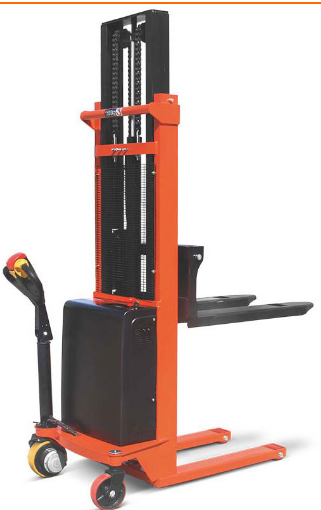

The multi-functional smart control handle include accelerator, reversing safety button, lowering release lever and power indicator, it is also with the function of switching the mode to drive when the handle in an upright status.
The stacker with an integral design of key switch as well as the emergency power-off button which can protect the electrical system, save electric power and ensure the safety when not working.
The stacker equipped with high performance Curtis controller and drive motor, the polyurethane wheel with high quality and durable in use. The scientific and reasonable layout ensure an excellent performance and convenience in maintenance.
| Model | CTD-C1.0 | CTD-C1.5 |
| Capacity(kg) | 1000 | 1500 |
| Lifting height(mm) | 1600、2000、2500、3000 | 1600、2000、2500、3000 |
| Load center(mm) | 500 | 500 |
| Forks clearance from the ground(mm) | 85 | 85 |
| Fork length(mm) | 1000/1150/1200 | 1000/1150/1200 |
| Maximum forks width(mm) | 680 | 680 |
| Minimum ground clearance(mm) | 25 | 25 |
| Traction speed(unlade/lade)(km/h) | 4.5/3 | 4.5/3 |
| Lifting speed(unlade)(mm/s) | 90±10% | 90±10% |
| Lifting speed(lade)(mm/s) | 60 | 60 |
| Lowering speed(mm/s) | ≤300 | ≤300 |
| Minimum turning radius(mm) | 1500 | 1500 |
| Aisle width for pallets1000*1000(mm) | 2270 | 2270 |
| Front wheel dimensions(mm) | φ80×70 | φ80×93 |
| Rear wheel dimensions(mm) | φ180×50 | φ180×50 |
| Total length(mm) | 1650±20 | 1650±20 |
| Total width(mm) | 820 | 820 |
| Battery volts/ampere | 24V80AH | 24V80AH |
| Battery Charger | AC220V/50HZ-DC24V/10A | AC220V/50HZ-DC24V/10A |
| Lift motor(KW) | DC24V-2.2KW | DC24V-2.2KW |
| Traction motor(KW) | DC24V-0.75KW | DC24V-0.75KW |
| Gear pump(ml/r) | CBWn-F2.5 | CBWn-F2.5 |
| Battery weight(±5%)(kg) | 45 | 45 |
| Truck weight(without battery)(kg) | 300/360/390/420 | 320/380/410/440 |
