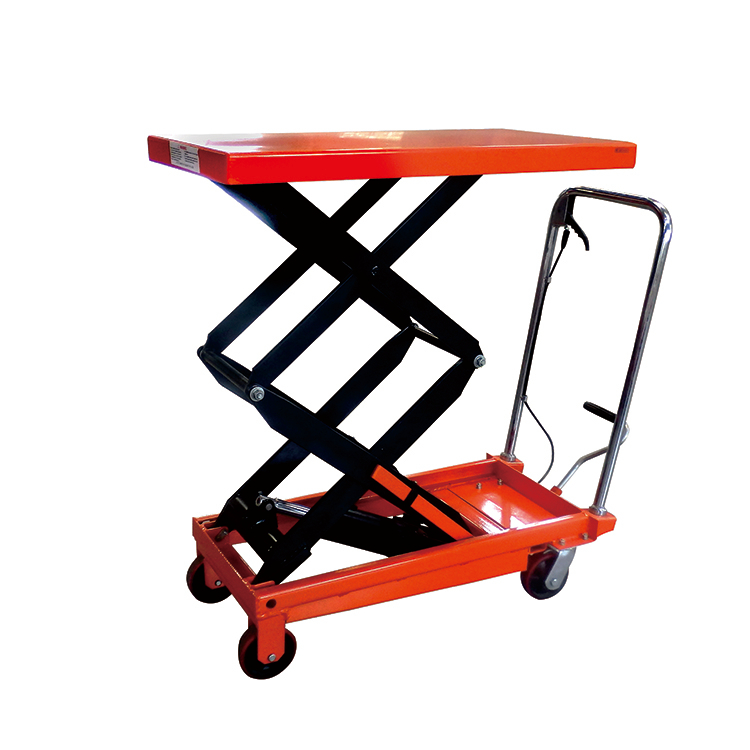

WP hydraulic platform truck is made of high-strength steel, with reasonable design structure, safe, stable and reliable, built-in safety valve, fully sealed oil cylinder, manual control of hydraulic system lifting, convenient and simple operation. Equipped with guide wheels to save the operator's physical strength, and can protect the load wheels and pallet load wheels.
● The hoisting system is divided into foot pedal and manual control, and the operation is simple;
● Greatly improve work efficiency, reduce labor intensity of workers, and can also be modified for loading, unloading and lifting heavy objects.
| Model | WP-300 | WP-350 | WP-500 | WP-1000 |
| Capacity(kg) | 300 | 350 | 500 | 1000 |
| Max.height(mm) | 900 | 1300 | 900 | 1000 |
| Min.height(mm) | 280 | 350 | 280 | 350 |
| Self weight(mm) | 80 | 110 | 85 | 106 |
| Platform size(mm) | 810×500×50 | 900×500×50 | 810×500×50 | 1000×510×60 |
| Overall size(mm) | 1130×500×970 | 1250×500×960 | 1130×500×970 | 1300×510×1000 |
| Packing size(mm) | 925×515×290 | 990×520×360 | 930×520×290 | 1150×520×360 |
| 20ft container load(pcs) | 120 | 120 | 120 | 120 |
