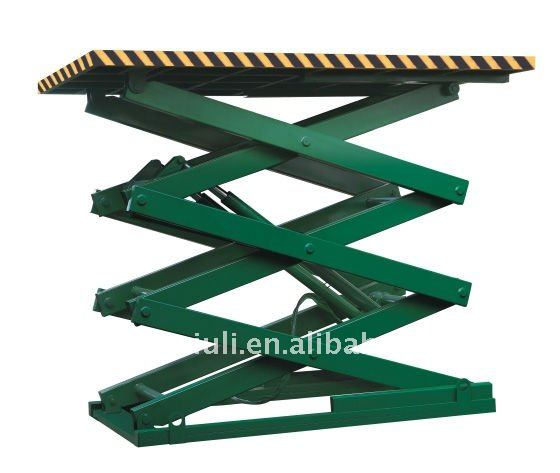

Man lift stationary industrial platform lift cargo,stationery hydraulic lifter

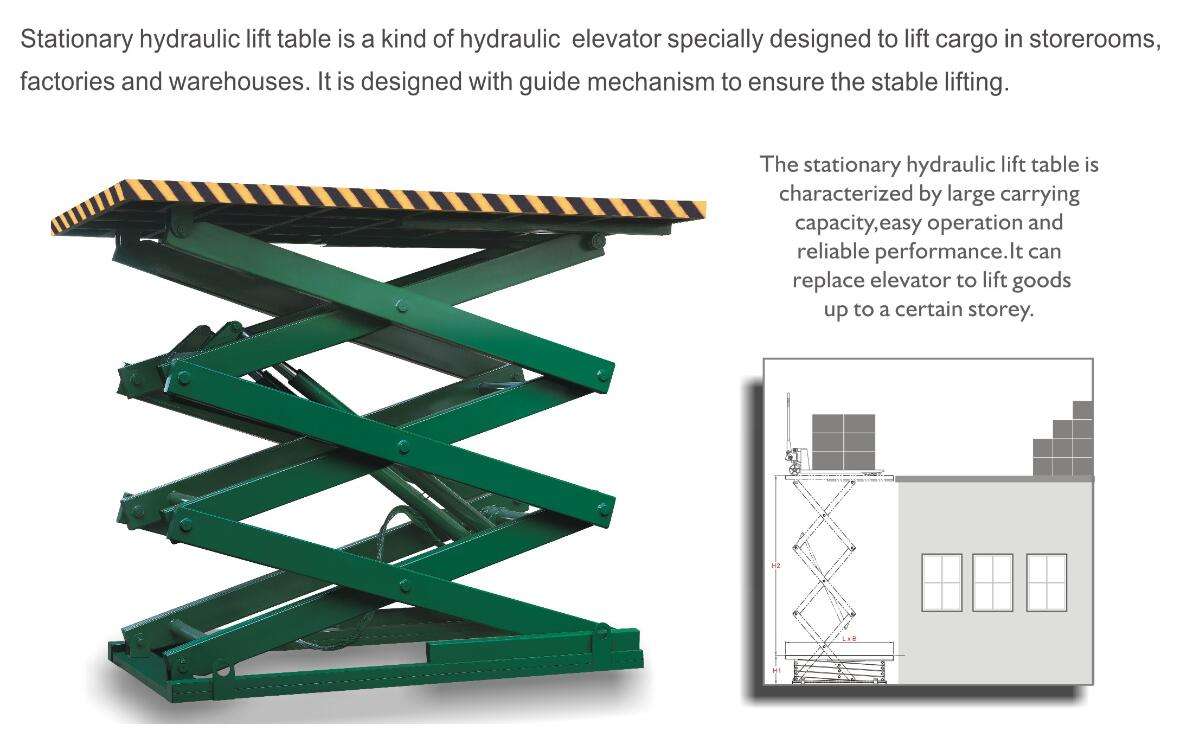

The stationary hydraulic lift table is characterized by large carrying capacity, easy operation and reliable performance. It can replace elevator to lift goods up to a certain storey.
For specifications, please refer to the following chart:
Single Fork frame
| Model | Load capacity(kg) | Lifting height(mm) | Rated height(mm) | Low height(mm) | Platform size(mm) | Elevating time(s) | Motor power(kw) | Total weight(kg) |
| SJG1-1.7 | 1000 | 1700 | 2160 | 460 | 2500*2000 | 30 | 2.2 | 1200 |
| SJG2-1.7 | 2000 | 1700 | 2180 | 480 | 2500*2000 | 30 | 3.7 | 1400 |
| SJG3-1.7 | 3000 | 1700 | 2180 | 480 | 2500*2000 | 30 | 3.7 | 1600 |
| SJG5-1.7 | 5000 | 1700 | 2280 | 580 | 2800*2000 | 30 | 7.5 | 2000 |
| SJG10-1.7 | 10000 | 1700 | 2500 | 800 | 4000*2000 | 30 | 7.5 | 3000 |
Double-fork frame
| Model | Load capacity(kg) | Lifting height(mm) | Rated height(mm) | Low height(mm) | Platform size(mm) | Elevating time(s) | Motor power(kw) | Total weight(kg) |
| SJG1-3 | 1000 | 3000 | 3540 | 540 | 2000*2000 | 30 | 2.2 | 1300 |
| SJG2-3 | 2000 | 3000 | 3600 | 600 | 2000*2000 | 30 | 3.7 | 1600 |
| SJG3-3 | 3000 | 3000 | 3600 | 600 | 2000*2000 | 30 | 3.7 | 1800 |
Multi-fork frame
| Model | Load capacity(kg) | Lifting height(mm) | Rated height(mm) | Low height(mm) | Platform size(mm) | Elevating time(s) | Motor power(kw) | Total weight(kg) |
| SJG1-4 | 1000 | 4000 | 4680 | 680 | 2000*2000 | 40 | 2.2 | 1500 |
| SJG2-4 | 2000 | 4000 | 4740 | 740 | 2000*2000 | 40 | 3.7 | 1800 |
| SJG3-4 | 3000 | 4000 | 4800 | 800 | 2000*2000 | 40 | 5.5 | 2000 |
| SJG1-5 | 1000 | 5000 | 5800 | 800 | 2000*2000 | 60 | 2.2 | 1700 |
| SJG2-5 | 2000 | 5000 | 5880 | 880 | 2000*2000 | 60 | 3.7 | 2100 |
| SJG3-5 | 3000 | 5000 | 5960 | 960 | 2000*2000 | 60 | 5.5 | 2500 |
| SJG1-6 | 1000 | 6000 | 7020 | 1020 | 2000*2000 | 70 | 3.7 | 2000 |
| SJG2-6 | 2000 | 6000 | 7120 | 1120 | 2000*2000 | 70 | 5.5 | 2500 |
| SJG3-6 | 3000 | 6000 | 7120 | 1120 | 2000*2000 | 70 | 5.5 | 2500 |
| SJG1-9 | 1000 | 9000 | 10280 | 1280 | 2500*2000 | 100 | 5.5 | 3500 |
SJG4-4 | 4000 | 4000 | 4740 | 740 | 4500*2000 | 50 | 5.5 | 3500 |
| SJG4-5 | 4000 | 5000 | 5880 | 800 | 6000*2000 | 60 | 5.5 | 4000 |
| SJG5-5.5 | 5000 | 5500 | 6380 | 880 | 6000*2000 | 60 | 7.5 | 5000 |
