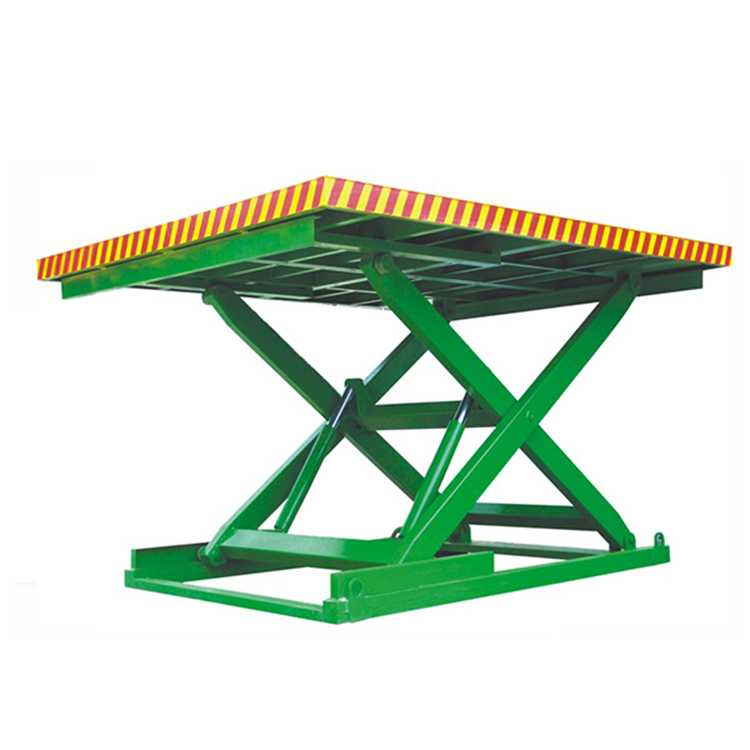

Stationär hydraulesch Schéierlift Dësch
Stationär hydraulesch Lift Dësch ass eng Zort hydraulesch Lift speziell entwéckelt fir Fracht an Lagerraum, Fabriken a Lagerhaiser ze hiewen. Et ass mat Guide Mechanismus entworf fir de stabile Levée ze garantéieren.
| Modell | Kapazitéit (kg) | Lifthöhe H2(mm) | Bewäert Héicht (mm) | Lift Héicht (mm) | Plattform Gréisst (mm) | Erhéijung Zäit (en) | Motor Muecht (kw) | Selbstgewicht (kg) |
| eenzege Gabel | ||||||||
| SJG1-1.7 | 1000 | 1700 | 2160 | 460 | 2500x2000 | 30 | 2.2 | 1200 |
| SJG2-1.7 | 2000 | 1700 | 2180 | 480 | 2500x2000 | 30 | 3.7 | 1400 |
| SJG3-1.7 | 3000 | 1700 | 2180 | 480 | 2500x2000 | 30 | 3.7 | 1600 |
| SJG5-1.7 | 5000 | 1700 | 2280 | 580 | 2800x2000 | 30 | 7.5 | 2000 |
| SJG10-1.7 | 10000 | 1700 | 2500 | 800 | 4000x2000 | 30 | 7.5 | 3000 |
| - tandem Gabel | ||||||||
| SJG1-3 | 1000 | 3000 | 3540 | 540 | 2000x2000 | 30 | 2.2 | 1300 |
| SJG2-3 | 2000 | 3000 | 3600 | 600 | 2000x2000 | 30 | 3.7 | 1600 |
| SJG3-3 | 3000 | 3000 | 3600 | 680 | 2000x2000 | 30 | 3.7 | 1800 |
| Multi Gabel | ||||||||
| SJG1-4 | 1000 | 4000 | 4680 | 740 | 2000x2000 | 40 | 2.2 | 1500 |
| SJG2-4 | 2000 | 4000 | 4740 | 800 | 2000x2000 | 40 | 3.7 | 1800 |
| SJG3-4 | 3000 | 4000 | 4800 | 800 | 2000x2000 | 40 | 5.5 | 2000 |
| SJG1-5 | 1000 | 5000 | 5800 | 880 | 2000x2000 | 60 | 2.2 | 1700 |
| SJG2-5 | 2000 | 5000 | 5880 | 960 | 2000x2000 | 60 | 3.7 | 2100 |
| SJG3-5 | 3000 | 5000 | 5960 | 1020 | 2000x2000 | 70 | 5.5 | 2500 |
| SJG1-6 | 1000 | 6000 | 7020 | 1120 | 2000x2000 | 70 | 3.7 | 2000 |
| SJG2-6 | 2000 | 6000 | 7120 | 1280 | 2000x2000 | 70 | 5.5 | 2500 |
| SJG3-6 | 3000 | 6000 | 7120 | 1520 | 2000x2000 | 100 | 5.5 | 3000 |
| SJG1-9 | 1000 | 9000 | 10280 | 740 | 2500x2000 | 120 | 5.5 | 3500 |
| SJG2-9 | 2000 | 9000 | 10520 | 800 | 2500x2000 | 50 | 7.5 | 4800 |
| Multi Gabel | ||||||||
| SJG4-4 | 4000 | 4000 | 4740 | 880 | 4500x2000 | 60 | 5.5 | 3500 |
| SJG4-5 | 4000 | 5000 | 5880 | 1120 | 6000x2200 | 60 | 5.5 | 4000 |
| SJG5-5.5 | 5000 | 5500 | 6380 | 600 | 6000x2200 | 60 | 7.5 | 5000 |
