Reach trucks are essential in warehouses, known for their ability to operate in narrow aisles and lift loads to significant heights. A common question for anyone managing or working in a warehouse is: exactly how much weight can a reach truck lift? The answer isn't a single number. It depends on several factors, including the truck's model, specifications, and operational conditions.
Understanding the lifting capacity of a reach truck is critical for ensuring safety, efficiency, and compliance in any storage facility. Overloading a truck can lead to serious accidents, damage to goods, and costly equipment repairs. This guide will explain the factors that determine a reach truck's capacity, how to find this information, and best practices for safe lifting.

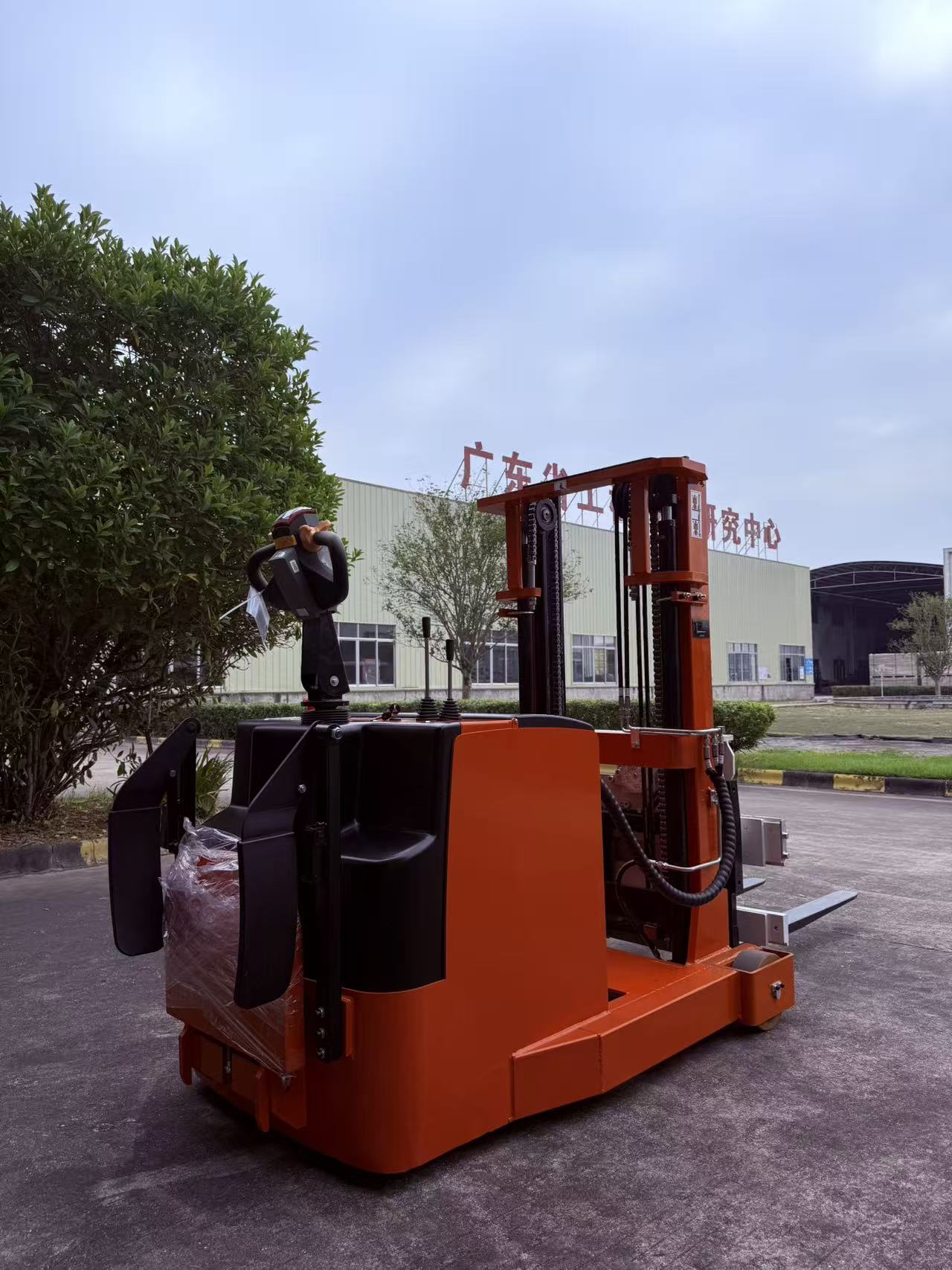

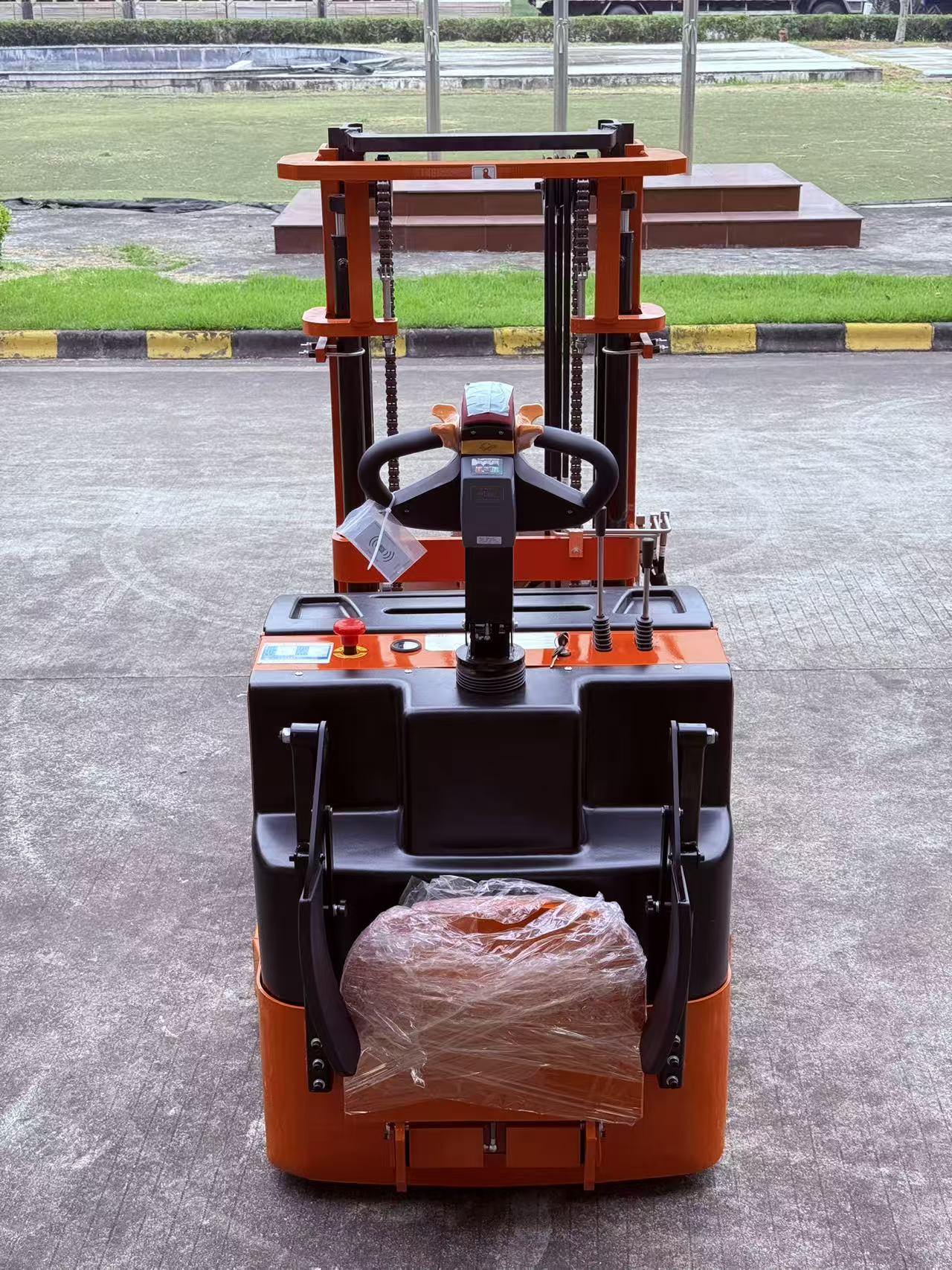

Before we explore lifting capacities, let's quickly define what a reach truck is. A reach truck is a specialized type of forklift designed primarily for warehouse environments with high-density racking. Its key feature is the ability to "reach" its forks forward into racking to retrieve or deposit pallets. This is achieved through a pantograph or moving mast mechanism. This design allows them to work in much narrower aisles than standard counterbalance forklifts, maximizing a warehouse's storage space.
Reach trucks are typically battery-powered and designed for indoor use on smooth, flat surfaces. Their ability to lift loads to heights often exceeding 30 feet makes them indispensable for modern logistics operations.
When discussing how much a reach truck can lift, it's important to distinguish between two key terms: rated capacity and net (or residual) capacity.
The rated capacity, sometimes called the nominal capacity, is the maximum weight a reach truck is designed to lift under ideal conditions. This figure is determined by the manufacturer and is based on a standard load center (usually 24 inches or 600 mm) and a specific lift height. You can think of this as the truck's "headline" lifting capability. For a typical reach truck, the rated capacity might be around 4,500 pounds (approximately 2,000 kilograms).
However, this number represents a best-case scenario. In real-world applications, several factors reduce this maximum capacity.
The net capacity, also known as residual capacity, is the actual amount of weight a reach truck can safely lift at a specific height and load center. As the forks lift higher and the load center shifts, the truck's stability decreases, and so does its lifting capacity.
For example, a reach truck with a rated capacity of 4,500 pounds might only be able to safely lift 2,500 pounds to its maximum height. The net capacity is the most important figure for operators to know for their specific lifting tasks.
A reach truck's actual lifting ability is influenced by a combination of factors. Understanding these variables is key to safe and efficient operation.
This is the most significant factor affecting net capacity. As the mast extends and the load is lifted higher, the truck's center of gravity rises, making it less stable. To compensate for this reduced stability, the maximum allowable weight decreases. A reach truck's capacity at 30 feet will be significantly lower than its capacity at 15 feet.
The load center is the horizontal distance from the vertical face of the forks to the center of gravity of the load. Most reach trucks are rated with a standard 24-inch load center, which assumes a standard 48-inch by 48-inch pallet is picked up correctly. If a load is longer, oddly shaped, or not positioned correctly against the fork carriage, the load center increases. This shifts the combined center of gravity forward, drastically reducing the safe lifting capacity.
The defining feature of a reach truck—the ability to extend its forks—also impacts its capacity. When the pantograph mechanism is extended, the load is moved further away from the truck's base. This has a similar effect to increasing the load center, reducing stability and lowering the net capacity. The maximum capacity figures are always calculated with the reach mechanism fully retracted.
Any attachment added to the forks, such as a side shifter, fork positioner, or slip-sheet attachment, adds weight and moves the truck's center of gravity forward. The weight of the attachment itself must be subtracted from the truck's lifting capacity. Furthermore, because attachments often shift the load further from the mast, they also increase the effective load center, further reducing the net capacity.
Different reach truck models are built for different tasks. Factors like the truck's own weight, wheelbase, and the type of mast (duplex, triplex) all play a role in its inherent stability and lifting capability. Heavy-duty models will naturally have a higher rated capacity than lighter, more compact ones.
Every reach truck is required to have a data plate or capacity plate, which is usually located in the operator's cabin in plain sight. This plate is the single source of truth for the truck's lifting capabilities.
The data plate provides detailed information about the truck's net capacity at various lift heights and load centers. It will typically feature a chart or table that shows the maximum allowable weight for different combinations of these factors.
How to read the data plate:
1.Identify the lift height: Find the row corresponding to the height you need to lift the load.
2.Identify the load center: Find the column for your load's center. For standard pallets, this is usually 24 inches.
3.Find the net capacity: The value where the row and column intersect is the maximum weight you can safely lift for that specific operation.
Operators must be trained to read and understand this plate before using any reach truck. If the plate is missing, damaged, or unreadable, the truck should be taken out of service immediately until it can be replaced.
While the exact capacity depends on the factors above, we can provide some general ranges to give you an idea of what to expect:
· Standard Reach Trucks: Most common reach trucks have a rated capacity between 3,000 to 5,500 pounds (approx. 1,400 to 2,500 kg). A popular capacity class is around 4,500 pounds.
· Deep-Reach Trucks: These trucks have longer forks designed to access pallets stored two-deep in racking. Their reach mechanism extends further, which generally results in a lower capacity compared to standard reach trucks, often topping out around 3,000 to 4,500 pounds (approx. 1,400 to 2,000 kg).
· High-Capacity Models: For heavier applications, some manufacturers offer heavy-duty reach trucks that can lift more, but these are less common.
Remember, these are rated capacities. The net capacity at full height could be 50% or less of these figures.
The lifting capacity of a reach truck is not a simple number but a dynamic variable dependent on the task at hand. While a reach truck might have a rated capacity of 4,500 pounds, its actual safe lifting limit is determined by the lift height, load center, and any attachments being used.
The data plate is the definitive guide for any operator. Ensuring every operator is trained to read and respect the limits stated on the capacity plate is the most critical step toward preventing accidents and maintaining a safe warehouse environment. By understanding the principles of rated vs. net capacity and the factors that influence it, you can ensure your reach truck fleet operates both efficiently and, most importantly, safely.
