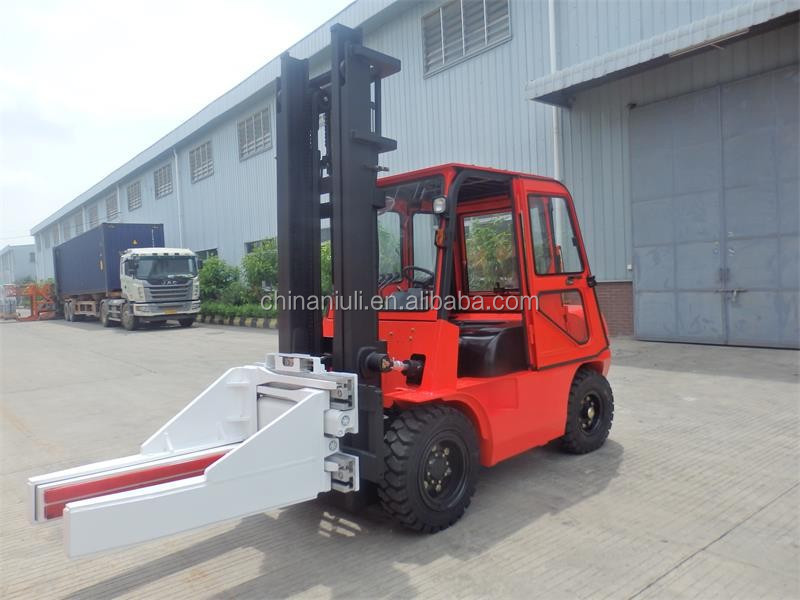

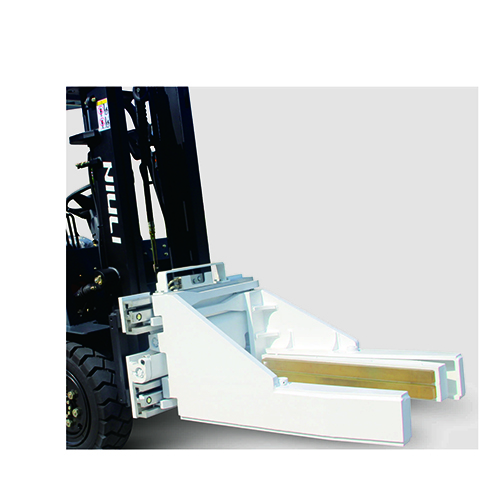

Forklift block clamp
1.Material:steel
2.Warranty:12 months
3.Certificates:ISO9001:2000 CE
4.Used in block factories & lines
Forklift block clamp
1.Applications:
-Forklift block clamp can efficiently handle various types of solid, regular cubic goods under normal temperature.
-Widely used in construction material, metallurgy industries for handling concrete blocks, cement bricks, carton cubes, etc. The high structural strength and durability ensura the safe, productive application and long service life.
| General | 1 | Model | CPC30/CPCD30 | CPC35/CPD35 | ||||||
| 2 | Power Type | Diesel/GAS | Diesel/GAS | |||||||
| 3 | Rated capacity | Kg | 3000 | 3500 | ||||||
| 4 | Load center | mm | 500 | 500 | ||||||
| Charactertic | 5 | Lifting height | mm | 3000 | 3000 | |||||
| 6 | Fork size | mm | 1070*122*40 | 1070*122*40 | ||||||
| 7 | Mast Tilt Angle | Deg | 6°/12° | 6°/12° | ||||||
| 8 | Front Overhang(Wheel center to fork face) | mm | 500 | 500 | ||||||
| 9 | Ground Clearance(Bottom Of Mast) | mm | 126 | 126 | ||||||
| 10 | Overall Dimension | Overall length(with/without fork) | mm | 3790/2700 | 3790/2700 | |||||
| 11 | Overall width | mm | 1230 | 1230 | ||||||
| 12 | Mast lowered height | mm | 2105 | 2105 | ||||||
| 13 | MastExtended height(with backrest) | mm | 4110 | 4110 | ||||||
| 14 | Overhead guard height | mm | 2140 | 2140 | ||||||
| 15 | Turning Radius(outside) | mm | 2415 | 2415 | ||||||
| 16 | Min. intersecting aisle | mm | 2500 | 2500 | ||||||
| Performance | 17 | Speed | Travel(Full/Empty load) | km/h | 18/19 | 18/19 | ||||
| 18 | Lifting(Full/Empty load) | mm/s | 460/540 | 530/540 | ||||||
| 19 | Max.Gradeability | % | 20 | 20 | ||||||
| Chassis | 20 | Tire | Front | 28x9-15-12PR | 28x9-15-12PR | |||||
| 21 | Rear | 6.50-10-10PR | 6.50-10-10PR | |||||||
| 22 | Wheelbase | mm | 1650 | 1650 | ||||||
| 23 | Self Weight | kg | 4280 | 4500 | ||||||
| Transmission | 24 | Battery | Voltage/Capacity | V/Ah | 12/120 | 12/120 | ||||
| 25 | Engine | Model | C240 | C490BPG | QC495G | |||||
| 26 | Manufacturer | ISUZU | XinChang | Quanchai | ||||||
| 27 | Rated output/r.p.m | kW/rpm | 34.3/2500 | 34.3/2500 | 42/2650 | |||||
| 28 | Rated torque/r.p.m | Nm/rpm | 137.7/1800 | 160/1800-2000 | 174/1980 | |||||
| 29 | No. of cylinder | 4 | 4 | 4 | ||||||
| 30 | Bore x Stroke | mm | 86x102 | 90x105 | 95x105 | |||||
| 31 | Displacement | cc | 2369 | 2670 | 2980 | |||||
| 32 | Fuel Tank capacity | L | 60 | 60 | 60 | |||||
| 33 | Transmission | Machanical/Hydraulic | Machanical/Hydraulic | |||||||
| 34 | Operation Pressure for Attachment | Mpa | 17.5 | 17.5 | ||||||
