CBY
NIULI
| Quantity: | |
|---|---|
Model |
CBY.5.0T |
Capacity(kg) |
5000 |
Min.fork height(mm) |
85 |
Max.fork height(mm) |
195 |
Fork length(mm) |
1150/1220 |
Width overall forks(mm) |
550/685 |
Steering wheel(mm) |
φ180×52 |
Fork wheel(mm) |
φ80×70 |
Truck weight(kg) |
120/130 |
What is the rated load of NIULI 5 ton manual pallet truck, and does it have overload protection under full load?
Rated load 5000kg, equipped with overload pressure relief valve. It will release pressure automatically when overloaded to protect cylinder and frame, avoiding pump burst and frame deformation.
What standard fork sizes are available, can we customize fork width and length?
Standard outer width 550/685mm, fork length 1150/1220mm. Custom extended, widened and low-profile forks are available for OEM orders.
What manufacturing process is adopted for the hydraulic pump, what are its advantages over ordinary models?
Integrated cast heavy-duty cylinder with thickened double-layer dustproof & leak-proof seals. Labor-saving lifting for heavy loads, no oil leakage under long-term stone and hardware heavy-duty working conditions.

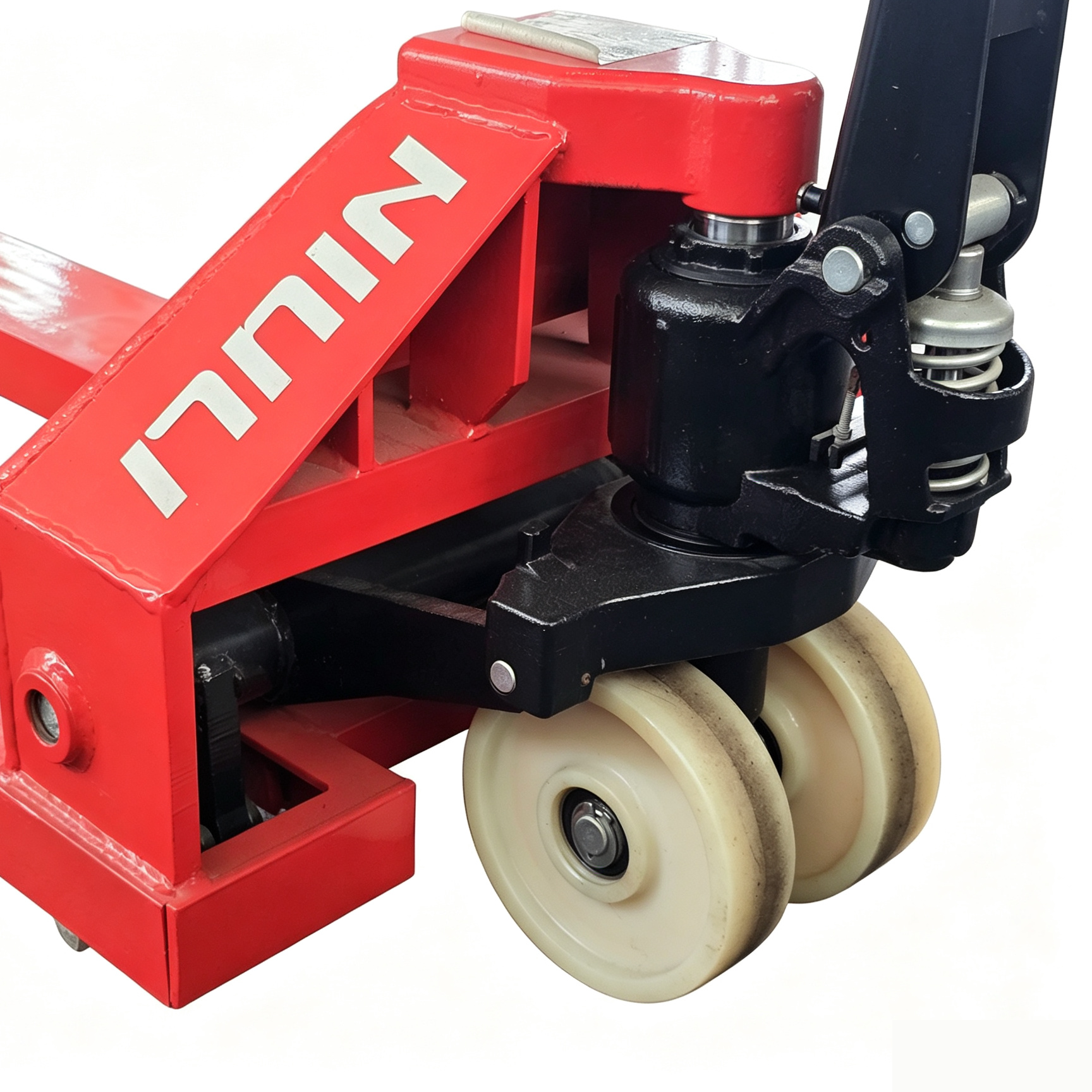

What wheel materials are optional, and which ground are they suitable for respectively?
Nylon wheels are wear-resistant & impact-resistant for cement and rough factory floors; quiet PU wheels protect epoxy floors for clean warehouses.
Does it have CE certificate, which countries can it export to?
The whole machine passes CE industrial safety certification, meets EU standards, available for export to Europe, America, Southeast Asia, Middle East, Australia and other global markets.
What are the minimum ground clearance and maximum lifting height?
Minimum ground clearance 85mm, max lifting height 195mm, compatible with most domestic and EU standard pallets.
What’s the MOQ, can we customize brand LOGO?
Regular MOQ for full container, small sample orders negotiable. ODM/OEM supported, customer LOGO can be printed on frame, handle and pump.
